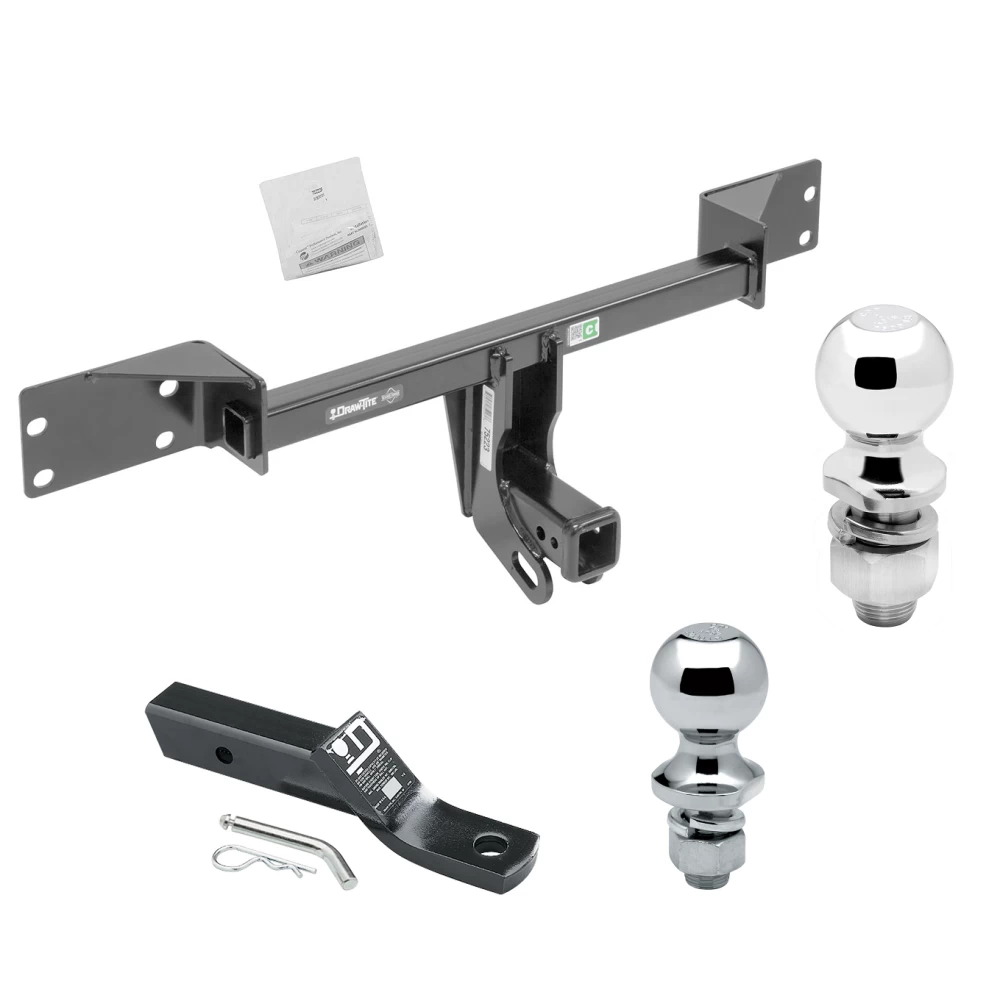

Installation Instructions for Mercedes GLA 250 (2015-Present) and Infiniti QX30 (2017-Present, excluding Sport Models)

Part Numbers:

• 75223
• 44777
• CQT75223

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• 6" Socket Extension
• Flat Head Screwdriver
• T30 and T40 Star Drivers
• Sockets: 8mm, 10mm, 16mm
• Silicone Sealant
• Tin Snips
• Plastic Trim Tools
• Marker

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 350 lbs (159 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 90 minutes

Step-by-Step Instructions:

1. Remove Exhaust Tips:

• Use a T40 driver to remove (2) bolts from the bottom of the exhaust tips on each side.

2. Lower Exhaust:

• Use a 10mm socket to remove (1) bolt from each exhaust hanger bracket.
• Lower the muffler, ensuring it is supported during the process.

3. Remove Taillights:

• Open the trunk and remove (1) plastic wing nut inside on each side.
• Disconnect the wiring and carefully remove the taillights.

4. Loosen Heat Shield:

• Use an 8mm socket to remove (6) flange nuts securing the heat shield.
• Rest the heat shield on the muffler without removing it from the vehicle.

5. Remove Bumper Fascia:

• Use a 10mm socket and flat head screwdriver to remove:
  • (2) plastic rivets and (2) bolts at the bottom of the fascia per side.
  • (1) plastic rivet and (1) bolt at the rear wheel well trim panel per side.
• Gently unclip the rear wheel well trim panels and remove the fascia, ensuring all wiring is unplugged.

6. Remove Bumper Beam:

• Use a 16mm socket to remove (4) flange nuts inside the bumper panel on each side.
• Unclip wiring attached to the passenger-side bumper beam and remove the bumper.

7. Install Hitch:

• Apply silicone sealant around the openings on the end panels on each side.
• Align the hitch with the bumper beam's welded bolts and place them through the original bumper mounting holes.
• Loosely fasten the nuts.

8. Trim Heat Shield:

• Locate the center of the heat shield and trim a 2" tall x 4.5" wide area as shown in the diagram.
• Additional trimming may be needed.

9. Reassemble Components:

• Torque all bumper beam fasteners to 38 lb-ft (52 N·m).
• For Sport Models: Slightly trim the rear fascia bottom if necessary.
• Reinstall the heat shield, fascia, and exhaust system using the original hardware.

Safety Notes:

• Regularly check all fasteners to ensure the hitch is securely attached.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class II
• Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Mercedes GLA 250 (2015-Present) and Infiniti QX30 (2017-Present, excluding Sport Models)

Part Numbers:

• 75223
• 44777
• CQT75223

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• 6" Socket Extension
• Flat Head Screwdriver
• T30 and T40 Star Drivers
• Sockets: 8mm, 10mm, 16mm
• Silicone Sealant
• Tin Snips
• Plastic Trim Tools
• Marker

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 350 lbs (159 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 90 minutes

Step-by-Step Instructions:

1. Remove Exhaust Tips:

• Use a T40 driver to remove (2) bolts from the bottom of the exhaust tips on each side.

2. Lower Exhaust:

• Use a 10mm socket to remove (1) bolt from each exhaust hanger bracket.
• Lower the muffler, ensuring it is supported during the process.

3. Remove Taillights:

• Open the trunk and remove (1) plastic wing nut inside on each side.
• Disconnect the wiring and carefully remove the taillights.

4. Loosen Heat Shield:

• Use an 8mm socket to remove (6) flange nuts securing the heat shield.
• Rest the heat shield on the muffler without removing it from the vehicle.

5. Remove Bumper Fascia:

• Use a 10mm socket and flat head screwdriver to remove:
  • (2) plastic rivets and (2) bolts at the bottom of the fascia per side.
  • (1) plastic rivet and (1) bolt at the rear wheel well trim panel per side.
• Gently unclip the rear wheel well trim panels and remove the fascia, ensuring all wiring is unplugged.

6. Remove Bumper Beam:

• Use a 16mm socket to remove (4) flange nuts inside the bumper panel on each side.
• Unclip wiring attached to the passenger-side bumper beam and remove the bumper.

7. Install Hitch:

• Apply silicone sealant around the openings on the end panels on each side.
• Align the hitch with the bumper beam's welded bolts and place them through the original bumper mounting holes.
• Loosely fasten the nuts.

8. Trim Heat Shield:

• Locate the center of the heat shield and trim a 2" tall x 4.5" wide area as shown in the diagram.
• Additional trimming may be needed.

9. Reassemble Components:

• Torque all bumper beam fasteners to 38 lb-ft (52 N·m).
• For Sport Models: Slightly trim the rear fascia bottom if necessary.
• Reinstall the heat shield, fascia, and exhaust system using the original hardware.

Safety Notes:

• Regularly check all fasteners to ensure the hitch is securely attached.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class II
• Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
