Trailer Tow Hitch For 15‑24 Ford F‑150 17‑24 Raptor Receiver w/ 1‑7/8" and 2" Ball

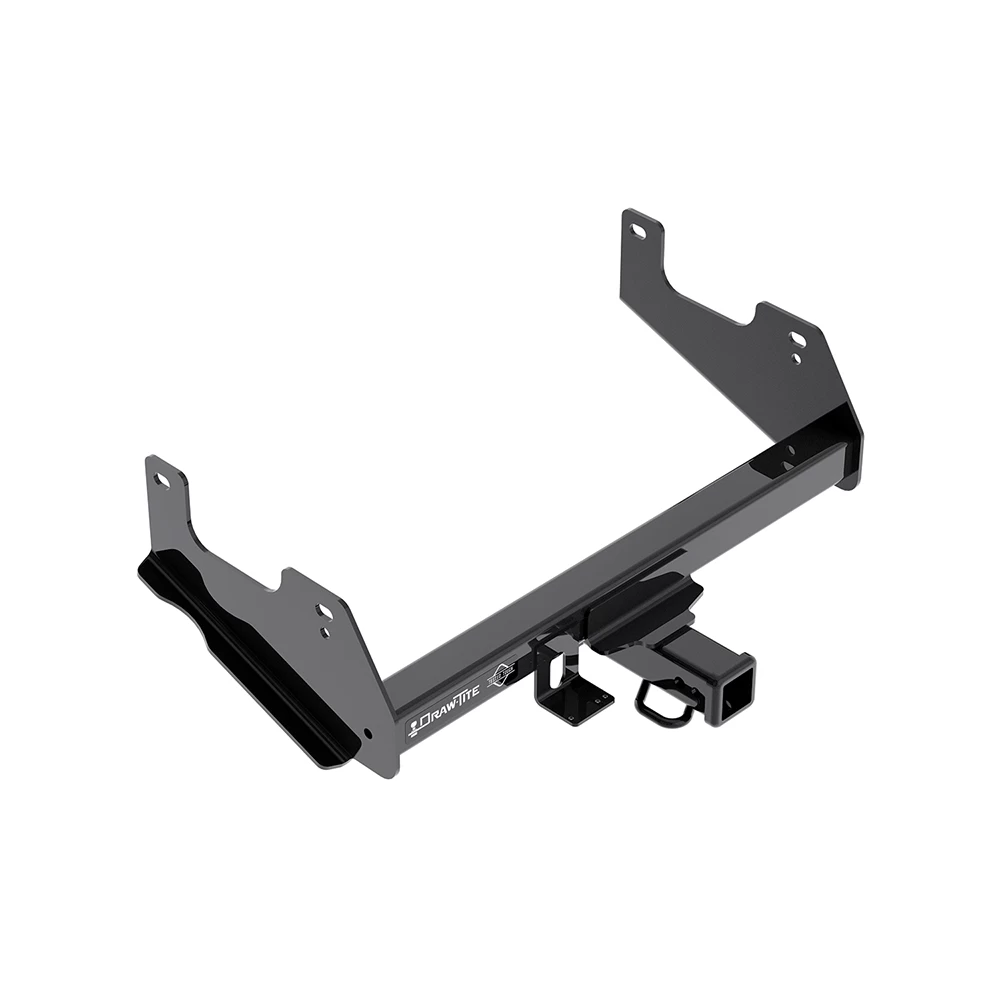

Model: 76136 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball

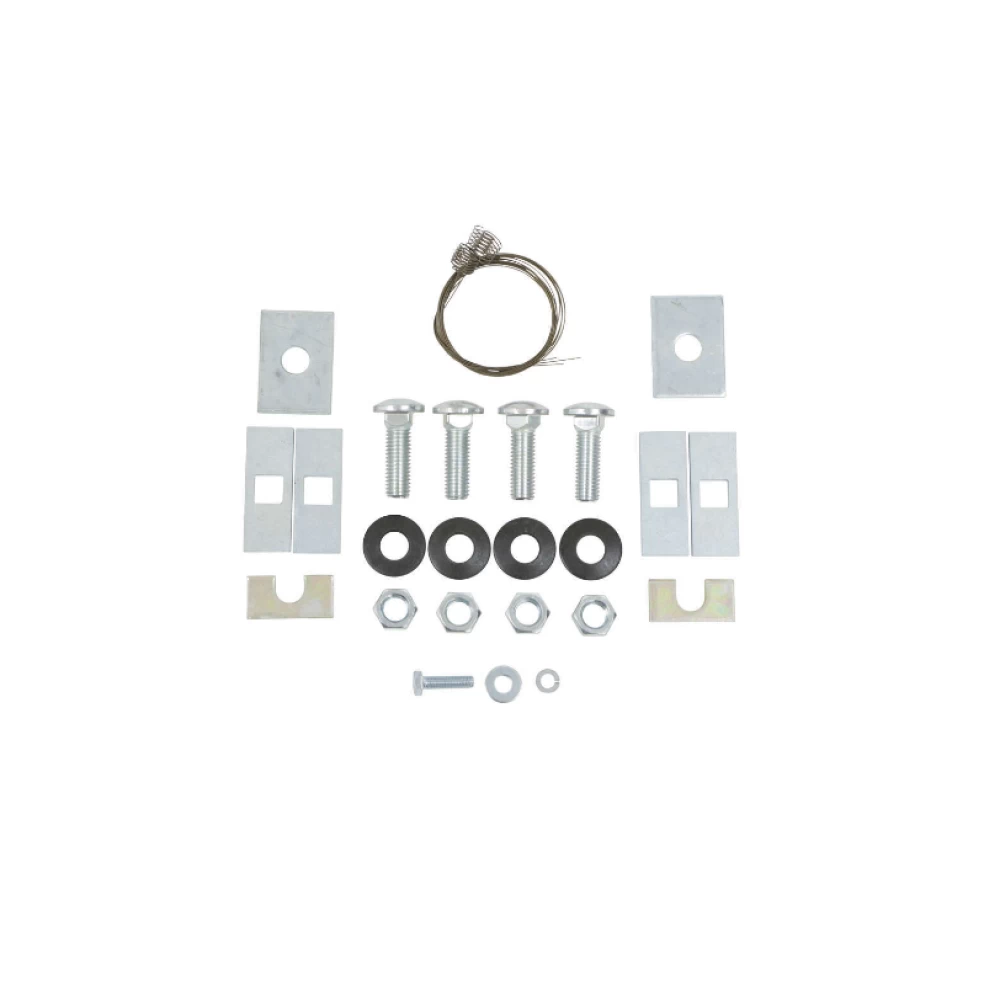

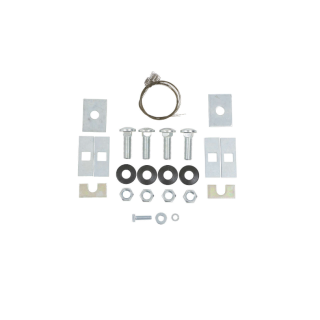

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2024 Ford, F-150, All Styles
2017 - 2024 Ford, F-150 Raptor, All Styles
Trailer Hitch Specs:
| Part Number | 76136 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | IV |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 900/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$238 35 $370.66 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$370.66 $238 35
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76136 23 63845 63816

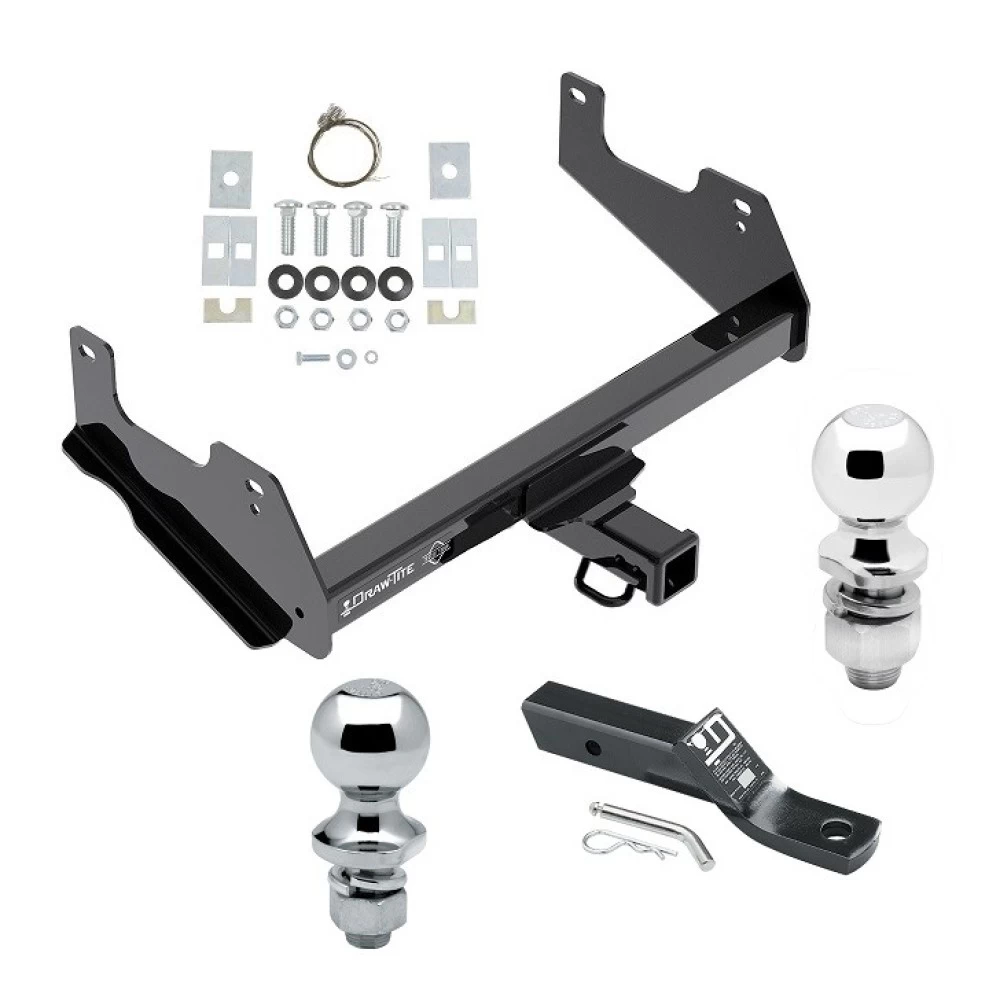

- Includes: Class 4 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2024 Ford, F-150, All Styles
2017 - 2024 Ford, F-150 Raptor, All Styles
Trailer Hitch Specs:
| Part Number | 76136 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | IV |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 900/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 15-24 Ford F-150 17-24 Raptor Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76136
- 84136
- CQT76136
Applications:
- Years: 2015-Current
- Make and Models: Ford F-150
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 13 mm, 15/16"
- 6" Socket Extension
- Tape
- Flat Head Screwdriver
- Utility Knife
Step-by-Step Instructions:
1. Remove Ground Wire:
- Using a 10 mm socket, remove the ground wire from the passenger-side frame rail. Return the fastener to the vehicle owner.
2. Lower Spare Tire:
- Lower the spare tire to allow room for hitch installation.
3. Install Spacer Blocks:
- Secure U-shaped spacer blocks to the inside of the frame rail using masking tape. Ensure they are centered around the holes in the frame on both sides.
- Attach .250 x 1.75 x 2.50 spacer blocks to the forward mounting hole of the hitch bracket using masking tape. Center the hole in the block with the slot in the bracket on both sides.
4. Install Fasteners:
- Feed the coiled end of the fish wire through the attachment hole and out the access hole in the frame.
- Attach the spacer block and carriage bolt to the fish wire and pull the hardware inside the frame. Repeat this process for all four attachment points.
- Leave the fish wires attached temporarily.
5. Mount the Hitch:
- Raise the hitch into position, guiding the fish wires through the corresponding holes in the hitch.
- Pull the fasteners into position and carefully remove the fish wires.
- Loosely install the conical washers and hex nuts onto the carriage bolts. Avoid letting the bolts fall into the frame.
6. Reattach Ground Wire:
- Using a 13 mm socket, reattach the ground wire with the M8 bolt, lock washer, and flat washer provided.
7. Torque Fasteners:
- Torque all 5/8"-11 GR5 fasteners to 150 lb-ft (203 N·m).
- Torque all M8 CL8.8 fasteners to 20 lb-ft (27 N·m).
8. Raise Spare Tire:
- Reinstall the spare tire in its original stowed position.
Hardware List:
- 4 × Carriage Bolts (5/8"-11 × 2.00" GR5)
- 4 × Spacer Blocks (.250" × 1.12" × 3.00")
- 2 × U-Shaped Spacer Blocks (.188" × 1.00" × 2.00")
- 4 × Conical Washers (5/8")
- 4 × Hex Nuts (5/8"-11 GR2)
- 2 × Spacer Blocks (.250" × 1.75" × 2.50")
- 1 × Bolt (M8 × 1.25 × 30 CL8.8)
- 1 × Lock Washer (5/16")
- 1 × Flat Washer (5/16")
- 4 × Fish Wires (5/8")
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 6,000 lbs (2,724 kg)
- Max Tongue Weight (Weight Carrying): 900 lbs (408 kg)
- Max Gross Trailer Weight (Weight Distributing): 10,000 lbs (4,540 kg)
- Max Tongue Weight (Weight Distributing): 1,000 lbs (454 kg)
- Installation Time: Approximately 30 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
