Product Details
- Brand: Draw-Tite
- Model: 76018 118717 23 63845 580407 7010

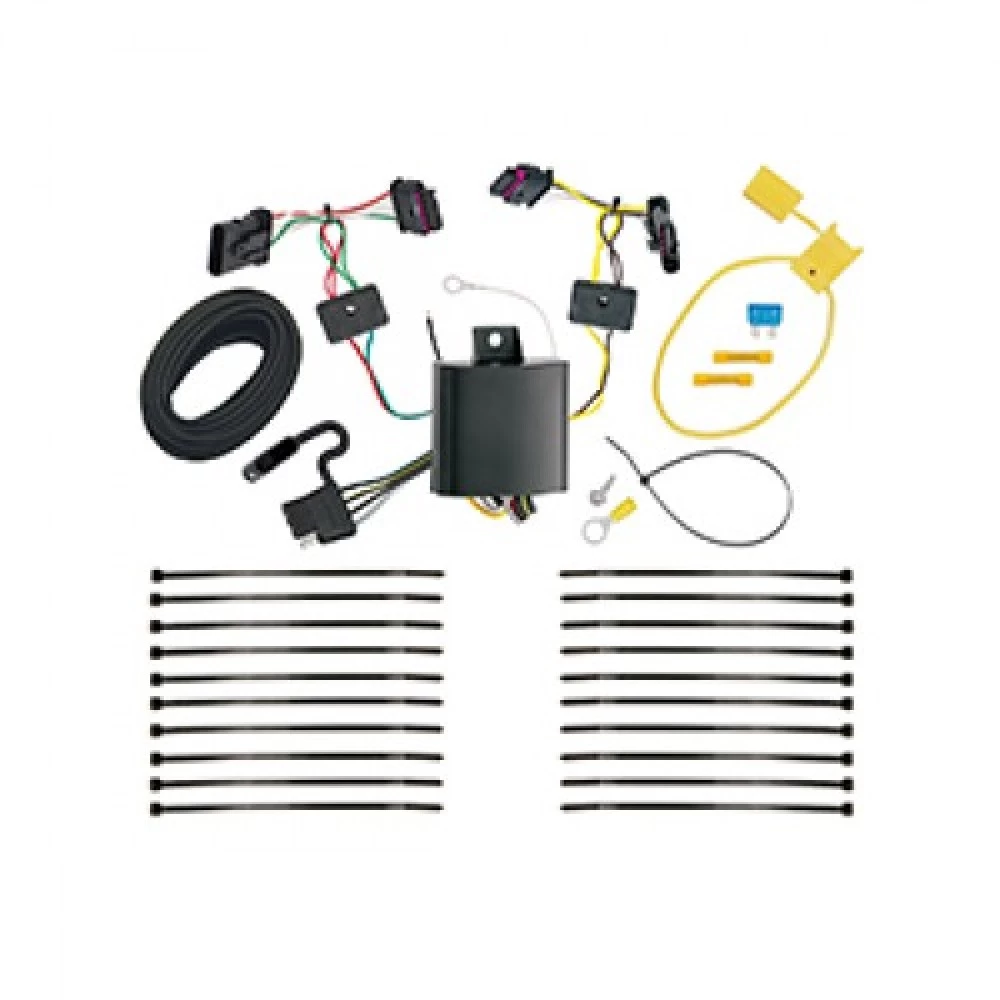

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help

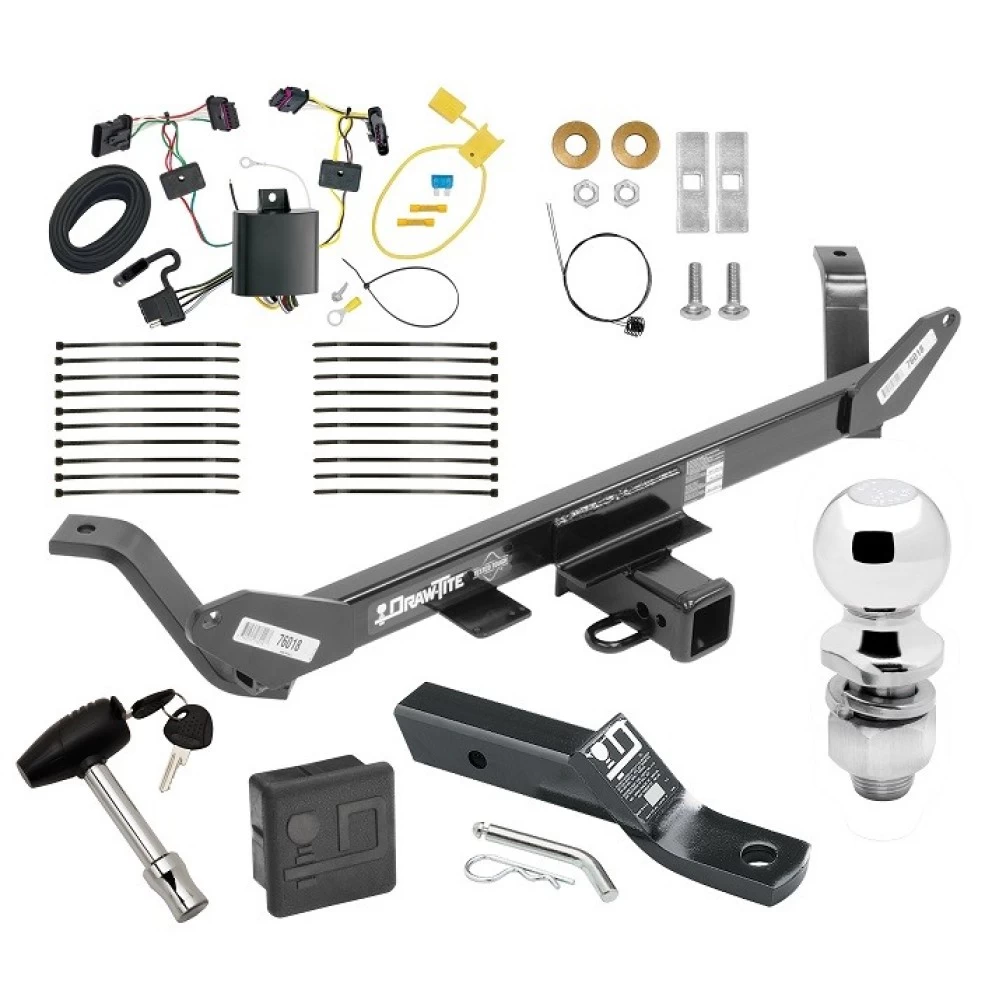

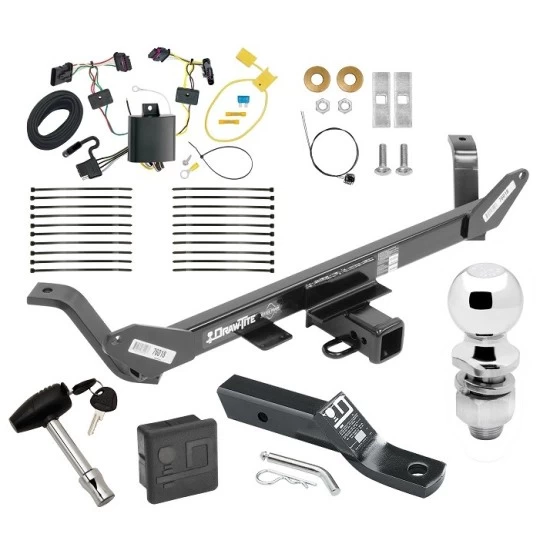

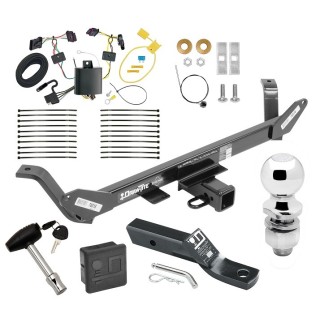

Trailer Tow Hitch For 16-17 BMW X1 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for BMW X1 (2016-Current)
Part Numbers:
- 76018
- 84018
- CQT76018
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8mm, 10mm, 18mm, 3/4”
- Flat Head Screwdriver
- Tin Snips
- Tape Measure
- Marker
- Drill with 1” Holesaw
- Exhaust Removal Pliers
- 6” Socket Extension
Wiring Access Location:
- Not Applicable
Step-by-Step Instructions:
-
Remove Lower Fascia:
- Use an 8mm socket to remove (8) screws and (4) plastic expanding fasteners.
- Gently unclip and pull the fascia off, then set it aside for reinstallation later.
-
Lower Exhaust:
- Use a 10mm socket to remove the nuts from both rear exhaust hangers.
- Pry off one rubber exhaust hanger near the transaxle using exhaust removal pliers. Spray with soapy water for ease.
-
Remove Heat Shield:
- Use a 10mm socket to remove the (4) nuts securing the heat shield on the upper portion.
-
Trim Heat Shield:
- Measure and draw two lines on the heat shield:
- From the lower portion, measure 1/2” inward from the outermost screw holes.
- From the upper portion, draw a line 1/2” from the top.
- Use tin snips to cut along the lines.
- Measure and draw two lines on the heat shield:
-
Remove Nuts from Lower Bumper Studs:
- Use an 18mm socket to remove one nut from the lower bumper stud on each side.
-
Loosen Sensor Bar:
- Use a 10mm socket to loosen (2) nuts holding the sensor bar to the vehicle. Do not fully remove the sensor bar; loosening it will ease hitch installation.
-
Drill Holes:
- Raise the hitch into position and onto the lower bumper studs.
- Tighten the nuts to hold the hitch in place, then mark the locations of forward attachment holes using the hitch as a template.
- Lower the hitch and drill a 1” hole for each forward attachment point using a holesaw.
-
Fishwire Bolts:
- Using the reverse fishwire method, insert the carriage bolts and spacer blocks into the drilled holes.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position over the lower bumper studs.
- Guide the pull wire ends through the forward attachment holes.
- Install (2) nuts onto the lower bumper studs and remove the pull wires.
- Secure the carriage bolts with conical washers (teeth side toward hitch) and 1/2” hex nuts.
-
Tighten Fasteners:
- Torque all hitch fasteners to 75 lb-ft (102 N·m).
-
Reinstall Components:
- Reinstall all exhaust hangers, tighten the sensor bar, reinstall the trimmed heat shield, and reattach the lower fascia.
Hardware List:
- (2) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (2) 1/2” Conical Washers
- (2) 1/4” x 1” x 3” Spacer Blocks
- (2) 1/2”-13 Grade 5 Hex Nuts
- (2) 1/2” Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Installation Instructions for Vehicle (2016-Current)
Part Numbers:
- 76018
- 84018
- CQT76018
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8mm, 10mm, 18mm, 3/4”
- Flat Head Screwdriver
- Tin Snips
- Tape Measure
- Marker
- Drill with 1” Holesaw
- Exhaust Removal Pliers
- 6” Socket Extension
Wiring Access Location:
- Not Applicable
Step-by-Step Instructions:
-
Remove Lower Fascia:
- Use an 8mm socket to remove (8) screws and (4) plastic expanding fasteners.
- Gently unclip and pull the fascia off, then set it aside for reinstallation later.
-
Lower Exhaust:
- Use a 10mm socket to remove the nuts from both rear exhaust hangers.
- Pry off one rubber exhaust hanger near the transaxle using exhaust removal pliers. Spray with soapy water for ease.
-
Remove Heat Shield:
- Use a 10mm socket to remove the (4) nuts securing the heat shield on the upper portion.
-
Trim Heat Shield:
- Measure and draw two lines on the heat shield:
- From the lower portion, measure 1/2” inward from the outermost screw holes.
- From the upper portion, draw a line 1/2” from the top.
- Use tin snips to cut along the lines.
- Measure and draw two lines on the heat shield:
-
Remove Nuts from Lower Bumper Studs:
- Use an 18mm socket to remove one nut from the lower bumper stud on each side.
-
Loosen Sensor Bar:
- Use a 10mm socket to loosen (2) nuts holding the sensor bar to the vehicle. Do not fully remove the sensor bar; loosening it will ease hitch installation.
-
Drill Holes:
- Raise the hitch into position and onto the lower bumper studs.
- Tighten the nuts to hold the hitch in place, then mark the locations of forward attachment holes using the hitch as a template.
- Lower the hitch and drill a 1” hole for each forward attachment point using a holesaw.
-
Fishwire Bolts:
- Using the reverse fishwire method, insert the carriage bolts and spacer blocks into the drilled holes.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position over the lower bumper studs.
- Guide the pull wire ends through the forward attachment holes.
- Install (2) nuts onto the lower bumper studs and remove the pull wires.
- Secure the carriage bolts with conical washers (teeth side toward hitch) and 1/2” hex nuts.
-
Tighten Fasteners:
- Torque all hitch fasteners to 75 lb-ft (102 N·m).
-
Reinstall Components:
- Reinstall all exhaust hangers, tighten the sensor bar, reinstall the trimmed heat shield, and reattach the lower fascia.
Hardware List:
- (2) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (2) 1/2” Conical Washers
- (2) 1/4” x 1” x 3” Spacer Blocks
- (2) 1/2”-13 Grade 5 Hex Nuts
- (2) 1/2” Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for BMW X1
Part Numbers:
- 118717
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove Taillights:
- Open the rear tailgate to access the bolts holding the taillights in place.
- On both the driver and passenger sides, remove two 10mm nuts from the taillight pocket.
- Carefully pull the taillights away from the vehicle, avoiding damage to alignment pins.
-
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Ensure all connector surfaces are clean and free of dirt.
-
Mount the Black Box Module:
- Determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
- Use the provided double-sided tape to mount the black box.
- Ensure the trailer’s wire harness has adequate length to reach this point.
Warning: Mount the module with the epoxy side facing down to prevent water buildup.
-
Connect the Driver-Side T-Connector:
- Fish the T-Connector end with yellow wires up between the bumper and the vehicle body into the taillight pocket.
- Plug the T-Connector with yellow wire between the mating plugs on the driver’s side taillight socket and wiring harness.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire and the 4-flat connector underneath the bumper.
- Guide the T-Connector end with the green wire up through the opening on the passenger side.
- Plug it into the taillight socket, repeating the process from Step 4.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to prevent damage or injury.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black 12-gauge wire and route it along the exterior frame or follow the existing wiring to the engine compartment.
- Avoid areas that may pinch or damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Attach the ring terminal from the fuse holder to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the taillight assemblies and any other removed components, ensuring wires are not pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in a suitable location when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for BMW X1
Part Numbers:
- 118717
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove Taillights:
- Open the rear tailgate to access the bolts holding the taillights in place.
- On both the driver and passenger sides, remove two 10mm nuts from the taillight pocket.
- Carefully pull the taillights away from the vehicle, avoiding damage to alignment pins.
-
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Ensure all connector surfaces are clean and free of dirt.
-
Mount the Black Box Module:
- Determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
- Use the provided double-sided tape to mount the black box.
- Ensure the trailer’s wire harness has adequate length to reach this point.
Warning: Mount the module with the epoxy side facing down to prevent water buildup.
-
Connect the Driver-Side T-Connector:
- Fish the T-Connector end with yellow wires up between the bumper and the vehicle body into the taillight pocket.
- Plug the T-Connector with yellow wire between the mating plugs on the driver’s side taillight socket and wiring harness.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire and the 4-flat connector underneath the bumper.
- Guide the T-Connector end with the green wire up through the opening on the passenger side.
- Plug it into the taillight socket, repeating the process from Step 4.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to prevent damage or injury.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black 12-gauge wire and route it along the exterior frame or follow the existing wiring to the engine compartment.
- Avoid areas that may pinch or damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Attach the ring terminal from the fuse holder to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the taillight assemblies and any other removed components, ensuring wires are not pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in a suitable location when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector in a suitable location when not in use to prevent damage.
