Installation Instructions for Trailer Hitch

Part Numbers:

• 76128
• 84128
• CQT76128

Applications:

• Years: 2017-Current
  • Make and Models: Honda CR-V

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 11/16", 3/4"
• 6" Socket Extension
• Flat Head Screwdriver
• Exhaust Removal Pliers (Optional)
• Lubricant or Soapy Water

Step-by-Step Instructions:

1. Lower the Exhaust:

• Remove the rubber isolators from the exhaust at the rear of the vehicle on both sides.
• It may be necessary to remove the isolator forward of the rear axle.
• Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.

2. Remove Center Splash Guard (For 2023 or Newer Models):

• Using a 10 mm socket, remove nuts from the splash guard.
• Remove rivets using a flat head screwdriver.
• Return the splash guard to the vehicle owner.

3. Install Hardware:

• Use the fish wire to install the carriage bolts and spacers into the large access hole at the end of the vehicle frame as shown in Figure 1.
• Repeat for both sides.
• Keep the fish wire attached to the hardware to prevent it from falling back into the frame.

4. Install the Hitch:

• Gently raise the hitch into position, guiding it over the mufflers.
• Feed the end of the fish wires through the attachment holes in the hitch.
• Install the conical washers (teeth side against the hitch) and hex nuts to hold the hitch in place.
• For the hitch receiver, insert the bolt through the bracket and towhook, then attach the spacers, lock washer, and hex nut as shown in Figure 1.

5. Tighten Fasteners:

• Torque all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N·m).
• Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).

6. Reinstall Exhaust:

• Raise the exhaust back into position and reattach all isolators removed in Step 1.

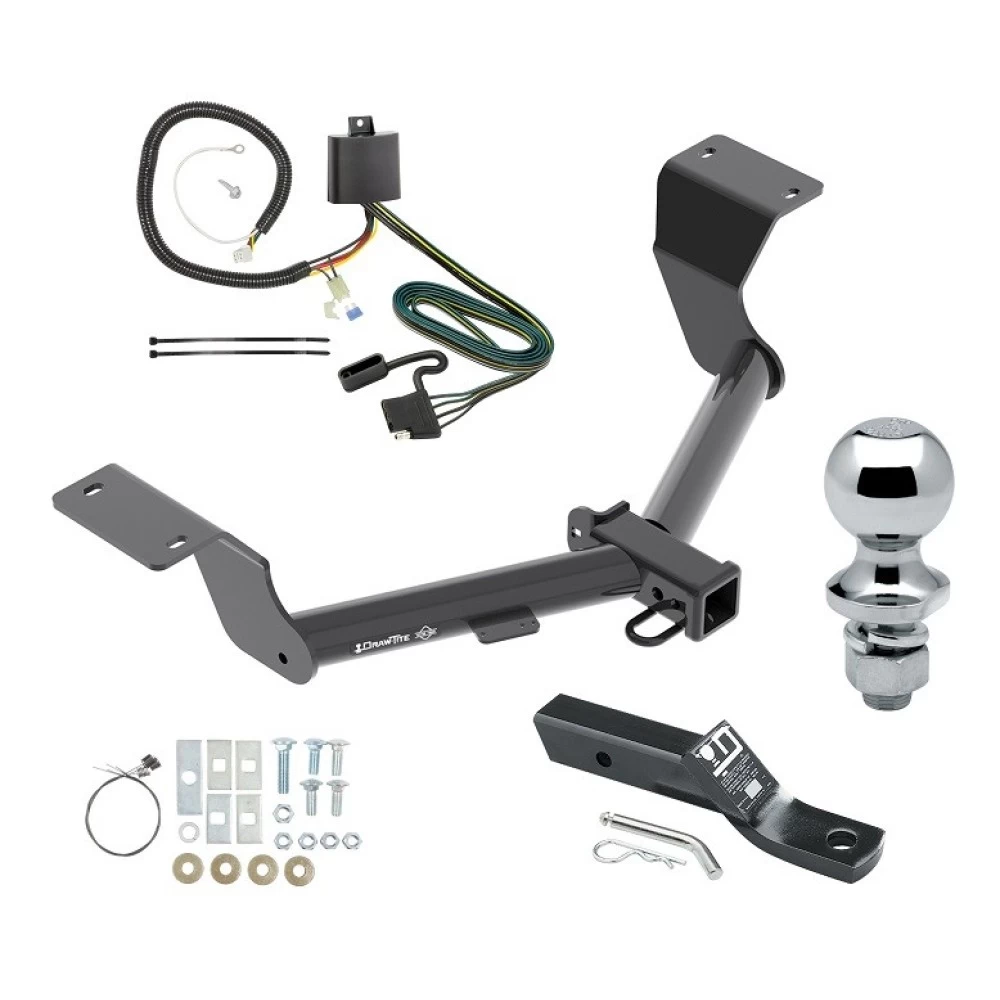

Hardware List:

• 4 × Carriage Bolts (7/16"-14 × 1-1/4", GR5)
• 4 × Spacer Blocks (.25" × 1.00" × 2.00")
• 4 × Conical Washers (7/16")
• 4 × Hex Nuts (7/16"-14, GR2)
• 1 × Carriage Bolt (1/2"-13 × 2.00", GR5)
• 1 × Spacer Block (.25" × 1.00" × 3.00")
• 1 × Lock Washer (1/2")
• 1 × Hex Nut (1/2"-13, GR5)
• 4 × Fish Wires (7/16")

Safety Notes:

• Always wear safety glasses during installation.
• Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
• Weight Distribution: Not applicable
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-One® T-Connector for Honda CR-V

Part Numbers:

• 118741

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the hatch of the vehicle and temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
   • It may be helpful to fold the rear seat forward for easier access.

2. Remove Interior Trim Panels:

   • Carefully remove the lower cargo hook by pushing in on the white plastic clip.
   • Using a trim panel remover tool, carefully pull back the upper and lower trim panels on the driver’s side.

3. Connect the Driver-Side T-Connector:

   • Gently pull back the upper trim panel to reveal the vehicle’s white 6-pin connector.
   • Connect the T-One® T-Connector harness into the vehicle’s white 6-pin housing and lock it into place.

4. Ground the White Wire:

   • Locate the existing ground stud on the driver’s side.
   • Loosen the bolt, place the screw eyelet on the stud, and re-tighten the bolt.
   • Ensure all existing ground connections are still attached and torqued to the manufacturer's specifications.

5. Mount the Black Box Module:

   • Apply the supplied double-sided tape to the flat side of the black box.
   • Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box module to prevent damage or rattling.
   • Clean the mounting surface with a 50/50 mixture of rubbing alcohol and water before securing the black box.

6. Connect the Fuse:

   • For models from 2017-2022, locate the interior fuse compartment under the steering column and identify fuse location 37.
   • For 2023-current models, identify fuse location 17. If a fuse is not installed, insert the 15-amp fuse included in the hardware kit.
   • Note: Fuse installation may not be required for all models.

7. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wire.

8. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Ensure no wires are pinched or damaged during reassembly.

9. Store the 4-Flat Connector:

   • When not in use, store the 4-flat harness in an out-of-the-way area in the rear cargo compartment.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Honda CR-V

Part Numbers:

• 118741

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the hatch of the vehicle and temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
   • It may be helpful to fold the rear seat forward for easier access.

2. Remove Interior Trim Panels:

   • Carefully remove the lower cargo hook by pushing in on the white plastic clip.
   • Using a trim panel remover tool, carefully pull back the upper and lower trim panels on the driver’s side.

3. Connect the Driver-Side T-Connector:

   • Gently pull back the upper trim panel to reveal the vehicle’s white 6-pin connector.
   • Connect the T-One® T-Connector harness into the vehicle’s white 6-pin housing and lock it into place.

4. Ground the White Wire:

   • Locate the existing ground stud on the driver’s side.
   • Loosen the bolt, place the screw eyelet on the stud, and re-tighten the bolt.
   • Ensure all existing ground connections are still attached and torqued to the manufacturer's specifications.

5. Mount the Black Box Module:

   • Apply the supplied double-sided tape to the flat side of the black box.
   • Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box module to prevent damage or rattling.
   • Clean the mounting surface with a 50/50 mixture of rubbing alcohol and water before securing the black box.

6. Connect the Fuse:

   • For models from 2017-2022, locate the interior fuse compartment under the steering column and identify fuse location 37.
   • For 2023-current models, identify fuse location 17. If a fuse is not installed, insert the 15-amp fuse included in the hardware kit.
   • Note: Fuse installation may not be required for all models.

7. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wire.

8. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Ensure no wires are pinched or damaged during reassembly.

9. Store the 4-Flat Connector:

   • When not in use, store the 4-flat harness in an out-of-the-way area in the rear cargo compartment.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:
For complete warranty instructions, please download the full installation PDF.
