Product Details
- Brand: Draw-Tite
- Model: 76026 118785
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Get Expert Help

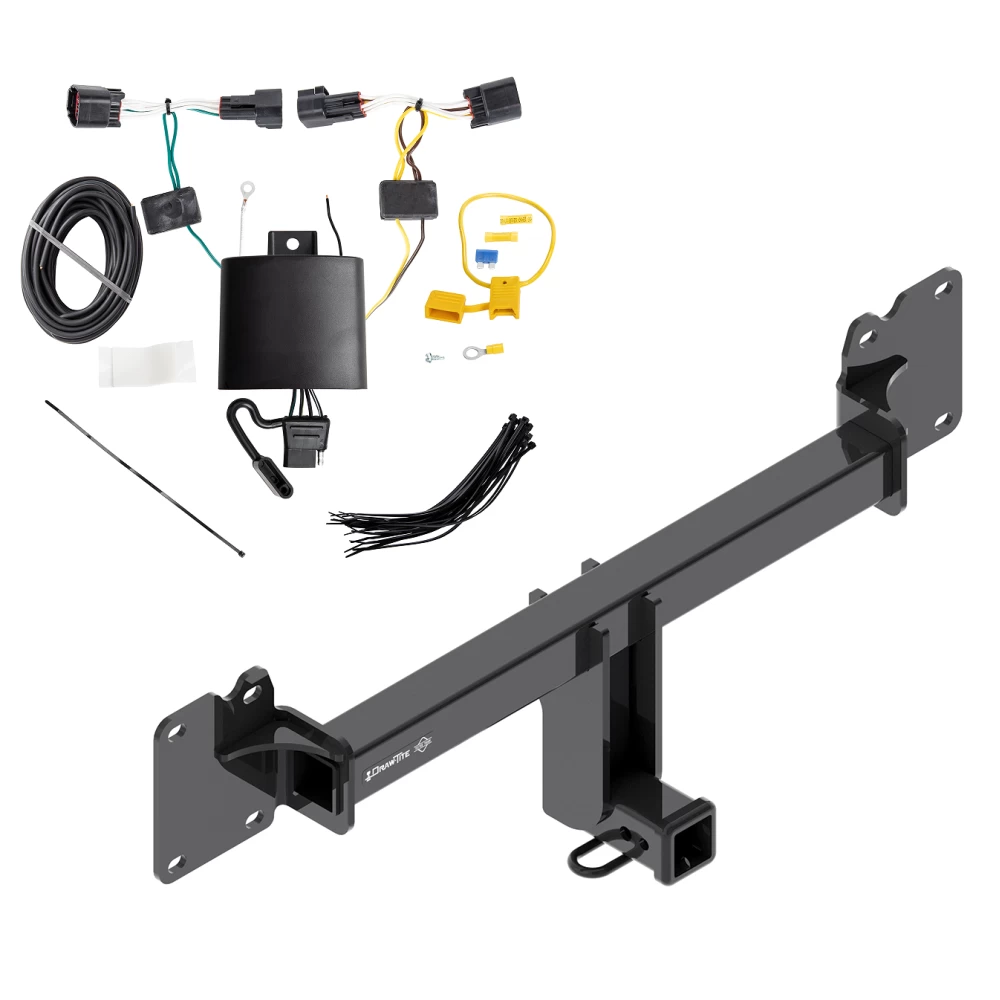

Trailer Tow Hitch For 17-24 Jaguar F-Pace w/ Wiring Harness Kit Install Notes

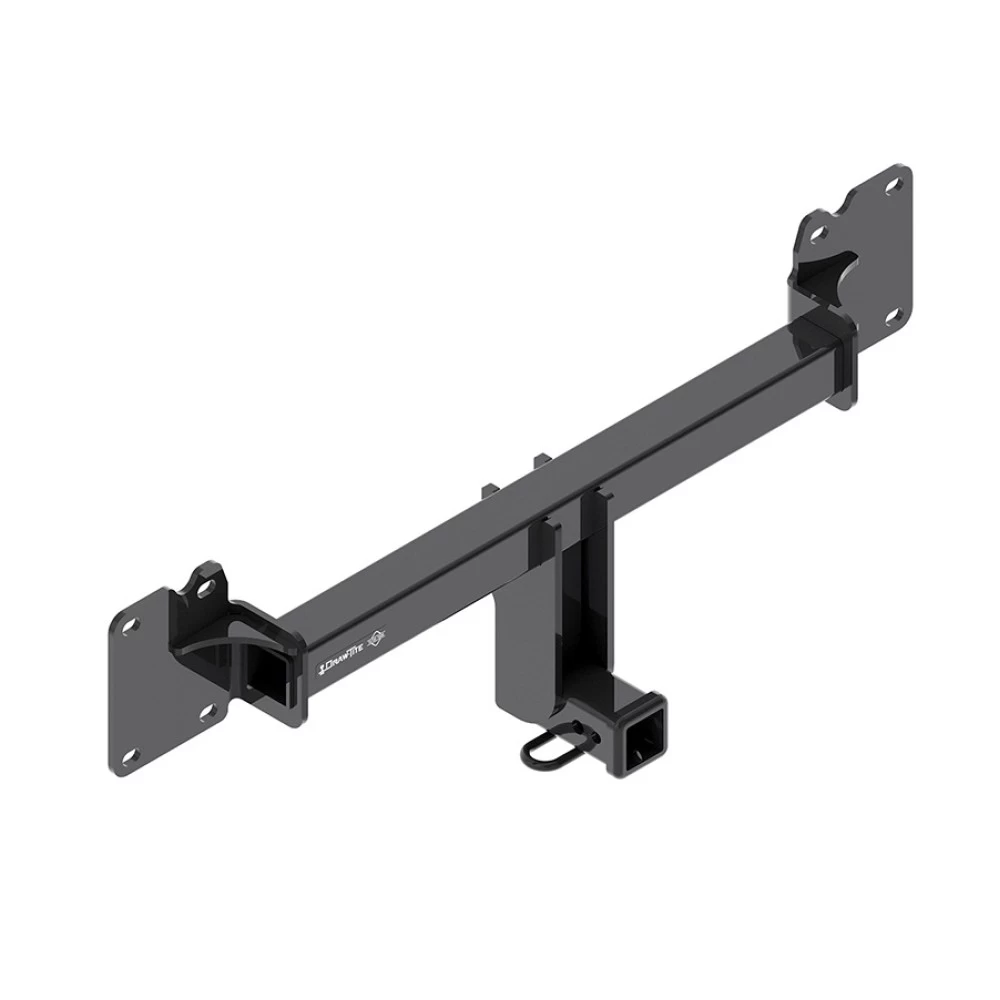

Installation Instructions for Jaguar F-Pace (2017-Present)
Part Numbers:
- 76026
- 84026
- CQT76026
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 8mm, 10mm, 21mm
- T20 Torx Bit
- 6" Socket Extension
- Plastic Trim Tools
- Phillips Screwdriver
- Tape Measure
- Marker
- Utility Knife
- Silicone Sealant
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 90 minutes
Step-by-Step Instructions:
1. Remove Bottom Appearance Panel:
- Use a 10mm socket to remove (3) screws and a flat head screwdriver to remove (4) plastic screws.
- Carefully remove the panel and set it aside for reinstallation.
2. Remove Fascia:
- Open the trunk and remove the plastic trim panels near the taillights.
- Use a 10mm socket to remove (1) screw behind each trim panel and a flat head screwdriver to remove (1) plastic screw on each side.
- Remove (2) screws from each wheel well and (2) T20 Torx screws and (4) plastic screws from the rear edges of the wheel well liners.
- Use trim tools to carefully unclip and remove the fascia, starting at the edges. Disconnect any wiring harnesses.
3. Remove Bumper Beam:
- Use an 8mm socket to remove (5) screws from the panel above the bumper beam.
- Use a 21mm socket to remove (4) M14 bolts from each side of the bumper beam. Remove the beam and set it aside.
4. Install Hitch:
- Apply silicone sealant around the opening on the end panels.
- Align the hitch with the bumper beam holes and loosely secure it using the (8) factory M14 bolts removed earlier.
5. Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).
6. Trim Bottom Appearance Panel:
- Measure and mark a 6" tall by 3.5" wide area on the center of the bottom panel.
- Trim the marked section using a utility knife.
7. Reinstall Components:
- Reattach the fascia, appearance panel, and all fasteners removed earlier.
- Ensure all wiring harnesses are reconnected properly.
Safety Notes:
- Regularly check the hitch and all fasteners for proper tightness.
- If the hitch is removed, plug all holes to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Vehicle Models (2017-Present)
Part Numbers:
- 76026
- 84026
- CQT76026
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 8mm, 10mm, 21mm
- T20 Torx Bit
- 6" Socket Extension
- Plastic Trim Tools
- Phillips Screwdriver
- Tape Measure
- Marker
- Utility Knife
- Silicone Sealant
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 90 minutes
Step-by-Step Instructions:
1. Remove Bottom Appearance Panel:
- Use a 10mm socket to remove (3) screws and a flat head screwdriver to remove (4) plastic screws.
- Carefully remove the panel and set it aside for reinstallation.
2. Remove Fascia:
- Open the trunk and remove the plastic trim panels near the taillights.
- Use a 10mm socket to remove (1) screw behind each trim panel and a flat head screwdriver to remove (1) plastic screw on each side.
- Remove (2) screws from each wheel well and (2) T20 Torx screws and (4) plastic screws from the rear edges of the wheel well liners.
- Use trim tools to carefully unclip and remove the fascia, starting at the edges. Disconnect any wiring harnesses.
3. Remove Bumper Beam:
- Use an 8mm socket to remove (5) screws from the panel above the bumper beam.
- Use a 21mm socket to remove (4) M14 bolts from each side of the bumper beam. Remove the beam and set it aside.
4. Install Hitch:
- Apply silicone sealant around the opening on the end panels.
- Align the hitch with the bumper beam holes and loosely secure it using the (8) factory M14 bolts removed earlier.
5. Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).
6. Trim Bottom Appearance Panel:
- Measure and mark a 6" tall by 3.5" wide area on the center of the bottom panel.
- Trim the marked section using a utility knife.
7. Reinstall Components:
- Reattach the fascia, appearance panel, and all fasteners removed earlier.
- Ensure all wiring harnesses are reconnected properly.
Safety Notes:
- Regularly check the hitch and all fasteners for proper tightness.
- If the hitch is removed, plug all holes to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

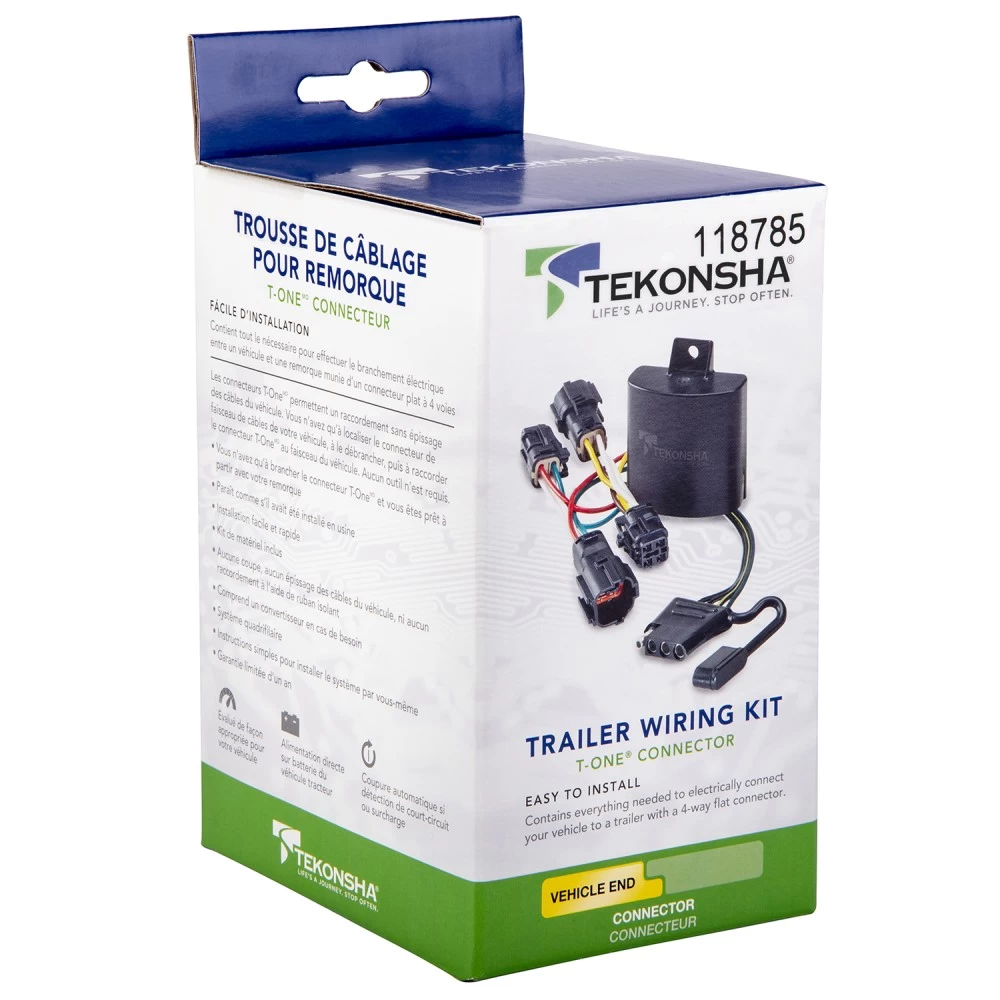

Installation Instructions for T-One® T-Connector for Jaguar F-Pace and Land Rover Range Rover Velar
Part Numbers:
- 118785
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Torx T20 Driver
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the tailgate and remove the vehicle’s taillight assemblies.
- Remove all floor coverings to access the battery in the cargo area.
- Inside the vehicle behind the taillights, remove the plastic cover and pull back the insulation liner to access the plastic wing nut holding the taillight in place.
- Disconnect the connectors and carefully set the taillight housings aside.
- Repeat this step for the passenger-side taillight assembly.
-
Remove the Bumper Fascia:
- Using a 10mm socket and Phillips screwdriver, remove 3 screws and 4 plastic screws from the bottom appearance panel and set them aside.
- Use a screwdriver to remove 2 screws from the wheel well on each side.
- Behind the wheel wells, use a T20 Torx socket to remove 2 screws and a screwdriver to remove 4 screws on each side.
- Use plastic trim tools to remove the fascia, starting at the outer edges near the wheel wells and gently pulling it free.
- Disconnect the wiring harness on the driver’s side if present.
-
Route the Driver-Side T-Connector:
- Route the T-Connector end with the yellow and brown wires behind the fascia supports, following the existing wire harness to the taillight pocket.
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
-
Mount the Black Box Module:
- Locate a flat surface above the exhaust system on the driver’s side, avoiding hot pipes and heat shields.
- Mount the T-Connector’s black converter box using the provided double-sided tape or wire ties.
- Warning: Ensure the epoxy side of the module is pointed downward to prevent water buildup.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw. Clean dirt and rustproofing from the area before securing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire to the passenger side and up behind the fascia bumper supports to the taillight pocket.
- Insert the T-Connector end with the green wire between the vehicle wiring connectors and lock it into place.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Slit the grommet on the driver’s side and route the power wire through it.
- Attach the provided black 12-gauge wire and route it along the threshold, following existing wiring to the battery’s positive terminal (+).
Warning: Avoid routing near hot pipes, heat shields, or the fuel tank.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the battery’s Positive (+) terminal.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the taillight assemblies, plastic trim panels, threshold, storage covers, floor coverings, and other removed components, ensuring no wires are pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wires.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Various Vehicles
Part Numbers:
- 118785
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Torx T20 Driver
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the tailgate and remove the vehicle’s taillight assemblies.
- Remove all floor coverings to access the battery in the cargo area.
- Inside the vehicle behind the taillights, remove the plastic cover and pull back the insulation liner to access the plastic wing nut holding the taillight in place.
- Disconnect the connectors and carefully set the taillight housings aside.
- Repeat this step for the passenger-side taillight assembly.
-
Remove the Bumper Fascia:
- Using a 10mm socket and Phillips screwdriver, remove 3 screws and 4 plastic screws from the bottom appearance panel and set them aside.
- Use a screwdriver to remove 2 screws from the wheel well on each side.
- Behind the wheel wells, use a T20 Torx socket to remove 2 screws and a screwdriver to remove 4 screws on each side.
- Use plastic trim tools to remove the fascia, starting at the outer edges near the wheel wells and gently pulling it free.
- Disconnect the wiring harness on the driver’s side if present.
-
Route the Driver-Side T-Connector:
- Route the T-Connector end with the yellow and brown wires behind the fascia supports, following the existing wire harness to the taillight pocket.
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
-
Mount the Black Box Module:
- Locate a flat surface above the exhaust system on the driver’s side, avoiding hot pipes and heat shields.
- Mount the T-Connector’s black converter box using the provided double-sided tape or wire ties.
- Warning: Ensure the epoxy side of the module is pointed downward to prevent water buildup.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw. Clean dirt and rustproofing from the area before securing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire to the passenger side and up behind the fascia bumper supports to the taillight pocket.
- Insert the T-Connector end with the green wire between the vehicle wiring connectors and lock it into place.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Slit the grommet on the driver’s side and route the power wire through it.
- Attach the provided black 12-gauge wire and route it along the threshold, following existing wiring to the battery’s positive terminal (+).
Warning: Avoid routing near hot pipes, heat shields, or the fuel tank.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the battery’s Positive (+) terminal.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the taillight assemblies, plastic trim panels, threshold, storage covers, floor coverings, and other removed components, ensuring no wires are pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wires.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
