Product Details
- Brand: Draw-Tite
- Model: 76260
- UPC: 016118152319

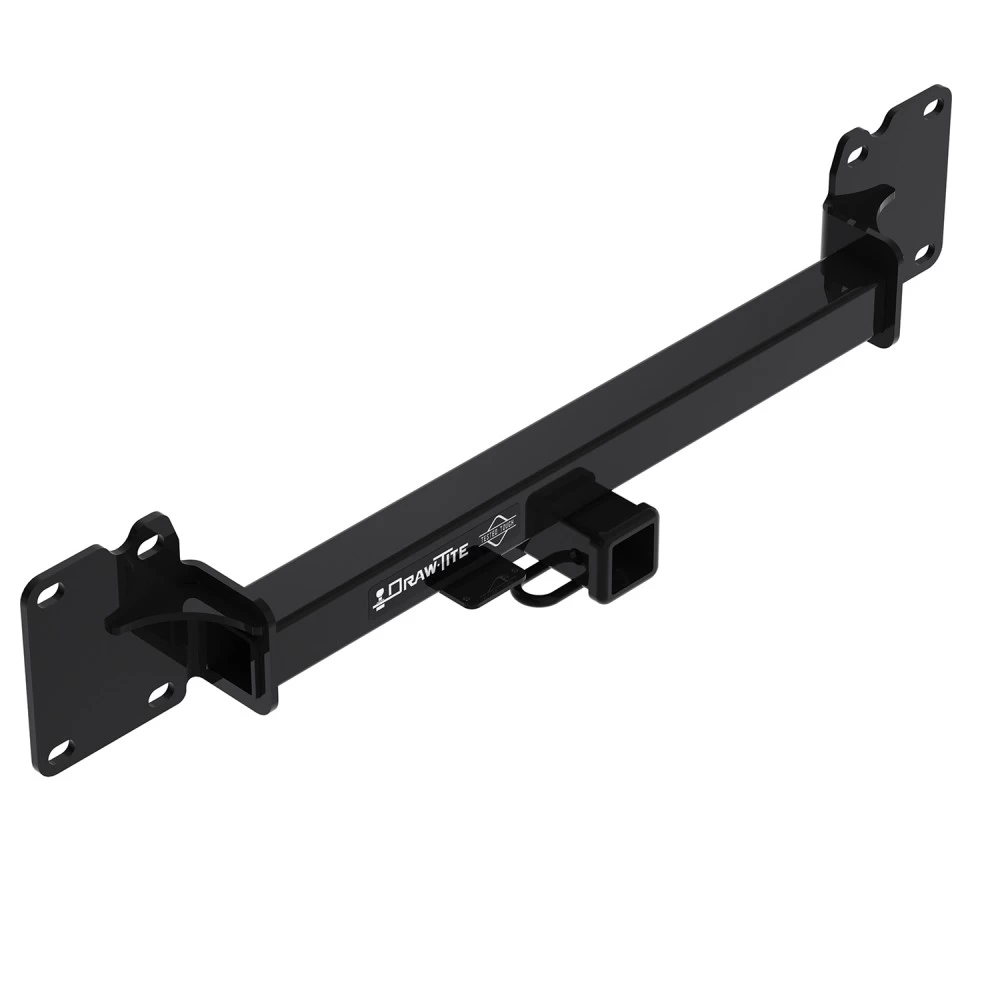

- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Trailer Tow Hitch For 18-23 Land Rover Range Rover Velar 2" Receiver Install Notes
Installation Instructions for Range Rover Velar (2018-Present)
Part Numbers:
- 76260
- 84260
- CQT76260
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- 6" Socket Extension
- Plastic Trim Tools
- Flat Head Screwdriver
- Phillips Screwdriver
- T15 Torx Bit
- Sockets: 10mm, 18mm, 21mm
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 80 minutes
Step-by-Step Instructions:
1. Remove Fascia:
- Open the liftgate.
- Use a plastic pry tool to remove the plastic rivet near the taillight area on each side.
- Use a flat head screwdriver to remove the screw securing the taillight. Pull the taillight rearward and unplug the electrical connector. Remove the taillights.
- Remove the plastic push rivets and screws holding the fascia near the liftgate opening and underbody.
- Remove the hitch access panel and screws from the fascia.
- Loosen the screws from the wheel well trim, and remove screws inside the wheel well to detach the trim. Pull back the liner and remove additional screws.
- Gently pull the fascia away from the vehicle, unplugging electrical connectors near the driver-side wheel well.
2. Remove Plastic Panel:
- Remove (7) nuts securing the panel using a 10mm socket. Unplug the sensor in the middle of the panel and set it aside.
3. Lower Exhaust:
- Support the exhaust to prevent damage and remove the rubber isolators from the exhaust hangers (3 on each side).
4. Lower Heat Shield:
- Use a 10mm socket to remove bolts on the passenger-side heat shield, exposing the M14 bolts in the frame rail.
5. Remove Bumper Beam:
- Use a 21mm socket to remove (8) bolts from the bumper beam. Save the bolts for hitch installation. Remove the bumper beam.
6. Install Hitch:
- Raise the hitch into position and align it with the vehicle’s weld nuts. Loosely reinstall the (8) M14 bolts removed earlier.
7. Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).
8. Reinstall Components:
- Reverse the steps to reinstall the heat shield, exhaust, plastic panel, fascia, and taillights. Ensure all electrical connectors are plugged back in.
Safety Notes:
- Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Vehicle Models (2018-Present)
Part Numbers:
- 76260
- 84260
- CQT76260
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- 6" Socket Extension
- Plastic Trim Tools
- Flat Head Screwdriver
- Phillips Screwdriver
- T15 Torx Bit
- Sockets: 10mm, 18mm, 21mm
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 80 minutes
Step-by-Step Instructions:
1. Remove Fascia:
- Open the liftgate.
- Use a plastic pry tool to remove the plastic rivet near the taillight area on each side.
- Use a flat head screwdriver to remove the screw securing the taillight. Pull the taillight rearward and unplug the electrical connector. Remove the taillights.
- Remove the plastic push rivets and screws holding the fascia near the liftgate opening and underbody.
- Remove the hitch access panel and screws from the fascia.
- Loosen the screws from the wheel well trim, and remove screws inside the wheel well to detach the trim. Pull back the liner and remove additional screws.
- Gently pull the fascia away from the vehicle, unplugging electrical connectors near the driver-side wheel well.
2. Remove Plastic Panel:
- Remove (7) nuts securing the panel using a 10mm socket. Unplug the sensor in the middle of the panel and set it aside.
3. Lower Exhaust:
- Support the exhaust to prevent damage and remove the rubber isolators from the exhaust hangers (3 on each side).
4. Lower Heat Shield:
- Use a 10mm socket to remove bolts on the passenger-side heat shield, exposing the M14 bolts in the frame rail.
5. Remove Bumper Beam:
- Use a 21mm socket to remove (8) bolts from the bumper beam. Save the bolts for hitch installation. Remove the bumper beam.
6. Install Hitch:
- Raise the hitch into position and align it with the vehicle’s weld nuts. Loosely reinstall the (8) M14 bolts removed earlier.
7. Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).
8. Reinstall Components:
- Reverse the steps to reinstall the heat shield, exhaust, plastic panel, fascia, and taillights. Ensure all electrical connectors are plugged back in.
Safety Notes:
- Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
