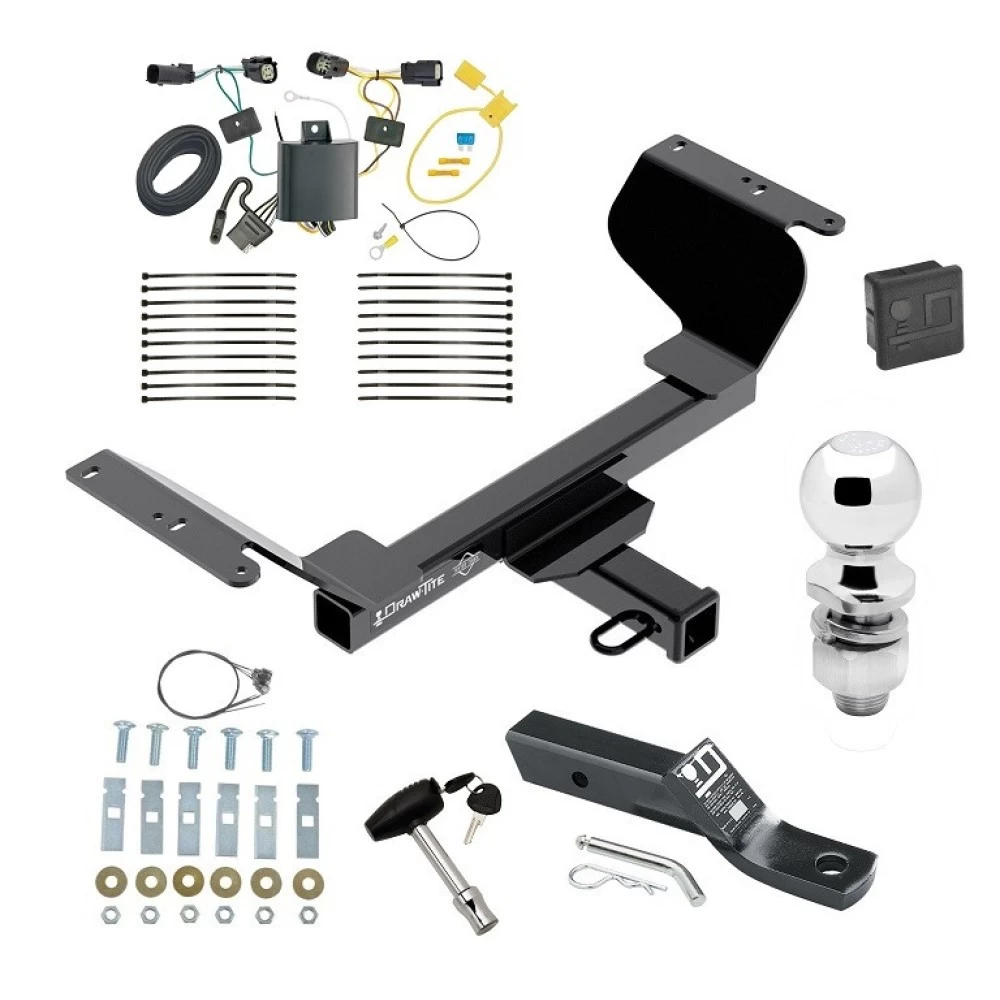

Trailer Tow Hitch For 18-22 Chevy Equinox Premier Except Models w/1.6L Diesel Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain
Part Numbers:
- 76419
- 84419
- CQT76419
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 15 mm, 11/16”
- T15 Torx Bit Socket
- 6-inch Socket Extension
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Muffler:
- Spray lubricant on the rubber hangers to ease removal.
- Ensure the exhaust is supported before removing the rubber hangers.
- Remove the following:
- (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
- Rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by gently pulling on the rear fascia.
- If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.
-
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
- Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.
-
Install Hitch:
- Carefully raise the hitch into position without pushing the hardware back into the frame.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.
-
Reinstall Muffler:
- Reverse the steps from Step 1 to reinstall the muffler.
-
Torque Fasteners:
- Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.

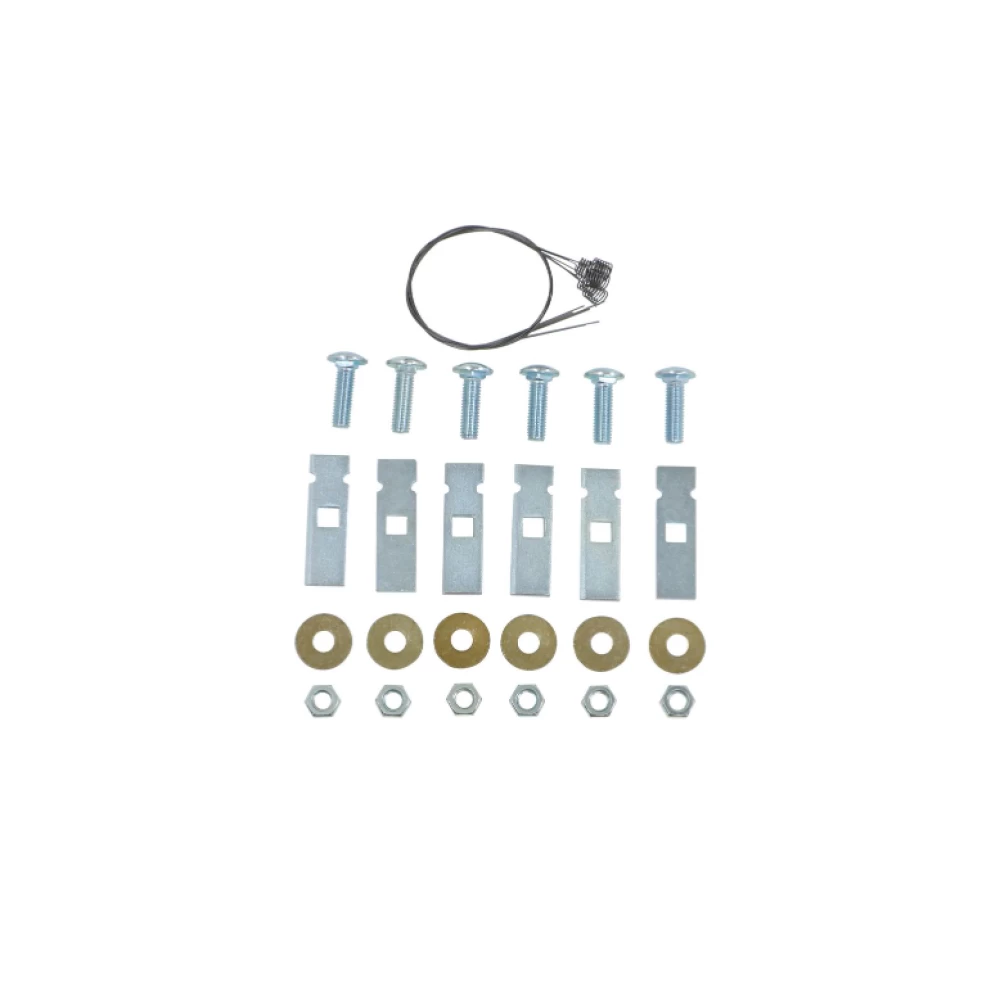

Hardware List:
- (6) Carriage Bolt 7/16”-14 x 1.5” GR5
- (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
- (6) Conical Washer 7/16” (PN: 01292007)
- (6) Hex Nut 7/16”-14
- (6) Pull Wire 7/16” (PN: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 35 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain
Part Numbers:
- 76419
- 84419
- CQT76419
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 15 mm, 11/16”
- T15 Torx Bit Socket
- 6-inch Socket Extension
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Muffler:
- Spray lubricant on the rubber hangers to ease removal.
- Ensure the exhaust is supported before removing the rubber hangers.
- Remove the following:
- (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
- Rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by gently pulling on the rear fascia.
- If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.
-
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
- Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.
-
Install Hitch:
- Carefully raise the hitch into position without pushing the hardware back into the frame.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.
-
Reinstall Muffler:
- Reverse the steps from Step 1 to reinstall the muffler.
-
Torque Fasteners:
- Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.
Hardware List:
- (6) Carriage Bolt 7/16”-14 x 1.5” GR5
- (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
- (6) Conical Washer 7/16” (PN: 01292007)
- (6) Hex Nut 7/16”-14
- (6) Pull Wire 7/16” (PN: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 35 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.

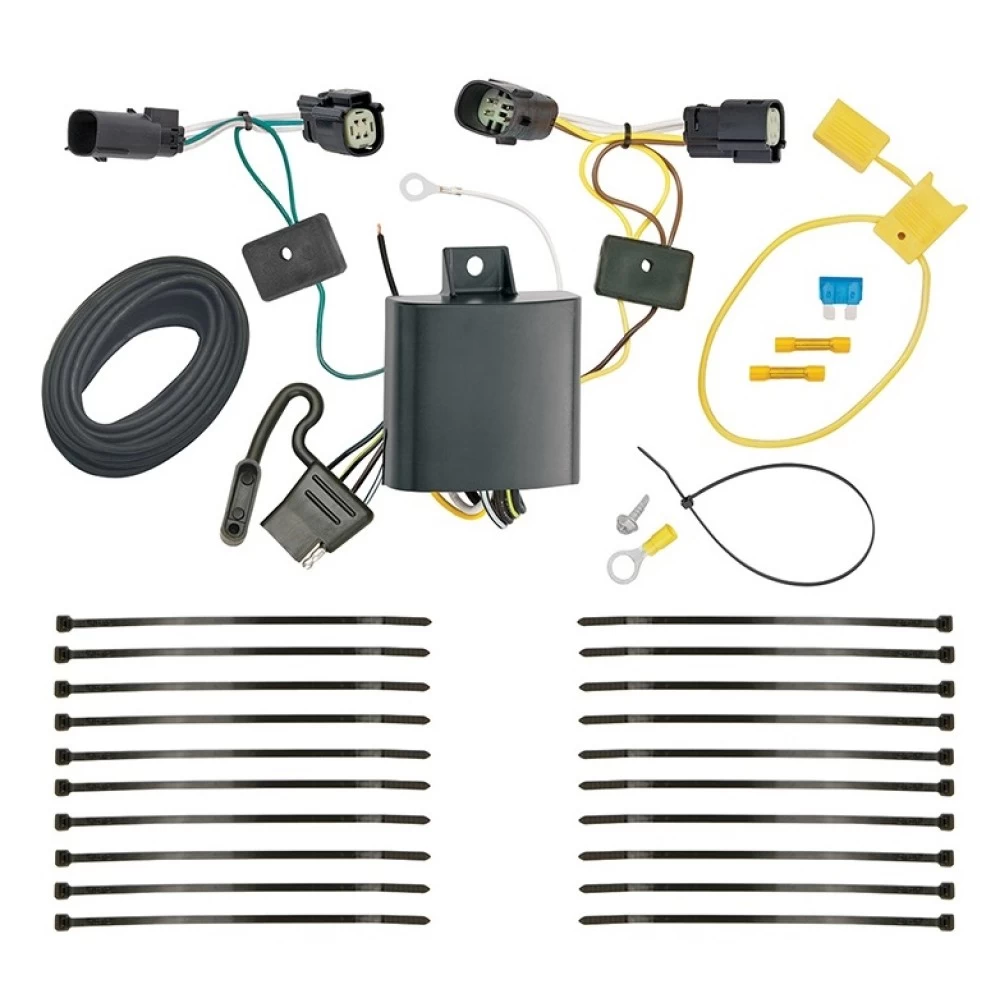

Installation Instructions for T-One® T-Connector for Chevrolet Equinox
Part Numbers:
- 118759
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
- Torx T10 Driver
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear tailgate to access the bolts securing the taillights.
- Remove the two Torx T10 screws on both the driver and passenger sides.
- Carefully pull the taillight housings away from the vehicle without damaging the alignment pins. Set them aside.
-
Locate the Taillight Wiring Harness:
- On both sides of the vehicle, locate the taillight wiring harness.
- Disconnect the connectors carefully, ensuring not to break the locking tabs. Clean the connector surfaces of dirt.
-
Mount the T-Connector Black Box:
- Determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
- Mount the T-Connector black box using the provided double-sided tape.
- Ensure the module’s epoxy side faces downward to prevent water accumulation.
-
Route the Driver-Side T-Connector:
- Route the T-Connector end with the yellow wire through the opening between the bumper and the vehicle body into the driver’s side taillight pocket.
- Connect the T-Connector end with the yellow wire between the taillight socket and the vehicle wiring harness.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire underneath the bumper to the passenger side.
- Route the wire up through the opening on the passenger side and into the taillight pocket, avoiding hot pipes, heat shields, or fuel tanks.
- Connect the T-Connector end with the green wire between the taillight socket and the vehicle wiring harness.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black wire and route it along the exterior frame to the engine compartment, avoiding hot pipes and areas that could pinch the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that could pinch, cut, or melt the wire.
-
Store the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle and mount it in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Chevrolet Equinox
Part Numbers:
- 118759
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
- Torx T10 Driver
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear tailgate to access the bolts securing the taillights.
- Remove the two Torx T10 screws on both the driver and passenger sides.
- Carefully pull the taillight housings away from the vehicle without damaging the alignment pins. Set them aside.
-
Locate the Taillight Wiring Harness:
- On both sides of the vehicle, locate the taillight wiring harness.
- Disconnect the connectors carefully, ensuring not to break the locking tabs. Clean the connector surfaces of dirt.
-
Mount the T-Connector Black Box:
- Determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
- Mount the T-Connector black box using the provided double-sided tape.
- Ensure the module’s epoxy side faces downward to prevent water accumulation.
-
Route the Driver-Side T-Connector:
- Route the T-Connector end with the yellow wire through the opening between the bumper and the vehicle body into the driver’s side taillight pocket.
- Connect the T-Connector end with the yellow wire between the taillight socket and the vehicle wiring harness.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire underneath the bumper to the passenger side.
- Route the wire up through the opening on the passenger side and into the taillight pocket, avoiding hot pipes, heat shields, or fuel tanks.
- Connect the T-Connector end with the green wire between the taillight socket and the vehicle wiring harness.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black wire and route it along the exterior frame to the engine compartment, avoiding hot pipes and areas that could pinch the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that could pinch, cut, or melt the wire.
-
Store the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle and mount it in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
