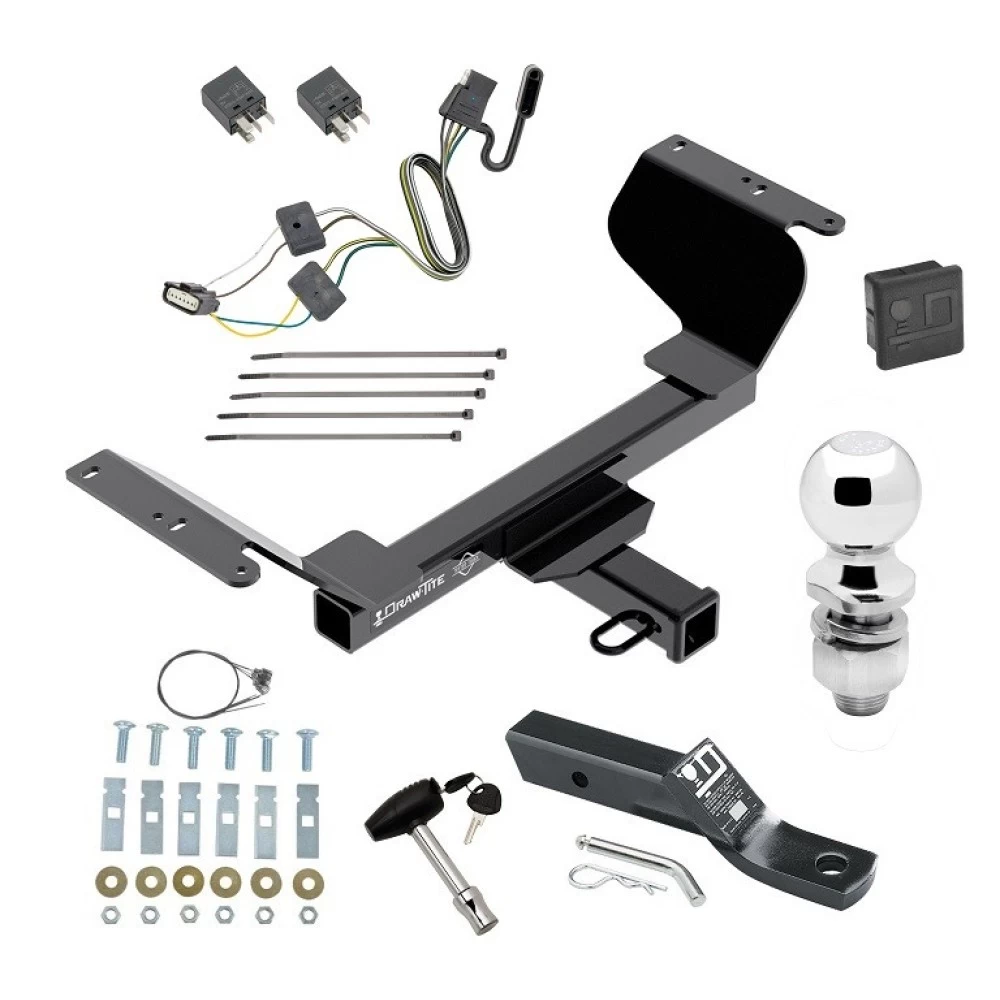

- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 18-24 GMC Terrain Except Diesel with Tow Prep Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain
Part Numbers:
- 76419
- 84419
- CQT76419
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 15 mm, 11/16”
- T15 Torx Bit Socket
- 6-inch Socket Extension
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Muffler:
- Spray lubricant on the rubber hangers to ease removal.
- Ensure the exhaust is supported before removing the rubber hangers.
- Remove the following:
- (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
- Rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by gently pulling on the rear fascia.
- If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.
-
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
- Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.
-
Install Hitch:
- Carefully raise the hitch into position without pushing the hardware back into the frame.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.
-
Reinstall Muffler:
- Reverse the steps from Step 1 to reinstall the muffler.
-
Torque Fasteners:
- Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.

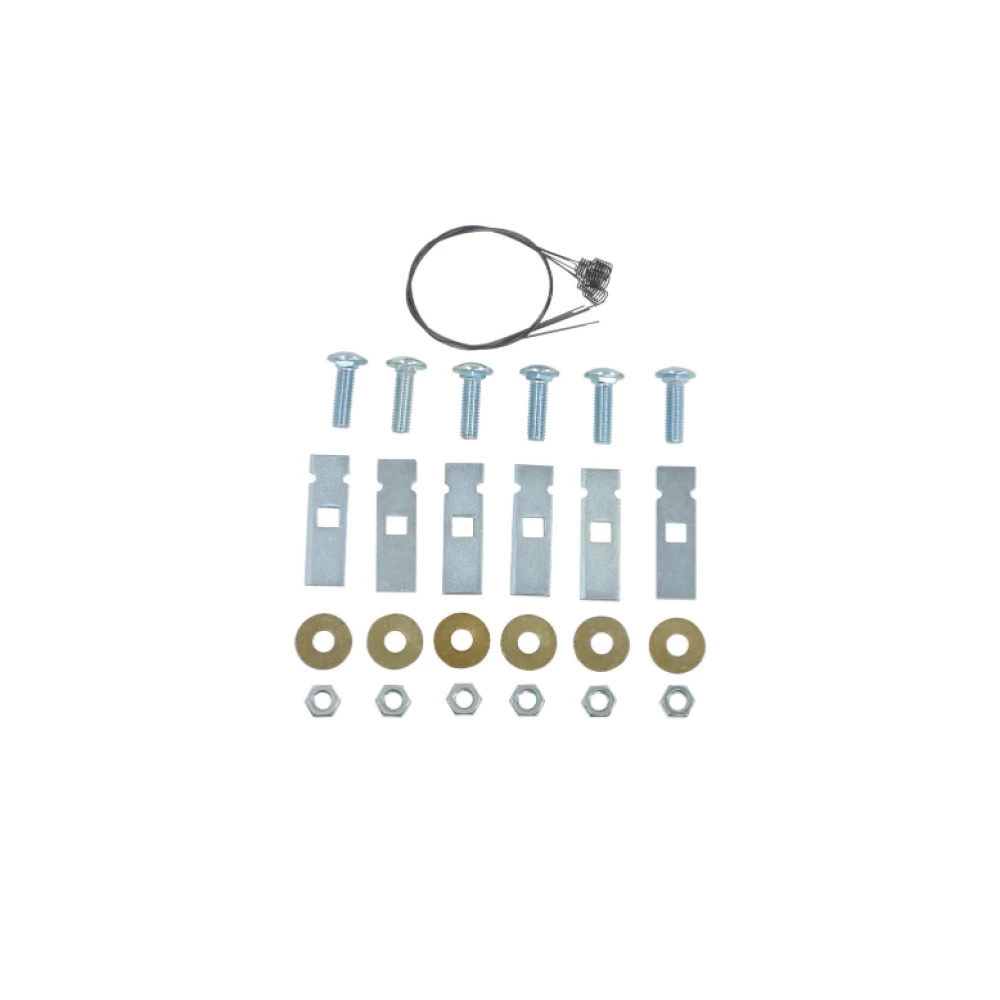

Hardware List:
- (6) Carriage Bolt 7/16”-14 x 1.5” GR5
- (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
- (6) Conical Washer 7/16” (PN: 01292007)
- (6) Hex Nut 7/16”-14
- (6) Pull Wire 7/16” (PN: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 35 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain
Part Numbers:
- 76419
- 84419
- CQT76419
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 15 mm, 11/16”
- T15 Torx Bit Socket
- 6-inch Socket Extension
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Muffler:
- Spray lubricant on the rubber hangers to ease removal.
- Ensure the exhaust is supported before removing the rubber hangers.
- Remove the following:
- (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
- Rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by gently pulling on the rear fascia.
- If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.
-
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
- Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.
-
Install Hitch:
- Carefully raise the hitch into position without pushing the hardware back into the frame.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.
-
Reinstall Muffler:
- Reverse the steps from Step 1 to reinstall the muffler.
-
Torque Fasteners:
- Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.
Hardware List:
- (6) Carriage Bolt 7/16”-14 x 1.5” GR5
- (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
- (6) Conical Washer 7/16” (PN: 01292007)
- (6) Hex Nut 7/16”-14
- (6) Pull Wire 7/16” (PN: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 35 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for GMC Terrain and Chevrolet Equinox
Part Numbers:
- 118285
Tools Required:
- Trim Panel Puller
- Test Probe
Step-by-Step Instructions:
-
Access the Fuse and Relay Panel:
- Open the rear lift gate and remove the access panel on the driver’s side to locate the fuse and relay panel.
- Locate relay positions K1 and K3:
- If relays are present, the included relays will not be used.
- If no relays are present, install the included relays into positions K1 (Trailer Stop/Turn) and K3 (Trailer Stop/Turn).
Note: If no relay provisions are present (terminals missing from the relay cavity), the T-One without the tow prep package is required.
-
Locate the Trailer Harness Connector:
- Under the vehicle, behind the rear bumper on the driver’s side, locate the trailer harness connector.
-
Remove the Protective Cap:
- Remove the protective cap from the connector and store it in the glove compartment along with the installation instructions.
- Ensure the mating surfaces of the connectors are clean and free of dirt. Clean if necessary.
-
Connect the 6-Pin Tow-Plug Adapter:
- Insert the 6-pin tow-plug adapter into the connector and lock it into place.
- Ensure all connectors are fully inserted and the locking tabs are secure.
-
Route and Secure the T-Connector Harness:
- Route the T-Connector harness rearward to the back of the bumper fascia.
- Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wire.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included).
-
Test and Verify Installation:
- Ensure all connections are complete for the T-One® Connector to function properly.
- Test the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or the towing capacity specified in the vehicle owner’s manual.
- Always wear safety glasses and follow all safety precautions during installation.
- Read and follow all warnings and instructions included with the purchase and those printed on the tow vehicle’s battery.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118285
Tools Required:
- Trim Panel Puller
- Test Probe
Step-by-Step Instructions:
-
Access the Fuse and Relay Panel:
- Open the rear lift gate and remove the access panel on the driver’s side to locate the fuse and relay panel.
- Locate relay positions K1 and K3:
- If relays are present, the included relays will not be used.
- If no relays are present, install the included relays into positions K1 (Trailer Stop/Turn) and K3 (Trailer Stop/Turn).
- Note: If no relay provisions are present (terminals missing from the relay cavity), the T-One without the tow prep package is required.
-
Locate the Trailer Harness Connector:
- Under the vehicle, behind the rear bumper on the driver’s side, locate the trailer harness connector.
-
Remove the Protective Cap:
- Remove the protective cap from the connector and store it in the glove compartment along with the installation instructions.
- Ensure the mating surfaces of the connectors are clean and free of dirt. Clean if necessary.
-
Connect the 6-Pin Tow-Plug Adapter:
- Insert the 6-pin tow-plug adapter into the connector and lock it into place.
- Ensure all connectors are fully inserted and the locking tabs are secure.
-
Route and Secure the T-Connector Harness:
- Route the T-Connector harness rearward to the back of the bumper fascia.
- Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wire.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included).
-
Test and Verify Installation:
- Ensure all connections are complete for the T-One® Connector to function properly.
- Test the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or the towing capacity specified in the vehicle owner’s manual.
- Always wear safety glasses and follow all safety precautions during installation.
- Read and follow all warnings and instructions included with the purchase and those printed on the tow vehicle’s battery.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
