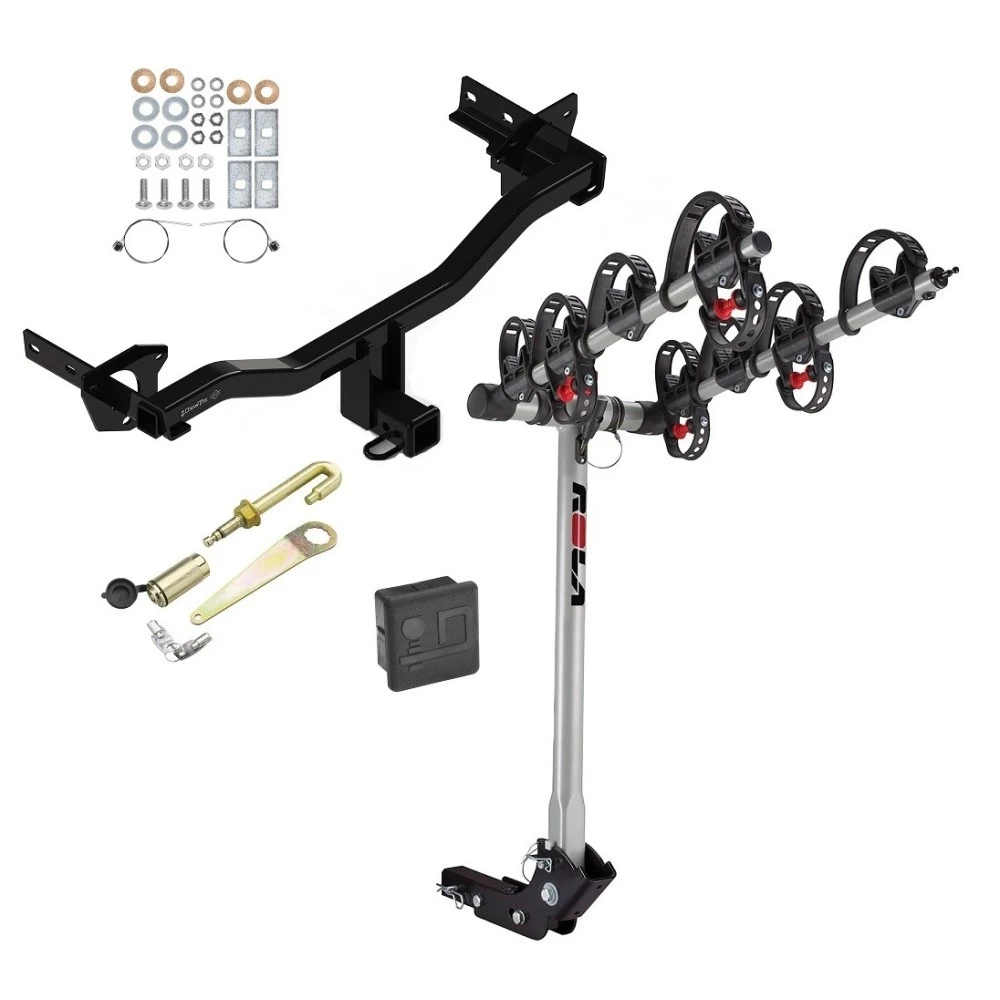

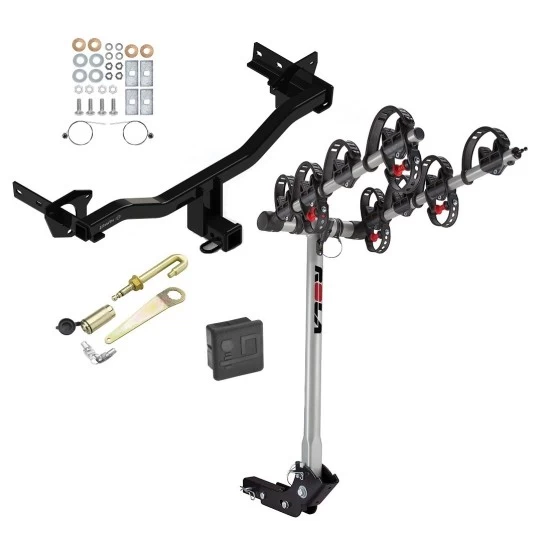

Trailer Tow Hitch For 18‑24 Alfa Romeo Stelvio Except Quadrifoglio 4 Bike Rack w/ Hitch Lock and Cover
Model: 76199 59401 63201 7010Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 – 2024 Alfa Romeo, Stelvio, Except Quadrifoglio

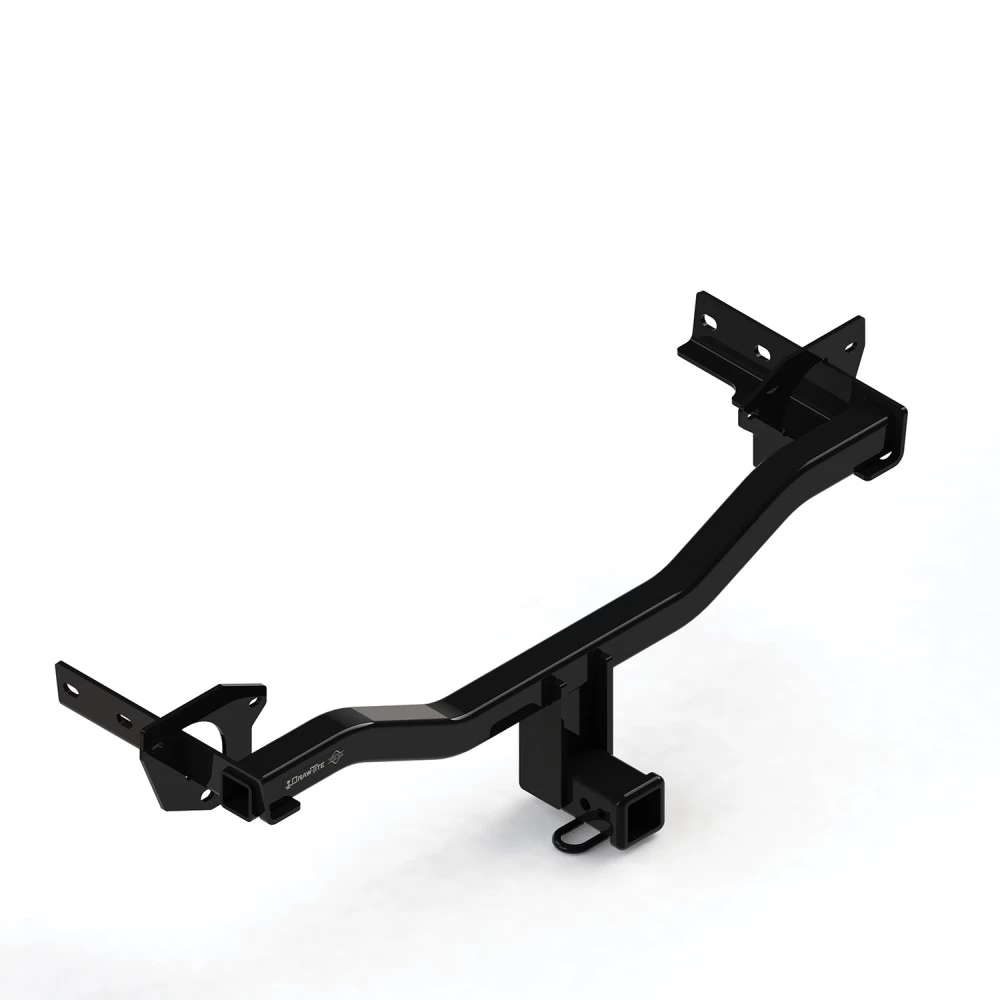

Trailer Hitch Specs:
| Part Number | 76199 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$445 77 $876.23 49% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$876.23 $445 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $111.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76199 59401 63201 7010
- Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 – 2024 Alfa Romeo, Stelvio, Except Quadrifoglio
Trailer Hitch Specs:
| Part Number | 76199 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch For 18-24 Alfa Romeo Stelvio Except Quadrifoglio 4 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Trailer Hitch #76199, #84199, and #CQT76199
Part Numbers:
- 76199
- 84199
- CQT76199
Applications:
- Years: 2018–Current
- Make and Models: Alfa Romeo Stelvio
For the most up-to-date information on application years and trim levels, consult the manufacturer’s website.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 13 mm
- T25, T27, T30 Torx Bits
- 6" Socket Extension
- Panel Removal Tool
- Plastic Trim Tools
- Utility Knife
- Marker
- Tape Measure
Step-by-Step Instructions:
1. Remove Fascia Panel:
- Use a T25 Torx bit to remove (6) screws from the rear bottom fascia.
2. Remove Underbody Panels:
- Use T25, T27, and a 10 mm socket to remove (6) screws and (1) flange nut from the underbody panel on each side.
3. Remove Bumper Fascia:
- Loosen the lower part of the wheel well trim with plastic trim tools by unclipping tabs and gently pulling outward.
- Use a T25 Torx bit to remove (1) screw behind the wheel well trim on each side.
- Open the lift gate and remove (2) screws near the trunk weather seal using a T30 Torx bit.
- Use plastic trim tools to remove the fascia starting at the outer edge near the wheel wells. Unplug the wiring on the passenger side if present.
4. Remove Bumper Beam:
- Use a 13 mm socket to remove (3) factory M8 bolts from the bumper plate on each side.
- Gently remove the bumper beam and return it to the vehicle owner.
5. Install Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the end panel studs (refer to Figure 1).
- Use pull wires to feed the carriage bolts and spacers through the end panel opening. Remove pull wires and loosely install conical washers and 1/2" nuts.
- Install flat washers, lock washers, and M8 nuts to the top two end panel studs. Reuse the factory M8 flange nut for the bottom end panel stud with the exhaust hanger bracket.
6. Tighten Fasteners:
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m) and all M8 fasteners to 27 lb-ft (37 N·m).
7. Trim Bumper Fascia and Fascia Panel:
- Use a marker and utility knife to cut a notch on the bottom fascia as shown in Figure 2.
- Cut the fascia panel into two pieces as shown in Figure 3.
8. Reinstall Components:
- Reinstall all fasteners, wiring, bumper fascia, and panels removed in Steps 1-3.
Hardware List:
- 4 × Carriage Bolts (1/2"-13 × 1.75", GR5)
- 4 × Spacer Blocks (0.250" × 1.0" × 2.0")
- 4 × Conical Washers (1/2")
- 4 × Hex Nuts (1/2"-13, GR5)
- 4 × Pull Wires (1/2")
- 4 × Flat Washers (5/16")
- 4 × Lock Washers (5/16")
- 4 × M8 × 1.25 Nuts (CL10)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
- Plug any exposed holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering the vehicle.
- Replace any damaged hitch or hitch ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,000 lbs (1,816 kg)
- Max Tongue Weight (Weight Carrying): 600 lbs (272 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 80 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.
