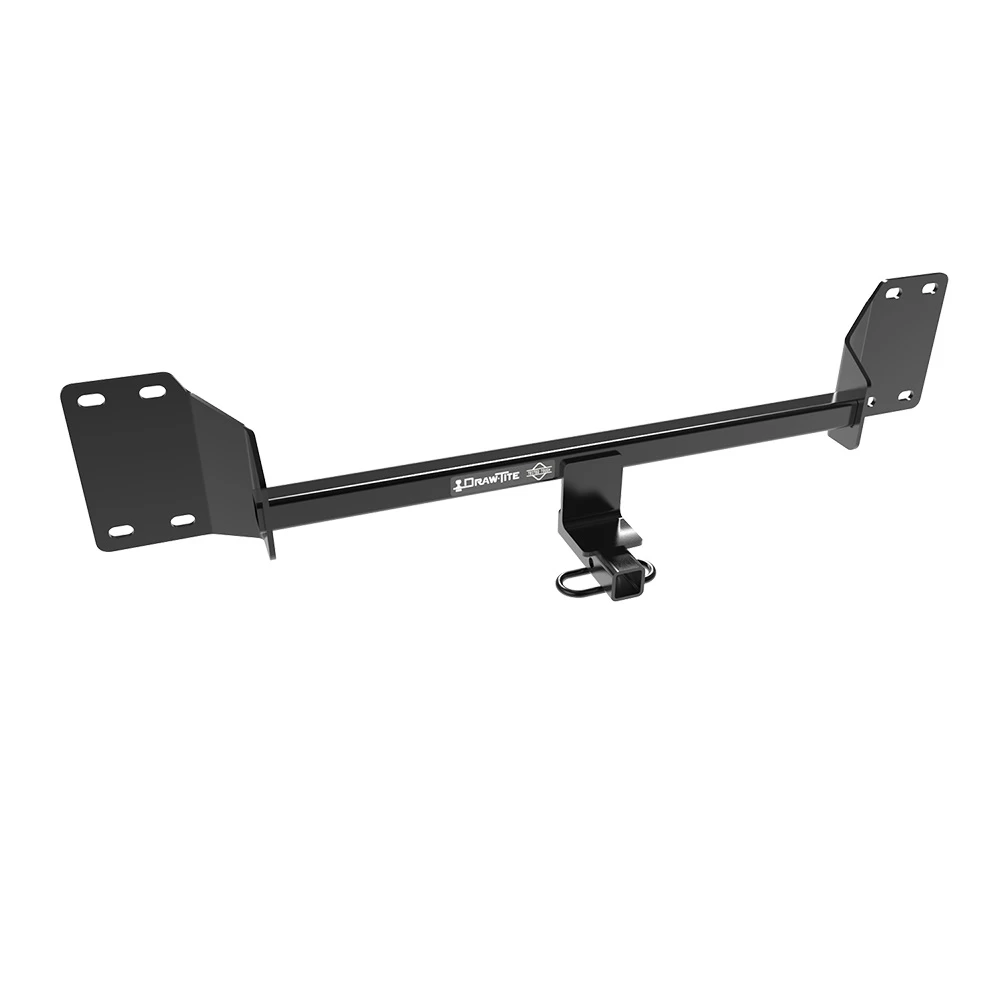

Trailer Tow Hitch For 18‑22 Honda Accord All Styles w/ Drawbar Kit

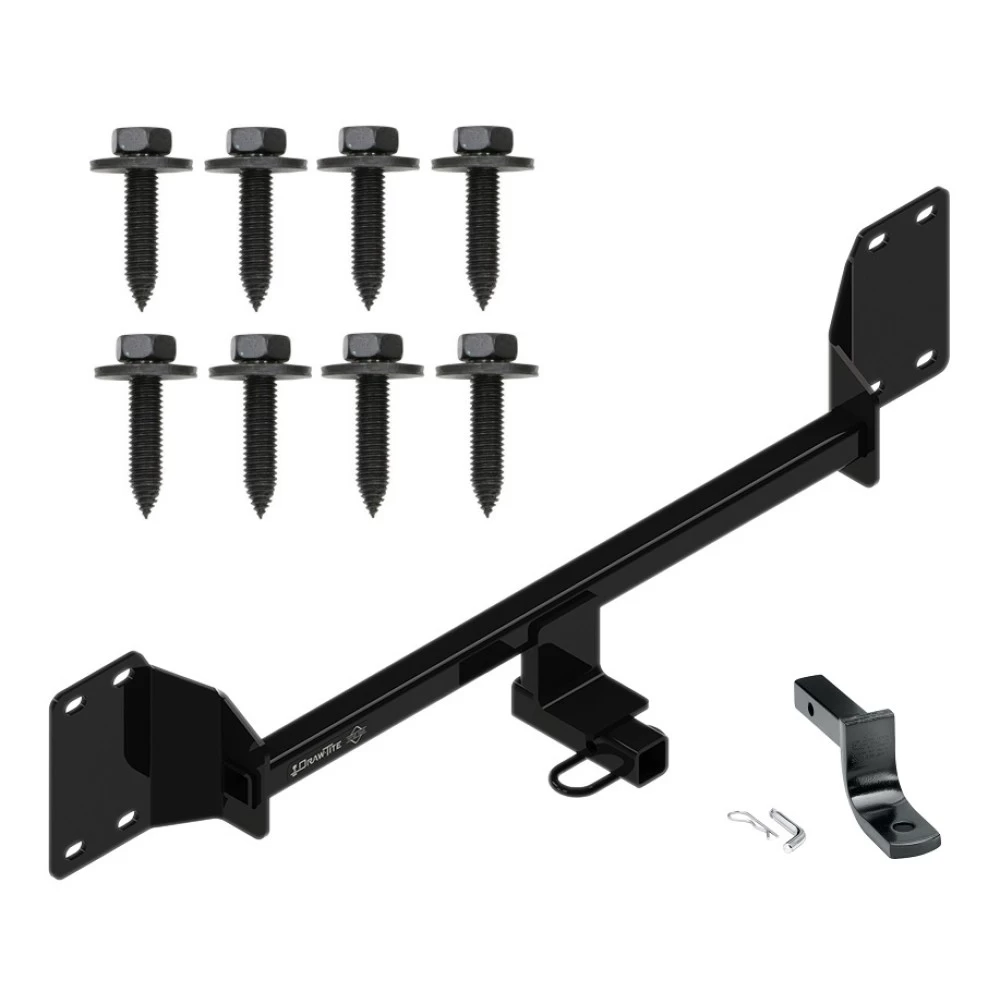

Model: 249720Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2018 - 2022 Honda, Accord, All Styles
Trailer Hitch Specs:
| Part Number | 249720 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 18 19 20 21 22 2018 2019 2020 2021 2022
$209 78 $365.21 43% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$365.21 $209 78
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 249720
- UPC: 016118147957
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2018 - 2022 Honda, Accord, All Styles
Trailer Hitch Specs:
| Part Number | 249720 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 18 19 20 21 22 2018 2019 2020 2021 2022
Get Expert Help
Trailer Tow Hitch For 18-22 Honda Accord All Styles w/ Drawbar Kit Install Notes
Installation Instructions for Honda Accord (2018-Current)
Part Numbers:
- 24972
- 77972
- CQT24972
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 13mm
- 6" Socket Extension
- Panel Removal Tool
- Utility Knife
- Phillips Screwdriver
- Plastic Trim Tools
- Tape
- 5mm Hex Bit
Step-by-Step Instructions:
-
Remove Bumper Fascia:
- Use a panel removal tool to remove 4 plastic rivets from the bottom fascia.
- Using a Phillips screwdriver, remove 2 horizontal screws and 1 vertical screw from the wheel well liner on each side.
- Open the rear hatch and use a 5mm hex bit to remove 2 screws near the taillight.
- Use plastic trim tools to gently remove the fascia, starting at the outer edges near the wheel wells.
-
Remove Bumper Beam:
- Using a 12mm socket, remove 4 factory M8 bolts from the bumper plate on each side.
- Return the bolts to the vehicle owner and gently remove the bumper beam.
-
Install Hitch:
- Push the thin metal piece inward and make it flush with the end panel on each side.
- Align the bumper beam with the hitch on the floor, then raise them together to the end panel.
- Loosely secure the M8 bolts to the bumper beam and hitch at 8 locations.
-
Torque Fasteners:
- Tighten all M8 fasteners to 25 ft-lb (34 N*m) using a torque wrench.
-
Optional: Trim Bumper Fascia:
- If the hitch pushes up on the bottom of the bumper fascia, trim it as shown in Figure 3.
-
Reinstall Components:
- Reinstall all fasteners and the bumper fascia removed in Steps 1 and 2.
Hardware List:

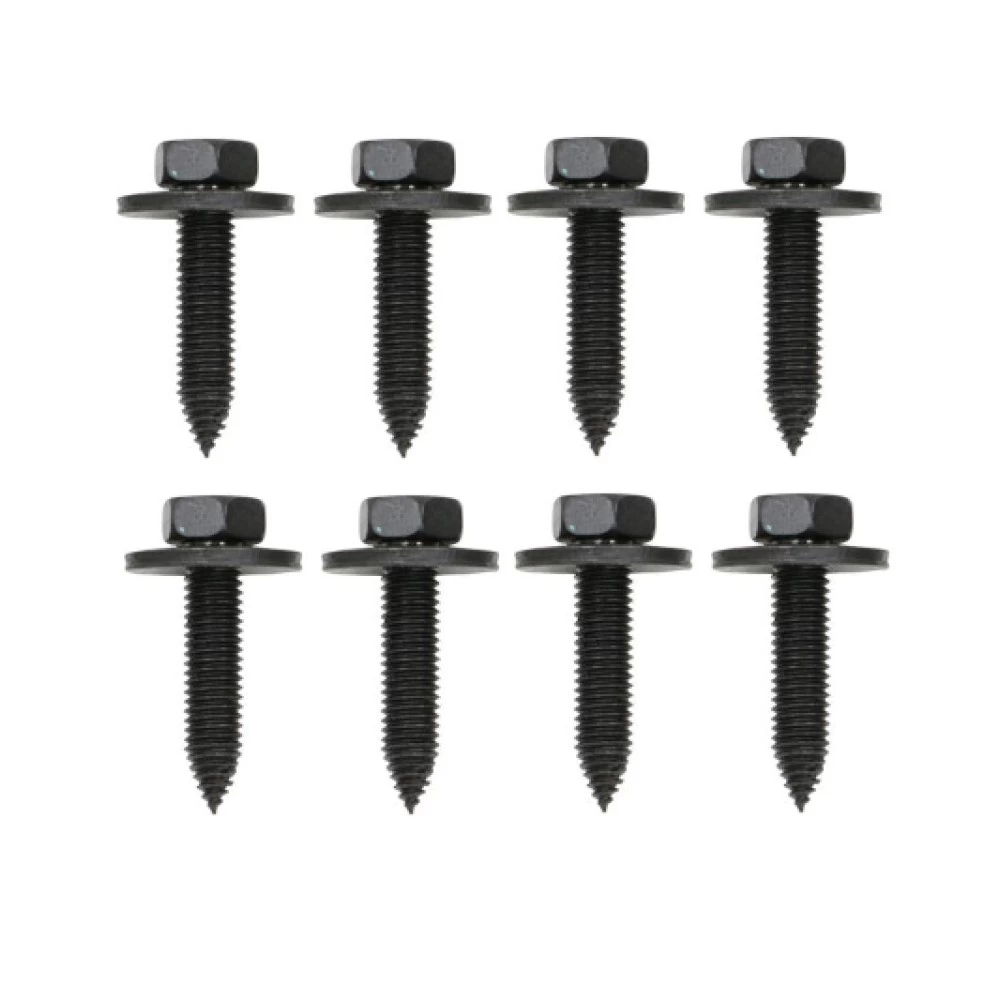

- (8) Bolt, M8 x 1.25 x 35mm, CL 9.8
Safety Notes:
- Always wear safety glasses during installation.
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug all removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 60 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2018-Current)
Part Numbers:
- 24972
- 77972
- CQT24972
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 13mm
- 6" Socket Extension
- Panel Removal Tool
- Utility Knife
- Phillips Screwdriver
- Plastic Trim Tools
- Tape
- 5mm Hex Bit
Step-by-Step Instructions:
-
Remove Bumper Fascia:
- Use a panel removal tool to remove 4 plastic rivets from the bottom fascia.
- Using a Phillips screwdriver, remove 2 horizontal screws and 1 vertical screw from the wheel well liner on each side.
- Open the rear hatch and use a 5mm hex bit to remove 2 screws near the taillight.
- Use plastic trim tools to gently remove the fascia, starting at the outer edges near the wheel wells.
-
Remove Bumper Beam:
- Using a 12mm socket, remove 4 factory M8 bolts from the bumper plate on each side.
- Return the bolts to the vehicle owner and gently remove the bumper beam.
-
Install Hitch:
- Push the thin metal piece inward and make it flush with the end panel on each side.
- Align the bumper beam with the hitch on the floor, then raise them together to the end panel.
- Loosely secure the M8 bolts to the bumper beam and hitch at 8 locations.
-
Torque Fasteners:
- Tighten all M8 fasteners to 25 ft-lb (34 N*m) using a torque wrench.
-
Optional: Trim Bumper Fascia:
- If the hitch pushes up on the bottom of the bumper fascia, trim it as shown in Figure 3.
-
Reinstall Components:
- Reinstall all fasteners and the bumper fascia removed in Steps 1 and 2.
Hardware List:
- (8) Bolt, M8 x 1.25 x 35mm, CL 9.8
Safety Notes:
- Always wear safety glasses during installation.
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug all removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 60 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
