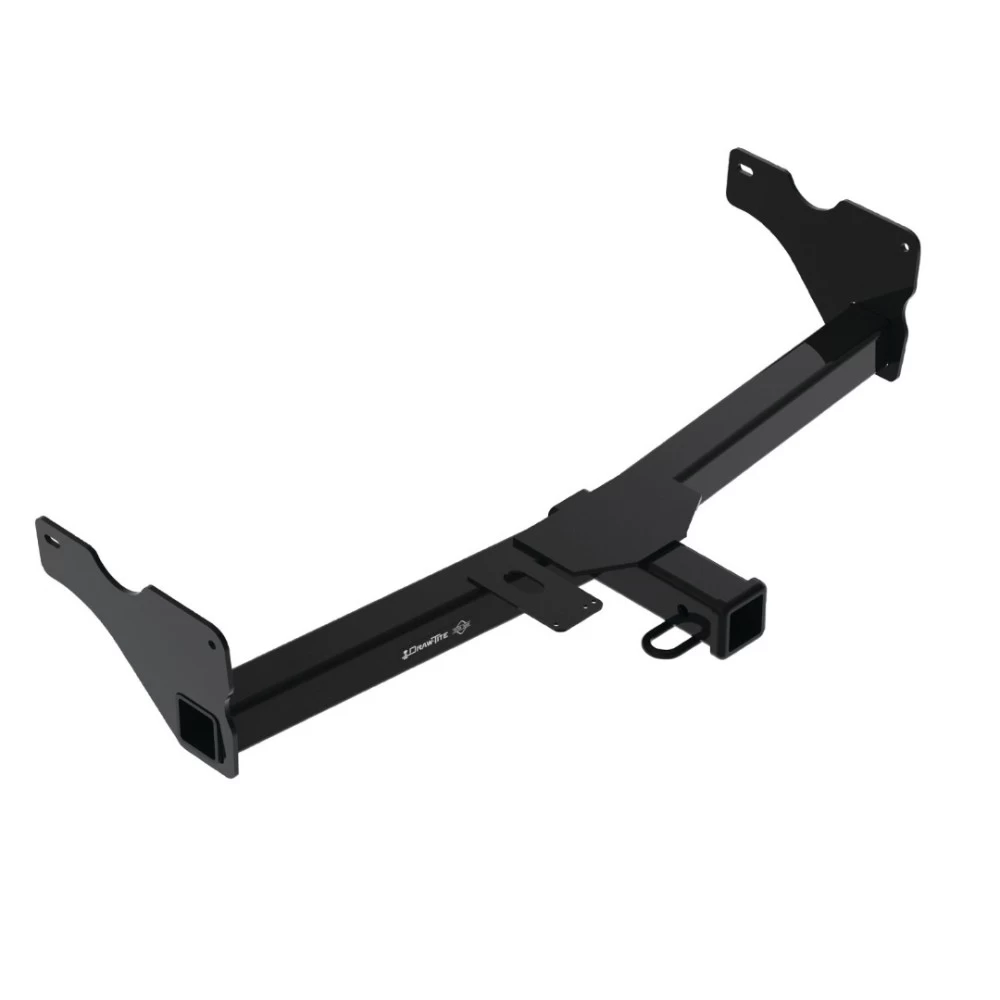

Installation Instructions for 2018-Current Volkswagen Tiguan

Part Numbers:

• 76551
• 84551
• CQT76551

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm, 16 mm, 11/16”
• T20 Star Driver
• Utility Knife
• Tin Snips
• Marker
• Tape Measure

Step-by-Step Instructions:

Vehicles with Existing Weldnuts:

1. Remove Underbody Panel (if present):

   • Use a T20 star driver to remove 5 screws from the underbody panel.
   • Use a 10 mm socket to loosen 2 nuts and carefully remove the panel. Return it to the owner.

2. Trim Bumper Fascia:

   • Use a tape measure and marker to find the center of the fascia.
   • Mark a centerline and trim as shown in Figures 2 and 3. Do not trim away the bottom edge.

3. Lower Exhaust and Remove Fasteners:

   • Use a 13 mm socket to remove 2 bolts from each rear exhaust hanger bracket (1 per side). Ensure the exhaust is supported after lowering.
   • Use a 16 mm socket to remove 4 M10x1.5x40 mm bolts from the frame rails (2 per side).

4. Install Hitch:

   • Raise the hitch into position over the exhaust. Align the hitch holes with the vehicle’s existing weldnuts.
   • Reuse the bolts removed earlier and tighten to 53 ft-lbs (72 N*m).

5. Reinstall Exhaust:

   • Raise the exhaust into position and reinstall the bolts removed from the hangers.

Vehicles without Existing Weldnuts:

1. Perform Steps 1-2 Above:

   • Follow the same instructions for removing the underbody panel and trimming the fascia.

2. Install Hitch Using Pull Wires:

   • Use pull wires to feed carriage bolts and spacers through the access holes on both sides (see Figures 4 and 5).
   • Raise the hitch into position and align it with the frame rails.
   • Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts.

3. Tighten Fasteners:

   • Tighten all 7/16” fasteners to 50 ft-lbs (68 N*m).

4. Reinstall Exhaust:

   • Raise the exhaust back into position and reinstall the bolts removed from the hangers.

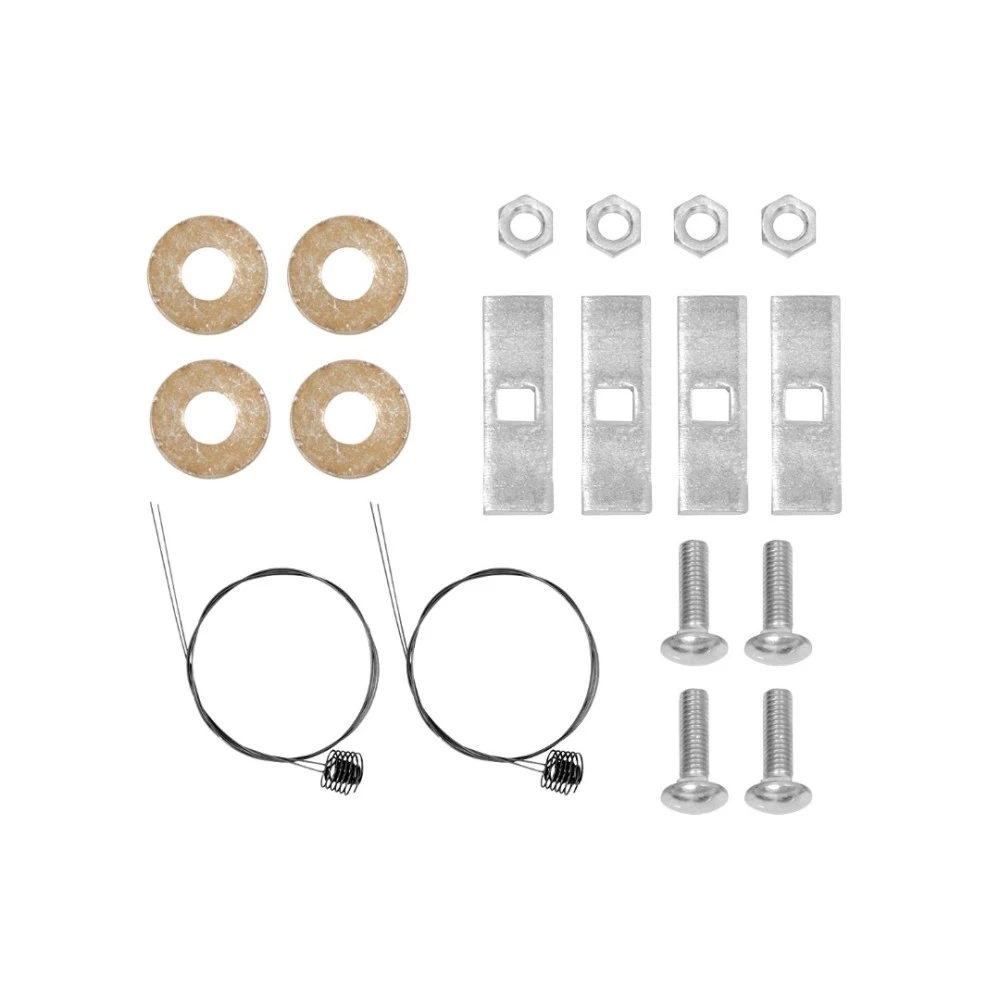

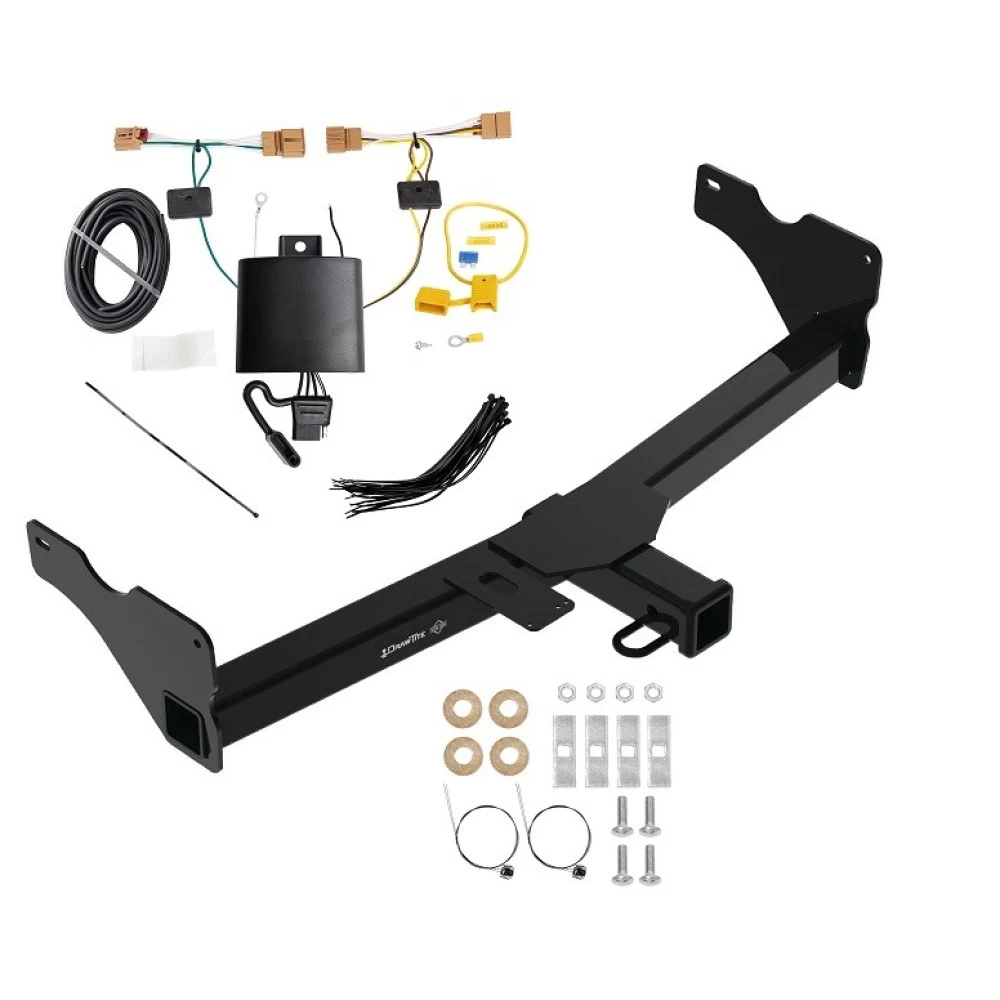

Hardware List:

• (4) Carriage Bolt 7/16”-14 x 1.75” GR5
• (4) Spacer 0.875” x 2.00” x 0.109”
• (4) Conical Washer 7/16”
• (4) Hex Nut 7/16”-14 GR2
• (4) Pull Wire 7/16”

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 40 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for Vehicle (2018-Current)

Part Numbers:

• 76551
• 84551
• CQT76551

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm, 16 mm, 11/16”
• T20 Star Driver
• Utility Knife
• Tin Snips
• Marker
• Tape Measure

Step-by-Step Instructions:

Vehicles with Existing Weldnuts:

1. Remove Underbody Panel (if present):

   • Use a T20 star driver to remove 5 screws from the underbody panel.
   • Use a 10 mm socket to loosen 2 nuts and carefully remove the panel. Return it to the owner.

2. Trim Bumper Fascia:

   • Use a tape measure and marker to find the center of the fascia.
   • Mark a centerline and trim as shown in Figures 2 and 3. Do not trim away the bottom edge.

3. Lower Exhaust and Remove Fasteners:

   • Use a 13 mm socket to remove 2 bolts from each rear exhaust hanger bracket (1 per side). Ensure the exhaust is supported after lowering.
   • Use a 16 mm socket to remove 4 M10x1.5x40 mm bolts from the frame rails (2 per side).

4. Install Hitch:

   • Raise the hitch into position over the exhaust. Align the hitch holes with the vehicle’s existing weldnuts.
   • Reuse the bolts removed earlier and tighten to 53 ft-lbs (72 N*m).

5. Reinstall Exhaust:

   • Raise the exhaust into position and reinstall the bolts removed from the hangers.

Vehicles without Existing Weldnuts:

1. Perform Steps 1-2 Above:

   • Follow the same instructions for removing the underbody panel and trimming the fascia.

2. Install Hitch Using Pull Wires:

   • Use pull wires to feed carriage bolts and spacers through the access holes on both sides (see Figures 4 and 5).
   • Raise the hitch into position and align it with the frame rails.
   • Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts.

3. Tighten Fasteners:

   • Tighten all 7/16” fasteners to 50 ft-lbs (68 N*m).

4. Reinstall Exhaust:

   • Raise the exhaust back into position and reinstall the bolts removed from the hangers.

Hardware List:

• (4) Carriage Bolt 7/16”-14 x 1.75” GR5
• (4) Spacer 0.875” x 2.00” x 0.109”
• (4) Conical Washer 7/16”
• (4) Hex Nut 7/16”-14 GR2
• (4) Pull Wire 7/16”

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product comes with a standard warranty period of [X] years.
• Coverage includes [details on coverage].
• For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

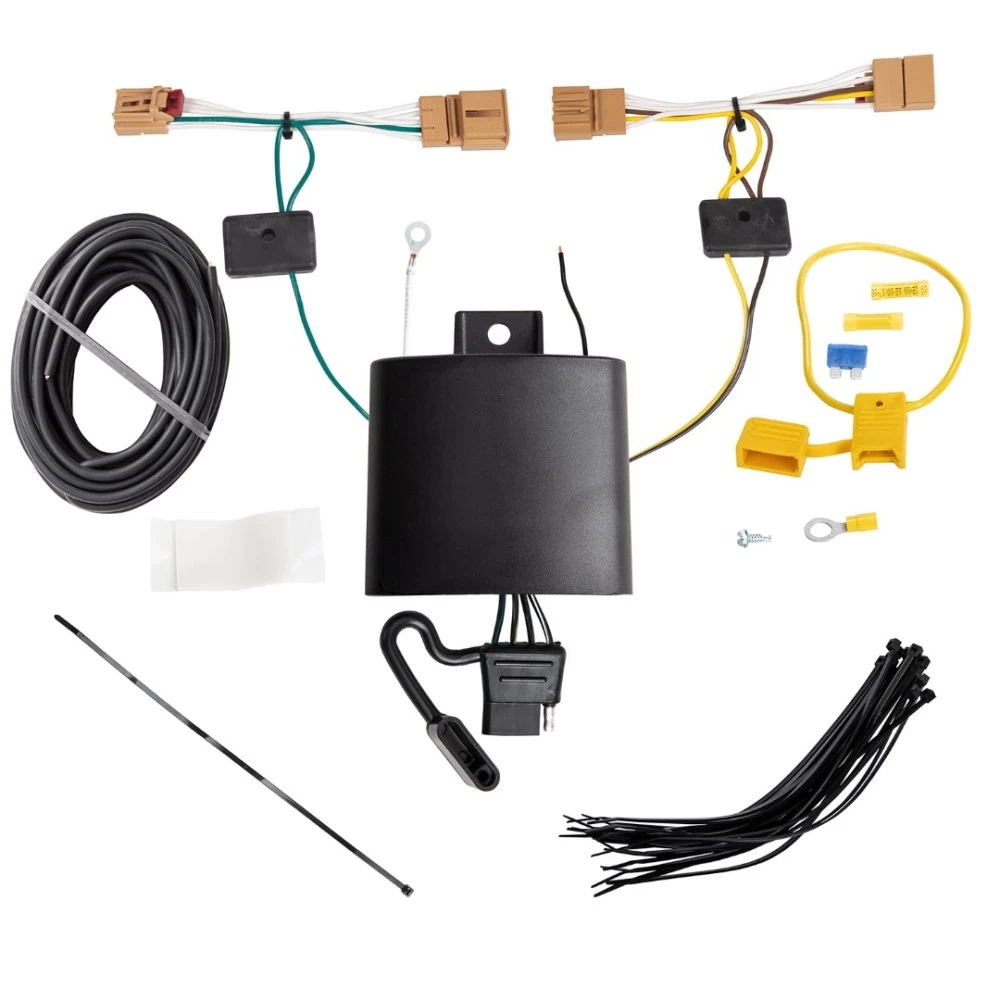

Installation Instructions for T-One® T-Connector for Volkswagen Tiguan
