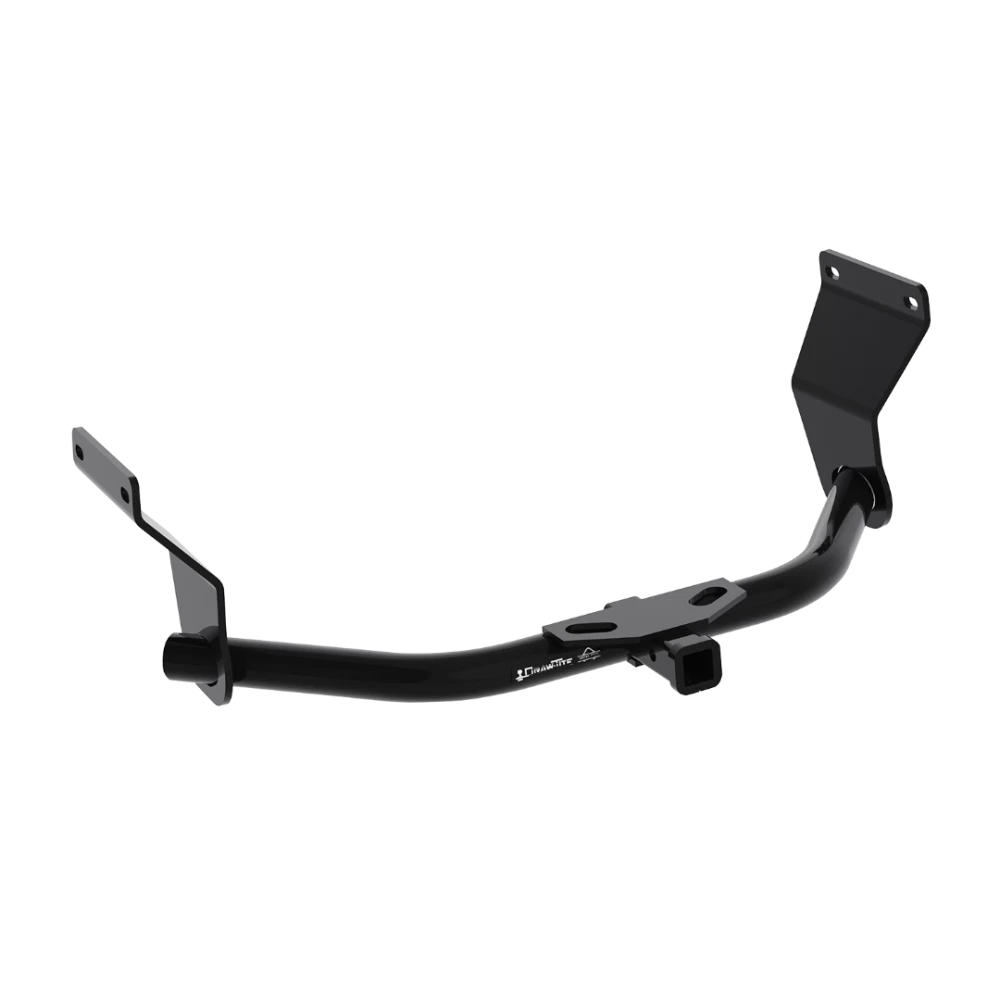

Installation Instructions for Acura RDX (2019-Current)

Part Numbers:

• 36114
• 06193
• CQT36114

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 19mm
• 6" Socket Extension
• Prybar
• Exhaust Removal Pliers

Step-by-Step Instructions:

1. Lower Spare Tire:

   • Locate the spare tire lowering tools and mechanism (consult the vehicle owner's manual).
   • Lower the spare tire and set it aside.

2. Lower Exhaust:

   • Use exhaust removal pliers or a prybar to remove the rubber exhaust hangers located in front of and behind the muffler.
   • Support the exhaust to prevent damage during this step.

3. Install Hitch:

   • Ensure the weldnuts in the frame are free from rust and debris.
   • Raise the hitch into position, aligning the attachment holes with the rearmost weldnuts in the side of the frame rails.
   • Install the supplied M12 bolts and conical washers (teeth side toward the hitch) into the weldnuts on both sides.

4. Torque Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 42 lb-ft (57 N*m).

5. Reinstall Exhaust and Spare Tire:

   • Raise the exhaust back into position and reattach all rubber hangers removed in Step 2.
   • Reinstall the spare tire.

Hardware List:

• (4) Hex Bolt, M12 x 1.25 x 40mm CL10.9
• (4) Conical Washer, 1/2" (Part No. 01292008)

Safety Notes:

• Always wear safety glasses during installation.
• Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Do not cut access or attachment holes with a torch.
• This product complies with SAE J684 and VESC Regulation V-5 safety specifications.

Specifications:

• Installation Time: 30 minutes
• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)
• Weight Distributing: Not Applicable

Installation Instructions for Acura RDX (2019-Current)

Part Numbers:

• 36114
• 06193
• CQT36114

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 19mm
• 6" Socket Extension
• Prybar
• Exhaust Removal Pliers

Step-by-Step Instructions:

1. Lower Spare Tire:

   • Locate the spare tire lowering tools and mechanism (consult the vehicle owner's manual).
   • Lower the spare tire and set it aside.

2. Lower Exhaust:

   • Use exhaust removal pliers or a prybar to remove the rubber exhaust hangers located in front of and behind the muffler.
   • Support the exhaust to prevent damage during this step.

3. Install Hitch:

   • Ensure the weldnuts in the frame are free from rust and debris.
   • Raise the hitch into position, aligning the attachment holes with the rearmost weldnuts in the side of the frame rails.
   • Install the supplied M12 bolts and conical washers (teeth side toward the hitch) into the weldnuts on both sides.

4. Torque Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 42 lb-ft (57 N*m).

5. Reinstall Exhaust and Spare Tire:

   • Raise the exhaust back into position and reattach all rubber hangers removed in Step 2.
   • Reinstall the spare tire.

Hardware List:

• (4) Hex Bolt, M12 x 1.25 x 40mm CL10.9
• (4) Conical Washer, 1/2"

Safety Notes:

• Always wear safety glasses during installation.
• Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Do not cut access or attachment holes with a torch.
• This product complies with SAE J684 and VESC Regulation V-5 safety specifications.

Specifications:

• Installation Time: 30 minutes
• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)
• Weight Distributing: Not Applicable

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

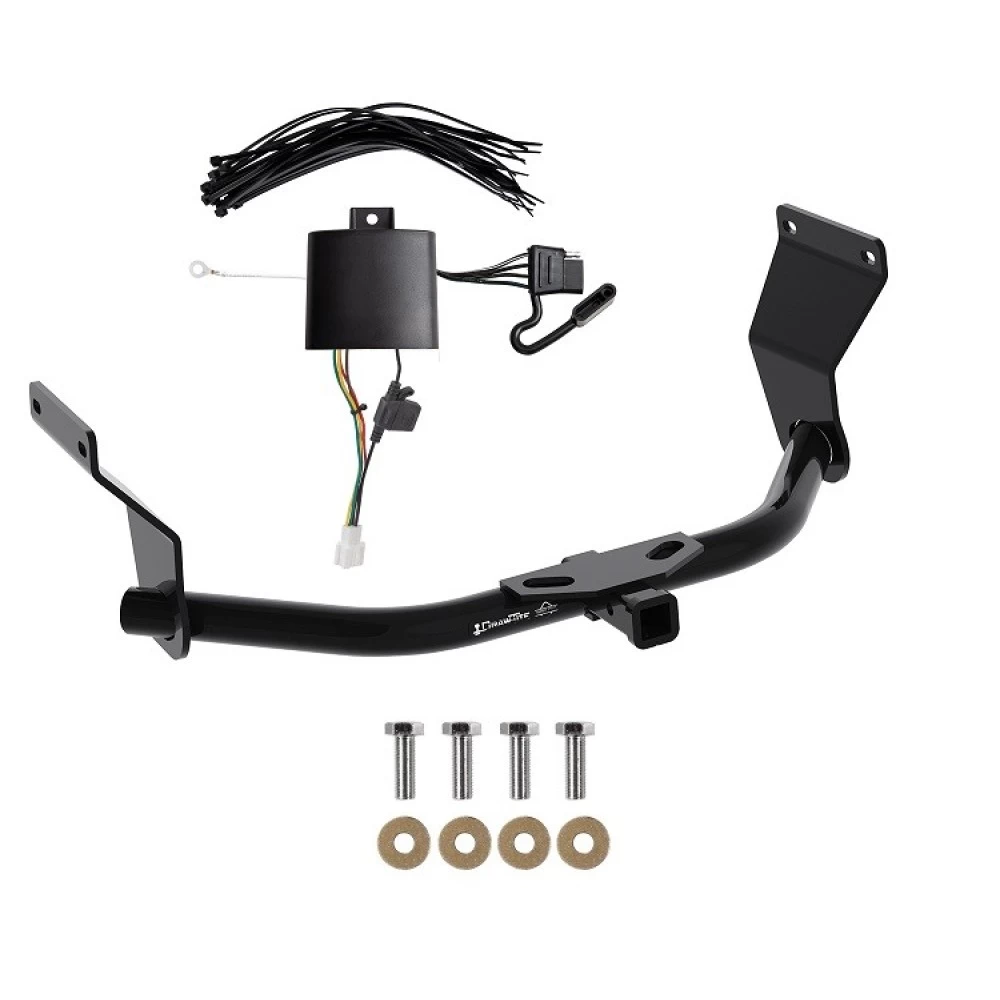

Installation Instructions for T-One® T-Connector for Acura RDX

Part Numbers:

• 118800

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

• Open the rear hatch. Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
• Open the rear door and fold the rear seat forward.
• Carefully remove the lower interior trim panels on the driver’s side to expose the wiring harness. Set aside all removed items safely.

2. Locate the Vehicle’s 8-Pin Connector:

• Locate the vehicle’s 8-pin connector behind the rear interior trim panel on the driver’s side.
• Inspect the connector for two separate red wires. If only one red wire is present, use T-One® part number 118804 instead.

3. Connect the T-One® T-Connector:

• Insert the 8-pin tow-plug adapter into the vehicle’s connector and lock it in place securely.

4. Ground the White Wire:

• Option 1: Locate an existing ground stud on the driver’s side. Loosen the bolt, place the screw eyelet on the stud, and retighten the bolt. Ensure all other ground connections are secure.
• Option 2: Find a suitable grounding point, such as the vehicle’s frame or crossmember. Clean the area of dirt and rustproofing. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

Caution:

• Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into any exposed surfaces.

5. Mount the Black Box:

• Locate a flat surface in an out-of-the-way place and mount the T-One® T-Connector’s black box using the provided double-sided tape to prevent damage or rattling.

6. Secure the Wiring Harness:

• Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.

7. Reassemble the Vehicle:

• Reinstall the plastic trim panels, threshold plate, storage covers, and other items removed during the installation.
• Ensure no wires are pinched or damaged during reassembly.

8. Store the 4-Flat Connector:

• Store the 4-flat connector in the rear cargo area when not in use.
• When in use, pull the connector through the rear door and close the door carefully, ensuring not to pinch the harness in the door latch.

9. Test the Installation:

• All connections must be complete for the T-One® T-Connector to function properly.
• Test the installation using a test light or trailer.
• For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.
• Refer to the vehicle owner’s manual and instruction sheet for additional information.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.
