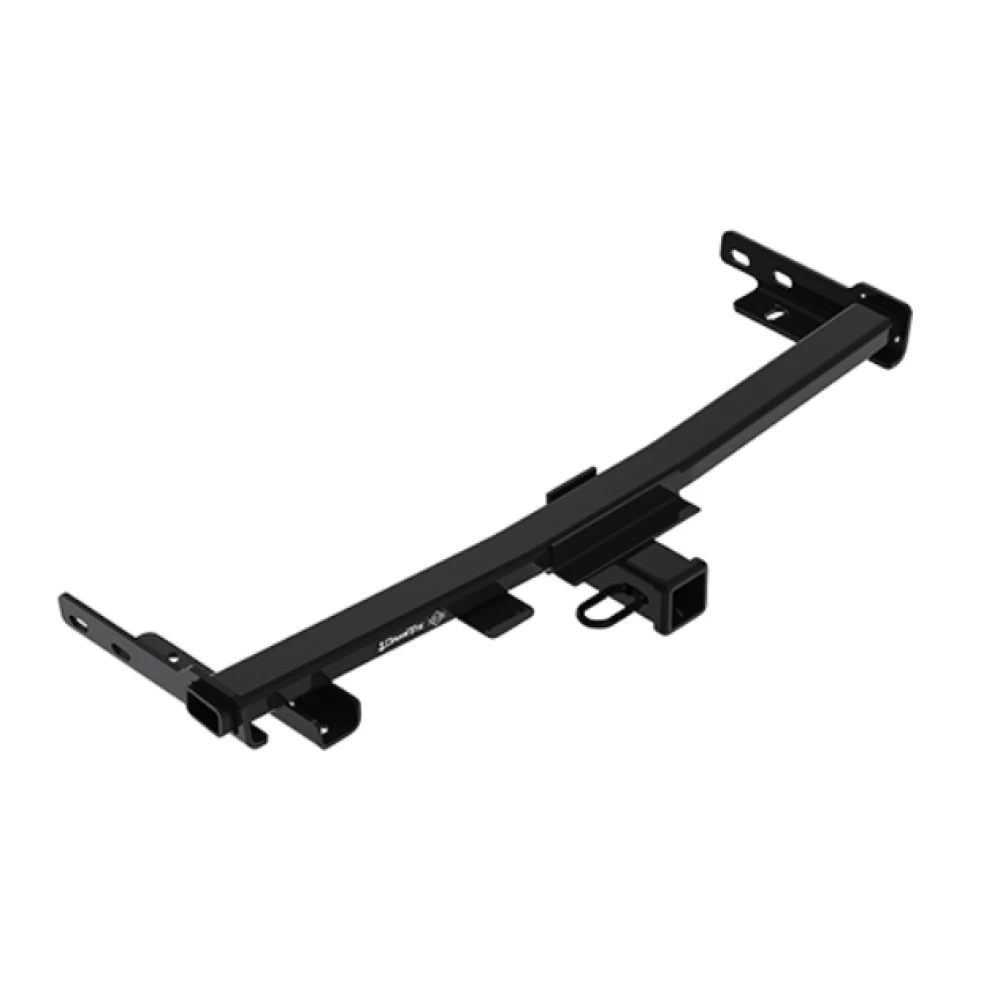

Trailer Tow Hitch For 14‑23 Jeep Cherokee Trailhawk 2" Receiver Class 3
Model: 76392Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2023 Jeep, Cherokee, Trailhawk
Trailer Hitch Specs:
| Part Number | 76392 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675 / 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$220 82 $327.59 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$327.59 $220 82
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $55.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76392
- UPC: 016118159820
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2023 Jeep, Cherokee, Trailhawk
Trailer Hitch Specs:
| Part Number | 76392 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675 / 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch For 14-23 Jeep Cherokee Trailhawk 2" Receiver Class 3 Install Notes
Installation Instructions for Jeep Cherokee Trailhawk
Part Numbers:
- 76392
- 84392
- CQT76392
Wiring Access Location:
- Not Applicable
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- Safety Glasses
- 3/4” Socket
- T25 and T30 Torx Bits
- Phillips Screwdriver
- Diagonal Cutters
- Plastic Trim Tools
- Plastic Rivet Gun
Step-by-Step Instructions:
-
Remove Taillights
- Open the liftgate.
- Remove the two screws holding the taillight.
- Pull the light rearward gently but firmly and unplug the wiring connector.
-
Remove Wheel Well Trim
- Use plastic trim tools to gently pry and pull the upper wheel well trim away from the vehicle.
- Take care not to scratch the vehicle.
-
Remove Fascia
- Remove the screw under the wheel well trim just removed.
- Remove four screws from the bottom of the rear fascia.
- Remove the screws from the fascia in the area under the liftgate (one on each side).
- Remove three screws from each side inside the wheel well area. For 2019 and newer models, cut or drill out the plastic rivet at the bottom of the wheel well.
- Using plastic trim tools, gently pry the fascia away from the vehicle starting at the wheel well.
- Unplug any wiring connectors and set the fascia aside.
-
Remove Impact Bar
- Remove the two bolts from the tow hook and set them aside for reinstallation.
- Remove three bolts from each side of the vehicle frame (two from the outer frame and one from the bottom of the frame).
- Pry plastic wiring fasteners from the frame in the area of the hitch installation.
- Return the impact bar to the vehicle owner.
-
Install Hitch
- Raise the hitch into position and insert it into the vehicle frame.
- Align the holes in the hitch bracket with the bolt holes from the impact bar.
- Use the supplied pull wires to insert the carriage bolts and spacers through the access hole in the vehicle frame, hitch, and vehicle frame. Refer to Figure 2.
- Remove the pull wires and install the conical washers (teeth side toward the hitch) and nuts. Refer to Figure 1.
- Place the tow hook on top of the bracket near the left side of the hitch. Align the holes in the tow hook with the holes in the bracket and reinstall the fasteners removed earlier. Torque to 59 ft-lb (80 N*m).
- Tighten all 1/2”-13 Gr 8 fasteners with a torque wrench to 110 ft-lb (150 N*m).
-
Reinstall Fascia and Taillights
- Reinstall the fascia and taillights in reverse order of steps 1 through 3.
- Be sure to reconnect all electrical connectors.

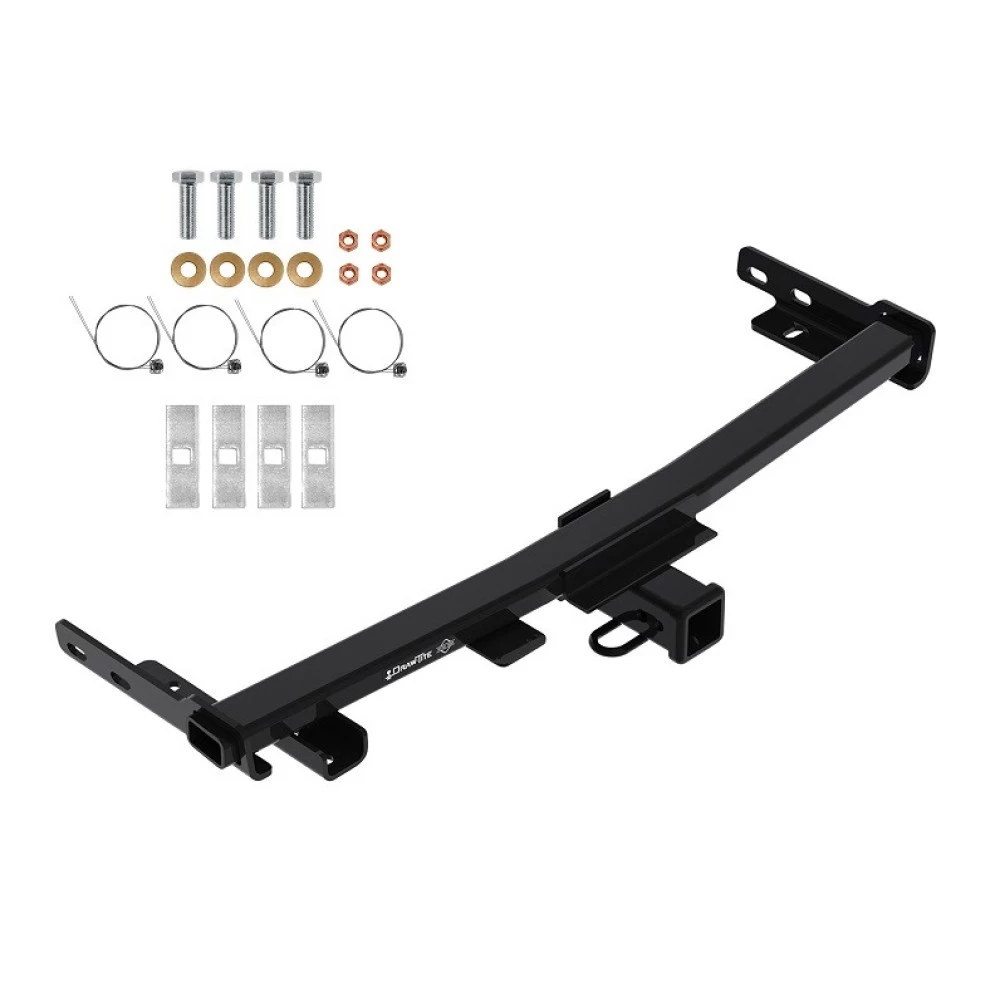

Hardware List:
- (4) 1/2"-13x1 3/4" GR8 Carriage Bolts
- (4) 1/4"x1"x3" Spacers
- (4) 1/2" Conical Washers
- (4) 1/2" GR2H Hex Nuts
- (4) 1/2"-13 Pull Wires
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check that all fasteners are tight and the hitch is securely mounted.
- Do not cut, weld, or modify the trailer hitch.
- Follow the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Hitch Type: Weight Carrying
- Max Gross Trailer Weight: 4,500 lbs (2,041 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Complies with SAE J684 and VESC Regulation V-5.
