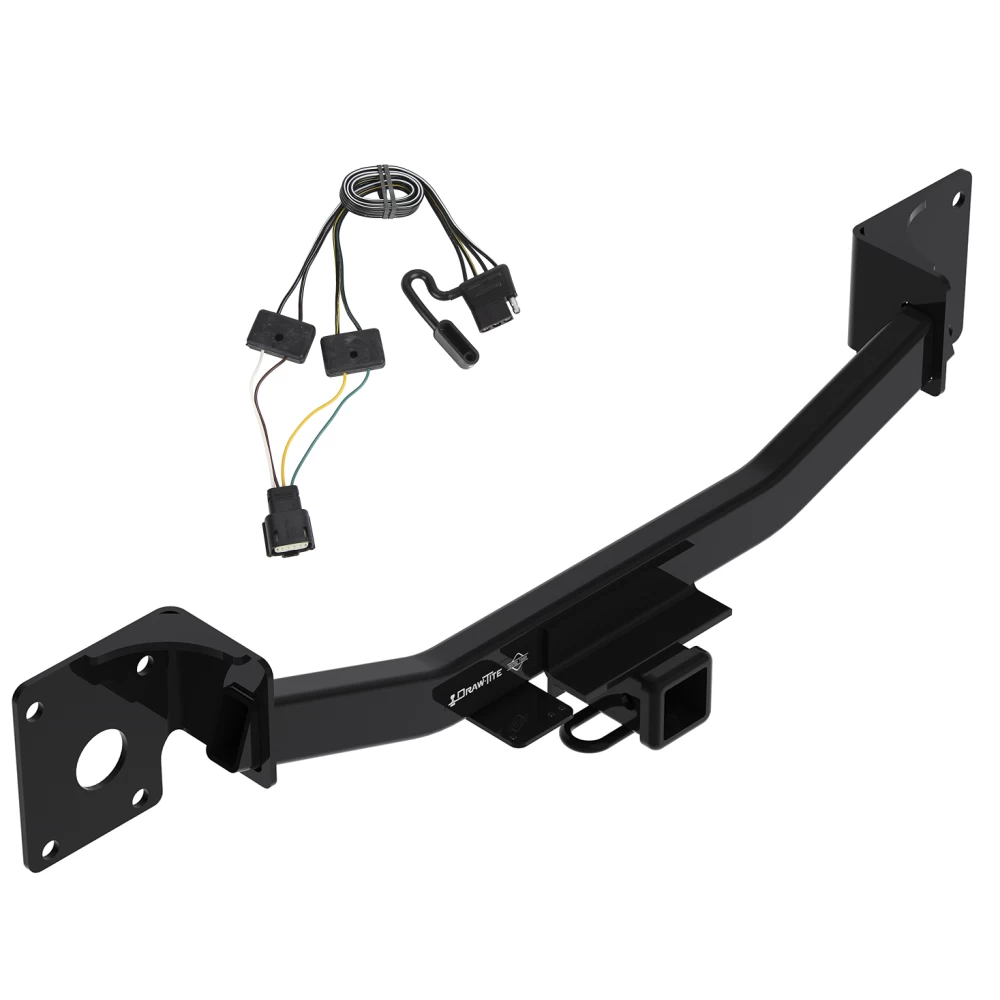

Trailer Tow Hitch For 19-24 Cadilac XT4 w/ Wiring Harness Kit Install Notes

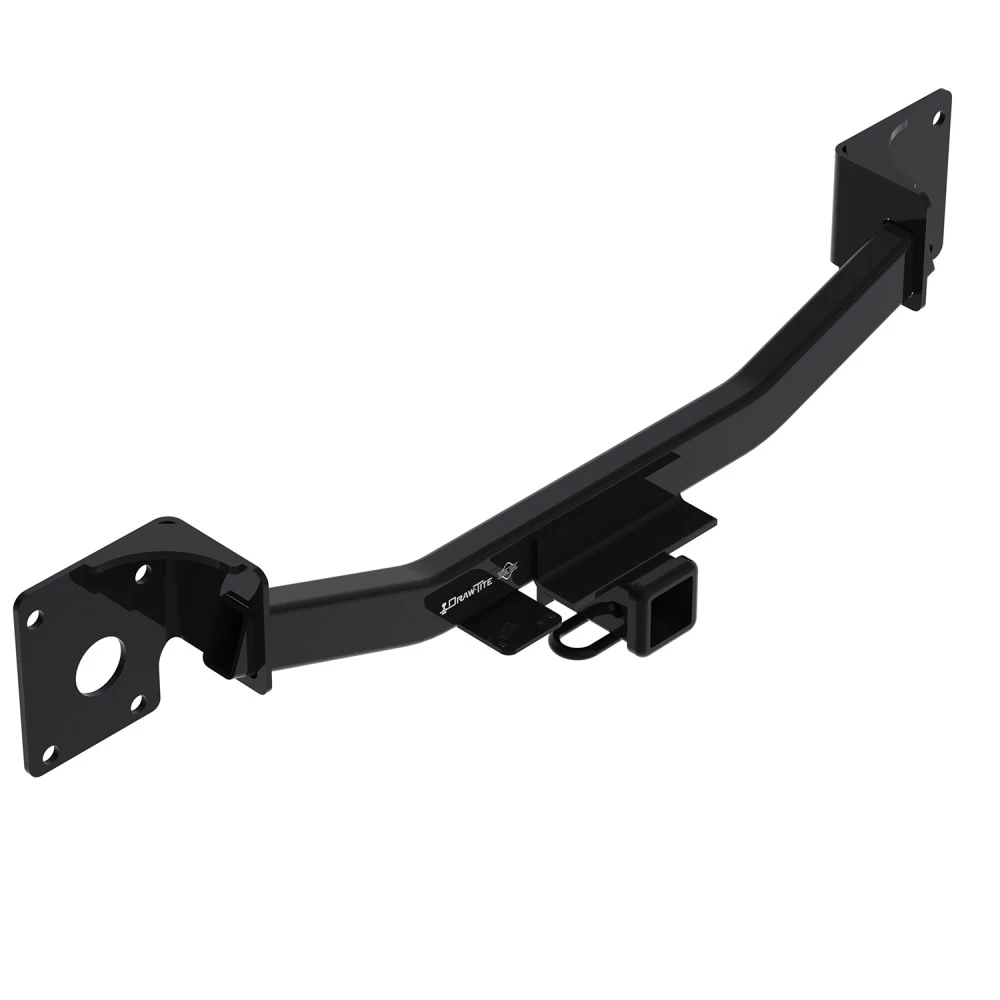

Installation Instructions for Cadillac XT4 (2019-Present)
Part Numbers:
- 76266
- 84266
- CQT76266
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Plastic Trim Tools
- Tape
- Utility Knife
- Sockets: 7mm, 15mm
- Torx Bits: T15, T20
- 6" Socket Extension
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing:
- Not Applicable
Step-by-Step Instructions:
Remove Fascia:
- Open the liftgate.
- Remove the plastic covers next to the taillights by pulling upward to release the clips.
- Using a T20 Torx bit, remove the screws connecting the fascia to the vehicle on both sides.
- Use plastic trim tools to remove the wheel well trim. Pull the trim back enough to access the screw located behind it.
- Remove the screw behind the wheel well trim using a 7mm socket.
- Use a T15 Torx bit to remove screws from the wheel well liner, then pull the liner back from the fascia.
- Remove the hitch access panel in the middle of the fascia. Use a T15 Torx bit to remove screws holding the bottom of the fascia.
- Starting from the wheel wells, carefully pull the fascia away from the vehicle, working toward the middle. Use plastic trim tools to release clips as needed.
- Caution: Be extra careful around the taillight area. Masking the bottom of the taillight is recommended to avoid scratches. Unplug electrical connectors behind the fascia and set it aside.
Lower Exhaust:
- Support the exhaust to prevent damage. Remove the two M10 factory bolts from the exhaust hangers on both sides using a 15mm socket.
Remove Bumper Beam:
- Use a 15mm socket to remove four 10mm factory nuts (two on each side). Set the bumper beam aside for reinstallation.
Install Hitch:
- Raise the hitch into position, aligning its holes with the M10 studs on the vehicle's end panel.
- Reinstall the bumper beam over the hitch and onto the M10 studs.
- Loosely reinstall the factory M10 nuts removed earlier.
Reinstall Exhaust Hangers:
- Raise the exhaust back into position and reinstall the M10 factory bolts removed earlier through the exhaust hangers, bumper, and hitch.
Tighten Fasteners:
- Torque all M10 fasteners to 53 lb-ft (72 N·m).
Reinstall Fascia:
- Reverse the steps in the "Remove Fascia" section to reinstall the fascia and taillight covers.
- Note: The fascia has a removable panel for hitch usage, which can be replaced when the hitch is not in use.
Safety Notes:
- Always inspect all fasteners periodically to ensure the hitch is secure.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Wear safety glasses and observe all safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Vehicle Models (2019-Present)
Part Numbers:
- 76266
- 84266
- CQT76266
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Plastic Trim Tools
- Tape
- Utility Knife
- Sockets: 7mm, 15mm
- Torx Bits: T15, T20
- 6" Socket Extension
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing:
- Not Applicable
Step-by-Step Instructions:
Remove Fascia:
- Open the liftgate.
- Remove the plastic covers next to the taillights by pulling upward to release the clips.
- Using a T20 Torx bit, remove the screws connecting the fascia to the vehicle on both sides.
- Use plastic trim tools to remove the wheel well trim. Pull the trim back enough to access the screw located behind it.
- Remove the screw behind the wheel well trim using a 7mm socket.
- Use a T15 Torx bit to remove screws from the wheel well liner, then pull the liner back from the fascia.
- Remove the hitch access panel in the middle of the fascia. Use a T15 Torx bit to remove screws holding the bottom of the fascia.
- Starting from the wheel wells, carefully pull the fascia away from the vehicle, working toward the middle. Use plastic trim tools to release clips as needed.
- Caution: Be extra careful around the taillight area. Masking the bottom of the taillight is recommended to avoid scratches. Unplug electrical connectors behind the fascia and set it aside.
Lower Exhaust:
- Support the exhaust to prevent damage. Remove the two M10 factory bolts from the exhaust hangers on both sides using a 15mm socket.
Remove Bumper Beam:
- Use a 15mm socket to remove four 10mm factory nuts (two on each side). Set the bumper beam aside for reinstallation.
Install Hitch:
- Raise the hitch into position, aligning its holes with the M10 studs on the vehicle's end panel.
- Reinstall the bumper beam over the hitch and onto the M10 studs.
- Loosely reinstall the factory M10 nuts removed earlier.
Reinstall Exhaust Hangers:
- Raise the exhaust back into position and reinstall the M10 factory bolts removed earlier through the exhaust hangers, bumper, and hitch.
Tighten Fasteners:
- Torque all M10 fasteners to 53 lb-ft (72 N·m).
Reinstall Fascia:
- Reverse the steps in the "Remove Fascia" section to reinstall the fascia and taillight covers.
- Note: The fascia has a removable panel for hitch usage, which can be replaced when the hitch is not in use.
Safety Notes:
- Always inspect all fasteners periodically to ensure the hitch is secure.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Wear safety glasses and observe all safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

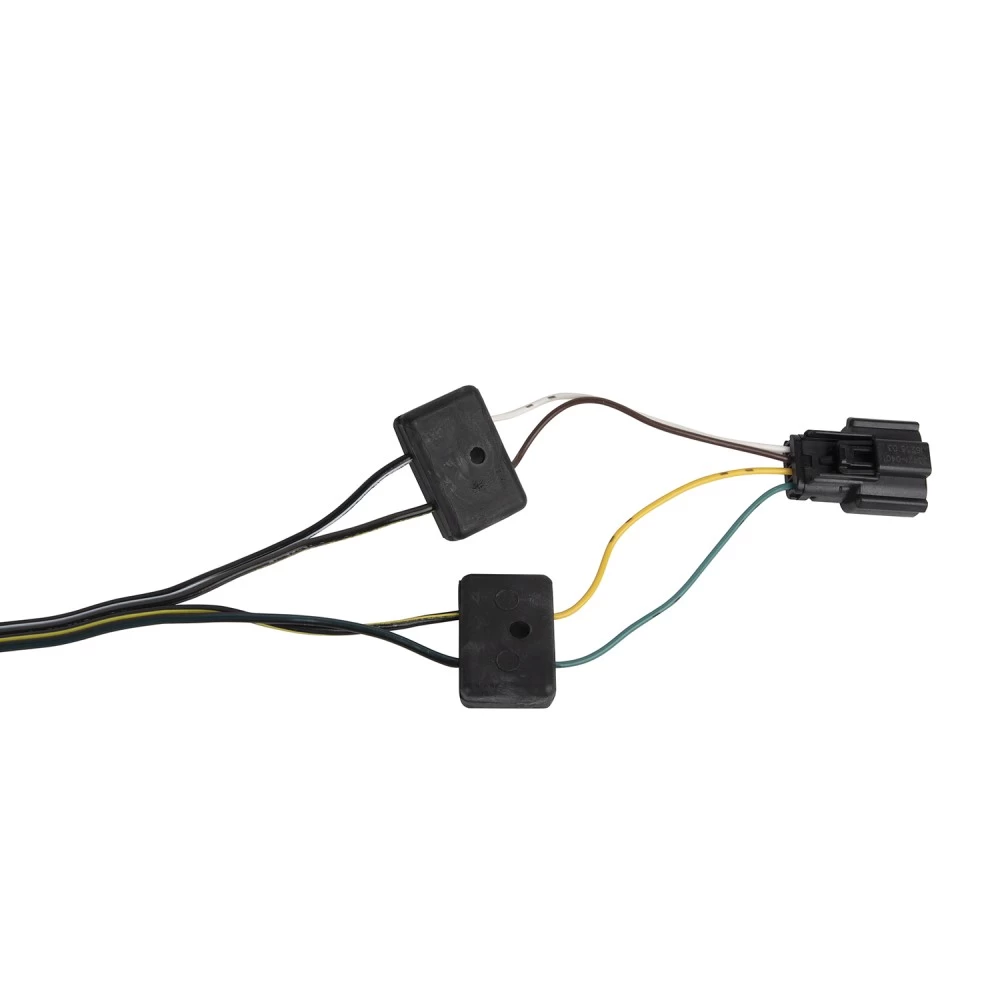

Installation Instructions for T-One® T-Connector for Cadillac XT4
Part Numbers:
- 118795
Tools Required:
- Trim Panel Puller
- Test Probe
Step-by-Step Instructions:
-
Locate the Trailer Harness Connector:
- Underneath the vehicle, locate the trailer harness connector at the center, behind the rear bumper fascia.
-
Remove the Protective Cap:
- Remove the protective cap from the vehicle’s connector.
- Store the cap in the glove compartment along with the installation instructions.
- Ensure the mating surfaces of the connectors are free of dirt and clean them if necessary.
-

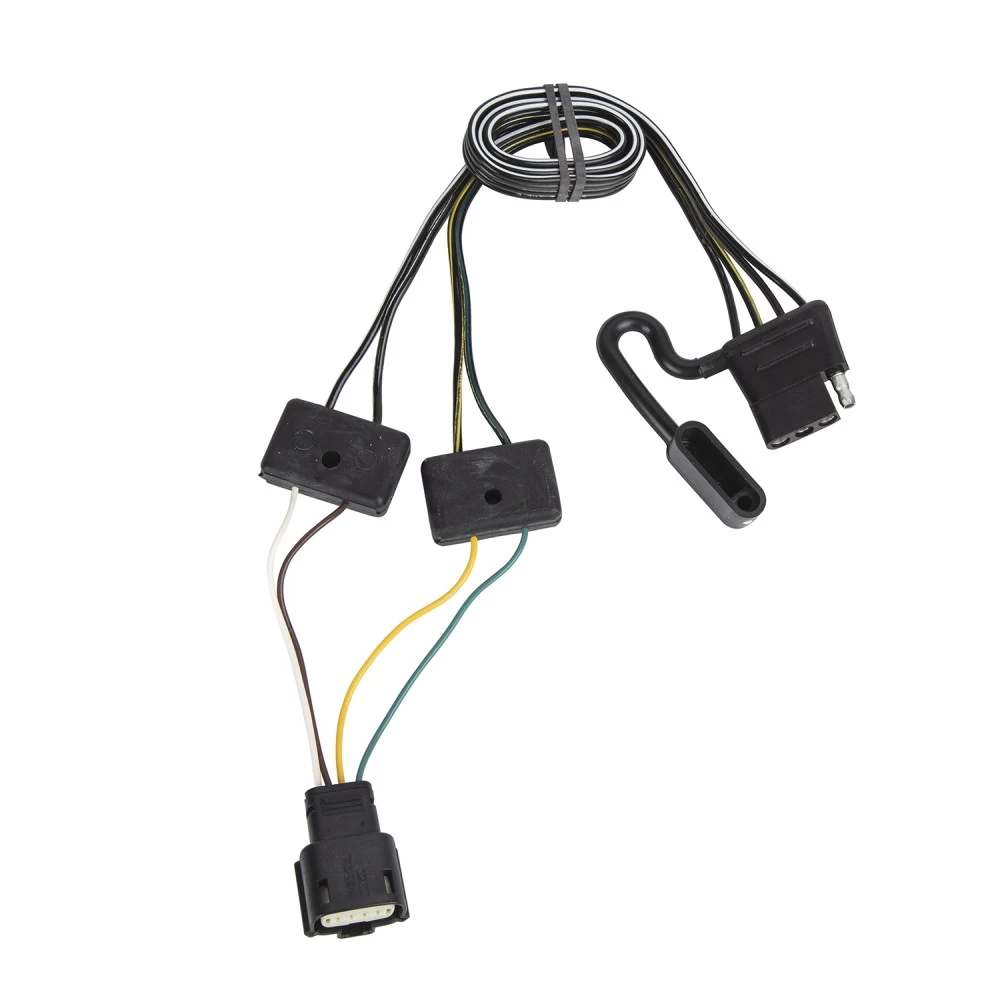

Connect the T-One® Harness:
- Insert the T-One® Connector into the vehicle’s trailer harness connector and lock it into place.
- Verify that the connectors are fully inserted and the locking tabs are secure.
-
Route the Harness:
- Route the T-One® Connector harness rearward to the back of the bumper fascia.
- Secure the harness using the provided cable ties, ensuring it avoids areas that may pinch, cut, or melt the wire.
-

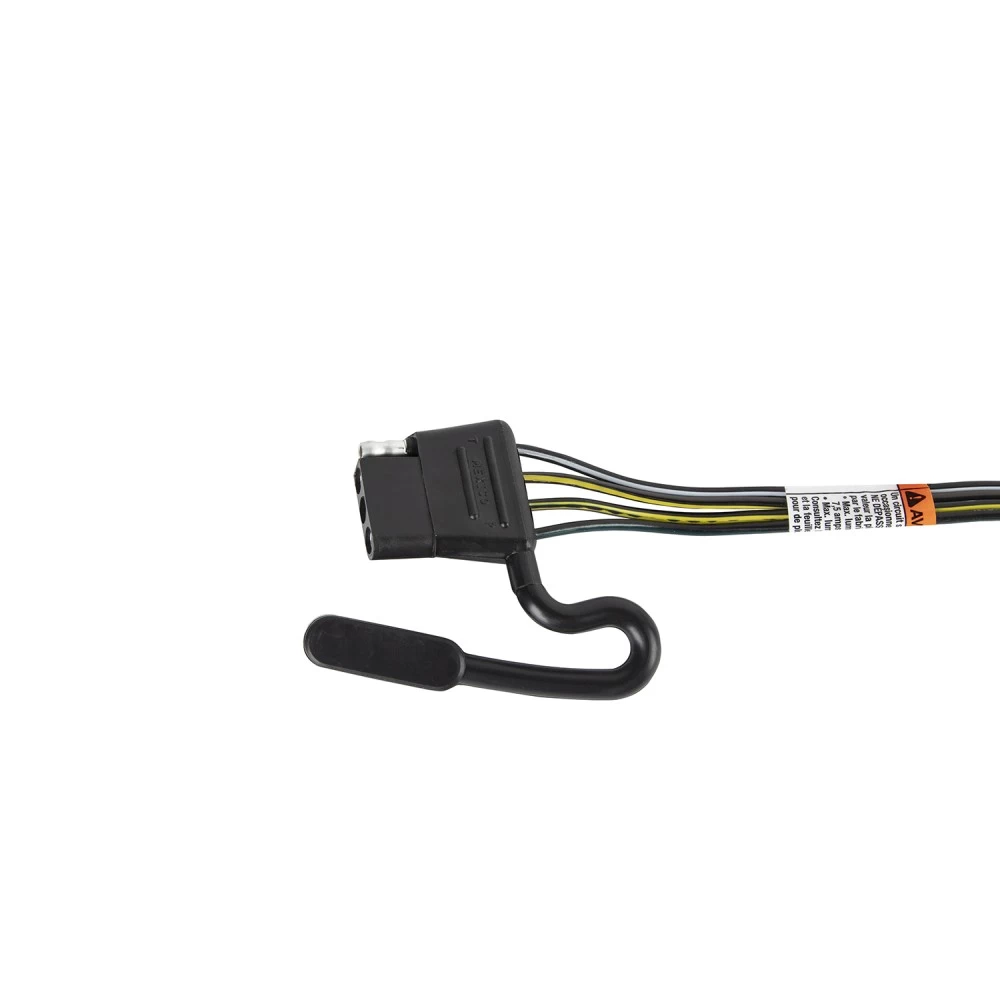

Mount the 4-Flat Connector:
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).
-
Test the Installation:
- Ensure all connections are complete for the T-One® Connector to function properly.
- Test the installation using a test light or trailer. For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
- Ensure that all connections are complete and secure for proper functioning.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
