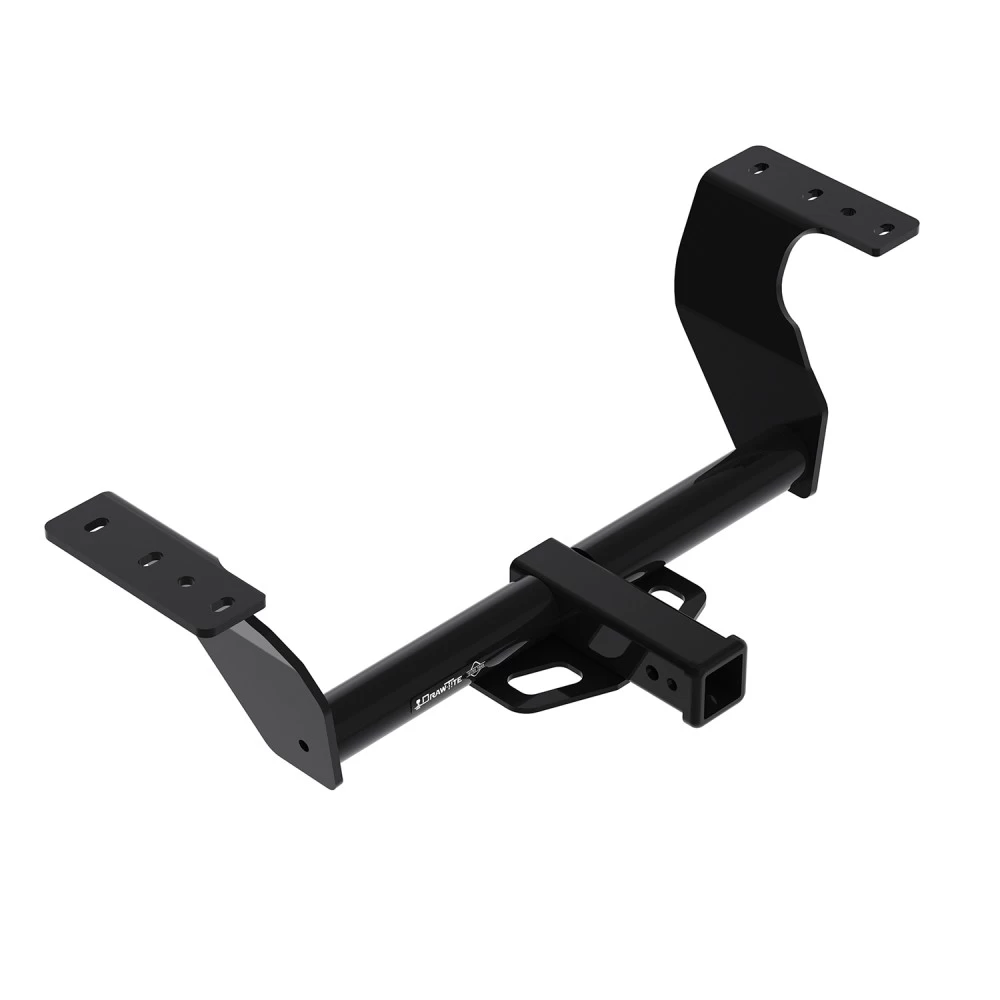

Trailer Tow Hitch For 19‑24 Subaru Forester 22‑23 WRX 2" Receiver w/ 1‑7/8" and 2" Ball

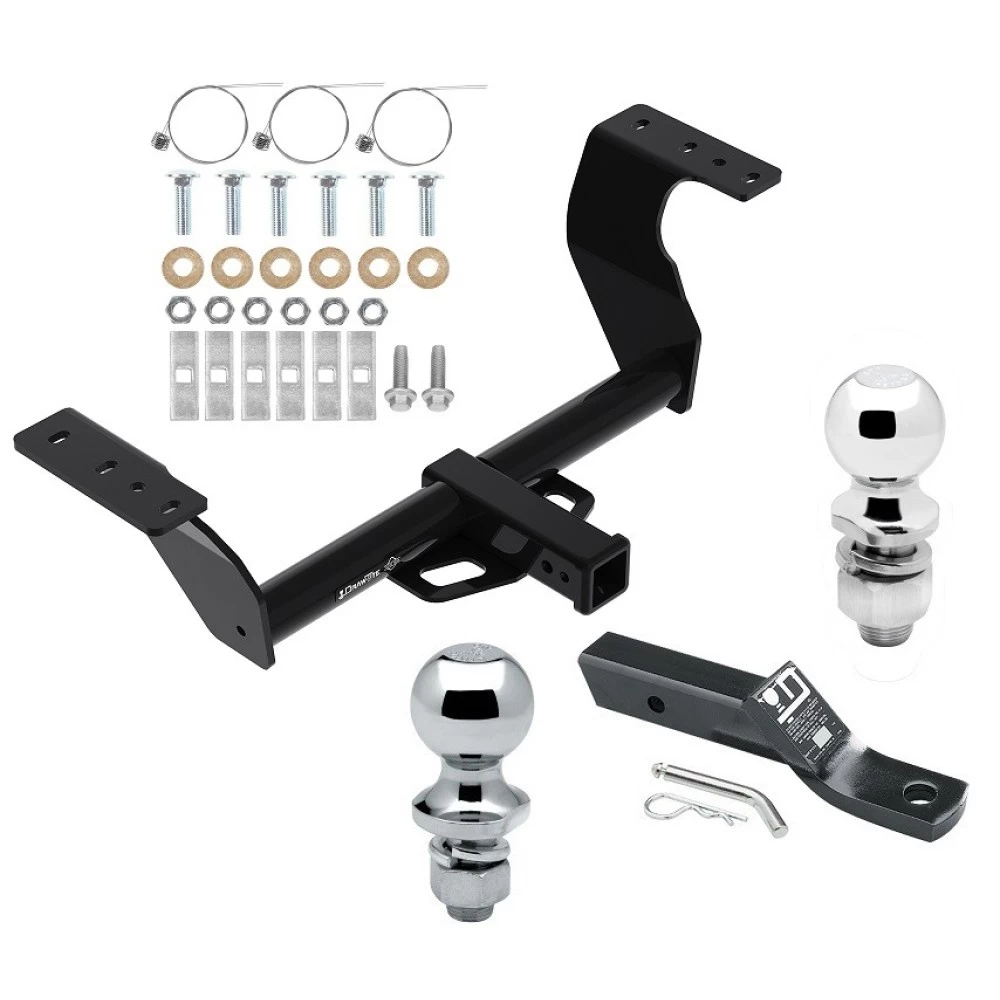

Model: 76271 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 - 2025 Subaru, Forester, All Styles
2022 - 2024 Subaru, WRX, All Styles
Trailer Hitch Specs:
| Part Number | 76271 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 3,500 lbs |
| Max Tongue Weight | 525/525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$220 74 $343.17 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$343.17 $220 74
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $55.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76271 23 63845 63816
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 - 2025 Subaru, Forester, All Styles
2022 - 2024 Subaru, WRX, All Styles
Trailer Hitch Specs:
| Part Number | 76271 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 3,500 lbs |
| Max Tongue Weight | 525/525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch For 19-24 Subaru Forester 22-23 WRX 2" Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Trailer Hitch #76271
Part Numbers:
- 76271
- 84271
- CQT76271
Applications:
- Make and Models: Subaru Forester, Subaru WRX
- Years: For the most accurate application information, consult the product manual or the manufacturer's website.
Wiring Access Location:
- Not Applicable
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 13/16"
- 6" Socket Extension
- Pry Bar
- Exhaust Removal Pliers
- Tin Snips
- Flat Head Screwdriver
- Marker
- Drill with 17/32" Drill Bit
Step-by-Step Instructions:
1. Lower the Underbody Panel (If Applicable):
- Remove (2) M6 bolts from the driver’s side frame rail.
- Retain the underbody panel for reinstallation after the hitch is installed.
2. Lower the Exhaust:
- Use exhaust removal pliers or a pry bar to detach the rubber exhaust hangers in front of and behind the muffler, as well as near the rear axle.
- Support the exhaust to prevent damage during installation.
3. Trim the Heat Shield:
- Remove (4) screws securing the heat shield to the vehicle using a 10 mm socket.
- Trim the heat shield using tin snips as specified in the installation diagram.
- Reinstall the heat shield, omitting the rearmost M6 bolt on the frame rail.
4. Remove Hole Plugs:
- Remove all hole plugs from the frame rails to prepare for fastener installation.
5. Drill Holes (WRX Model Only):
- Use a 17/32" drill bit to create additional attachment holes as marked in the installation instructions.
6. Install the Hitch:
- Use the fish wire method to guide (6) fasteners through the frame as shown in the installation diagram.
- Temporarily raise the hitch into position and loosely install the supplied nuts and conical washers (teeth side toward the hitch) onto the bolts.
- Align the hitch and install the supplied M6 bolts into the weld nuts on the frame rail, if applicable.
7. Tighten Fasteners:
- Torque all 7/16" fasteners to 50 lb-ft (68 N·m).
8. Reinstall Exhaust:
- Raise the exhaust back into position and reinstall all previously removed hangers.

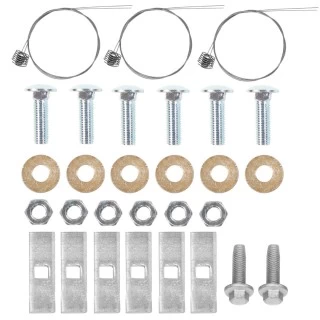

Hardware List:
- 6 × Carriage Bolts (7/16"-14 × 1.50", GR5)
- 6 × Conical Washers (7/16")
- 6 × Spacer Blocks (0.109" × 0.880" × 2.00")
- 6 × Hex Nuts (7/16"-14)
- 4 × Flange Hex Bolts (M6 × 1.0 × 35 mm)
- 6 × Pull Wires (7/16")
Safety Notes:
- Always wear safety glasses during installation.
- Inspect the hitch regularly to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball before towing.
- Do not cut access or attachment holes using a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
- Max Tongue Weight (Weight Carrying): 525 lbs (238 kg)
- Weight Distribution Capacity: 3,500 lbs (1,589 kg) GTW, 525 lbs (238 kg) TW
- Installation Time: Approximately 45 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For technical assistance, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams and detailed guidance, please download the full installation PDF.
