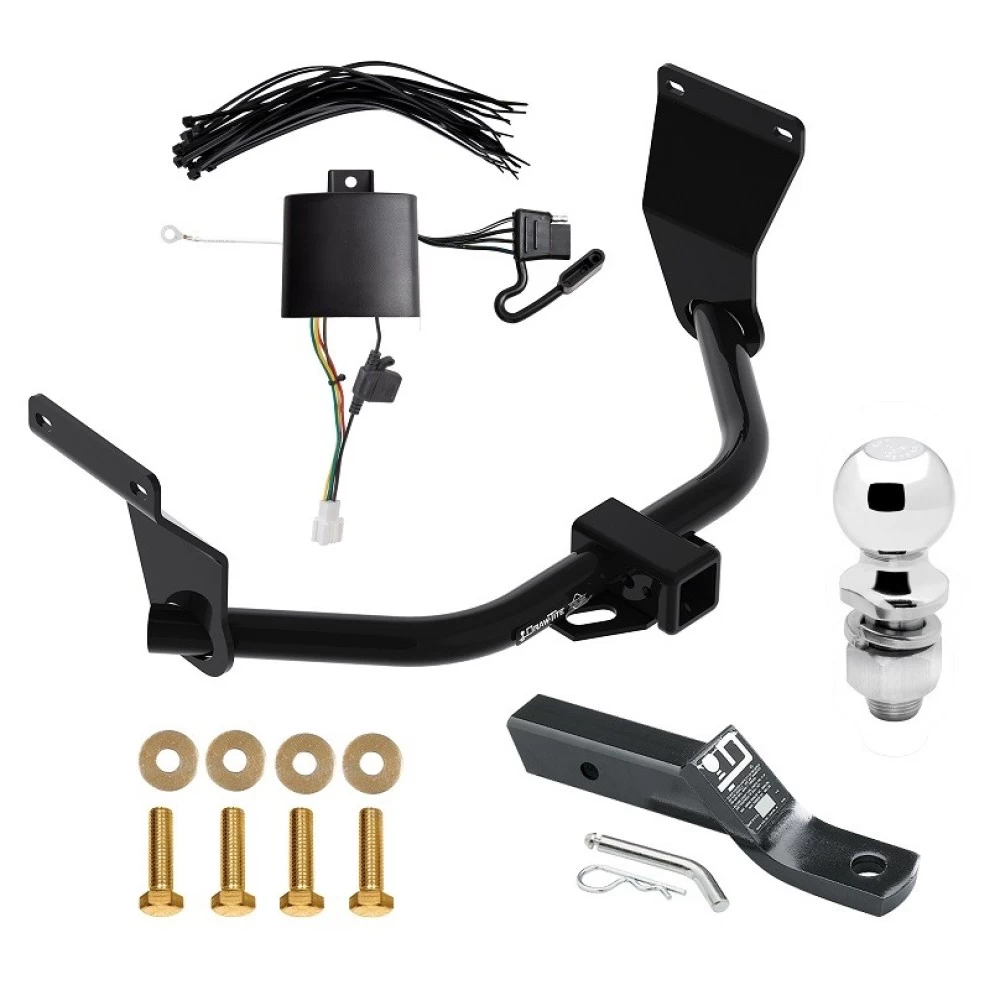

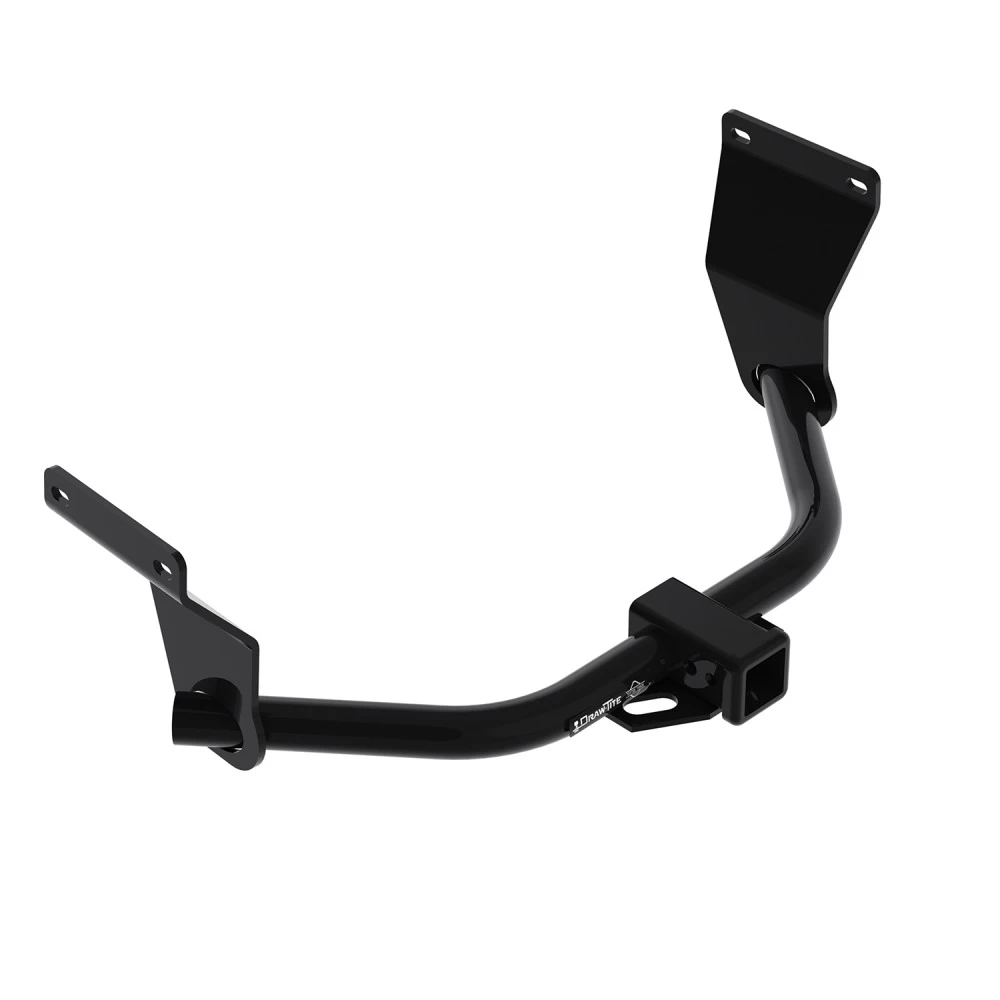

Installation Instructions for Trailer Hitch #76268

Part Numbers:

• 76268
• 84268
• CQT76268

Applications:

• Make and Models: Acura RDX
• Years: For the most accurate application information, consult the product manual or the manufacturer's website.

Wiring Access Location:

• Not Applicable

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 19 mm
• 6" Socket Extension
• Exhaust Removal Pliers
• Pry Bar

Step-by-Step Instructions:

1. Lower the Spare Tire:

• Locate the spare tire lowering mechanism and tools (refer to the vehicle owner’s manual).
• Carefully lower the spare tire and set it aside.

2. Lower the Exhaust:

• Use exhaust removal pliers or a pry bar to remove the rubber exhaust hangers in front of and behind the muffler.
• Note: Use a support or jack stand to hold the exhaust in place to prevent damage.

3. Install the Hitch:

• Inspect the weldnuts in the vehicle frame for debris or rust. Clean as necessary.
• Raise the hitch into position, aligning the attachment holes with the weldnuts in the frame rails.
• Secure the hitch using the provided M12 bolts and conical washers (ensure the teeth of the washers face the hitch).

4. Torque the Fasteners:

• Using a torque wrench, tighten all M12 bolts to 42 lb-ft (57 N·m).

5. Reinstall the Exhaust and Spare Tire:

• Reattach the exhaust to its rubber hangers.
• Raise and secure the spare tire back into position.

Hardware List:

• 4 × Hex Bolts (M12 × 1.25 × 40 mm, CL10.9)
• 4 × Conical Washers (1/2", Part #01292008)

Safety Notes:

• Always wear safety glasses during installation.
• Inspect the hitch regularly to ensure all fasteners and hitch ball connections are secure.
• If the hitch is removed, plug any holes in the vehicle's body to prevent water or exhaust intrusion.
• Replace damaged components, such as the hitch or ball, immediately.
• Never use a torch to cut access or mounting holes.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
• Max Tongue Weight (Weight Carrying): 350 lbs (159 kg)
• Weight Distribution: Not Applicable
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

Technical Support:

For additional guidance or technical assistance, please visit www.trailerjacks.com or contact our support team at 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including detailed diagrams and additional guidance, please download the full installation PDF.

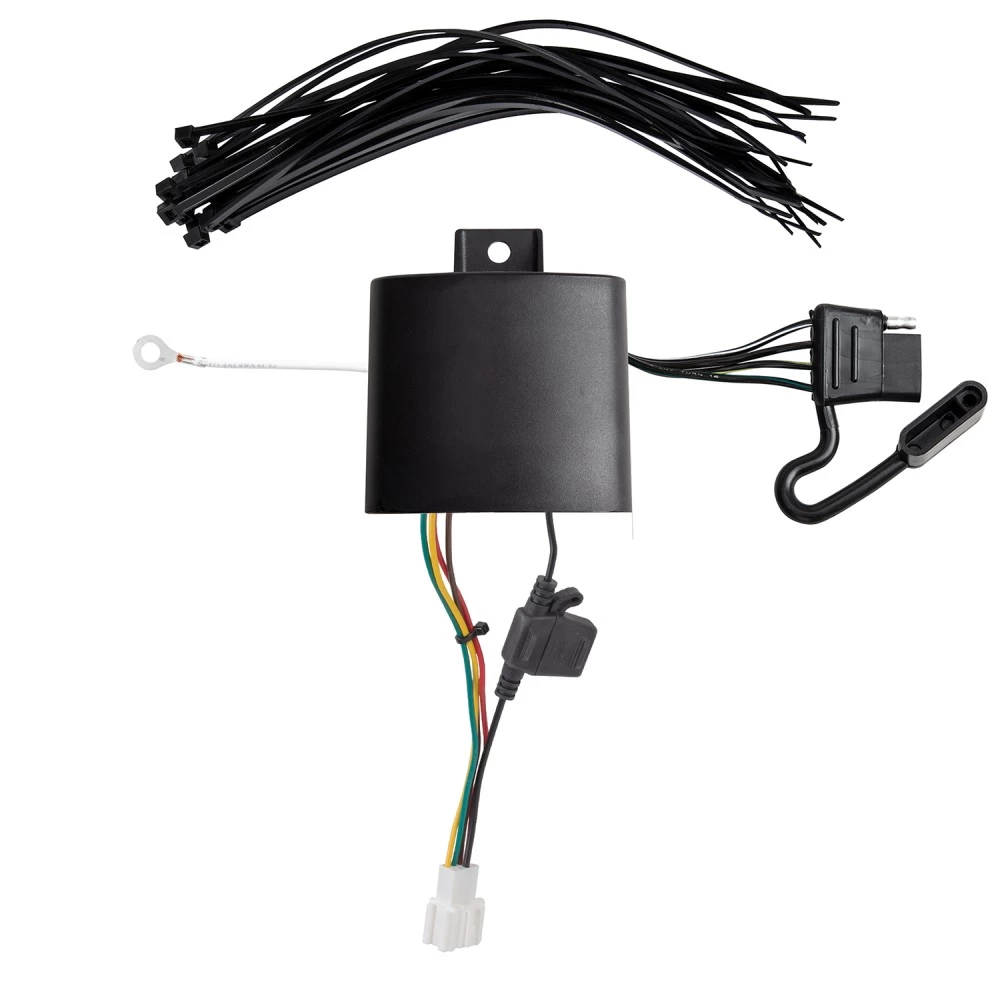

Installation Instructions for T-One® T-Connector for Acura RDX

Part Numbers:

• 118800

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

• Open the rear hatch. Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
• Open the rear door and fold the rear seat forward.
• Carefully remove the lower interior trim panels on the driver’s side to expose the wiring harness. Set aside all removed items safely.

2. Locate the Vehicle’s 8-Pin Connector:

• Locate the vehicle’s 8-pin connector behind the rear interior trim panel on the driver’s side.
• Inspect the connector for two separate red wires. If only one red wire is present, use T-One® part number 118804 instead.

3. Connect the T-One® T-Connector:

• Insert the 8-pin tow-plug adapter into the vehicle’s connector and lock it in place securely.

4. Ground the White Wire:

• Option 1: Locate an existing ground stud on the driver’s side. Loosen the bolt, place the screw eyelet on the stud, and retighten the bolt. Ensure all other ground connections are secure.
• Option 2: Find a suitable grounding point, such as the vehicle’s frame or crossmember. Clean the area of dirt and rustproofing. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

Caution:

• Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into any exposed surfaces.

5. Mount the Black Box:

• Locate a flat surface in an out-of-the-way place and mount the T-One® T-Connector’s black box using the provided double-sided tape to prevent damage or rattling.

6. Secure the Wiring Harness:

• Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.

7. Reassemble the Vehicle:

• Reinstall the plastic trim panels, threshold plate, storage covers, and other items removed during the installation.
• Ensure no wires are pinched or damaged during reassembly.

8. Store the 4-Flat Connector:

• Store the 4-flat connector in the rear cargo area when not in use.
• When in use, pull the connector through the rear door and close the door carefully, ensuring not to pinch the harness in the door latch.

9. Test the Installation:

• All connections must be complete for the T-One® T-Connector to function properly.
• Test the installation using a test light or trailer.
• For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.
• Refer to the vehicle owner’s manual and instruction sheet for additional information.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.
