Installation Instructions for 2020-Current Jeep Gladiator

Part Numbers:

• 76310
• 84310
• CQT76310

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• 21 mm Socket
• 3/4-inch Socket
• 6-inch Socket Extension

Step-by-Step Instructions:

1. Remove Factory Fasteners:

   • Locate the factory M14 fasteners that secure the rear crossmember to the underside of the frame and remove them.

2. Install Fasteners:

   • Insert the coiled end of the supplied pull wire into the slot in the frame and out through the access hole in the frame.
   • Thread the coiled end of the pull wire through the hole in the supplied 1” x 3” spacer block and onto the carriage bolt.
   • Pull the fasteners through the frame and leave the pull wire attached.
   • Repeat this process on the other frame rail.

3. Install Spacer:

   • Feed the pull wire through the 3/16-inch thick spacer.
   • Ensure that carriage bolts are not pushed into the frame.

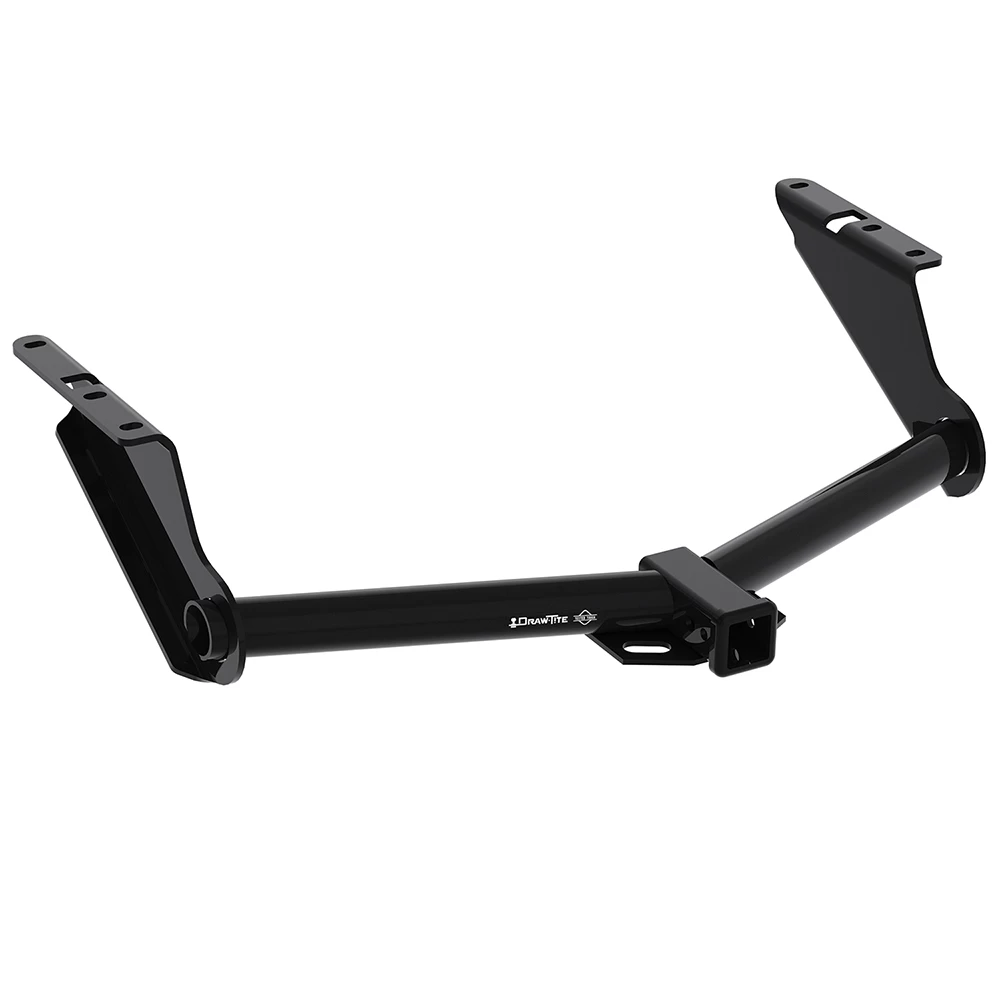

4. Install Hitch:

   • Raise the hitch into position, aligning the hitch attachment holes with the rearmost weldnuts in the frame rail.
   • Ensure the hitch fits between the rear crossmember brackets.
   • Feed pull wires through the attachment holes in the hitch brackets.
   • Reinstall and hand-tighten the factory M14 fasteners.

   Note: Use a second person or a jack to steady the hitch while lifting it into position and holding it until all bolts are installed.

5. Install Nut and Washer:

   • Use the provided conical washers to hold the carriage bolts in place.
   • Remove the pull wires and attach the hex nuts. Hand-tighten on both sides.

6. Torque Fasteners:

   • Tighten all M14 fasteners to 115 lb-ft (156 Nm).
   • Tighten all ½-inch fasteners to 75 lb-ft (102 Nm).

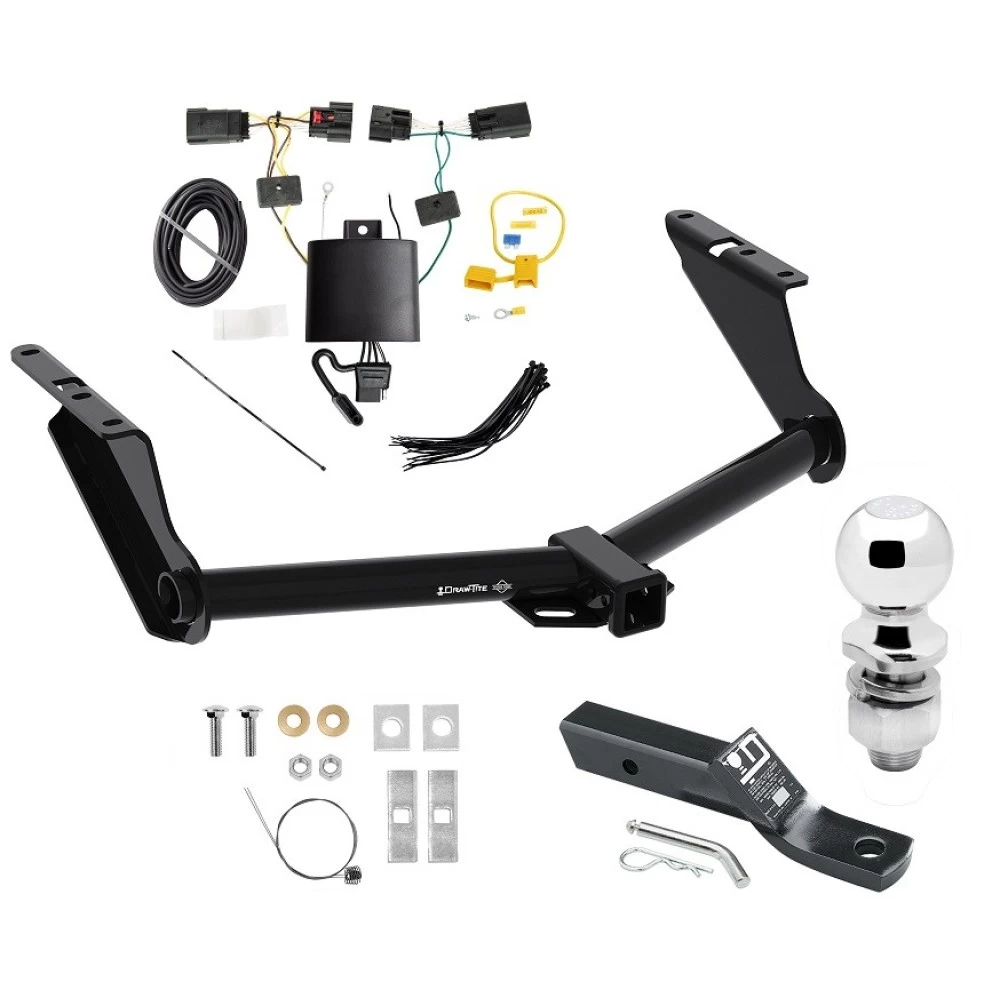

Hardware List:

• (2) Carriage Bolts ½”-13 x 1.75” Gr5
• (2) Spacer Blocks (1” x 3” x ¼”) PN: 3022
• (2) Pull Wires ½” PN: 5482
• (2) Spacer Blocks (2” x 1.5” x 3/16”) PN: 04833001
• (2) Conical Washers ½” PN: 01292008
• (2) Hex Nuts ½” Gr5

Safety Notes:

• Always wear safety glasses when installing the hitch.
• Apply the proper torque to keep the hitch secure to the vehicle.
• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• Replace a damaged hitch or ball.
• Do not cut access or attachment holes with a torch.
• Observe all safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 7,500 lbs (3,402 kg) trailer weight, 1,125 lbs (510 kg) tongue weight.
• Weight Distributing Capacity: 8,000 lbs (3,629 kg) trailer weight, 1,200 lbs (544 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Installation Instructions for Vehicle Models (2020-Present)

Part Numbers:

• 76310
• 84310
• CQT76310

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• 21 mm Socket
• 3/4-inch Socket
• 6-inch Socket Extension

Step-by-Step Instructions:

1. Remove Factory Fasteners:

   • Locate the factory M14 fasteners that secure the rear crossmember to the underside of the frame and remove them.

2. Install Fasteners:

   • Insert the coiled end of the supplied pull wire into the slot in the frame and out through the access hole in the frame.
   • Thread the coiled end of the pull wire through the hole in the supplied 1” x 3” spacer block and onto the carriage bolt.
   • Pull the fasteners through the frame and leave the pull wire attached.
   • Repeat this process on the other frame rail.

3. Install Spacer:

   • Feed the pull wire through the 3/16-inch thick spacer.
   • Ensure that carriage bolts are not pushed into the frame.

4. Install Hitch:

   • Raise the hitch into position, aligning the hitch attachment holes with the rearmost weldnuts in the frame rail.
   • Ensure the hitch fits between the rear crossmember brackets.
   • Feed pull wires through the attachment holes in the hitch brackets.
   • Reinstall and hand-tighten the factory M14 fasteners.

   Note: Use a second person or a jack to steady the hitch while lifting it into position and holding it until all bolts are installed.

5. Install Nut and Washer:

   • Use the provided conical washers to hold the carriage bolts in place.
   • Remove the pull wires and attach the hex nuts. Hand-tighten on both sides.

6. Torque Fasteners:

   • Tighten all M14 fasteners to 115 lb-ft (156 Nm).
   • Tighten all ½-inch fasteners to 75 lb-ft (102 Nm).

Hardware List:

• (2) Carriage Bolts ½”-13 x 1.75” Gr5
• (2) Spacer Blocks (1” x 3” x ¼”) PN: 3022
• (2) Pull Wires ½” PN: 5482
• (2) Spacer Blocks (2” x 1.5” x 3/16”) PN: 04833001
• (2) Conical Washers ½” PN: 01292008
• (2) Hex Nuts ½” Gr5

Safety Notes:

• Always wear safety glasses when installing the hitch.
• Apply the proper torque to keep the hitch secure to the vehicle.
• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• Replace a damaged hitch or ball.
• Do not cut access or attachment holes with a torch.
• Observe all safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 7,500 lbs (3,402 kg) trailer weight, 1,125 lbs (510 kg) tongue weight.
• Weight Distributing Capacity: 8,000 lbs (3,629 kg) trailer weight, 1,200 lbs (544 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• Duration: 1-year limited warranty from the date of purchase.
• Coverage: Covers defects in materials and workmanship under normal use conditions.

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-One® T-Connector for Jeep Wrangler and Jeep Gladiator

Part Numbers:

• 118786

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe
• 8mm Socket & Ratchet or Wrench

Step-by-Step Instructions:

For Jeep Wrangler:

1. Access Taillight Bolts:

   • Open the rear door to access the rear bolt holding the taillight.
   • Remove the small square access cover located on the trim panel below the side windows using a trim panel remover to expose the white bolt.

2. Remove Taillight Assemblies:

   • Using a 10mm socket, remove the white bolt holding the taillight in place.
   • Carefully pull the taillight away from the vehicle to expose the vehicle’s taillight wiring harness.
   • Repeat the process for the passenger side.

For Jeep Gladiator:

1. Access Taillight Bolts:
   • Open the rear tailgate to access the bolts securing the taillights.
   • Remove the two bolts and carefully pull the taillight housings rearward, being cautious not to break the alignment tabs.

For All Vehicles:

1. Locate the Taillight Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness. The harness will have a connection point matching the ends of the T-One® Connector.
   • Separate the connectors carefully, ensuring not to damage the locking tabs. Ensure all connectors are clean.

2. Connect Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Ensure connectors are fully inserted.

3. Route the Harness:

   • Route the harness containing the green wire and 4-flat connector down the opening behind the driver-side taillight.
   • Route the green wire underneath the vehicle and up through the opening behind the passenger-side taillight.

   Warning: Avoid routing the wire near hot pipes, heat shields, or the fuel tank.

4. Connect Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the vehicle wiring connectors on the passenger side.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector on the driver’s side.
   • Clean the surface of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind the surface before drilling.

6. Connect the Power Wire:

   • On the driver’s side, locate the black 12-gauge power wire from the T-One® Connector box.
   • Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment, avoiding hot pipes and sharp edges.

7. Connect to the Battery:

   • Disconnect the Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

   Warning: Follow all warnings on the tow vehicle’s battery.

8. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

9. Mount the Black Box Module:

   • Locate a flat surface and mount the black box module to prevent damage or rattling.

10. Secure the Wiring Harness:

    • Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reinstall Taillight Assemblies:

    • Reinstall the taillight assemblies and other items removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Route the 4-flat harness to the center of the vehicle and mount it in an accessible location using a bracket or electrical box (not included).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

• 118786

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe
• 8mm Socket & Ratchet or Wrench

Step-by-Step Instructions:

For All Vehicles:

1. Access Taillight Bolts:

   • Open the rear door (or tailgate) to access the bolts holding the taillights in place.
   • Remove the access covers on the trim panels (if applicable) using a trim panel remover to expose the bolts.

2. Remove Taillight Assemblies:

   • Using the appropriate socket, remove the bolts holding the taillight in place.
   • Carefully pull the taillight away from the vehicle to expose the vehicle’s taillight wiring harness.
   • Repeat the process for both sides of the vehicle.

3. Locate the Taillight Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness. The harness will have a connection point matching the ends of the T-One® Connector.
   • Separate the connectors carefully, ensuring not to damage the locking tabs. Ensure all connectors are clean.

4. Connect Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock it into place. Ensure connectors are fully inserted.

5. Route the Harness:

   • Route the harness containing the green wire and 4-flat connector down the opening behind the driver-side taillight.
   • Route the green wire underneath the vehicle and up through the opening behind the passenger-side taillight.

   Warning: Avoid routing the wire near hot pipes, heat shields, or the fuel tank.

6. Connect Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the vehicle wiring connectors on the passenger side.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector on the driver’s side.
   • Clean the surface of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind the surface before drilling.

8. Connect the Power Wire:

   • On the driver’s side, locate the black 12-gauge power wire from the T-One® Connector box.
   • Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment, avoiding hot pipes and sharp edges.

9. Connect to the Battery:

   • Disconnect the Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

   Warning: Follow all warnings on the tow vehicle’s battery.

10. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable.
    • Insert the 15-amp fuse into the fuse holder.
    • Test the installation with a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

11. Mount the Black Box Module:

    • Locate a flat surface and mount the black box module to prevent damage or rattling.

12. Secure the Wiring Harness:

    • Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that may pinch, cut, or melt the wire.

13. Reinstall Taillight Assemblies:

    • Reinstall the taillight assemblies and other items removed during installation, ensuring no wires are pinched or damaged.

14. Store the 4-Flat Connector:

    • Route the 4-flat harness to the center of the vehicle and mount it in an accessible location using a bracket or electrical box (not included).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
