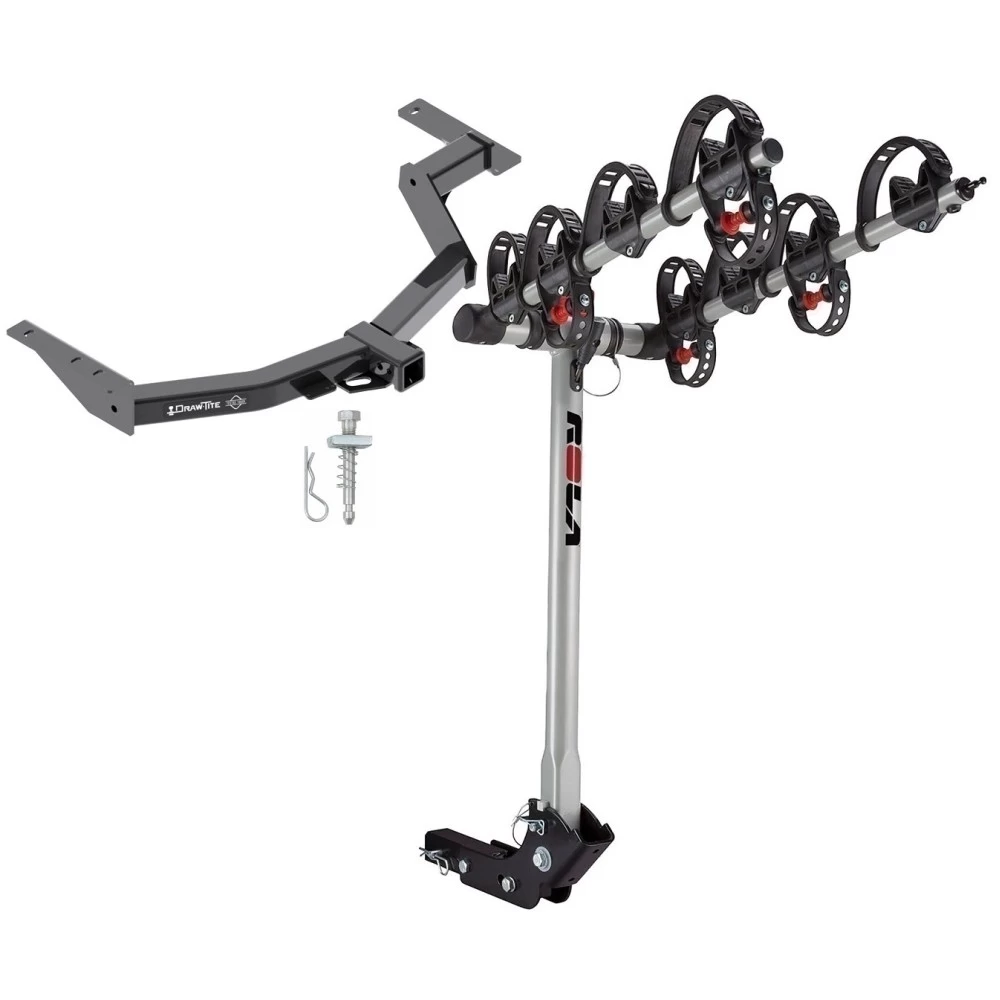

Trailer Tow Hitch For 2014 Toyota Hilux SW4 w/ 4 Bike Carrier Rack
Model: 75914 59401Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 Toyota, Hilux SW4, All Styles
Trailer Hitch Specs:
| Part Number | 75914 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 2014
$371 63 $750.46 50% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$750.46 $371 63
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $92.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75914 59401
- Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 Toyota, Hilux SW4, All Styles
Trailer Hitch Specs:
| Part Number | 75914 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 2014
Get Expert Help
Trailer Tow Hitch For 2014 Toyota Hilux SW4 w/ 4 Bike Carrier Rack Install Notes
Installation Instructions for Toyota Hilux SW4
Part Numbers:
- 75914
- 84914
Wiring Access Location:
- SUV3
Tools Required:
- Wrench: 19mm
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hook (shown in the illustration) from both sides of the vehicle frame using a 19mm wrench.
- Return the tow hooks to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position.
- Align the two rearmost holes on each side bracket with the two rearmost holes on each side of the vehicle frame.
- Install the supplied bolts and conical toothed washers.
-
Secure Fasteners:
- Tighten all M12 x 1.25 CL8.8 fasteners to 76 lb-ft (103 N·m) using a torque wrench.
Hardware List:
- (6) Hex Bolts: M12 x 1.25 x 35mm CL8.8
- (6) Conical Toothed Washers: 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent the entry of water and exhaust fumes.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 3,500 lbs (1,588 kg)
- Tongue Weight: 525 lbs (238 kg)
- Weight Carrying (Ball Mount):
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the vehicle manufacturer’s maximum weight rating or the hitch's maximum load rating, whichever is lower.
Installation Instructions for Vehicle
Part Numbers:
- 75914
- 84914
Wiring Access Location:
- SUV3
Tools Required:
- Wrench: 19mm
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hook (shown in the illustration) from both sides of the vehicle frame using a 19mm wrench.
- Return the tow hooks to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position.
- Align the two rearmost holes on each side bracket with the two rearmost holes on each side of the vehicle frame.
- Install the supplied bolts and conical toothed washers.
-
Secure Fasteners:
- Tighten all M12 x 1.25 CL8.8 fasteners to 76 lb-ft (103 N·m) using a torque wrench.
Hardware List:
- (6) Hex Bolts: M12 x 1.25 x 35mm CL8.8
- (6) Conical Toothed Washers: 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent the entry of water and exhaust fumes.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 3,500 lbs (1,588 kg)
- Tongue Weight: 525 lbs (238 kg)
- Weight Carrying (Ball Mount):
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the vehicle manufacturer’s maximum weight rating or the hitch's maximum load rating, whichever is lower.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
