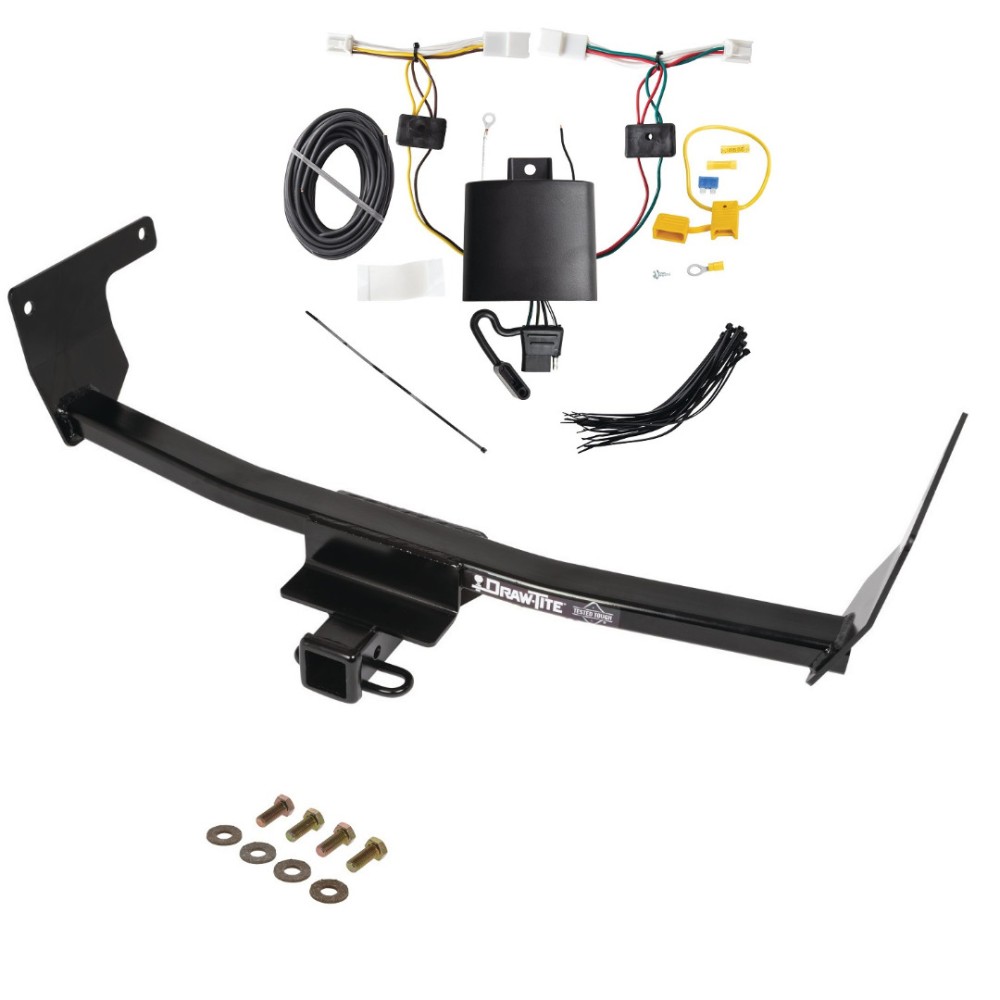

Trailer Tow Hitch For 2022 Lexus NX250 NX350 NX350h NX450h+ w/ Plug & Play Wiring Harness Kit
Model: 76634 118868Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2022 - 2022 Lexus, NX250, All Styles
2022 - 2022 Lexus, NX350, Except F Sport
2022 - 2022 Lexus, NX350h, All Styles
2022 - 2022 Lexus, NX450h+, Except F Sport
| Part Number | 76634 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 118868 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$315 33 $489.54 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$489.54 $315 33
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $78.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76634 118868
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2022 - 2022 Lexus, NX250, All Styles
2022 - 2022 Lexus, NX350, Except F Sport
2022 - 2022 Lexus, NX350h, All Styles
2022 - 2022 Lexus, NX450h+, Except F Sport
| Part Number | 76634 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 118868 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 2022 Lexus NX250 NX350 NX350h NX450h+ w/ Plug & Play Wiring Harness Kit Install Notes
Installation Instructions for Toyota RAV4 and Lexus NX Models
Part Numbers:
- 76634
- 84634
- CQT76634
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12 mm, 18 mm
- 6-inch Socket Extension
- Crowfoot Wrench
- M12 x 1.25 Tap
- Bungee Cord
Step-by-Step Instructions:
-
Lower Exhaust (Optional on Some Models):
- For easier installation, lower the exhaust by removing the (2) bolts from each exhaust hanger using a 12 mm socket (4 bolts total, 2 per hanger).
- Support the exhaust with a bungee cord before removing the bolts.
-
Clean Weldnuts:
- Remove the stickers covering the (2) weldnuts on the side of each frame rail.
- Use an M12 x 1.25 tap to clean the weldnuts as necessary.
-
Install Hitch:
- Raise the hitch into position, sliding the brackets above the exhaust pipe.
- Align the bracket holes to the frame rail weldnuts and loosely install the provided M12 bolts and conical washers.
- On the passenger side, use an 18 mm crowfoot wrench due to narrow space around the frame rail.
-
Torque Bolts:
- Tighten all M12 fasteners to 76 ft-lbs (103 N*m) using a torque wrench with an 18 mm socket.
-
Raise Exhaust:
- Reattach the exhaust to the hangers using the bolts removed earlier.
Hardware List:
- (4) Bolt M12 x 1.25 x 30 CL8.8
- (4) Conical Washer 1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check all fasteners to ensure the hitch is securely mounted.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual or visit the website.
Installation Instructions for Toyota RAV4 and Lexus NX Models
Part Numbers:
- 76634
- 84634
- CQT76634
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12 mm, 18 mm
- 6-inch Socket Extension
- Crowfoot Wrench
- M12 x 1.25 Tap
- Bungee Cord
Step-by-Step Instructions:
1. Lower Exhaust (Optional on Some Models):
- For easier installation, lower the exhaust by removing the (2) bolts from each exhaust hanger using a 12 mm socket (4 bolts total, 2 per hanger).
- Support the exhaust with a bungee cord before removing the bolts.
2. Clean Weldnuts:
- Remove the stickers covering the (2) weldnuts on the side of each frame rail.
- Use an M12 x 1.25 tap to clean the weldnuts as necessary.
3. Install Hitch:
- Raise the hitch into position, sliding the brackets above the exhaust pipe.
- Align the bracket holes to the frame rail weldnuts and loosely install the provided M12 bolts and conical washers.
- On the passenger side, use an 18 mm crowfoot wrench due to narrow space around the frame rail.
4. Torque Bolts:
- Tighten all M12 fasteners to 76 ft-lbs (103 N*m) using a torque wrench with an 18 mm socket.
5. Raise Exhaust:
- Reattach the exhaust to the hangers using the bolts removed earlier.
Hardware List:
- (4) Bolt M12 x 1.25 x 30 CL8.8
- (4) Conical Washer 1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check all fasteners to ensure the hitch is securely mounted.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Installation time for professional installers is approximately 30 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual or visit the website.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Lexus NX
Part Numbers:
- 118868
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Hatch:
- Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
- Fold the rear seats forward.
-
Access the Vehicle’s Wiring:
- Remove the rear cargo hooks on both the driver’s and passenger’s sides using a 10mm socket or wrench.
- Pull back the felt side panels to expose the vehicle’s wiring connectors.
-
Locate and Disconnect the Taillight Wiring Harness:
- Locate the taillight wiring harness connectors on both sides of the vehicle.
- Carefully disconnect the connectors, ensuring not to damage the locking tabs. Ensure all surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors and lock it into place.
- Ensure the connectors are fully inserted and securely locked.
-
Mount the Black Box:
- Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
- Secure the remaining harness with the provided cable ties to prevent damage or rattling.
-
Ground the White Wire:
- Locate a suitable grounding point near the black box, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw. Clean dirt and rustproofing from the grounding area.
Caution: Verify the area behind any surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire across the threshold and behind the passenger-side felt panel to the taillight pocket.
-
Connect the Passenger-Side T-Connector:
- Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors and lock it into place.
- Ensure the connectors are fully inserted with locking tabs securely engaged.
-
Route the Power Wire:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector provided.
-
Install the Power Wire:
- Route the black 12-gauge wire from the battery along the frame rail, avoiding hot pipes, heat shields, and areas that may pinch or damage the wire.
-
Connect the Power Wire to the Black Box:
- Attach the black 12-gauge wire to the power wire on the T-One® Connector black box using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Reassemble the Vehicle:
- Replace all trim panels, thresholds, floor coverings, and cargo storage covers removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
- When in use, route the connector carefully to avoid pinching in the door latch.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
- Always read and follow all warnings and instructions printed on the tow vehicle’s battery.
Installation Instructions for T-One® T-Connector for Lexus NX
Part Numbers:
- 118868
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Hatch:
- Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
- Fold the rear seats forward.
-
Access the Vehicle’s Wiring:
- Remove the rear cargo hooks on both the driver’s and passenger’s sides using a 10mm socket or wrench.
- Pull back the felt side panels to expose the vehicle’s wiring connectors.
-
Locate and Disconnect the Taillight Wiring Harness:
- Locate the taillight wiring harness connectors on both sides of the vehicle.
- Carefully disconnect the connectors, ensuring not to damage the locking tabs. Ensure all surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors and lock it into place.
- Ensure the connectors are fully inserted and securely locked.
-
Mount the Black Box:
- Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
- Secure the remaining harness with the provided cable ties to prevent damage or rattling.
-
Ground the White Wire:
- Locate a suitable grounding point near the black box, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw. Clean dirt and rustproofing from the grounding area.
Caution: Verify the area behind any surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire across the threshold and behind the passenger-side felt panel to the taillight pocket.
-
Connect the Passenger-Side T-Connector:
- Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors and lock it into place.
- Ensure the connectors are fully inserted with locking tabs securely engaged.
-
Route the Power Wire:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector provided.
-
Install the Power Wire:
- Route the black 12-gauge wire from the battery along the frame rail, avoiding hot pipes, heat shields, and areas that may pinch or damage the wire.
-
Connect the Power Wire to the Black Box:
- Attach the black 12-gauge wire to the power wire on the T-One® Connector black box using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Reassemble the Vehicle:
- Replace all trim panels, thresholds, floor coverings, and cargo storage covers removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
- When in use, route the connector carefully to avoid pinching in the door latch.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
