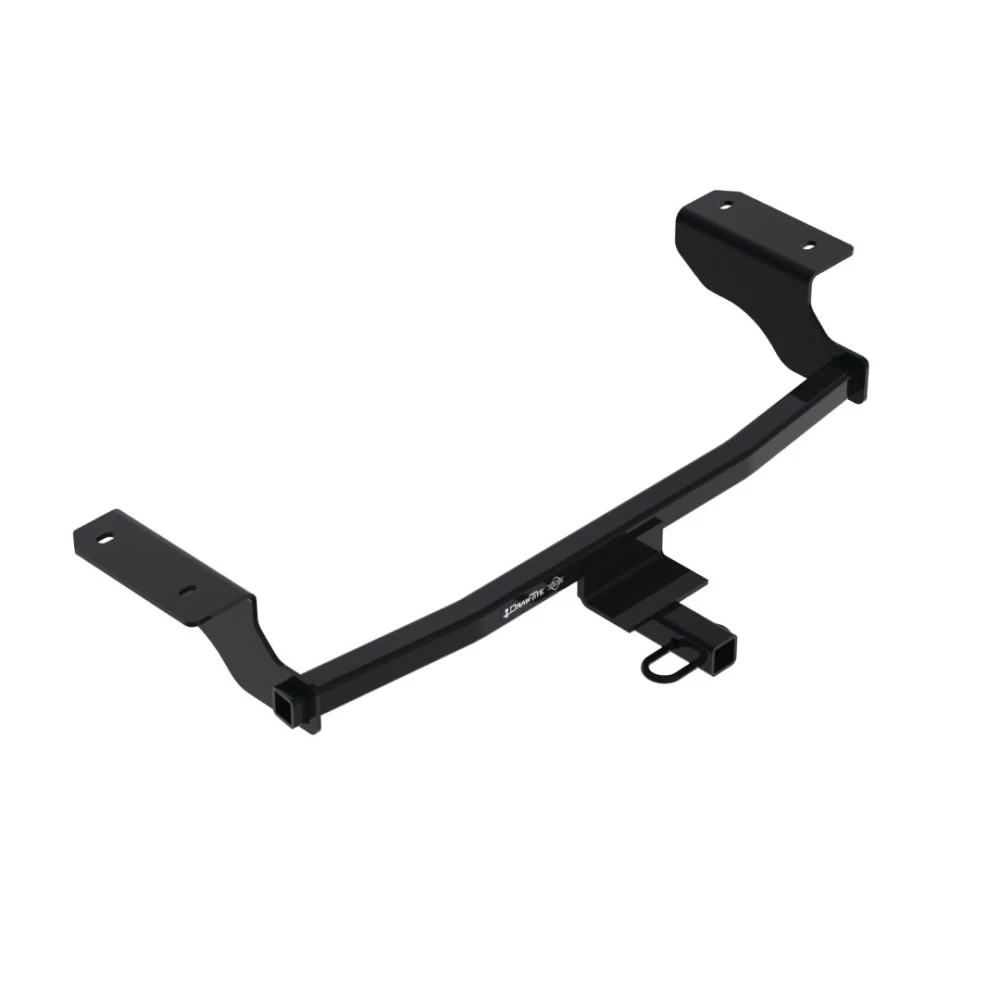

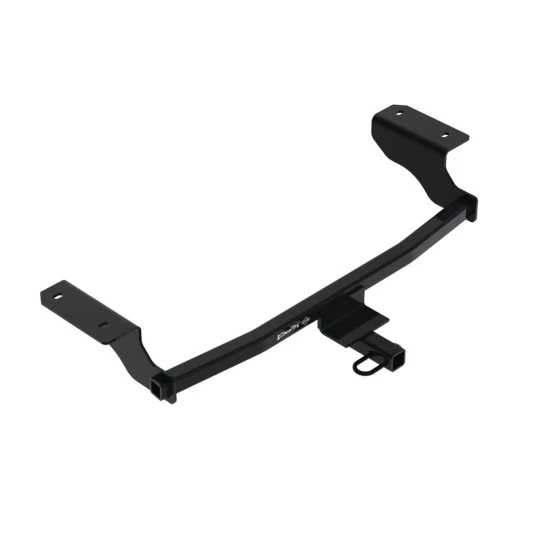

Trailer Tow Hitch For 22‑23 Chevrolet Bolt EV Class I 1‑1/4" Receiver Draw‑Tite
Model: 250022022 - 2023 Chevrolet, Bolt EV, All Styles
Trailer Hitch Specs:
| Part Number | 25002 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | I |
| Receiver size opening | 2" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 22 23 2022 2023
$194 09 $293.24 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$293.24 $194 09
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $48.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 25002
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2022 - 2023 Chevrolet, Bolt EV, All Styles
Trailer Hitch Specs:
| Part Number | 25002 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | I |
| Receiver size opening | 2" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 22 23 2022 2023
Get Expert Help
Trailer Tow Hitch For 22-23 Chevrolet Bolt EV Class I 1-1/4" Receiver Draw-Tite Install Notes
Installation Instructions for Chevrolet Bolt EV (2022-Current)
Part Numbers:
- 25002
- 78295
- CQT25002
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16"
- T15 Torx Bit
- Flat Head Screwdriver
- Drill with 1/2" Drill Bit
- Marker
- 6" Socket Extension
Step-by-Step Instructions:
-
Loosen Fascia and Remove Panel Door:
- Using a T15 Torx bit, remove (2) screws from the bottom panel door.
- Remove the panel door and return it along with the screws to the owner.
- Using a flat head screwdriver and T15 Torx bit, remove (2) rivets from the bottom center fascia and (1) screw from each side of the fascia. Retain all fasteners for reinstallation.
-
Drill and Enlarge Holes:
- Raise the hitch into position and align it with the forward attachment holes.
- Use a marker to mark the drill point for the rearward driver-side hole at the hitch bracket's center.
- Ensure the hitch is straight and aligned with the markings.
- Lower the hitch and drill a 1/2" hole at the marked location.
- Enlarge the rearward passenger-side attachment hole to 1/2" using the drill.
-
Install Hitch:
- Use pull wires to feed the 7/16" carriage bolts and spacers through the access holes to the attachment holes.
- Leave the pull wires attached.
- Gently pull the fascia and raise the hitch into position, feeding the pull wires through the hitch bracket holes.
- Remove the pull wires and loosely install the conical washers (teeth side against the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.
-
Reinstall Rivets and Screws:
- Reinstall the rivets and screws removed in Step 1.

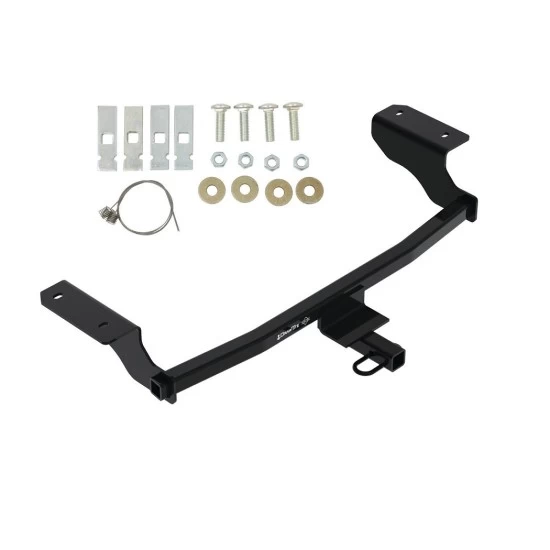

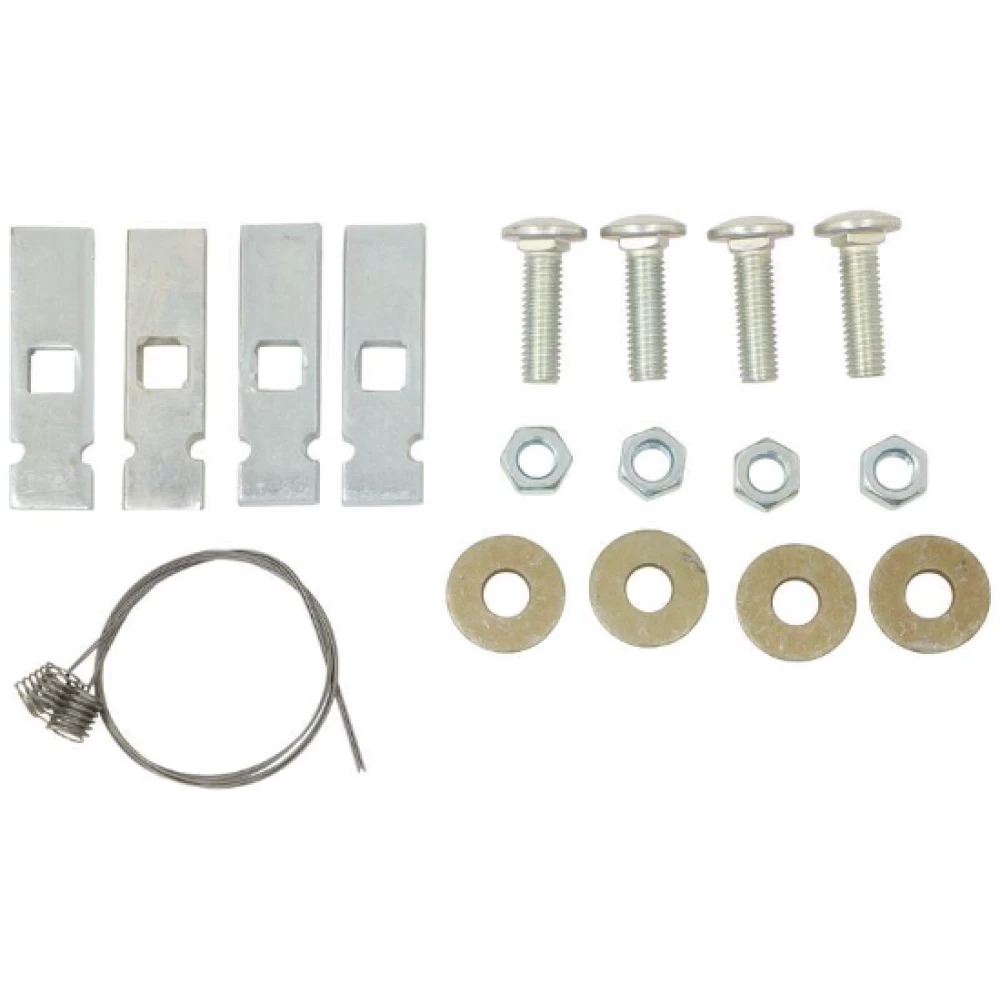

Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (4) Spacer, 1/4" x 7/8" x 3.0"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14
- (4) Pull Wire, 7/16"-14
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 45 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2022-Current)
Part Numbers:
- 25002
- 78295
- CQT25002
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16"
- T15 Torx Bit
- Flat Head Screwdriver
- Drill with 1/2" Drill Bit
- Marker
- 6" Socket Extension
Step-by-Step Instructions:
-
Loosen Fascia and Remove Panel Door:
- Using a T15 Torx bit, remove (2) screws from the bottom panel door.
- Remove the panel door and return it along with the screws to the owner.
- Using a flat head screwdriver and T15 Torx bit, remove (2) rivets from the bottom center fascia and (1) screw from each side of the fascia. Retain all fasteners for reinstallation.
-
Drill and Enlarge Holes:
- Raise the hitch into position and align it with the forward attachment holes.
- Use a marker to mark the drill point for the rearward driver-side hole at the hitch bracket's center.
- Ensure the hitch is straight and aligned with the markings.
- Lower the hitch and drill a 1/2" hole at the marked location.
- Enlarge the rearward passenger-side attachment hole to 1/2" using the drill.
-
Install Hitch:
- Use pull wires to feed the 7/16" carriage bolts and spacers through the access holes to the attachment holes.
- Leave the pull wires attached.
- Gently pull the fascia and raise the hitch into position, feeding the pull wires through the hitch bracket holes.
- Remove the pull wires and loosely install the conical washers (teeth side against the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.
-
Reinstall Rivets and Screws:
- Reinstall the rivets and screws removed in Step 1.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (4) Spacer, 1/4" x 7/8" x 3.0"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14
- (4) Pull Wire, 7/16"-14
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 45 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Warranty:
- This product is covered by a limited warranty.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
