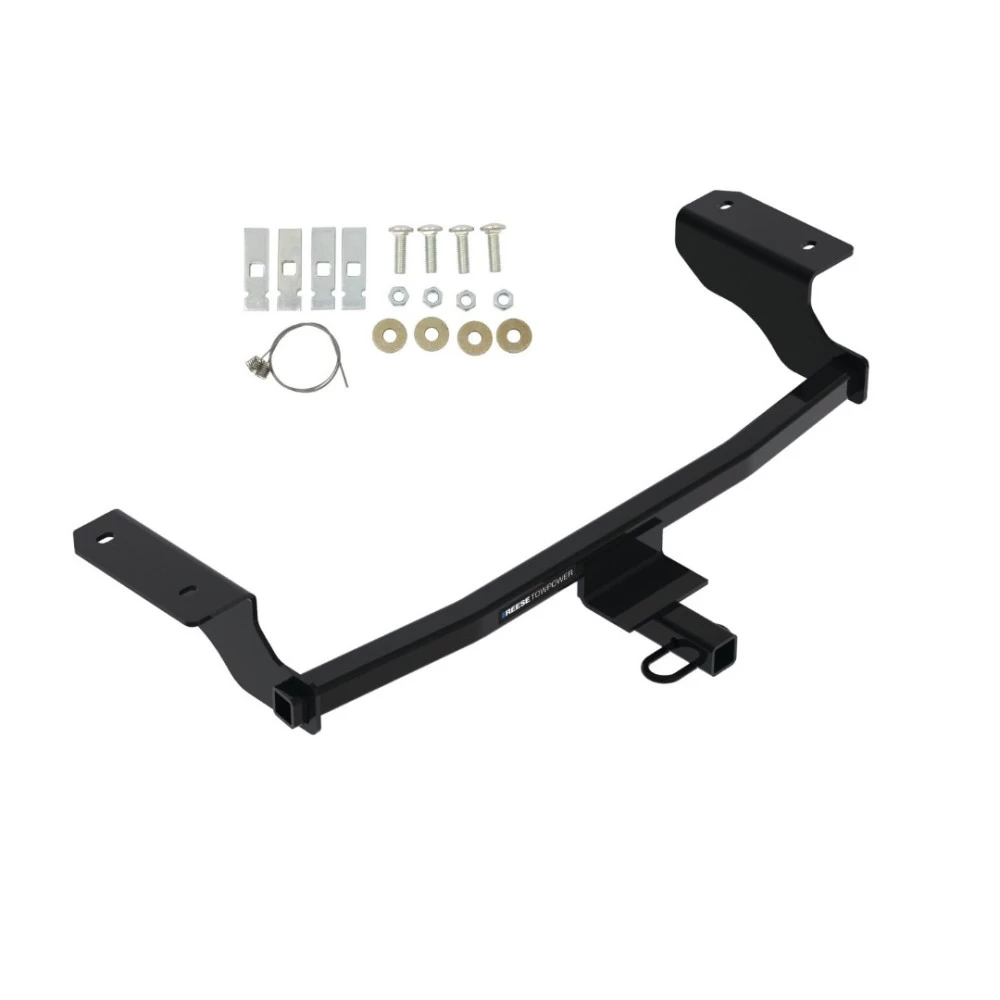

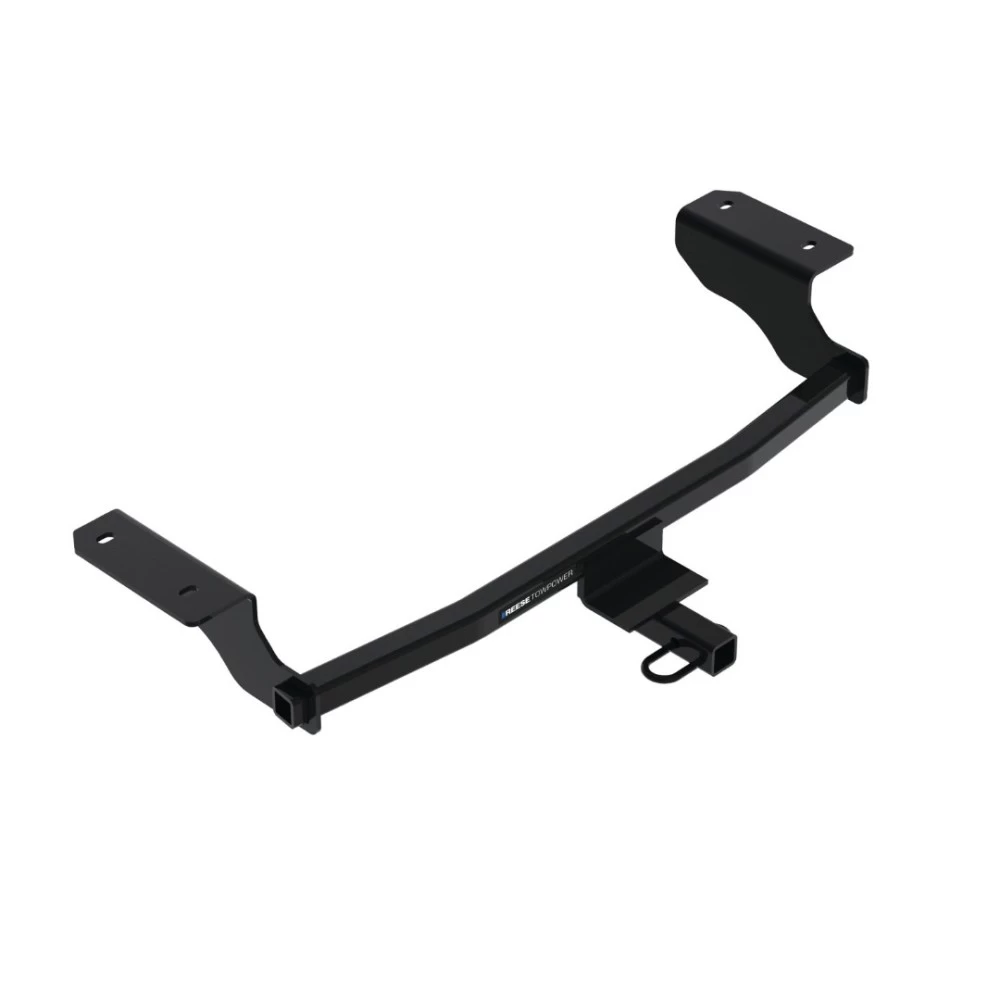

Trailer Tow Hitch For 22‑23 Chevrolet Bolt EV Class I 1‑1/4" Receiver Reese
Model: 782952022 - 2023 Chevrolet, Bolt EV, All Styles
Trailer Hitch Specs:
| Part Number | 78295 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | I |
| Receiver size opening | 1-1/4 |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Reese manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 22 23 2022 2023
$187 77 $293.24 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$293.24 $187 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $46.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 78295
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2022 - 2023 Chevrolet, Bolt EV, All Styles
Trailer Hitch Specs:
| Part Number | 78295 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | I |
| Receiver size opening | 1-1/4 |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Reese manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 22 23 2022 2023
Get Expert Help
Trailer Tow Hitch For 22-23 Chevrolet Bolt EV Class I 1-1/4" Receiver Reese Install Notes
Installation Instructions for Chevrolet Bolt EV (2022-Current)
Part Numbers:
- 25002
- 78295
- CQT25002
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16"
- T15 Torx Bit
- Flat Head Screwdriver
- Drill with 1/2" Drill Bit
- Marker
- 6" Socket Extension
Step-by-Step Instructions:
-
Loosen Fascia and Remove Panel Door:
- Using a T15 Torx bit, remove (2) screws from the bottom panel door.
- Remove the panel door and return it along with the screws to the owner.
- Using a flat head screwdriver and T15 Torx bit, remove (2) rivets from the bottom center fascia and (1) screw from each side of the fascia. Retain all fasteners for reinstallation.
-
Drill and Enlarge Holes:
- Raise the hitch into position and align it with the forward attachment holes.
- Use a marker to mark the drill point for the rearward driver-side hole at the hitch bracket's center.
- Ensure the hitch is straight and aligned with the markings.
- Lower the hitch and drill a 1/2" hole at the marked location.
- Enlarge the rearward passenger-side attachment hole to 1/2" using the drill.
-
Install Hitch:
- Use pull wires to feed the 7/16" carriage bolts and spacers through the access holes to the attachment holes.
- Leave the pull wires attached.
- Gently pull the fascia and raise the hitch into position, feeding the pull wires through the hitch bracket holes.
- Remove the pull wires and loosely install the conical washers (teeth side against the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.
-
Reinstall Rivets and Screws:
- Reinstall the rivets and screws removed in Step 1.

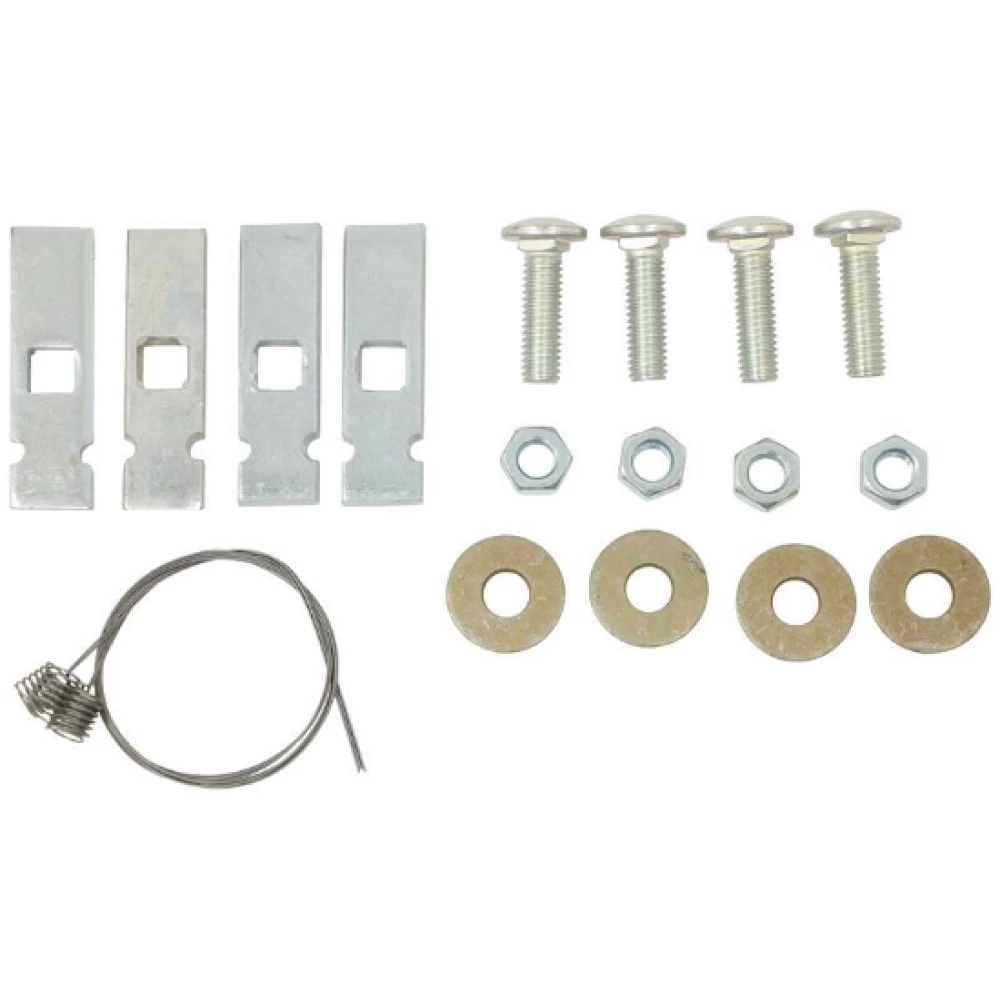

Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (4) Spacer, 1/4" x 7/8" x 3.0"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14
- (4) Pull Wire, 7/16"-14
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 45 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2022-Current)
Part Numbers:
- 25002
- 78295
- CQT25002
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16"
- T15 Torx Bit
- Flat Head Screwdriver
- Drill with 1/2" Drill Bit
- Marker
- 6" Socket Extension
Step-by-Step Instructions:
-
Loosen Fascia and Remove Panel Door:
- Using a T15 Torx bit, remove (2) screws from the bottom panel door.
- Remove the panel door and return it along with the screws to the owner.
- Using a flat head screwdriver and T15 Torx bit, remove (2) rivets from the bottom center fascia and (1) screw from each side of the fascia. Retain all fasteners for reinstallation.
-
Drill and Enlarge Holes:
- Raise the hitch into position and align it with the forward attachment holes.
- Use a marker to mark the drill point for the rearward driver-side hole at the hitch bracket's center.
- Ensure the hitch is straight and aligned with the markings.
- Lower the hitch and drill a 1/2" hole at the marked location.
- Enlarge the rearward passenger-side attachment hole to 1/2" using the drill.
-
Install Hitch:
- Use pull wires to feed the 7/16" carriage bolts and spacers through the access holes to the attachment holes.
- Leave the pull wires attached.
- Gently pull the fascia and raise the hitch into position, feeding the pull wires through the hitch bracket holes.
- Remove the pull wires and loosely install the conical washers (teeth side against the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.
-
Reinstall Rivets and Screws:
- Reinstall the rivets and screws removed in Step 1.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (4) Spacer, 1/4" x 7/8" x 3.0"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14
- (4) Pull Wire, 7/16"-14
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 45 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Warranty:
- This product is covered by a limited warranty.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
