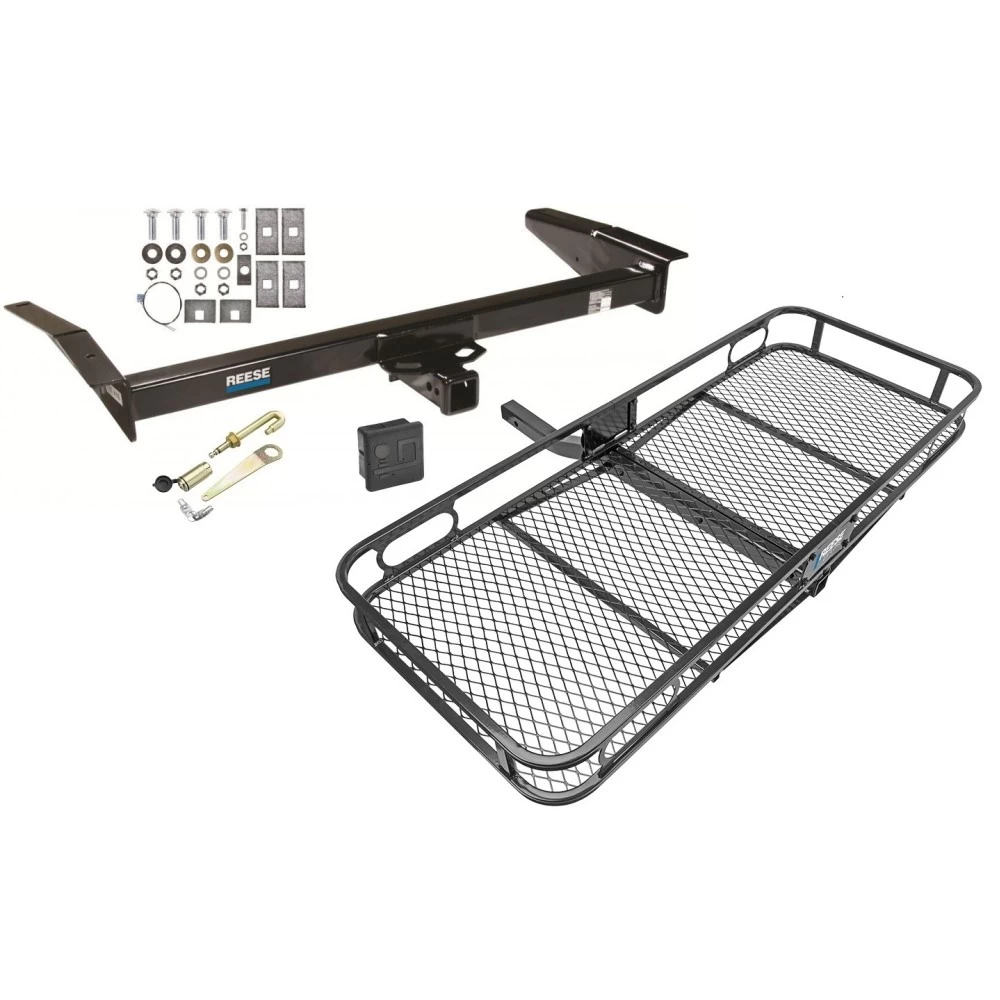

Trailer Tow Hitch For 79‑11 Ford Crown Victoria Lincoln Town Car Basket Cargo Carrier Platform Hitch Lock and Cover
Model: 41116 63153 63201 7010Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1979 - 1991 Ford, LTD, All Styles
1980 - 1983 Lincoln, Mark VI, All Styles
1981 - 2011 Lincoln, Town Car, All Styles
1983 - 2009 Ford, Crown Victoria, All Styles
1979 - 2011 Mercury, Grand Marquis, All Styles
2003 - 2004 Mercury, Marauder, All Styles
Trailer Hitch Specs:
| Part Number | 41116 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 350/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Partial list of fitment years: 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 01 02 03 04 05 06 07 08 09 10 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
$577 48 $932.36 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$932.36 $577 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $144.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41116 63153 63201 7010
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1979 - 1991 Ford, LTD, All Styles
1980 - 1983 Lincoln, Mark VI, All Styles
1981 - 2011 Lincoln, Town Car, All Styles
1983 - 2009 Ford, Crown Victoria, All Styles
1979 - 2011 Mercury, Grand Marquis, All Styles
2003 - 2004 Mercury, Marauder, All Styles
Trailer Hitch Specs:
| Part Number | 41116 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 350/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Partial list of fitment years: 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 01 02 03 04 05 06 07 08 09 10 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Get Expert Help
Trailer Tow Hitch For 79-11 Ford Crown Victoria Lincoln Town Car Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes
Installation Instructions for Ford LTD, Crown Victoria, Lincoln Town Car, Town Coupe, Mark VI, Mercury Marquis, Grand Marquis, and Mercury Marauder
Part Numbers:
- 44728
- 41116
- 87408
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Drill with 1/2" Drill Bit
- Exhaust Removal Pliers
- Sockets: 3/4", 13mm
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Examine the bottom of the frame rails and remove any weld spatter to ensure the hitch sits flat.
- Remove all but a thin film of undercoating from the attaching surfaces.
-
Fishwire Rearward Bolts:
- Feed the 1/2" carriage bolts and 1/4" x 1-1/2" x 3" spacer blocks through the body mount access holes and into the existing slots in the frame rails.
-
Position Hitch:
- Raise the hitch into position over the bolts and loosely install the conical washers (teeth side facing hitch) and hex nuts.
- Ensure both sides of the hitch are positioned identically within the slots (e.g., forward, centered, or rearward).
-
Relocate Exhaust Hanger (2003 and Later Lincoln Town Car):
- Unbolt the passenger-side exhaust hanger bracket from the vehicle frame.
- Remove the rubber hanger from both the hanger bracket and the tailpipe bracket.
- Rotate the rubber hanger and reattach it to the hanger bracket. Do not reattach it to the tailpipe bracket at this time. Discard the existing hanger bolt.
-
Drill Frame Holes:
- Using the hitch as a template, drill a rearward hole into the bottom of each frame rail with a 1/2" drill bit.
-
Install Rearward Fasteners:
- Drop a 1/2" bolt with a 1/4" x 1-1/2" x 2" spacer block down through the access hole at the end of each frame rail and into the drilled holes.
- Hold the spacer block in place with one hand while guiding the bolt through the hole.
-
Secure Hitch:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten all M8 CL8.8 fasteners to 20 lb-ft (27 N*m).
-
Reattach Exhaust Hanger (2003 and Later Lincoln Town Car):
- Reattach the passenger-side exhaust hanger bracket as shown in Figure 3.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M8 CL8.8 bolts: 20 lb-ft (27 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (4) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Conical Washers, 1/2"
- (4) Hex Nuts, 1/2"-13
- (1) Hex Bolt, M8 x
Installation Instructions for Full-Size Sedans
Part Numbers:
- 44728
- 41116
- 87408
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Drill with 1/2" Drill Bit
- Exhaust Removal Pliers
- Sockets: 3/4", 13mm
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Examine the bottom of the frame rails and remove any weld spatter to ensure the hitch sits flat.
- Remove all but a thin film of undercoating from the attaching surfaces.
-
Fishwire Rearward Bolts:
- Feed the 1/2" carriage bolts and 1/4" x 1-1/2" x 3" spacer blocks through the body mount access holes and into the existing slots in the frame rails.
-
Position Hitch:
- Raise the hitch into position over the bolts and loosely install the conical washers (teeth side facing hitch) and hex nuts.
- Ensure both sides of the hitch are positioned identically within the slots (e.g., forward, centered, or rearward).
-
Relocate Exhaust Hanger (2003 and Later Full-Size Sedans):
- Unbolt the passenger-side exhaust hanger bracket from the vehicle frame.
- Remove the rubber hanger from both the hanger bracket and the tailpipe bracket.
- Rotate the rubber hanger and reattach it to the hanger bracket. Do not reattach it to the tailpipe bracket at this time. Discard the existing hanger bolt.
-
Drill Frame Holes:
- Using the hitch as a template, drill a rearward hole into the bottom of each frame rail with a 1/2" drill bit.
-
Install Rearward Fasteners:
- Drop a 1/2" bolt with a 1/4" x 1-1/2" x 2" spacer block down through the access hole at the end of each frame rail and into the drilled holes.
- Hold the spacer block in place with one hand while guiding the bolt through the hole.
-
Secure Hitch:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten all M8 CL8.8 fasteners to 20 lb-ft (27 N*m).
-
Reattach Exhaust Hanger (2003 and Later Full-Size Sedans):
- Reattach the passenger-side exhaust hanger bracket as shown in Figure 3.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M8 CL8.8 bolts: 20 lb-ft (27 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (4) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Conical Washers, 1/2"
- (4) Hex Nuts, 1/2"-13
- (1) Hex Bolt, M8 x
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
