Product Details
- Brand: Draw-Tite
- Model: 41522 59401 63201 7010

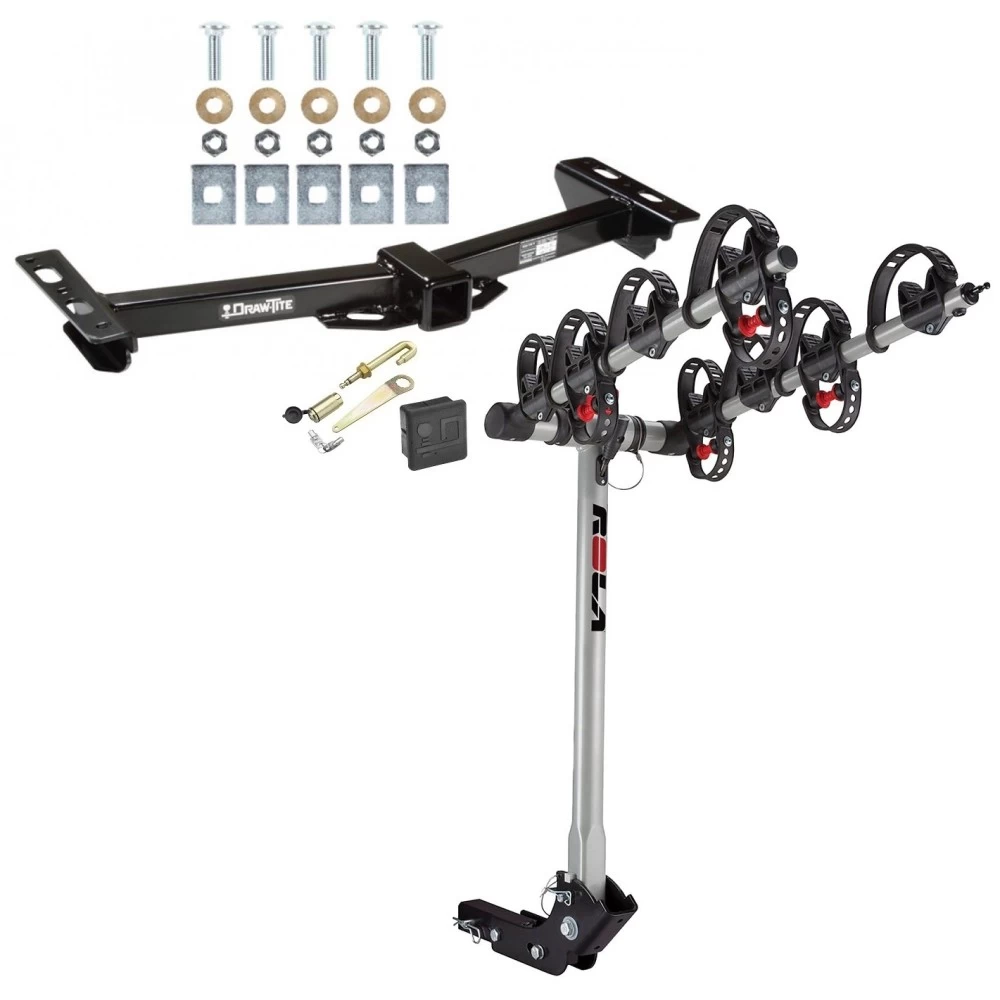

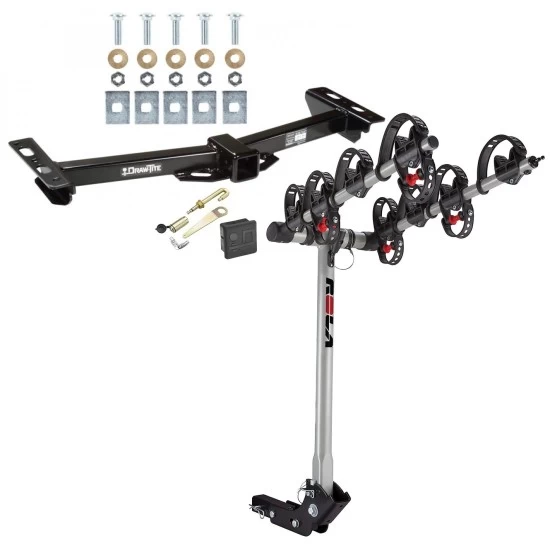

- Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 4 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Chevrolet/GMC Pickups with Aftermarket Roll Pan
Part Numbers:
- 41522
Wiring Access Location:
- PU3
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 7/8" (Crowfoot)
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- If the under-bed spare tire is to be retained, an aftermarket spare tire repositioner must be installed.
-
Position Rearmost Slots:
- Position the rearmost slots in the receiver over/after the slot near the end of the frame.
-
Drill Forward Attachment Holes:
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
-
Install Fasteners:
- Install fasteners as shown in Figure 1.
- Use 1/4" x 1-1/2" x 2" blocks (1540 and 3719) oriented as shown in the diagram.
-
Cut Roll Pan (if required):
- Cut the roll pan in the license plate area to provide drawbar installation and pin & clip access.
- Reposition the license plate while the drawbar is in use.
-
Apply Load Rating Label:
- Apply the load rating label (5767) provided in the license plate area of the roll pan.
-
Check Spare Tire Clearance:
- If using an aftermarket spare tire repositioner, ensure clearance between the spare tire, brake lines, and differential (see Figure 2).
-
Tighten Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft.
Torque Specifications:
- 1/2" GR5 fasteners: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Blocks, 1/4" x 1-1/2" x 2" (3719 and 1540)
- (6) Conical Toothed Washers
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb
- Max Tongue Weight: 550 lb
Additional Notes:
- Hitch will not fit with step bumpers or vehicles equipped with heavy-duty suspension with additional frame reinforcements (see Diagram 1).
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks with Aftermarket Roll Pan
Part Numbers:
- 41522
Wiring Access Location:
- PU3
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 7/8" (Crowfoot)
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- If the under-bed spare tire is to be retained, an aftermarket spare tire repositioner must be installed.
-
Position Rearmost Slots:
- Position the rearmost slots in the receiver over/after the slot near the end of the frame.
-
Drill Forward Attachment Holes:
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
-
Install Fasteners:
- Install fasteners as shown in Figure 1.
- Use 1/4" x 1-1/2" x 2" blocks (1540 and 3719) oriented as shown in the diagram.
-
Cut Roll Pan (if required):
- Cut the roll pan in the license plate area to provide drawbar installation and pin & clip access.
- Reposition the license plate while the drawbar is in use.
-
Apply Load Rating Label:
- Apply the load rating label (5767) provided in the license plate area of the roll pan.
-
Check Spare Tire Clearance:
- If using an aftermarket spare tire repositioner, ensure clearance between the spare tire, brake lines, and differential (see Figure 2).
-
Tighten Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft.
Torque Specifications:
- 1/2" GR5 fasteners: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Blocks, 1/4" x 1-1/2" x 2" (3719 and 1540)
- (6) Conical Toothed Washers
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb
- Max Tongue Weight: 550 lb
Additional Notes:
- Hitch will not fit with step bumpers or vehicles equipped with heavy-duty suspension with additional frame reinforcements (see Diagram 1).
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
