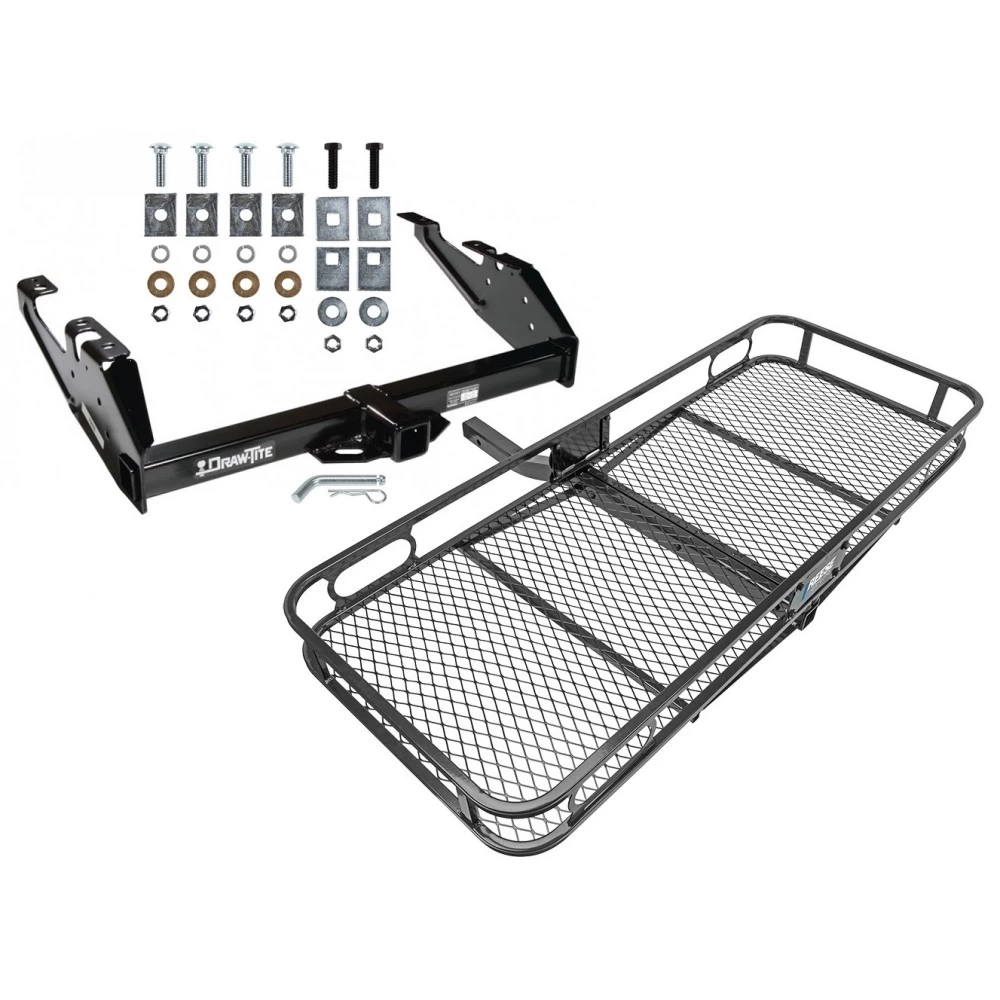

Trailer Tow Hitch For 88‑00 Chevy GMC C/K Series Pickup Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75033 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 2000 Chevrolet, C/K 2500, Regular, Extended & Crew Cab
1988 - 2000 Chevrolet, C/K 3500, Regular, Extended & Crew Cab
1988 - 1999 GMC, C/K 1500, All Styles
1988 - 2000 GMC, C/K 2500, All Styles
1988 - 2000 GMC, C/K 3500, All Styles

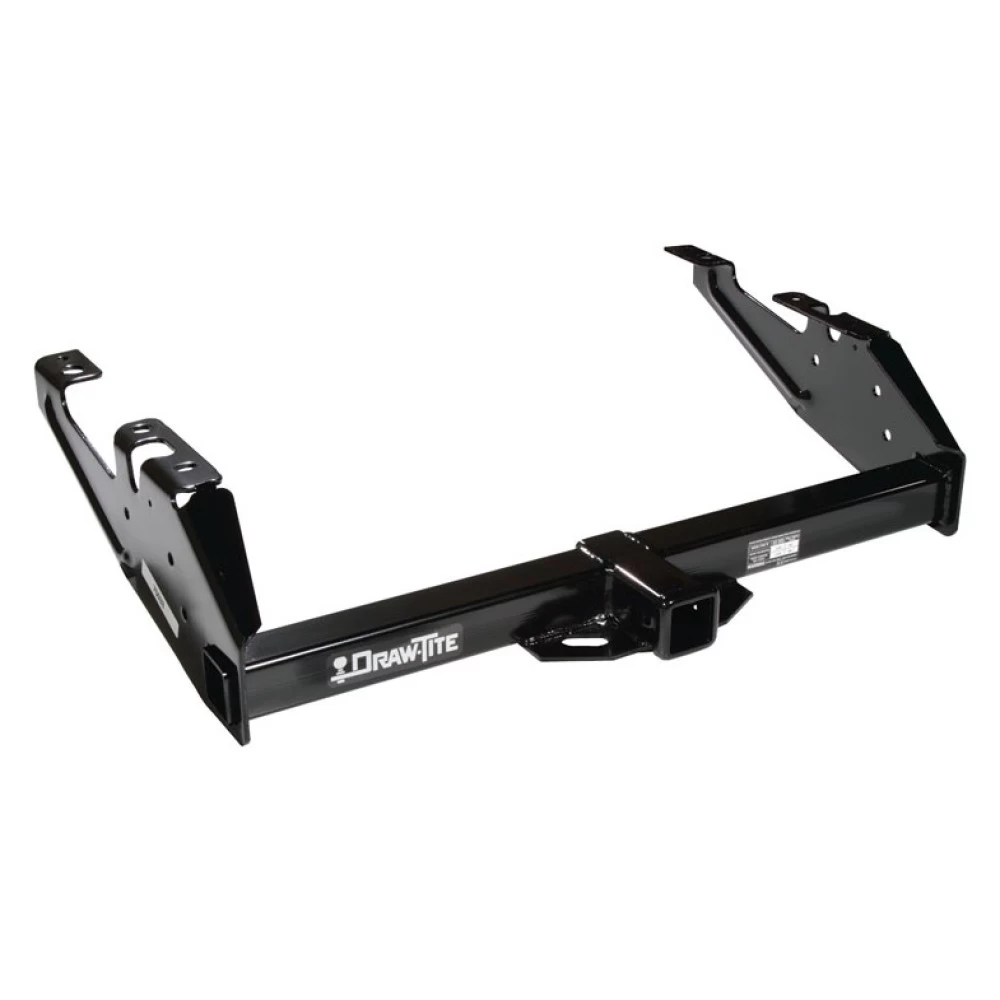

Trailer Hitch Specs:
| Part Number | 75033 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
$568 39 $846.54 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$846.54 $568 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $142.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75033 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 2000 Chevrolet, C/K 2500, Regular, Extended & Crew Cab
1988 - 2000 Chevrolet, C/K 3500, Regular, Extended & Crew Cab
1988 - 1999 GMC, C/K 1500, All Styles
1988 - 2000 GMC, C/K 2500, All Styles
1988 - 2000 GMC, C/K 3500, All Styles
Trailer Hitch Specs:
| Part Number | 75033 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Get Expert Help
Trailer Tow Hitch For 88-00 Chevy GMC C/K Series Pickup Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Chevrolet Full-Size Pickup and GMC Full-Size Pickup (All Models)
Part Numbers:
- 51021
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 7/8", 13mm, 18mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove and discard the M12 hex bolts from the end of each frame rail if present.
-
Remove Ground Wire:
- Detach the ground wire and ground wire bolt from the driver’s side frame rail if present.
-
Position Receiver:
- Lift the receiver into position, aligning the slots in the receiver with the weldnuts in the vehicle frame.
- For vehicles without a bumper, align the slot in the receiver with the fore/aft slot near the end of the frame.
-
Install Fasteners:
- Install the M12 hex bolts (supplied) and conical washers through the receiver into the weldnuts in the vehicle frame.
- Install the remaining fasteners as shown in the instructions.
-
Reinstall Ground Wire:
- Secure the ground wire and ground wire bolt to the hole in the side of the receiver side bracket.
-
Spacer Installation for 6' Beds:
- On 6' bed models with heavy-duty suspension, position the spacer (Item 3) at the forward-most attachment on the driver’s side to ensure clearance of rivets. The spacer must sit flat on the frame.
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft. (102 N*M).
- Tighten all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (2) Hex Bolts: M12 x 1.75 x 45mm
- (2) Hex Nuts: M12 x 1.75
- (4) Hex Bolts: 1/2"-13 x 1.75"
- (4) Lock Washers: 1/2"
- (4) Hex Nuts: 1/2"-13
- (4) Flat Washers: 1/2"
- (4) Conical Washers: 1/2"
- (2) Spacers: 0.188" x 1.50" x 2.00"
- (4) Spacers: 0.250" x 1.50" x 2.00"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the hitch ball are properly tightened.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions when working under a vehicle, and wear eye protection.
- Do not use a torch to cut access or attachment holes.
Specifications:
- Weight Carrying:
- Max Tongue Weight: 500 lb. (227 kg)
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Weight Distributing:
- Max Tongue Weight: 1,000 lb. (454 kg)
- Max Gross Trailer Weight: 10,000 lb. (4,540 kg)
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Installation Instructions for Full-Size Pickup (All Models)
Part Numbers:
- 51021
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 7/8", 13mm, 18mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove and discard the M12 hex bolts from the end of each frame rail if present.
-
Remove Ground Wire:
- Detach the ground wire and ground wire bolt from the driver’s side frame rail if present.
-
Position Receiver:
- Lift the receiver into position, aligning the slots in the receiver with the weldnuts in the vehicle frame.
- For vehicles without a bumper, align the slot in the receiver with the fore/aft slot near the end of the frame.
-
Install Fasteners:
- Install the M12 hex bolts (supplied) and conical washers through the receiver into the weldnuts in the vehicle frame.
- Install the remaining fasteners as shown in the instructions.
-
Reinstall Ground Wire:
- Secure the ground wire and ground wire bolt to the hole in the side of the receiver side bracket.
-
Spacer Installation for 6' Beds:
- On 6' bed models with heavy-duty suspension, position the spacer (Item 3) at the forward-most attachment on the driver’s side to ensure clearance of rivets. The spacer must sit flat on the frame.
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft. (102 N*M).
- Tighten all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (2) Hex Bolts: M12 x 1.75 x 45mm
- (2) Hex Nuts: M12 x 1.75
- (4) Hex Bolts: 1/2"-13 x 1.75"
- (4) Lock Washers: 1/2"
- (4) Hex Nuts: 1/2"-13
- (4) Flat Washers: 1/2"
- (4) Conical Washers: 1/2"
- (2) Spacers: 0.188" x 1.50" x 2.00"
- (4) Spacers: 0.250" x 1.50" x 2.00"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the hitch ball are properly tightened.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions when working under a vehicle, and wear eye protection.
- Do not use a torch to cut access or attachment holes.
Specifications:
- Weight Carrying:
- Max Tongue Weight: 500 lb. (227 kg)
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Weight Distributing:
- Max Tongue Weight: 1,000 lb. (454 kg)
- Max Gross Trailer Weight: 10,000 lb. (4,540 kg)
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
