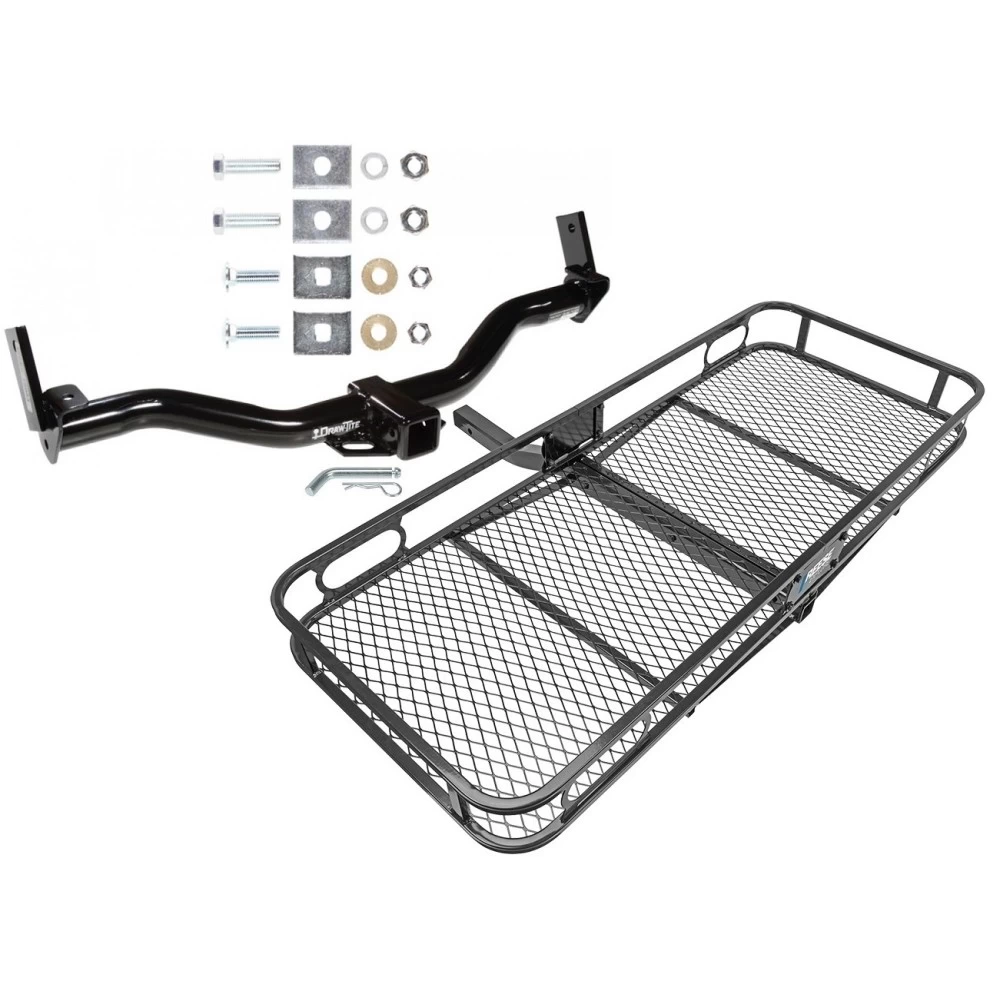

Trailer Tow Hitch For 91‑03 Ford Explorer Navajo Mountaineer Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75083 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1991 - 2000 Ford, Explorer, All Styles
1991 - 1994 Mazda, Navajo, All Styles
1997 - 2001 Mercury, Mountaineer, All Styles
2001 - 2003 Ford, Explorer, 2 Dr. Sport
2001 – 2001 Ford, Explorer, 4 Dr.
Trailer Hitch Specs:
| Part Number | 75083 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 91 92 93 94 95 96 97 98 99 00 01 02 03 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
$522 31 $837.38 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$837.38 $522 31
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $130.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75083 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1991 - 2000 Ford, Explorer, All Styles
1991 - 1994 Mazda, Navajo, All Styles
1997 - 2001 Mercury, Mountaineer, All Styles
2001 - 2003 Ford, Explorer, 2 Dr. Sport
2001 – 2001 Ford, Explorer, 4 Dr.
Trailer Hitch Specs:
| Part Number | 75083 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 91 92 93 94 95 96 97 98 99 00 01 02 03 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
Get Expert Help
Trailer Tow Hitch For 91-03 Ford Explorer Navajo Mountaineer Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Ford Explorer, Mazda Navajo, and Mercury Mountaineer
Part Numbers:
- 75083
- 70647
- 44067
- 33051
- 78166 UH
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tow Hooks (if equipped):
- Remove tow hooks from the vehicle frame and return them to the owner for reinstallation if the hitch is later removed.
-
Position Hitch:
- Raise the receiver into position under the vehicle, placing upright bars against the outboard vertical surface of the frame. Align the hole in the upright bar with the existing slot in the frame on both sides.
-
Loosely Install Fasteners:
- Install fasteners through the slot in the frame and upright bar as shown in the diagram.
-
Fastener Installation by Model Year:
- 1994 and Prior Models:
- Use the hitch as a template and drill a 1/2" hole in the bottom of the vehicle frame on both sides. Install the remaining fasteners as shown in the diagram.
- 1995 and Later Models:
- Install the remaining fasteners in the hitch bracket and the bottom of the vehicle frame on both sides as shown in the diagram.
- 1994 and Prior Models:
-
Tighten Fasteners:
- Tighten all 1/2" fasteners to 75 lb-ft (102 N*m).
- Tighten all 9/16" fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 1/2"-13: 75 lb-ft (102 N*m)
- 9/16"-12: 110 lb-ft (149 N*m)
Hardware List:
- (2) Carriage Bolts, 1/2"-13 x 1.75"
- (2) Blocks (Frame Spacer)
- (2) Conical Washers, 1/2"
- (2) Hex Nuts, 1/2"-13
- (2) Bolts, 9/16"-12 x 2.00"
- (2) Blocks (Reinforcement Bracket Spacer)
- (2) Lock Washers, 9/16"
- (2) Hex Nuts, 9/16"-12
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
Additional Notes:
- Will not fit models with a 16" spare tire (1998 and later).
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Ford Explorer, Mazda Navajo, and Mercury Mountaineer
Part Numbers:
- 75083
- 70647
- 44067
- 33051
- 78166 UH
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tow Hooks (if equipped):
- Remove tow hooks from the vehicle frame and return them to the owner for reinstallation if the hitch is later removed.
-
Position Hitch:
- Raise the receiver into position under the vehicle, placing upright bars against the outboard vertical surface of the frame. Align the hole in the upright bar with the existing slot in the frame on both sides.
-
Loosely Install Fasteners:
- Install fasteners through the slot in the frame and upright bar as shown in the diagram.
-
Fastener Installation by Model Year:
- 1994 and Prior Models:
- Use the hitch as a template and drill a 1/2" hole in the bottom of the vehicle frame on both sides. Install the remaining fasteners as shown in the diagram.
- 1995 and Later Models:
- Install the remaining fasteners in the hitch bracket and the bottom of the vehicle frame on both sides as shown in the diagram.
- 1994 and Prior Models:
-
Tighten Fasteners:
- Tighten all 1/2" fasteners to 75 lb-ft (102 N*m).
- Tighten all 9/16" fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 1/2"-13: 75 lb-ft (102 N*m)
- 9/16"-12: 110 lb-ft (149 N*m)
Hardware List:
- (2) 1/2"-13 x 1.75" Carriage Bolts
- (2) Frame Spacer Blocks
- (2) 1/2" Conical Washers
- (2) 1/2"-13 Hex Nuts
- (2) 9/16"-12 x 2.00" Bolts
- (2) Reinforcement Bracket Spacer Blocks
- (2) 9/16" Lock Washers
- (2) 9/16"-12 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
Additional Notes:
- Will not fit models with a 16" spare tire (1998 and later).
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
