Product Details
- Brand: Draw-Tite
- Model: 41906 63153 63201 7010

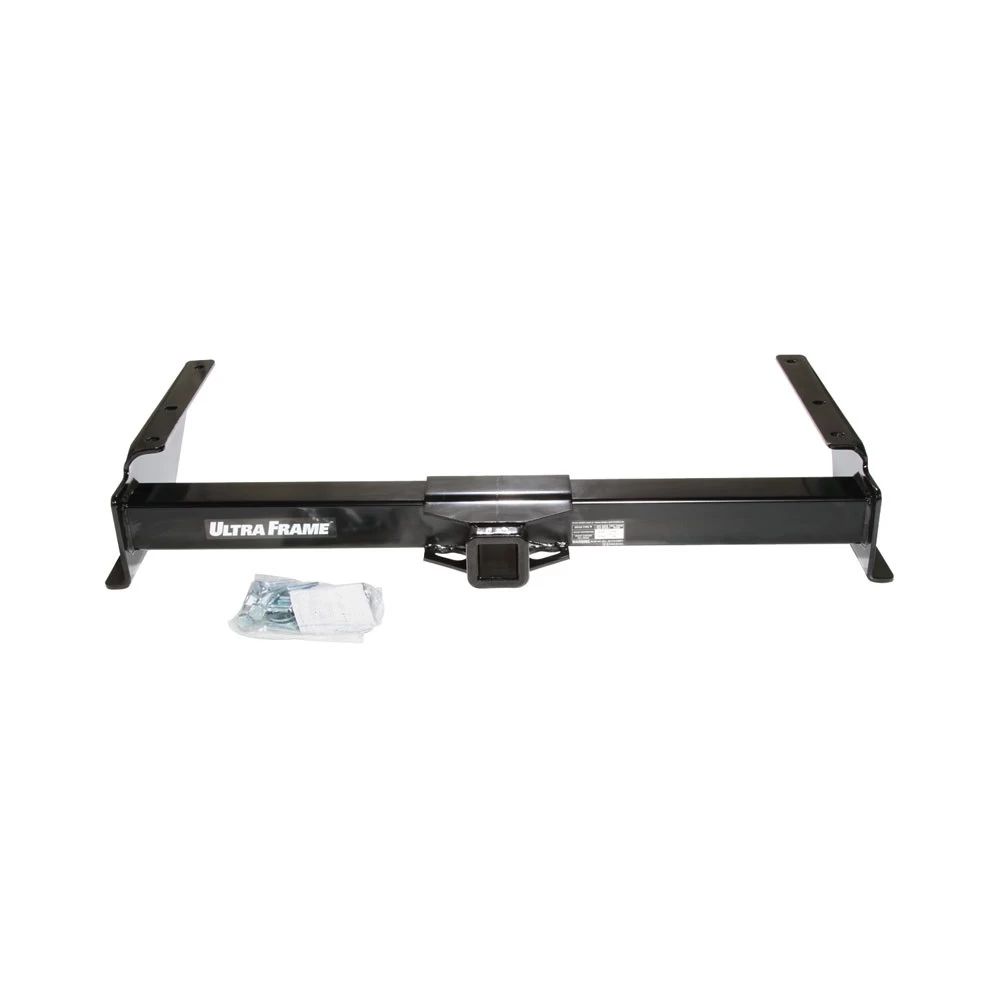

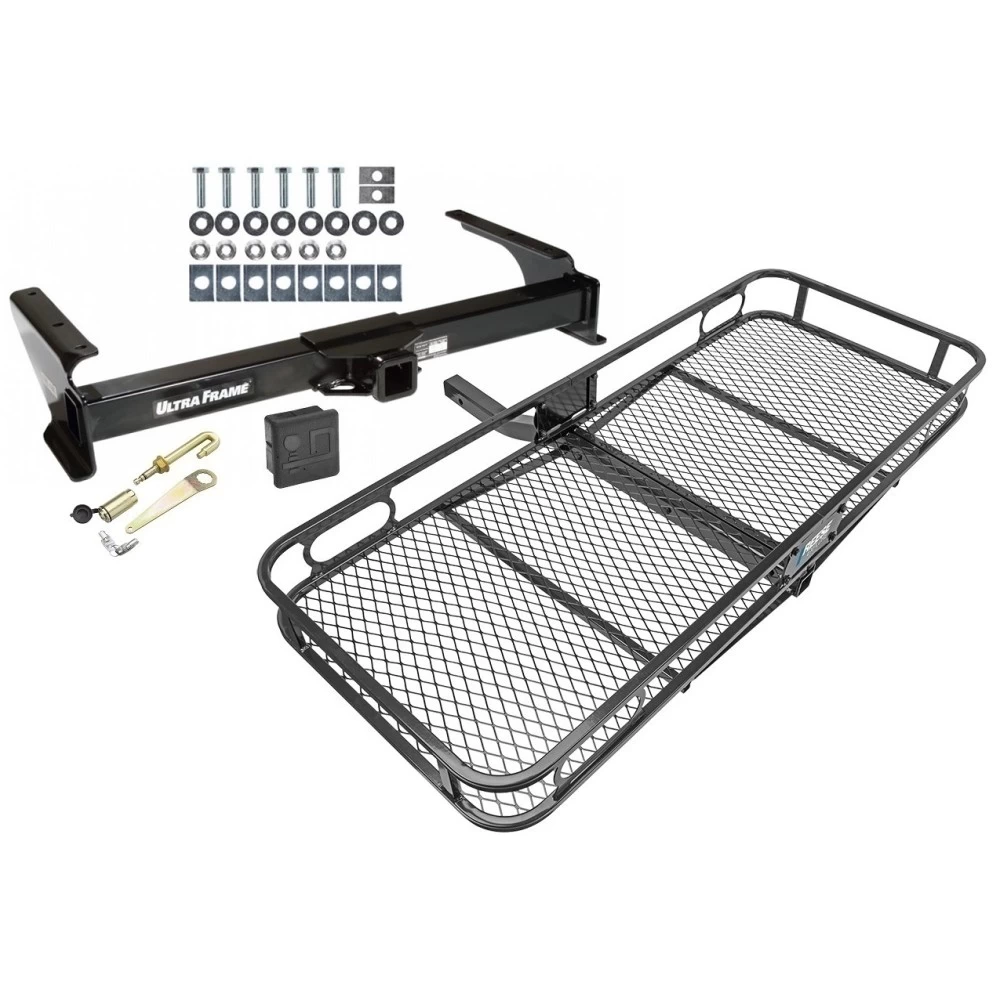

- Includes: Ultra Frame Class 4 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 92-14 Ford Econoline E-150 E-250 E-350 Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes
Installation Instructions for Ford Econoline Van
Part Numbers:
- 41906
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Drill with 9/16" Drill Bit
- Wrenches: 13/16", 7/8"
Step-by-Step Instructions:
-
Prepare Vehicle:
- Lower the carbon canister from the driver’s side frame rail if present.
- Disconnect the factory-installed optional driver’s side trailer wiring connector and reposition it rearward.
-
Position Hitch:
- Raise the hitch into position, aligning it with existing holes in the vehicle frame.
-
Install Fasteners:
-
For E150 and E250 (Pre-1997 Models):
- Insert 9/16"-18 x 2" GR5 bolts through the frame and hitch.
- Use spacer blocks, flat washers, and flanged locknuts to secure the bolts.
-
For E250 Super (Pre-1997 Models):
- Install fasteners as shown, ensuring blocks are added between the frame and receiver.
-
For E350 Super (All Models After 1997):
- Install 2 blocks (5493) between the frame and receiver at the center attachment point.
-
-
Drill Holes:
- Use the hitch as a template to drill 9/16" holes in the frame, ensuring clearance from carbon canisters or other components.
-
Secure All Fasteners:
- Tighten 9/16"-18 GR5 fasteners to 110 lb-ft.
-
Reinstall Vehicle Components:
- Reattach the carbon canister and reposition the trailer wiring connector to its original or an appropriate location for clearance.
Torque Specifications:
- 9/16"-18 GR5 bolts: 110 lb-ft

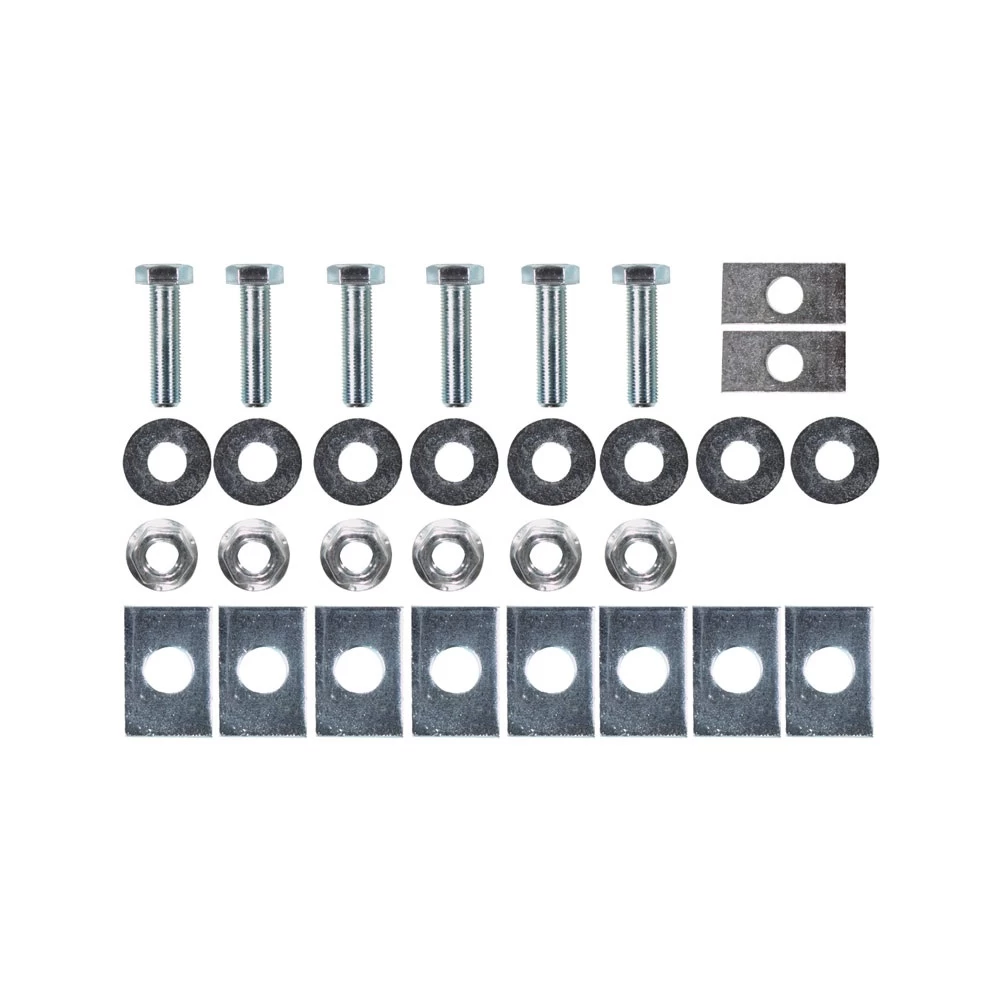

Hardware List:
- (4) Hex Bolts, 9/16"-18 x 2" GR5
- (4) Spacer Blocks, 3/8" x 1-1/2" x 2"
- (4) Flanged Locknuts, 9/16"-18
- (2) Spacer Blocks, 5493 (center attachment point for E350 Super after 1997)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the vehicle frame or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- Wiring harness is located inside the vehicle frame. Reposition before drilling.
- Ensure proper clearance for carbon canisters and wiring connectors during installation.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Van
Part Numbers:
- 41906
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Drill with 9/16" Drill Bit
- Wrenches: 13/16", 7/8"
Step-by-Step Instructions:
-
Prepare Vehicle:
- Lower the carbon canister from the driver’s side frame rail if present.
- Disconnect the factory-installed optional driver’s side trailer wiring connector and reposition it rearward.
-
Position Hitch:
- Raise the hitch into position, aligning it with existing holes in the vehicle frame.
-
Install Fasteners:
-
For E150 and E250 (Pre-1997 Models):
- Insert 9/16"-18 x 2" GR5 bolts through the frame and hitch.
- Use spacer blocks, flat washers, and flanged locknuts to secure the bolts.
-
For E250 Super (Pre-1997 Models):
- Install fasteners as shown, ensuring blocks are added between the frame and receiver.
-
For E350 Super (All Models After 1997):
- Install 2 blocks (5493) between the frame and receiver at the center attachment point.
-
-
Drill Holes:
- Use the hitch as a template to drill 9/16" holes in the frame, ensuring clearance from carbon canisters or other components.
-
Secure All Fasteners:
- Tighten 9/16"-18 GR5 fasteners to 110 lb-ft.
-
Reinstall Vehicle Components:
- Reattach the carbon canister and reposition the trailer wiring connector to its original or an appropriate location for clearance.
Torque Specifications:
- 9/16"-18 GR5 bolts: 110 lb-ft
Hardware List:
- (4) Hex Bolts, 9/16"-18 x 2" GR5
- (4) Spacer Blocks, 3/8" x 1-1/2" x 2"
- (4) Flanged Locknuts, 9/16"-18
- (2) Spacer Blocks, 5493 (center attachment point for E350 Super after 1997)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the vehicle frame or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- Wiring harness is located inside the vehicle frame. Reposition before drilling.
- Ensure proper clearance for carbon canisters and wiring connectors during installation.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
