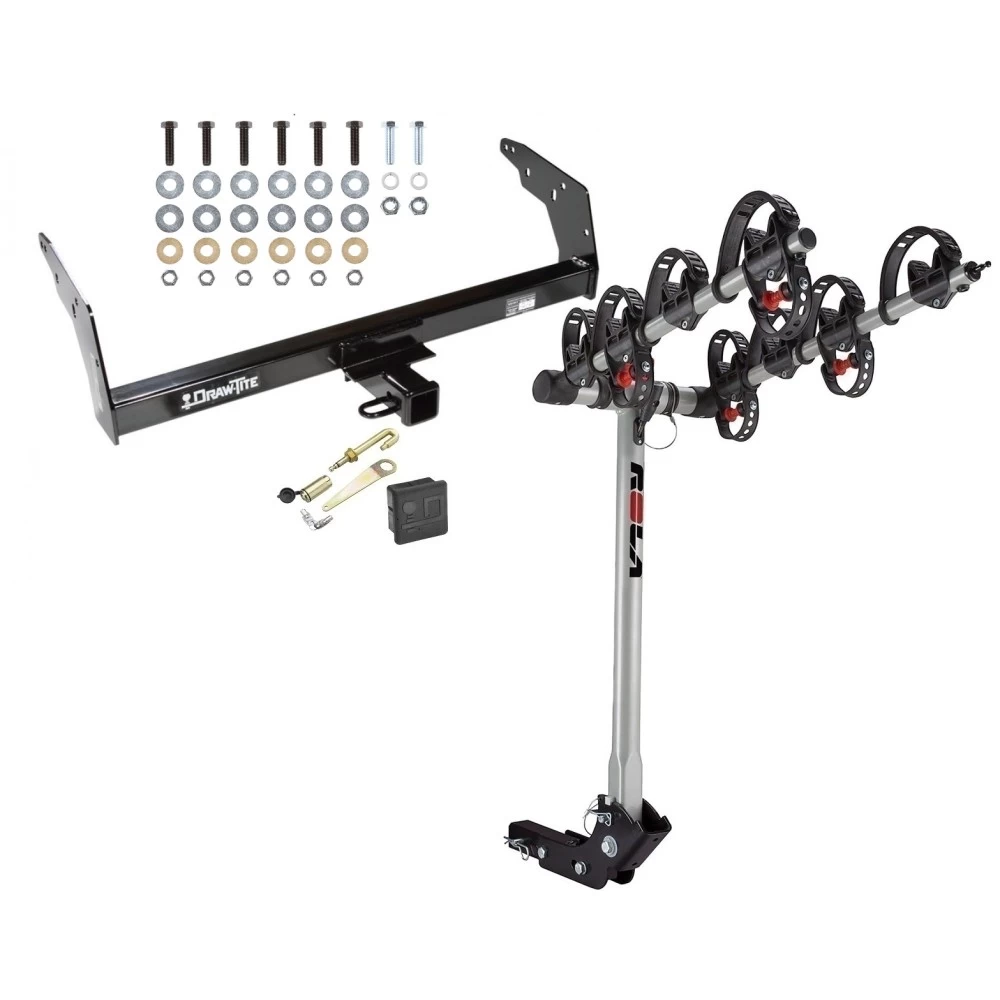

- Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help

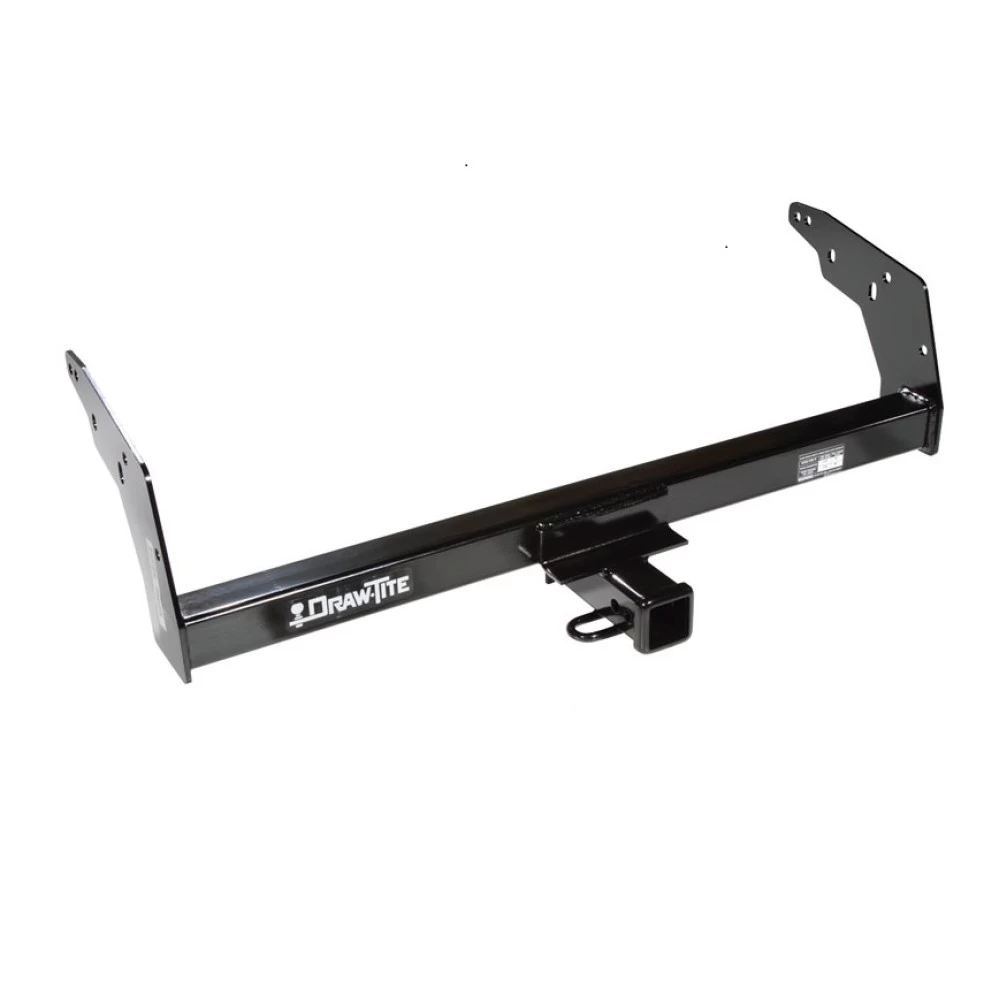

Trailer Tow Hitch For 96-04 Chevy S10 GMC Sonoma Isuzu Hombre 4 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Chevrolet S-10 Pickup, GMC Sonoma Pickup, and Isuzu Hombre (Including Sport Side Bed Models)
Part Numbers:
- 75085
- 87464
- 44062
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
Step-by-Step Instructions:
Sport Side Bed Models:
- Some spare tires may need to be lowered and repositioned slightly for hitch installation.
General Instructions:
- Remove Bumper Bracket Bolts:
- Remove bumper bracket bolts and return them to the vehicle owner.
- Position Hitch:
- Position the hitch on the frame and install fasteners as shown in the diagrams.
Step Bumper Models:
-
Pre-1994 Models:
- Remove bumper, leaving brackets attached to the frame. Disconnect bumper wiring before removing the bumper.
- For 1982–1993 models: Bumpers are attached to each bumper bracket by two horizontal bolts.
-
1994–1997 Models:
- Bumpers are attached to each bumper bracket by two vertical bolts. Remove bolts and set aside.
-
1998–2004 Models:
- Remove the plastic step tread from the top of the bumper. The bumper is attached to the frame by four bolts; remove them.
- Attach the bumper brackets from the hitch kit to the frame using provided fasteners.
- Mark spare tire area (if applicable) for clearance, ensuring a minimum distance of 3/4" from spare tire to the hitch.
-
Install Hitch:
- Install the hitch using the provided fasteners as per your vehicle configuration:
- Pre-1994 Models: Use M12 bolts, conical washers, and nuts as shown in Figure 1.
- 1994–1997 Models: Use fasteners shown in Figure 2 for bumper bracket configuration.
- 1998–2004 Models: Reinstall bumper brackets on the bumper, aligning with slots in the bumper.
- Install the hitch using the provided fasteners as per your vehicle configuration:
-
Reinstall Bumper:
- Reinstall the bumper, ensuring it is aligned and secure. Reconnect bumper wiring.
-
Tighten Fasteners:
- Tighten all fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.75 x 45mm CL10.9 Bolts
- (8) Conical Toothed Washers
- (8) Hex Nuts, M12
- (4) 1/2"-13 x 1-3/4" GR5 Bolts
- (4) Lock Washers
- (4) Hex Nuts, 1/2"-13
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Chevrolet S-10 Pickup, GMC Sonoma Pickup, and Isuzu Hombre (Including Sport Side Bed Models)
Part Numbers:
- 75085
- 87464
- 44062
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
Step-by-Step Instructions:
Sport Side Bed Models:
- Some spare tires may need to be lowered and repositioned slightly for hitch installation.
General Instructions:
- Remove Bumper Bracket Bolts:
- Remove bumper bracket bolts and return them to the vehicle owner.
- Position Hitch:
- Position the hitch on the frame and install fasteners as shown in the diagrams.
Step Bumper Models:
-
Pre-1994 Models:
- Remove bumper, leaving brackets attached to the frame. Disconnect bumper wiring before removing the bumper.
- For 1982–1993 models: Bumpers are attached to each bumper bracket by two horizontal bolts.
-
1994–1997 Models:
- Bumpers are attached to each bumper bracket by two vertical bolts. Remove bolts and set aside.
-
1998–2004 Models:
- Remove the plastic step tread from the top of the bumper. The bumper is attached to the frame by four bolts; remove them.
- Attach the bumper brackets from the hitch kit to the frame using provided fasteners.
- Mark spare tire area (if applicable) for clearance, ensuring a minimum distance of 3/4" from spare tire to the hitch.
-
Install Hitch:
- Install the hitch using the provided fasteners as per your vehicle configuration:
- Pre-1994 Models: Use M12 bolts, conical washers, and nuts as shown in Figure 1.
- 1994–1997 Models: Use fasteners shown in Figure 2 for bumper bracket configuration.
- 1998–2004 Models: Reinstall bumper brackets on the bumper, aligning with slots in the bumper.
- Install the hitch using the provided fasteners as per your vehicle configuration:
-
Reinstall Bumper:
- Reinstall the bumper, ensuring it is aligned and secure. Reconnect bumper wiring.
-
Tighten Fasteners:
- Tighten all fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.75 x 45mm CL10.9 Bolts
- (8) Conical Toothed Washers
- (8) M12 Hex Nuts
- (4) 1/2"-13 x 1-3/4" GR5 Bolts
- (4) Lock Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
