Trailer Tow Hitch For 98‑05 Mercedes‑Benz ML320 ML350 ML430 ML500 Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75087 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2002 Mercedes-Benz, ML320, All Styles
1999 - 2001 Mercedes-Benz, ML430, All Styles
2002 - 2005 Mercedes-Benz, ML500, All Styles
2003 - 2005 Mercedes-Benz, ML350, All Styles

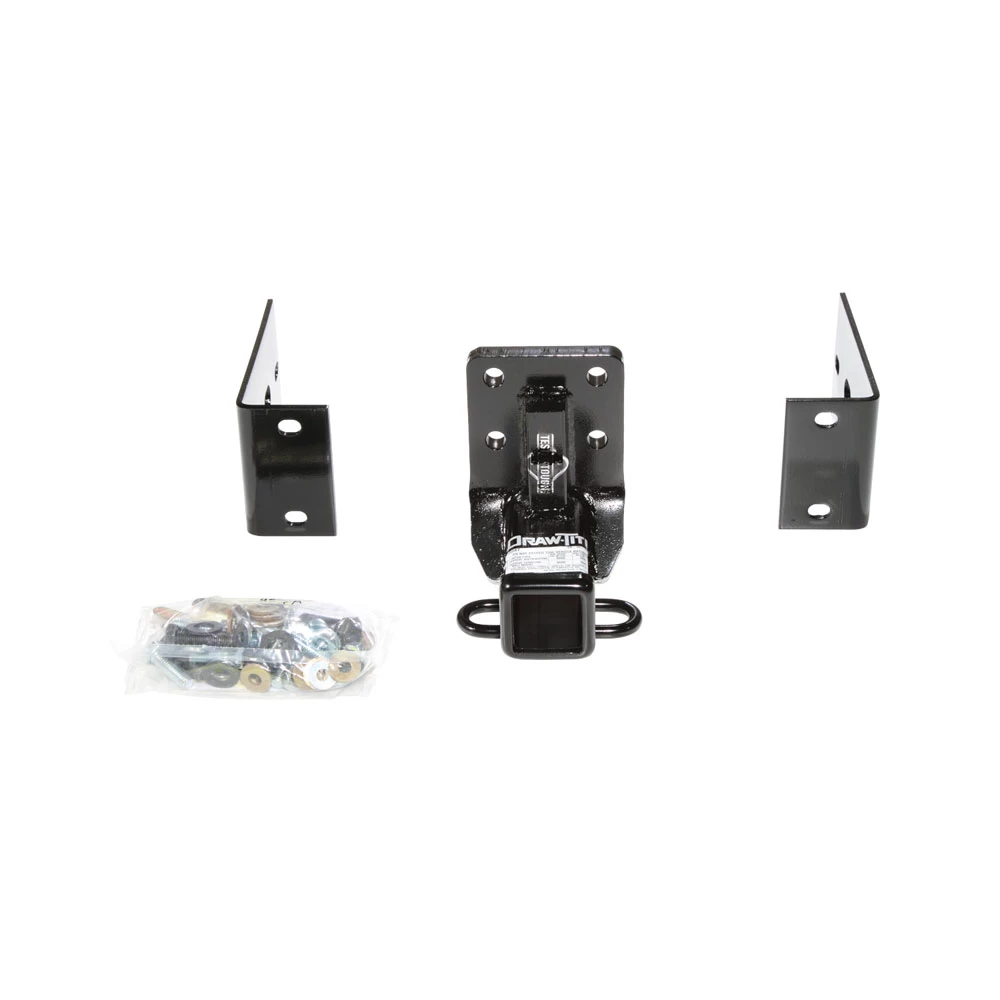

Trailer Hitch Specs:
| Part Number | 75087 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 1998 1999 2000 2001 2002 2003 2004 2005
$522 31 $837.38 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$837.38 $522 31
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $130.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75087 63153 63240

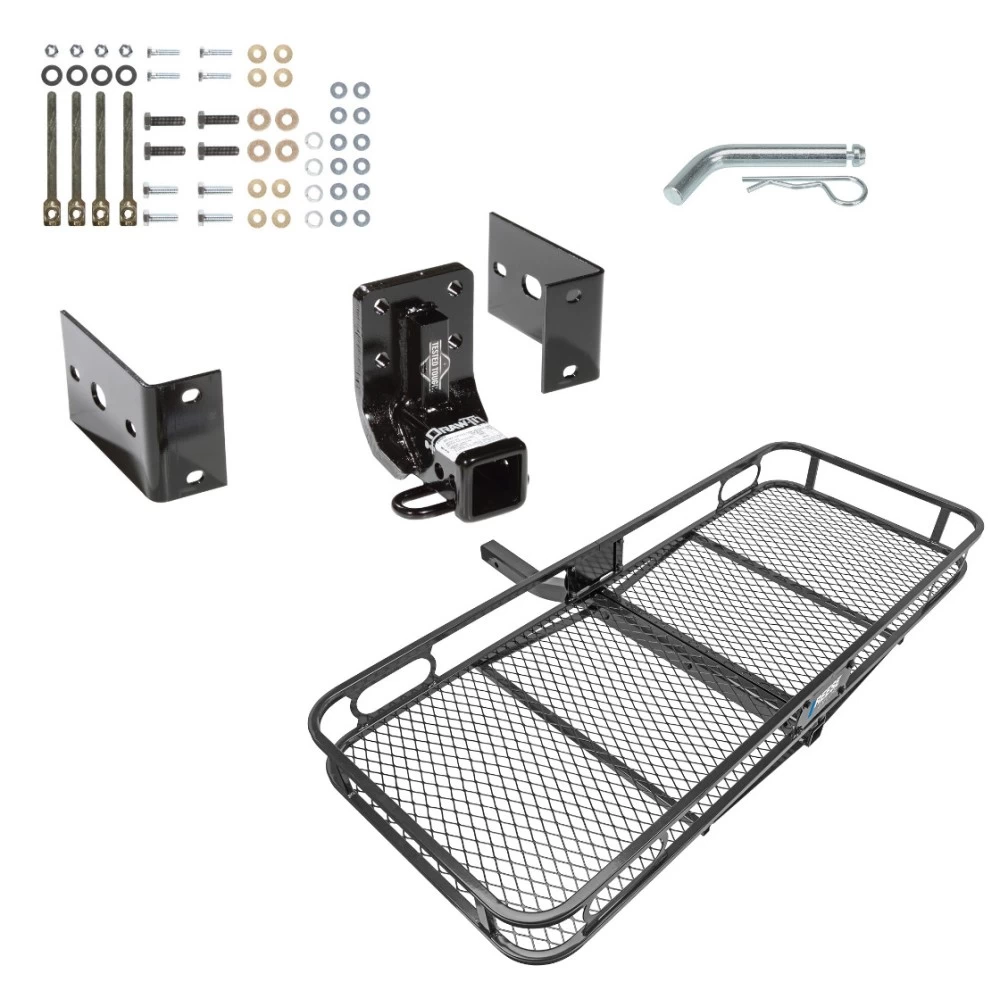

- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2002 Mercedes-Benz, ML320, All Styles
1999 - 2001 Mercedes-Benz, ML430, All Styles
2002 - 2005 Mercedes-Benz, ML500, All Styles
2003 - 2005 Mercedes-Benz, ML350, All Styles
Trailer Hitch Specs:
| Part Number | 75087 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 1998 1999 2000 2001 2002 2003 2004 2005
Get Expert Help
Trailer Tow Hitch For 98-05 Mercedes-Benz ML320 ML350 ML430 ML500 Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Mercedes ML320, ML350, ML430, and ML500
Part Numbers:
- 75087
- 87469
- 44720
Wiring Access Location:
- SUV3
Tools Required:
- Screwdriver (Standard)
- Wrenches: 10mm, 21mm, 9/16", 11/16", 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Rear Fascia:
- Remove 4 or 6 bolts from the rear fascia as shown in Figure 1 and carefully remove the fascia.
- Note: Some models have a cellular phone antenna and module attached to the fascia. Ensure fascia is supported when removed.
-
Remove Fascia Door:
- Detach the fascia door from the fascia.
-
Install Hitch and Reinforcement Brackets:
- Position the hitch and reinforcement brackets as shown in Figure 2.
- For 2002 and later models, trim the fascia as shown in Figure 3.
-
Reinstall Rear Fascia:
- Reattach the rear fascia using the bolts removed in Step 1.
-
Fascia Door Adjustment:
- Either return the fascia door to the vehicle owner or trim it to fit the hitch. Consult the vehicle owner before trimming.
-
Tighten Fasteners:
- Tighten all fasteners to the specified torque values:
- 3/8"-16 GR5 fasteners: 30 lb-ft (41 N·m)
- 1/2"-13 GR5 fasteners: 50 lb-ft (68 N·m)
- M14 x 1.50 CL10.9 fasteners: 117 lb-ft (159 N·m)
- Tighten all fasteners to the specified torque values:
Torque Specifications:
- 3/8"-16 GR5: 30 lb-ft (41 N·m)
- 1/2"-13 GR5: 50 lb-ft (68 N·m)
- M14 x 1.50 CL10.9: 117 lb-ft (159 N·m)

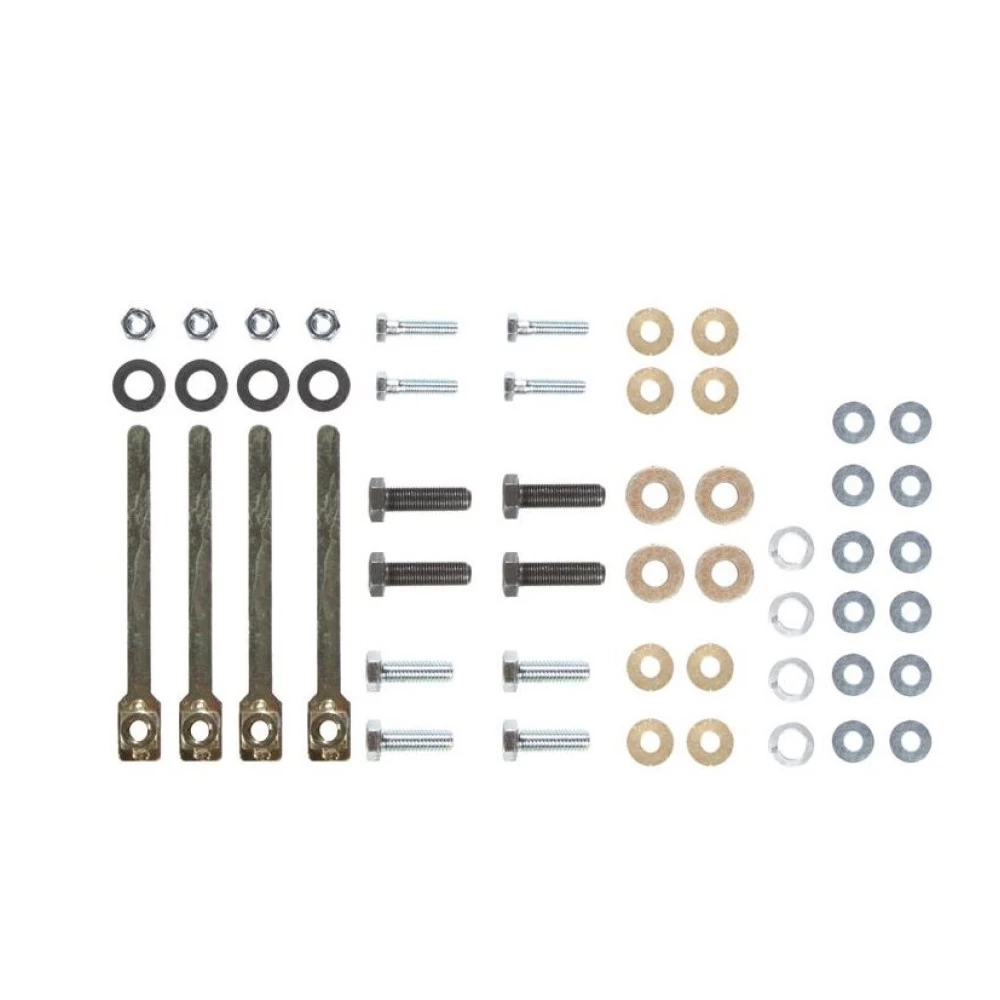

Hardware List:
- (4) Hex Bolts, M14 x 1.50 x 45mm CL10.9
- (12) Flat Washers, 5/16"
- (4) Lock Washers, 9/16"
- (4) Flat Washers (Hardened), 9/16"
- (4) Hex Bolts, 1/2"-13 x 1.50 GR5
- (4) Hex Bolts, 3/8"-16 x 1.50 GR5
- (4) Conical Toothed Washers, 1/2"
- (8) Conical Toothed Washers, 3/8"
- (4) Handle Nut Assemblies, 1/2"-13
- (4) Hex Nuts, 3/8"-16
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Mercedes ML320, ML350, ML430, and ML500
Part Numbers:
- 75087
- 87469
- 44720
Wiring Access Location:
- SUV3
Tools Required:
- Screwdriver (Standard)
- Wrenches: 10mm, 21mm, 9/16", 11/16", 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Rear Fascia:
- Remove 4 or 6 bolts from the rear fascia as shown in Figure 1 and carefully remove the fascia.
- Note: Some models have a cellular phone antenna and module attached to the fascia. Ensure fascia is supported when removed.
-
Remove Fascia Door:
- Detach the fascia door from the fascia.
-
Install Hitch and Reinforcement Brackets:
- Position the hitch and reinforcement brackets as shown in Figure 2.
- For 2002 and later models, trim the fascia as shown in Figure 3.
-
Reinstall Rear Fascia:
- Reattach the rear fascia using the bolts removed in Step 1.
-
Fascia Door Adjustment:
- Either return the fascia door to the vehicle owner or trim it to fit the hitch. Consult the vehicle owner before trimming.
-
Tighten Fasteners:
- Tighten all fasteners to the specified torque values:
- 3/8"-16 GR5 fasteners: 30 lb-ft (41 N·m)
- 1/2"-13 GR5 fasteners: 50 lb-ft (68 N·m)
- M14 x 1.50 CL10.9 fasteners: 117 lb-ft (159 N·m)
- Tighten all fasteners to the specified torque values:
Torque Specifications:
- 3/8"-16 GR5: 30 lb-ft (41 N·m)
- 1/2"-13 GR5: 50 lb-ft (68 N·m)
- M14 x 1.50 CL10.9: 117 lb-ft (159 N·m)
Hardware List:
- (4) M14 x 1.50 x 45mm CL10.9 Hex Bolts
- (12) 5/16" Flat Washers
- (4) 9/16" Lock Washers
- (4) 9/16" Hardened Flat Washers
- (4) 1/2"-13 x 1.50 GR5 Hex Bolts
- (4) 3/8"-16 x 1.50 GR5 Hex Bolts
- (4) 1/2" Conical Toothed Washers
- (8) 3/8" Conical Toothed Washers
- (4) 1/2"-13 Handle Nut Assemblies
- (4) 3/8"-16 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
