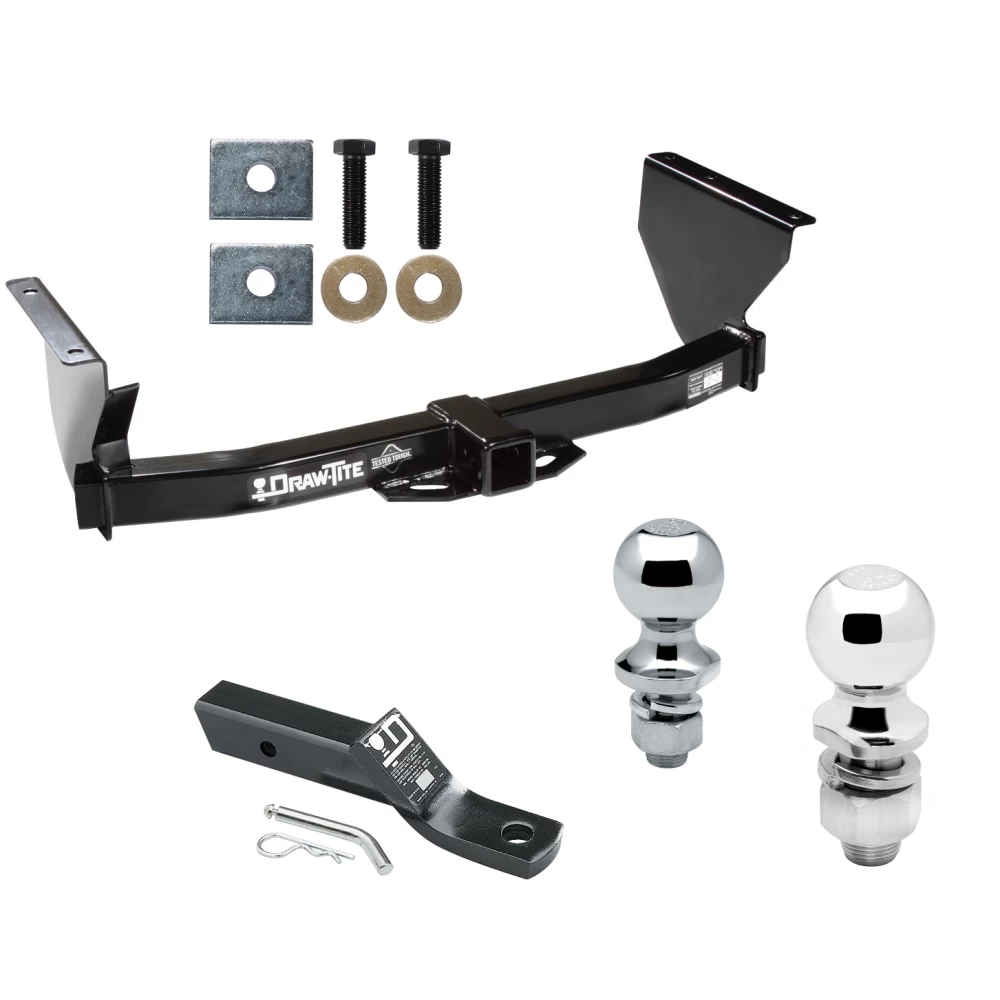

Trailer Tow Hitch For 99‑04 Jeep Grand Cherokee Receiver w/ 1‑7/8" and 2" Ball
Model: 75139 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2004 Jeep, Grand Cherokee, All Styles
Trailer Hitch Specs:
| Part Number | 75139 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Shank Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 1999 2000 2001 2002 2003 2004
$252 53 $392.82 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$392.82 $252 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $63.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75139 23 63845 63816
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2004 Jeep, Grand Cherokee, All Styles
Trailer Hitch Specs:
| Part Number | 75139 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Shank Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 1999 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch For 99-04 Jeep Grand Cherokee Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Jeep Grand Cherokee
Part Numbers:
- 75139
- 87601
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 18mm, 19mm (Torque wrench for all fasteners)
- No drill required.
Step-by-Step Instructions:
-
Remove Tow Hook Bracket:
- If present, remove the tow hook bracket.
-
Remove M12 Fasteners:
- Remove the M12 fasteners from the five rearmost vehicle frame weld nuts.
- The skid shield will remain in place.
-
Raise Hitch into Position:
- Install or re-install the fasteners as shown in the diagram.
- For vehicles equipped with reinforcement bars, use the existing M12 fasteners.
-
Tighten Fasteners:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft.
Hardware List (for vehicles without reinforcement bars):
- M12 x 1.75 x 45mm CL10.9 bolts
- Lock washers
- Flat washers (hardened)
- 3/16" x 1-1/2" x 2" blocks (Part #: 4833-001)
Optional Components:
- Locking stabilizing pin (Order J-Pin separately)
Safety Notes:
- Regularly check that all fasteners and hitch components are properly tightened.
- If the hitch is removed, plug any holes in the trunk or body panels to prevent water and exhaust fumes from entering the vehicle.
- Replace any hitch or ball that has been damaged.
- Observe appropriate safety precautions and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type:
- Weight Distributing: 7,500 lbs. Max Gross Trailer Weight, 750 lbs. Max Tongue Weight
- Weight Carrying (Ball Mount): 5,000 lbs. Max Gross Trailer Weight, 500 lbs. Max Tongue Weight
- This product complies with safety standards per SAE J684 and New York V.E.S.C. Regulation V-5.
Note: Ensure all fasteners are installed and tightened correctly to ensure a secure hitch installation.
Installation Instructions for Jeep Grand Cherokee
Part Numbers:
- 75139
- 87601
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 18mm, 19mm (Torque wrench for all fasteners)
- No drill required.
Step-by-Step Instructions:
-
Remove Tow Hook Bracket:
- If present, remove the tow hook bracket.
-
Remove M12 Fasteners:
- Remove the M12 fasteners from the five rearmost vehicle frame weld nuts.
- The skid shield will remain in place.
-
Raise Hitch into Position:
- Install or re-install the fasteners as shown in the diagram.
- For vehicles equipped with reinforcement bars, use the existing M12 fasteners.
-
Tighten Fasteners:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft.
Hardware List (for vehicles without reinforcement bars):
- M12 x 1.75 x 45mm CL10.9 bolts
- Lock washers
- Flat washers (hardened)
- 3/16" x 1-1/2" x 2" blocks (Part #: 4833-001)
Optional Components:
- Locking stabilizing pin (Order J-Pin separately)
Safety Notes:
- Regularly check that all fasteners and hitch components are properly tightened.
- If the hitch is removed, plug any holes in the trunk or body panels to prevent water and exhaust fumes from entering the vehicle.
- Replace any hitch or ball that has been damaged.
- Observe appropriate safety precautions and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type:
- Weight Distributing: 7,500 lbs. Max Gross Trailer Weight, 750 lbs. Max Tongue Weight
- Weight Carrying (Ball Mount): 5,000 lbs. Max Gross Trailer Weight, 500 lbs. Max Tongue Weight
- This product complies with safety standards per SAE J684 and New York V.E.S.C. Regulation V-5.
Note: Ensure all fasteners are installed and tightened correctly to ensure a secure hitch installation.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
