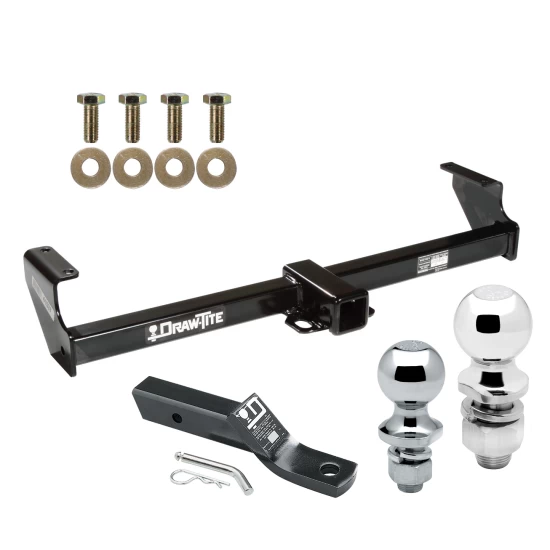

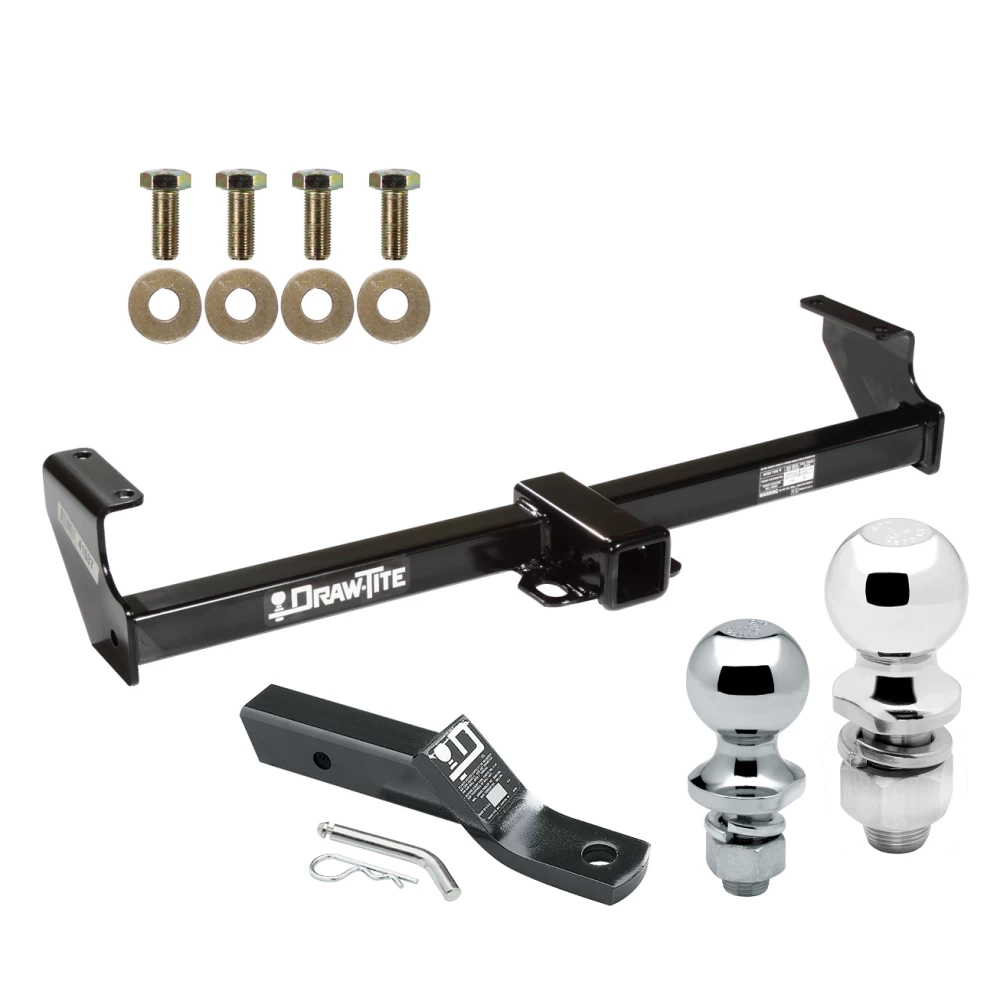

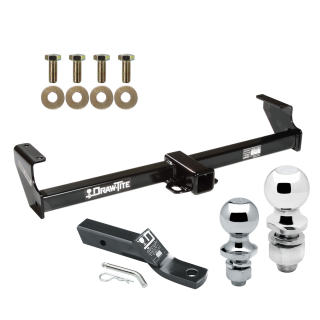

Trailer Tow Hitch For 99‑05 Suzuki Grand Vitara Chevy Tracker 02‑06 XL‑7 Receiver w/ 1‑7/8" and 2" Ball
Model: 41537 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2005 Suzuki, Grand Vitara, All Styles
1999 - 2004 Suzuki, Vitara, All Styles
2002 - 2006 Suzuki, XL-7, All Styles
Trailer Hitch Specs:
| Part Number | 41537 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 1999 2000 2001 2002 2003 2004 2005 2006
$238 35 $370.66 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$370.66 $238 35
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41537 23 63845 63816
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2005 Suzuki, Grand Vitara, All Styles
1999 - 2004 Suzuki, Vitara, All Styles
2002 - 2006 Suzuki, XL-7, All Styles
Trailer Hitch Specs:
| Part Number | 41537 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 1999 2000 2001 2002 2003 2004 2005 2006
Get Expert Help
Trailer Tow Hitch For 99-05 Suzuki Grand Vitara Chevy Tracker 02-06 XL-7 Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Suzuki Grand Vitara, Suzuki Vitara (includes XL-7), and Chevrolet Tracker (2- & 4-Door)
Part Numbers:
- 41537
- 33038
Wiring Access Location:
- SUV3
Tools Required:
- Torque Wrench
- Wrenches: 14mm, 18mm
Step-by-Step Instructions:
-
Remove Tie Down Bracket:
- Remove the tie-down bracket and bolts on the driver’s side.
- Return the bracket and bolts to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position, aligning it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using four (4) M12 x 1.25 x 30mm CL8.8 bolts with conical toothed washers (teeth side toward the hitch).
- Tighten all M12 CL8.8 fasteners to 67 lb-ft (91 N*m).
Torque Specifications:
- M12 x 1.25 CL8.8 bolts: 67 lb-ft (91 N*m)

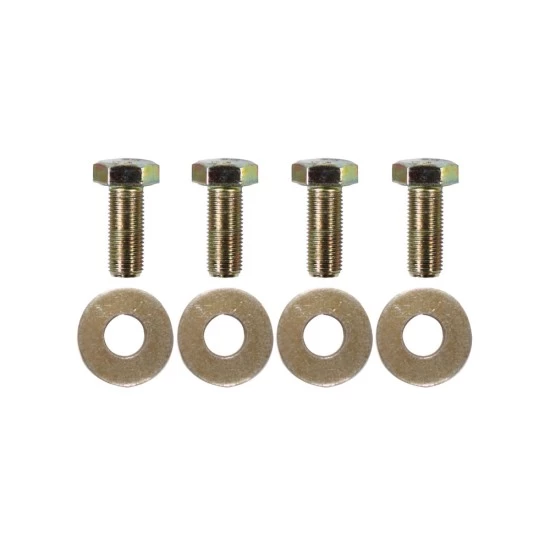

Hardware List:
- (4) Hex Bolts, M12 x 1.25 x 30mm CL8.8
- (4) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut ac
Installation Instructions for Pickup Trucks and SUVs
Part Numbers:
- 41537
- 33038
Wiring Access Location:
- SUV3
Tools Required:
- Torque Wrench
- Wrenches: 14mm, 18mm
Step-by-Step Instructions:
-
Remove Tie Down Bracket:
- Remove the tie-down bracket and bolts on the driver’s side.
- Return the bracket and bolts to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position, aligning it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using four (4) M12 x 1.25 x 30mm CL8.8 bolts with conical toothed washers (teeth side toward the hitch).
- Tighten all M12 CL8.8 fasteners to 67 lb-ft (91 N*m).
Torque Specifications:
- M12 x 1.25 CL8.8 bolts: 67 lb-ft (91 N*m)
Hardware List:
- (4) Hex Bolts, M12 x 1.25 x 30mm CL8.8
- (4) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb (2,722 kg)
- Max Tongue Weight: 600 lb (272 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,535 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
