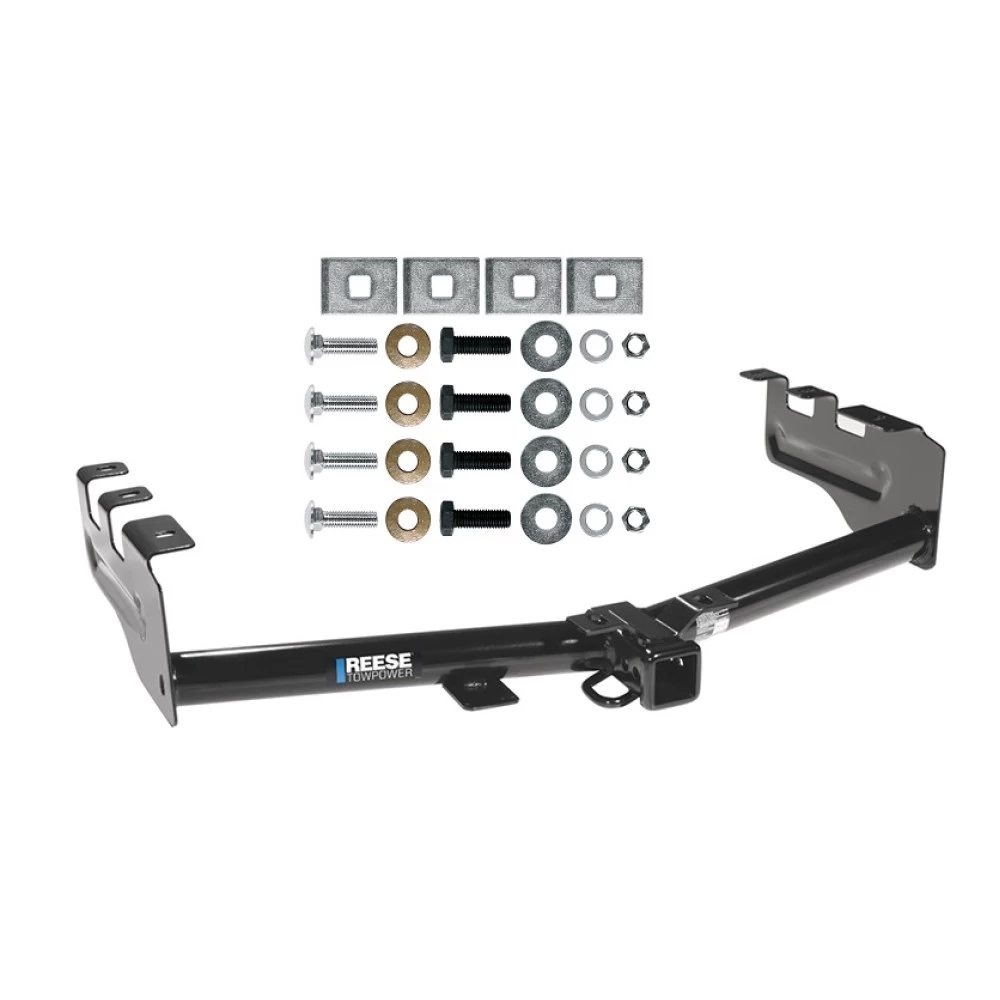

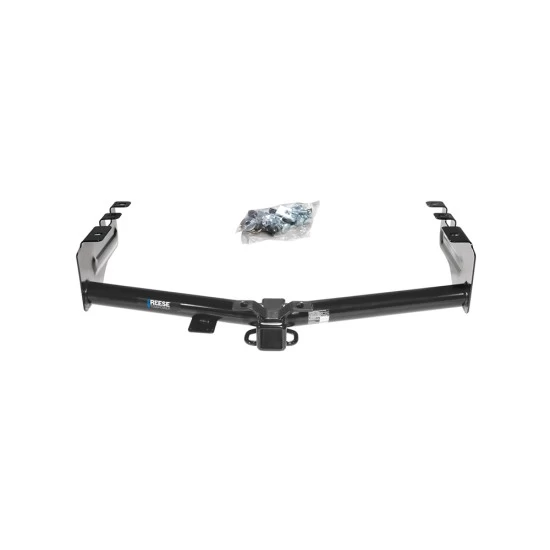

Trailer Tow Hitch For 99‑13 Chevrolet Silverado GMC Sierra 1500 99‑04 2500 Class 4 2" Receiver Reese
Model: 445631999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, All Styles
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2007 - 2013 GMC, Sierra 1500, All Styles
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500, All Styles
Trailer Hitch Specs:
| Part Number | 44563 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,500 lbs |
| Max Tongue Weight | 900/1,050 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
$209 78 $327.59 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$327.59 $209 78
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44563
- UPC: 016118061178
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, All Styles
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2007 - 2013 GMC, Sierra 1500, All Styles
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500, All Styles
Trailer Hitch Specs:
| Part Number | 44563 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,500 lbs |
| Max Tongue Weight | 900/1,050 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
Get Expert Help
Trailer Tow Hitch For 99-13 Chevrolet Silverado GMC Sierra 1500 99-04 2500 Class 4 2" Receiver Reese Install Notes
Installation Instructions for Chevrolet Silverado 1500 and GMC Sierra 1500
(Requires OEM Bumper)
Part Numbers:
- 87430
- 75521
- 44563
Tools Required:
- Wrenches: 3/4", 21mm, 22mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position the Hitch:
- Lift the hitch receiver into position, aligning the rearmost slots on the hitch with the existing weldnuts in the vehicle frame.
-
Install New M14 Bolts:
- Install new M14 bolts through the hitch into the weldnuts in the vehicle frame and step bumper.
-
Install Remaining Fasteners:
- Secure the hitch using the provided carriage bolts, flat washers, lock washers, and hex nuts as shown in the diagram.
-
Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
- Tighten M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Use a torque wrench to tighten all fasteners to the following specifications:

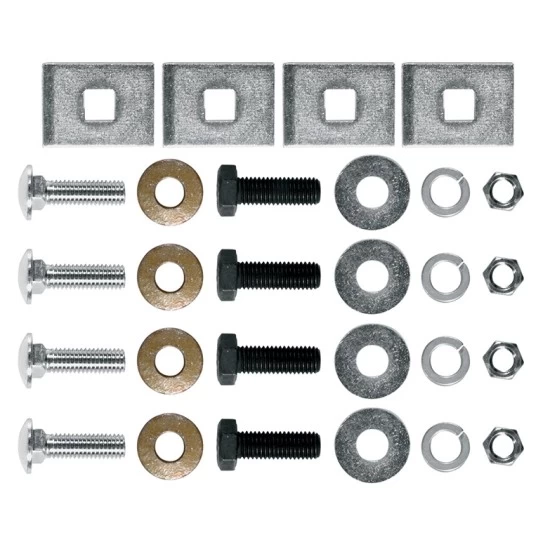

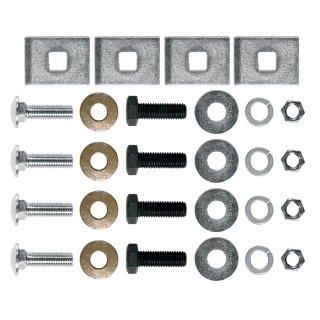

Hardware List:
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 9/16" Lock Washers
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 9/16" Flat Washers
- (4) 1/2" Conical Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,500 lbs (4,767 kg), Max Tongue Weight 1,050 lbs (477 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
(Requires OEM Bumper)
Part Numbers:
- 87430
- 75521
- 44563
Tools Required:
- Wrenches: 3/4", 21mm, 22mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position the Hitch:
- Lift the hitch receiver into position, aligning the rearmost slots on the hitch with the existing weldnuts in the vehicle frame.
-
Install New M14 Bolts:
- Install new M14 bolts through the hitch into the weldnuts in the vehicle frame and step bumper.
-
Install Remaining Fasteners:
- Secure the hitch using the provided carriage bolts, flat washers, lock washers, and hex nuts as shown in the diagram.
-
Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
- Tighten M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Use a torque wrench to tighten all fasteners to the following specifications:
Hardware List:
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 9/16" Lock Washers
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 9/16" Flat Washers
- (4) 1/2" Conical Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,500 lbs (4,767 kg), Max Tongue Weight 1,050 lbs (477 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
