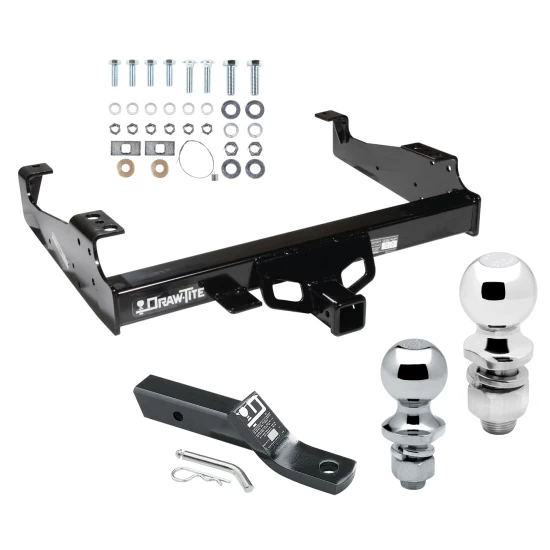

Trailer Tow Hitch For 99‑23 F‑450 F‑550 99‑00 F‑350 Super Duty Cab and Chassis Receiver w/ 1‑7/8" and 2" Ball
Model: 41547 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2000 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames
Trailer Hitch Specs:
| Part Number | 41547 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,500 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 750/1,200lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$242 72 $377.52 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$377.52 $242 72
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41547 23 63845 63816
- Includes: Class 4 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2000 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames
Trailer Hitch Specs:
| Part Number | 41547 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,500 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 750/1,200lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 99-23 F-450 F-550 99-00 F-350 Super Duty Cab and Chassis Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Ford F-350, F-450, & F-550 with 34" Frame
Part Numbers:
- 41547
Wiring Access Location:
- Not specified
Tools Required:
- 3/4” Socket
- 15/16” Socket
- 15/16” Wrench
- 5/8” Drill
- 2 Clamps
- Torque Wrench
Step-by-Step Instructions:
-
Position Hitch:
- Hold the hitch up under the frame.
- Position the holes in the brackets over the rivet heads at the rear of the frame.
- Clamp the hitch in place to prevent movement.
-
Install Carriage Bolts:
- Insert 1/2” carriage bolts with bolt plates through the holes in the frame beside the spring hangers.
- Use 1/2” serrated washers, 1/2” lock washers, and 1/2” nuts to secure the bolts.
- If access is limited due to gas tank placement, screw the bolt onto the pull wire and guide it through a more open area in the frame to the hole.
-
Drill Rear Holes:
- Using the rear holes in the bracket as a guide, drill 5/8” holes into the bottom of the frame.
- Install 5/8” bolts with 5/8” flat washers through the drilled holes and secure them with 5/8” flat washers, 5/8” lock washers, and 5/8” nuts.
-
Tighten Fasteners:
- Torque 1/2” nuts to 70 lb-ft.
- Torque 5/8” nuts to 115 lb-ft.
Torque Specifications:
- 1/2” nuts: 70 lb-ft
- 5/8” nuts: 115 lb-ft
Hardware List:
- (4) 1/2” Carriage Bolts
- (4) Bolt Plates
- (4) 1/2” Serrated Washers
- (4) 1/2” Lock Washers
- (4) 1/2” Nuts
- (2) 5/8” Hex Bolts
- (2) 5/8” Flat Washers
- (2) 5/8” Lock Washers
- (2) 5/8” Nuts
- (1) 1/2” Pull Wire (Part# 55392)
Safety Notes:
- Do not lubricate threads, as bolt failure may occur due to over-tightening.
- Do not drill or weld the hitch for modifications.
- Frequently check the hitch to ensure all fasteners are securely tightened.
- If the hitch is removed, plug all holes in the vehicle’s body panels to prevent water or exhaust fumes from entering.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 12,000 lb
- Max Tongue Weight: 1,200 lb
Additional Notes:
- Complies with VESC Regulation V-5 and New York State safety standards.
- For warranty issues, refer to Towing Products at the provided address.
Installation Instructions for Pickup Trucks with 34" Frame
Part Numbers:
- 41547
Wiring Access Location:
- Not specified
Tools Required:
- 3/4” Socket
- 15/16” Socket
- 15/16” Wrench
- 5/8” Drill
- 2 Clamps
- Torque Wrench
Step-by-Step Instructions:
-
Position Hitch:
- Hold the hitch up under the frame.
- Position the holes in the brackets over the rivet heads at the rear of the frame.
- Clamp the hitch in place to prevent movement.
-
Install Carriage Bolts:
- Insert 1/2” carriage bolts with bolt plates through the holes in the frame beside the spring hangers.
- Use 1/2” serrated washers, 1/2” lock washers, and 1/2” nuts to secure the bolts.
- If access is limited due to gas tank placement, screw the bolt onto the pull wire and guide it through a more open area in the frame to the hole.
-
Drill Rear Holes:
- Using the rear holes in the bracket as a guide, drill 5/8” holes into the bottom of the frame.
- Install 5/8” bolts with 5/8” flat washers through the drilled holes and secure them with 5/8” flat washers, 5/8” lock washers, and 5/8” nuts.
-
Tighten Fasteners:
- Torque 1/2” nuts to 70 lb-ft.
- Torque 5/8” nuts to 115 lb-ft.
Torque Specifications:
- 1/2” nuts: 70 lb-ft
- 5/8” nuts: 115 lb-ft
Hardware List:
- (4) 1/2” Carriage Bolts
- (4) Bolt Plates
- (4) 1/2” Serrated Washers
- (4) 1/2” Lock Washers
- (4) 1/2” Nuts
- (2) 5/8” Hex Bolts
- (2) 5/8” Flat Washers
- (2) 5/8” Lock Washers
- (2) 5/8” Nuts
- (1) 1/2” Pull Wire (Part# 55392)
Safety Notes:
- Do not lubricate threads, as bolt failure may occur due to over-tightening.
- Do not drill or weld the hitch for modifications.
- Frequently check the hitch to ensure all fasteners are securely tightened.
- If the hitch is removed, plug all holes in the vehicle’s body panels to prevent water or exhaust fumes from entering.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 12,000 lb
- Max Tongue Weight: 1,200 lb
Additional Notes:
- Complies with VESC Regulation V-5 and New York State safety standards.
- For warranty issues, refer to the manufacturer or their designated warranty provider.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
