Product Details
- Brand: Draw-Tite
- Model: HWKIT3(76268F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 19-24 Acura RDX Class 3 2" Receiver Install Notes
Installation Instructions for Trailer Hitch #76268
Part Numbers:
- 76268
- 84268
- CQT76268
Applications:
- Make and Models: Acura RDX
- Years: For the most accurate application information, consult the product manual or the manufacturer's website.
Wiring Access Location:
- Not Applicable
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19 mm
- 6" Socket Extension
- Exhaust Removal Pliers
- Pry Bar
Step-by-Step Instructions:
1. Lower the Spare Tire:
- Locate the spare tire lowering mechanism and tools (refer to the vehicle owner’s manual).
- Carefully lower the spare tire and set it aside.
2. Lower the Exhaust:
- Use exhaust removal pliers or a pry bar to remove the rubber exhaust hangers in front of and behind the muffler.
- Note: Use a support or jack stand to hold the exhaust in place to prevent damage.
3. Install the Hitch:
- Inspect the weldnuts in the vehicle frame for debris or rust. Clean as necessary.
- Raise the hitch into position, aligning the attachment holes with the weldnuts in the frame rails.
- Secure the hitch using the provided M12 bolts and conical washers (ensure the teeth of the washers face the hitch).
4. Torque the Fasteners:
- Using a torque wrench, tighten all M12 bolts to 42 lb-ft (57 N·m).
5. Reinstall the Exhaust and Spare Tire:
- Reattach the exhaust to its rubber hangers.
- Raise and secure the spare tire back into position.

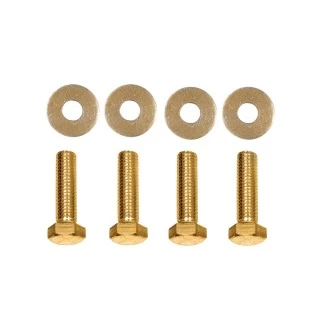

Hardware List:
- 4 × Hex Bolts (M12 × 1.25 × 40 mm, CL10.9)
- 4 × Conical Washers (1/2", Part #01292008)
Safety Notes:
- Always wear safety glasses during installation.
- Inspect the hitch regularly to ensure all fasteners and hitch ball connections are secure.
- If the hitch is removed, plug any holes in the vehicle's body to prevent water or exhaust intrusion.
- Replace damaged components, such as the hitch or ball, immediately.
- Never use a torch to cut access or mounting holes.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
- Max Tongue Weight (Weight Carrying): 350 lbs (159 kg)
- Weight Distribution: Not Applicable
- Installation Time: Approximately 30 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For additional guidance or technical assistance, please visit www.trailerjacks.com or contact our support team at 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including detailed diagrams and additional guidance, please download the full installation PDF.
