Trailer Tow Hitch Hardware Fastener Kit For 19‑24 Toyota RAV4 22‑25 Lexus NX250 NX350 22‑24 NX350h NX450h+ Class 2 1‑1/4" Receiver
Model: HWKIT2(36675F)2022 – 2025 Lexus, NX250, All Styles
2022 – 2025 Lexus, NX350, Except F Sport
2022 – 2024 Lexus, NX350h, All Styles
2022 – 2024 Lexus, NX450h+, Except F Sport
2019 - 2024 Toyota, RAV4, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36675 06192 36675
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 25 2019 2020 2021 2022 2023 2024 2025
$46 53 $59.81 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$59.81 $46 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT2(36675F)
- Includes: Hardware Kit for Class 2 Trailer Tow Hitch
Compatibility Chart
Description
2022 – 2025 Lexus, NX250, All Styles
2022 – 2025 Lexus, NX350, Except F Sport
2022 – 2024 Lexus, NX350h, All Styles
2022 – 2024 Lexus, NX450h+, Except F Sport
2019 - 2024 Toyota, RAV4, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36675 06192 36675
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 25 2019 2020 2021 2022 2023 2024 2025
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 19-24 Toyota RAV4 22-25 Lexus NX250 NX350 22-24 NX350h NX450h+ Class 2 1-1/4" Receiver Install Notes
Installation Instructions for Toyota RAV4 (2019-Current) and Lexus NX250-450h (2021-Current)
Part Numbers:
- 36675
- 06192
- CQT36675
Wiring Access Location:
- PC3
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 6" Socket Extension
- Exhaust Removal Pliers
- Crowfoot Socket (19mm)
- Sockets: 19mm
- M12 x 1.25 Tap
- Bungee Cord (optional)
Installation Time:
- Estimated: 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Clean Weldnuts:
- Remove the sticker covering the two (2) weldnuts on each frame rail.
- Use a M12 x 1.25 tap to clean the weldnuts.
-
Lower Exhaust Muffler:
- Using exhaust removal pliers, remove the rubber hangers at three (3) locations.
- Ensure the exhaust is supported before removing the hangers.
-
Install Hitch:
- Raise the hitch into position and slide the brackets above the exhaust pipe.
- Align the bracket holes with the frame rail weldnuts.
- Loosely install the M12 bolts and conical washers (teeth side facing the hitch).
- Use a 19mm crowfoot socket to secure the M12 bolts on the passenger side due to narrow space around the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N*m).
-
Reinstall Exhaust:
- Reattach the rubber hangers and ensure the exhaust is securely supported.
Torque Specifications:
- M12 x 1.25 bolts: 76 lb-ft (103 N*m)

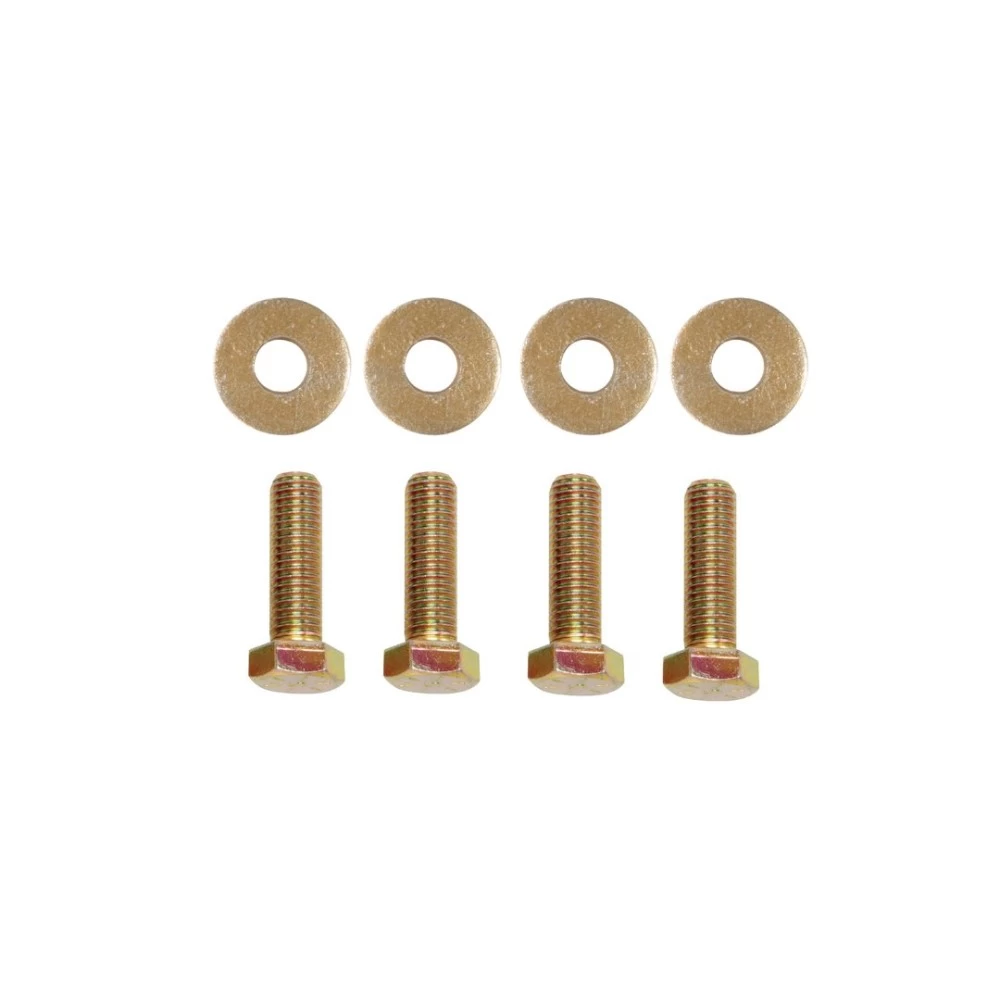

Hardware List:
- (4) Hex Bolts, M12 x 1.25 x 30mm CL8.8
- (4) Conical Washers, 1/2" (Part# 01292008)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
Additional Notes:
- Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
- Fastener Kit: 36675F.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Vehicles (Excluding Quad Exhaust Models)
Part Numbers:
- 36675
- 06192
- CQT36675
Wiring Access Location:
- PC3
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 6" Socket Extension
- Exhaust Removal Pliers
- Crowfoot Socket (19mm)
- Sockets: 19mm
- M12 x 1.25 Tap
- Bungee Cord (optional)
Installation Time:
- Estimated: 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Clean Weldnuts:
- Remove the sticker covering the two (2) weldnuts on each frame rail.
- Use a M12 x 1.25 tap to clean the weldnuts.
-
Lower Exhaust Muffler:
- Using exhaust removal pliers, remove the rubber hangers at three (3) locations.
- Ensure the exhaust is supported before removing the hangers.
-
Install Hitch:
- Raise the hitch into position and slide the brackets above the exhaust pipe.
- Align the bracket holes with the frame rail weldnuts.
- Loosely install the M12 bolts and conical washers (teeth side facing the hitch).
- Use a 19mm crowfoot socket to secure the M12 bolts on the passenger side due to narrow space around the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N*m).
-
Reinstall Exhaust:
- Reattach the rubber hangers and ensure the exhaust is securely supported.
Torque Specifications:
- M12 x 1.25 bolts: 76 lb-ft (103 N*m)
Hardware List:
- (4) Hex Bolts, M12 x 1.25 x 30mm CL8.8
- (4) Conical Washers, 1/2" (Part# 01292008)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
Additional Notes:
- Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
- Fastener Kit: 36675F.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
