Trailer Tow Hitch Hardware Fastener Kit For 20‑24 Jeep Gladiator Excluding Rubicon 2" Receiver
Model: HWKIT3(76310F)2020 – 2024 Jeep, Gladiator, Excluding Rubicon
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76310 84310 76310
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(76310F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
2020 – 2024 Jeep, Gladiator, Excluding Rubicon
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76310 84310 76310
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 20-24 Jeep Gladiator Excluding Rubicon 2" Receiver Install Notes
Installation Instructions for 2020-Current Jeep Gladiator
Part Numbers:
- 76310
- 84310
- CQT76310
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 21 mm Socket
- 3/4-inch Socket
- 6-inch Socket Extension
Step-by-Step Instructions:
-
Remove Factory Fasteners:
- Locate the factory M14 fasteners that secure the rear crossmember to the underside of the frame and remove them.
-
Install Fasteners:
- Insert the coiled end of the supplied pull wire into the slot in the frame and out through the access hole in the frame.
- Thread the coiled end of the pull wire through the hole in the supplied 1” x 3” spacer block and onto the carriage bolt.
- Pull the fasteners through the frame and leave the pull wire attached.
- Repeat this process on the other frame rail.
-
Install Spacer:
- Feed the pull wire through the 3/16-inch thick spacer.
- Ensure that carriage bolts are not pushed into the frame.
-
Install Hitch:
- Raise the hitch into position, aligning the hitch attachment holes with the rearmost weldnuts in the frame rail.
- Ensure the hitch fits between the rear crossmember brackets.
- Feed pull wires through the attachment holes in the hitch brackets.
- Reinstall and hand-tighten the factory M14 fasteners.
Note: Use a second person or a jack to steady the hitch while lifting it into position and holding it until all bolts are installed.
-
Install Nut and Washer:
- Use the provided conical washers to hold the carriage bolts in place.
- Remove the pull wires and attach the hex nuts. Hand-tighten on both sides.
-
Torque Fasteners:
- Tighten all M14 fasteners to 115 lb-ft (156 Nm).
- Tighten all ½-inch fasteners to 75 lb-ft (102 Nm).

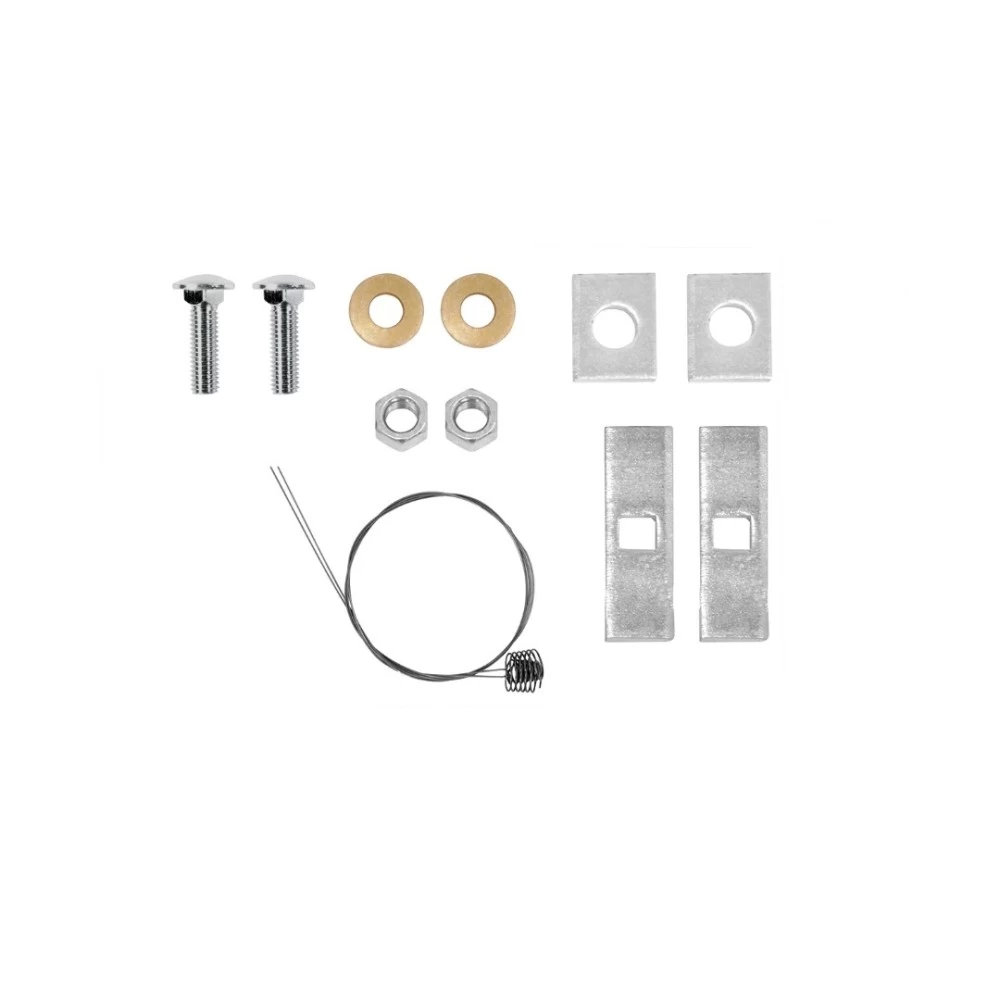

Hardware List:
- (2) Carriage Bolts ½”-13 x 1.75” Gr5
- (2) Spacer Blocks (1” x 3” x ¼”) PN: 3022
- (2) Pull Wires ½” PN: 5482
- (2) Spacer Blocks (2” x 1.5” x 3/16”) PN: 04833001
- (2) Conical Washers ½” PN: 01292008
- (2) Hex Nuts ½” Gr5
Safety Notes:
- Always wear safety glasses when installing the hitch.
- Apply the proper torque to keep the hitch secure to the vehicle.
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- Replace a damaged hitch or ball.
- Do not cut access or attachment holes with a torch.
- Observe all safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 7,500 lbs (3,402 kg) trailer weight, 1,125 lbs (510 kg) tongue weight.
- Weight Distributing Capacity: 8,000 lbs (3,629 kg) trailer weight, 1,200 lbs (544 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Installation Instructions for Vehicle Models (2020-Present)
Part Numbers:
- 76310
- 84310
- CQT76310
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 21 mm Socket
- 3/4-inch Socket
- 6-inch Socket Extension
Step-by-Step Instructions:
-
Remove Factory Fasteners:
- Locate the factory M14 fasteners that secure the rear crossmember to the underside of the frame and remove them.
-
Install Fasteners:
- Insert the coiled end of the supplied pull wire into the slot in the frame and out through the access hole in the frame.
- Thread the coiled end of the pull wire through the hole in the supplied 1” x 3” spacer block and onto the carriage bolt.
- Pull the fasteners through the frame and leave the pull wire attached.
- Repeat this process on the other frame rail.
-
Install Spacer:
- Feed the pull wire through the 3/16-inch thick spacer.
- Ensure that carriage bolts are not pushed into the frame.
-
Install Hitch:
- Raise the hitch into position, aligning the hitch attachment holes with the rearmost weldnuts in the frame rail.
- Ensure the hitch fits between the rear crossmember brackets.
- Feed pull wires through the attachment holes in the hitch brackets.
- Reinstall and hand-tighten the factory M14 fasteners.
Note: Use a second person or a jack to steady the hitch while lifting it into position and holding it until all bolts are installed.
-
Install Nut and Washer:
- Use the provided conical washers to hold the carriage bolts in place.
- Remove the pull wires and attach the hex nuts. Hand-tighten on both sides.
-
Torque Fasteners:
- Tighten all M14 fasteners to 115 lb-ft (156 Nm).
- Tighten all ½-inch fasteners to 75 lb-ft (102 Nm).
Hardware List:
- (2) Carriage Bolts ½”-13 x 1.75” Gr5
- (2) Spacer Blocks (1” x 3” x ¼”) PN: 3022
- (2) Pull Wires ½” PN: 5482
- (2) Spacer Blocks (2” x 1.5” x 3/16”) PN: 04833001
- (2) Conical Washers ½” PN: 01292008
- (2) Hex Nuts ½” Gr5
Safety Notes:
- Always wear safety glasses when installing the hitch.
- Apply the proper torque to keep the hitch secure to the vehicle.
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- Replace a damaged hitch or ball.
- Do not cut access or attachment holes with a torch.
- Observe all safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 7,500 lbs (3,402 kg) trailer weight, 1,125 lbs (510 kg) tongue weight.
- Weight Distributing Capacity: 8,000 lbs (3,629 kg) trailer weight, 1,200 lbs (544 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
