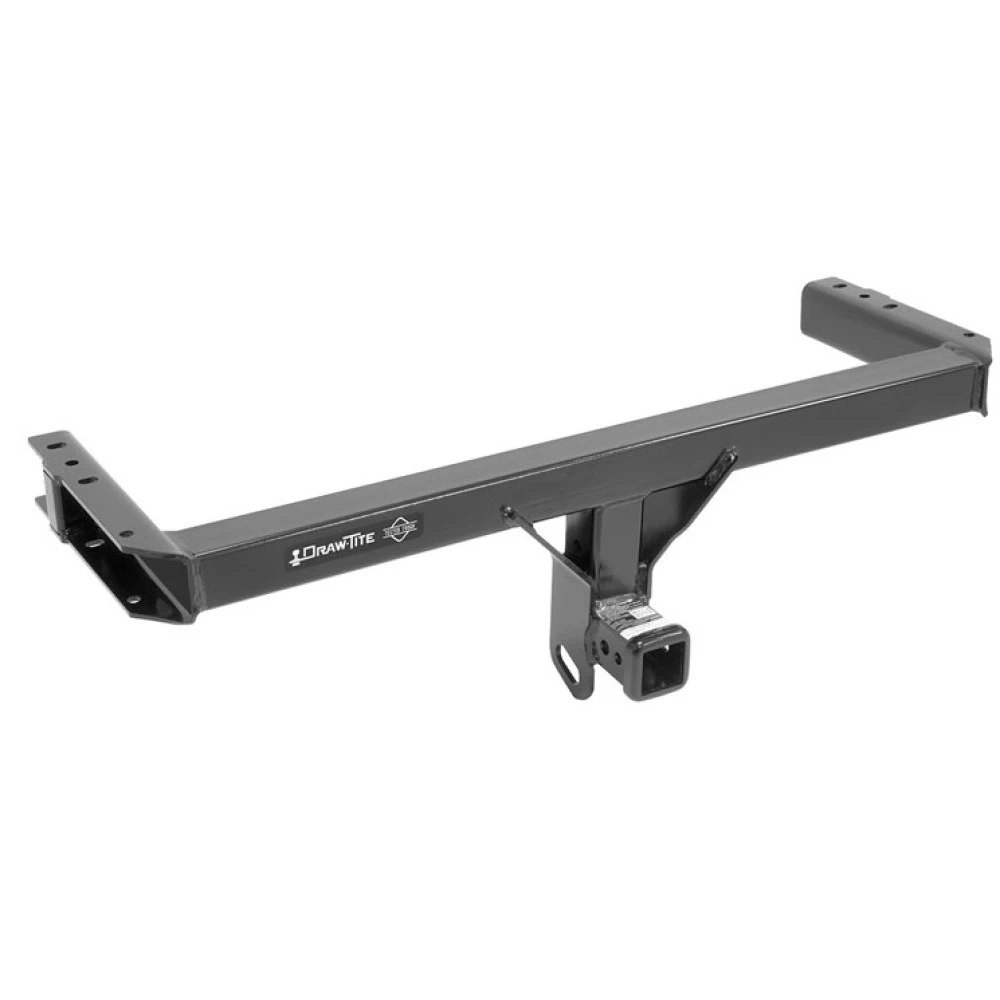

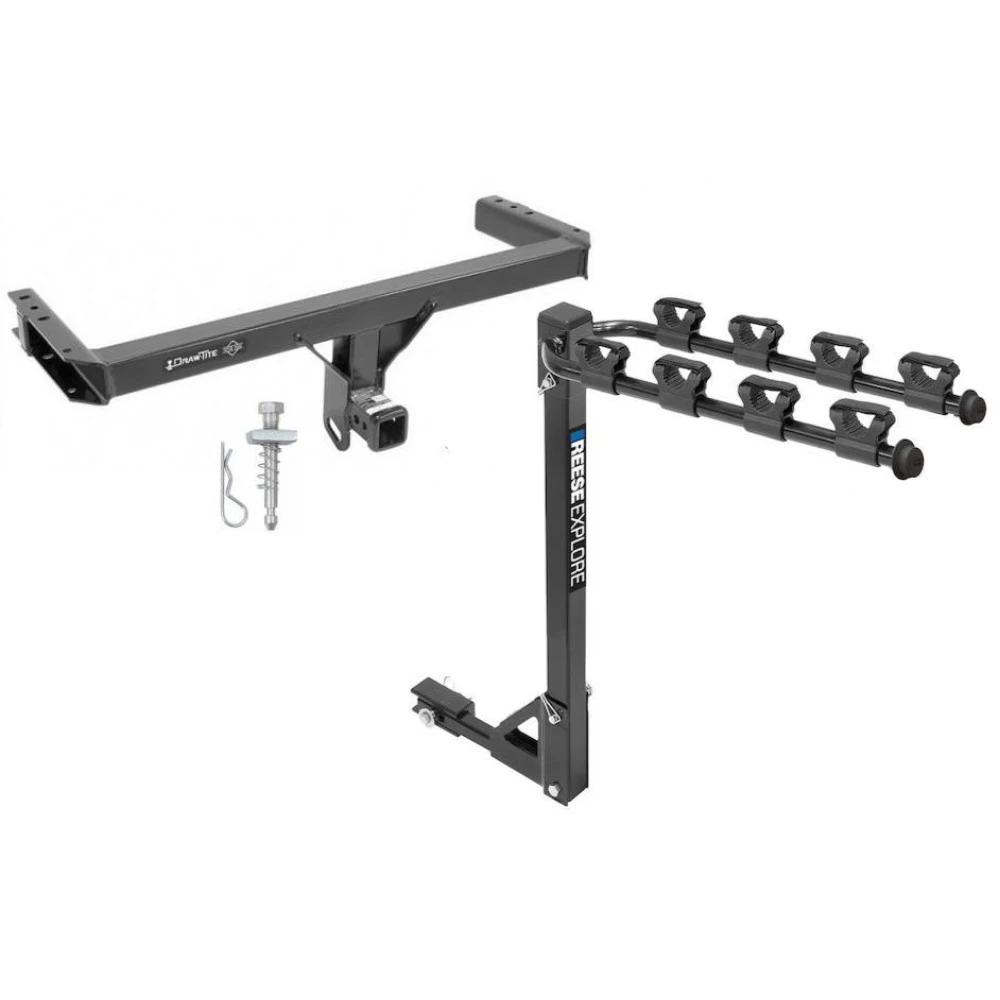

Installation Instructions for Audi Q5 and Porsche Macan

Part Numbers:

• 75940
• 44755
• 87666
• 41580 UH

Tools Required:

• Wrenches: M16 Socket, M10 Socket
• T20, T30, 6” Extension
• Torque Wrench
• Trim Panel Tool
• Dremel (or similar cutting tool)

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 750 lbs (340 kg)

Wiring Access Location:

• SUV1, SUV2

Torque Specifications:

• Tighten all M10 CL10.9 fasteners to 44 lb-ft (60 N·m)
• Tighten all M6 CL8.8 fasteners to 7 lb-ft (9.5 N·m)
• Tighten all T30 Torx screws to 3 lb-ft (4 N·m)
• Tighten all T20 Torx screws to 1.1 lb-ft (1.5 N·m)

Step-by-Step Instructions:

1. Remove Interior Components:

   • Open liftgate and remove rear cargo flooring.
   • Use a trim panel tool to unclip and remove the scuff plate, then disconnect the electrical plug beneath it.
   • Remove two 10mm nuts from the recessed bumper fascia studs under the scuff plate.
   • Remove four fastening rings (two on each side) using a T30 socket.
   • Detach the side rails on both sides.
   • Remove the driver-side interior panel, spare tire air compressor, and Styrofoam platform.

2. Detach Passenger Side Components:

   • Remove the passenger-side interior panel and lower fuse box with a 10mm socket.
   • Remove 10mm nuts from the bumper fascia studs inside the compartment.

3. Remove Bumper Fascia:

   • Remove four Torx screws from each wheel well and two screws from underneath the vehicle attaching the fascia to the trunk pan.
   • Carefully pull off the bumper fascia, starting at the wheel wells. Unplug all electrical connections (lights and sensors) from the fascia.
   • Remove and safely store the entire wire harness from behind the bumper fascia.

4. Remove and Replace Rear Retainer Brackets:

   • Use a 16mm socket and a 6” extension to remove two 10mm bolts from each rear retainer bracket.
   • Remove and discard the aluminum bumper, then insert the hitch brackets into the sleeves previously occupied by the aluminum bumper.
   • Align the hitch bracket slots with the retainer bracket holes and reinstall using existing vehicle fasteners. Torque bolts to 44 lb-ft (60 N·m).

5. Trim Fascia:

   • Mark and cut a rectangle measuring 6 1/4" tall by 3 3/4" wide at the centerline of the fascia for hitch clearance. Ensure accuracy to avoid damaging the fascia.

6. Reinstall Components:

   • Reverse the steps above to reinstall the fascia, wire harness, and all removed components. Ensure all fasteners are torqued to the specified values.

Safety Notes:

• Regularly check all fasteners to ensure the hitch remains secure.
• Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Wear safety glasses and follow precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety standards as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Obtain the owner's permission before cutting the fascia. Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Vehicle

Part Numbers:

• 75940
• 44755
• 87666
• 41580 UH

Tools Required:

• Wrenches: M16 Socket, M10 Socket
• T20, T30, 6” Extension
• Torque Wrench
• Trim Panel Tool
• Dremel (or similar cutting tool)

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 750 lbs (340 kg)

Wiring Access Location:

• SUV1, SUV2

Torque Specifications:

• Tighten all M10 CL10.9 fasteners to 44 lb-ft (60 N·m)
• Tighten all M6 CL8.8 fasteners to 7 lb-ft (9.5 N·m)
• Tighten all T30 Torx screws to 3 lb-ft (4 N·m)
• Tighten all T20 Torx screws to 1.1 lb-ft (1.5 N·m)

Step-by-Step Instructions:

1. Remove Interior Components:

   • Open liftgate and remove rear cargo flooring.
   • Use a trim panel tool to unclip and remove the scuff plate, then disconnect the electrical plug beneath it.
   • Remove two 10mm nuts from the recessed bumper fascia studs under the scuff plate.
   • Remove four fastening rings (two on each side) using a T30 socket.
   • Detach the side rails on both sides.
   • Remove the driver-side interior panel, spare tire air compressor, and Styrofoam platform.

2. Detach Passenger Side Components:

   • Remove the passenger-side interior panel and lower fuse box with a 10mm socket.
   • Remove 10mm nuts from the bumper fascia studs inside the compartment.

3. Remove Bumper Fascia:

   • Remove four Torx screws from each wheel well and two screws from underneath the vehicle attaching the fascia to the trunk pan.
   • Carefully pull off the bumper fascia, starting at the wheel wells. Unplug all electrical connections (lights and sensors) from the fascia.
   • Remove and safely store the entire wire harness from behind the bumper fascia.

4. Remove and Replace Rear Retainer Brackets:

   • Use a 16mm socket and a 6” extension to remove two 10mm bolts from each rear retainer bracket.
   • Remove and discard the aluminum bumper, then insert the hitch brackets into the sleeves previously occupied by the aluminum bumper.
   • Align the hitch bracket slots with the retainer bracket holes and reinstall using existing vehicle fasteners. Torque bolts to 44 lb-ft (60 N·m).

5. Trim Fascia:

   • Mark and cut a rectangle measuring 6 1/4" tall by 3 3/4" wide at the centerline of the fascia for hitch clearance. Ensure accuracy to avoid damaging the fascia.

6. Reinstall Components:

   • Reverse the steps above to reinstall the fascia, wire harness, and all removed components. Ensure all fasteners are torqued to the specified values.

Safety Notes:

• Regularly check all fasteners to ensure the hitch remains secure.
• Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Wear safety glasses and follow precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety standards as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Obtain the owner's permission before cutting the fascia. Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
