Product Details
- Brand: Draw-Tite
- Model: 75229 1393100G 63201 7010

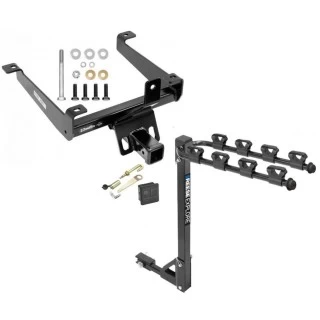

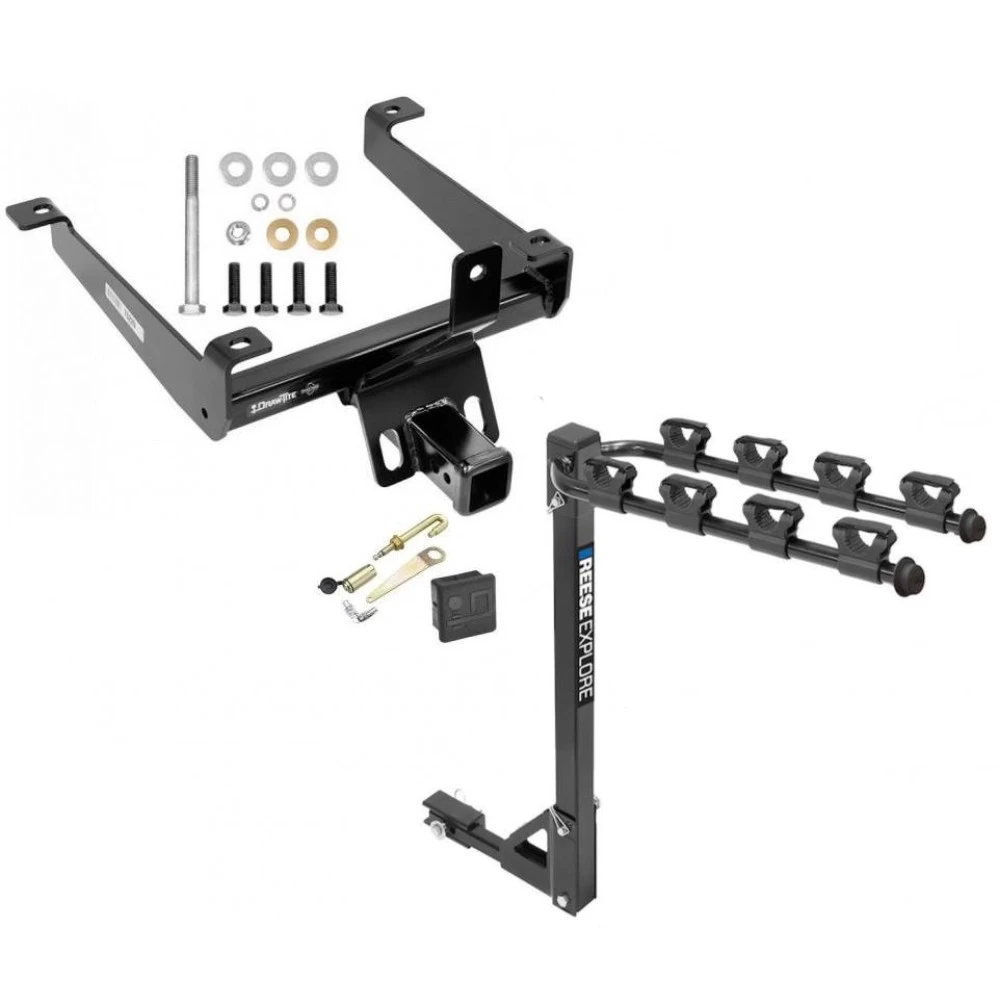

- Includes: Class 4 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 14-21 Land Rover Range Rover Sport Except Diesel tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Land Rover Range Rover Sport
Part Numbers:
- 75229
- 87693
- 44781
Applications:
- 2015-Current Land Rover Range Rover Sport (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 19mm
- Flat Head Screwdriver
- Philips Screwdriver
- Utility Knife
Installation Time:
- Approximately 45 minutes (for professional installers)
Step-by-Step Instructions:
-
Bottom Appearance Panel Removal:
- Use a flat head screwdriver to remove (2) plastic rivets attached to the upper panel, then remove the upper panel.
- Use a 10mm socket and Philips screwdriver to remove (4) bolts attached to the lower panel, then remove the lower panel.
-
Hitch Installation:
- Raise the hitch into position and loosely install:
- M12 bolt (Qty. 4) with conical washer (Qty. 2) at the rearward vehicle cross frame weldnuts.
- M12 bolt with flat washers (Qty. 3) and lock washers (Qty. 2) at the forward vehicle cross frame weldnuts.
- Insert 1/2”-13 bolt and flat washer into the bumper beam, then loosely secure with flange nut.
- Raise the hitch into position and loosely install:
-
Torque Fasteners:
- Tighten all fasteners with a torque wrench to 75 lb-ft (102 N·m).
-
Lower Panel Trimming:
- Trim the lower panel as shown in the provided diagram (approx. 7" x 5.5" x 4").
- Perform additional trimming if necessary.
-
Reinstall Appearance Panels:
- Reinstall the upper and lower appearance panels removed in Step 1.

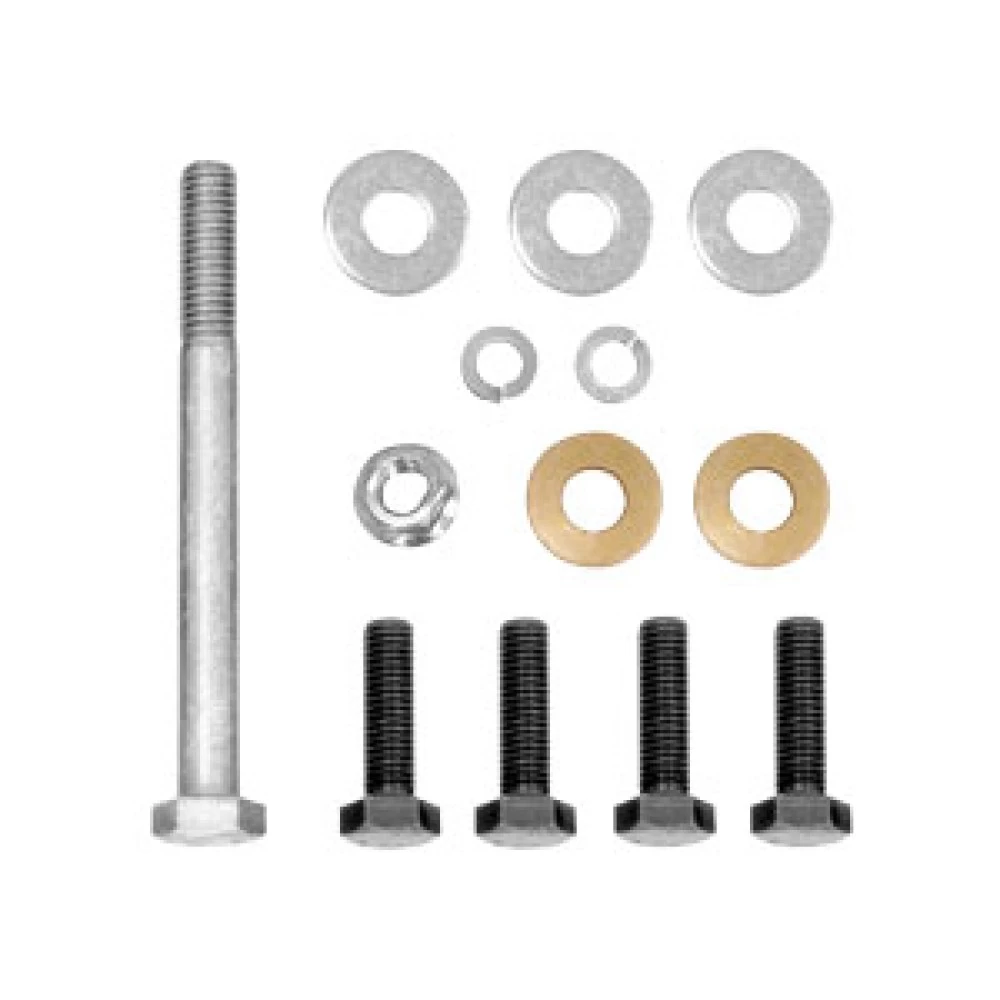

Hardware List:
- (4) M12 x 1.75 x 35mm CL10.9 Bolts
- (2) 1/2" Conical Washers
- (3) 1/2" Flat Washers
- (2) 1/2" Lock Washers
- (1) 1/2-13 x 5" GR5 Bolt
- (1) 1/2-13 GR5 Flange Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Land Rover Range Rover Sport
Part Numbers:
- 75229
- 87693
- 44781
Applications:
- 2015-Current Land Rover Range Rover Sport
(*For the most up-to-date application years and trim levels, refer to the manufacturer's full instructions.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 19mm
- Flat Head Screwdriver
- Philips Screwdriver
- Utility Knife
Installation Time:
- Approximately 45 minutes (for professional installers)
Step-by-Step Instructions:
-
Bottom Appearance Panel Removal:
- Use a flat head screwdriver to remove (2) plastic rivets attached to the upper panel, then remove the upper panel.
- Use a 10mm socket and Philips screwdriver to remove (4) bolts attached to the lower panel, then remove the lower panel.
-
Hitch Installation:
- Raise the hitch into position and loosely install:
- M12 bolt (Qty. 4) with conical washer (Qty. 2) at the rearward vehicle cross frame weldnuts.
- M12 bolt with flat washers (Qty. 3) and lock washers (Qty. 2) at the forward vehicle cross frame weldnuts.
- Insert 1/2”-13 bolt and flat washer into the bumper beam, then loosely secure with flange nut.
- Raise the hitch into position and loosely install:
-
Torque Fasteners:
- Tighten all fasteners with a torque wrench to 75 lb-ft (102 N·m).
-
Lower Panel Trimming:
- Trim the lower panel as shown in the provided diagram (approx. 7" x 5.5" x 4").
- Perform additional trimming if necessary.
-
Reinstall Appearance Panels:
- Reinstall the upper and lower appearance panels removed in Step 1.
Hardware List:
- (4) M12 x 1.75 x 35mm CL10.9 Bolts
- (2) 1/2" Conical Washers
- (3) 1/2" Flat Washers
- (2) 1/2" Lock Washers
- (1) 1/2-13 x 5" GR5 Bolt
- (1) 1/2-13 GR5 Flange Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
