Product Details
- Brand: Tekonsha
- Model: 118786 118144 20114

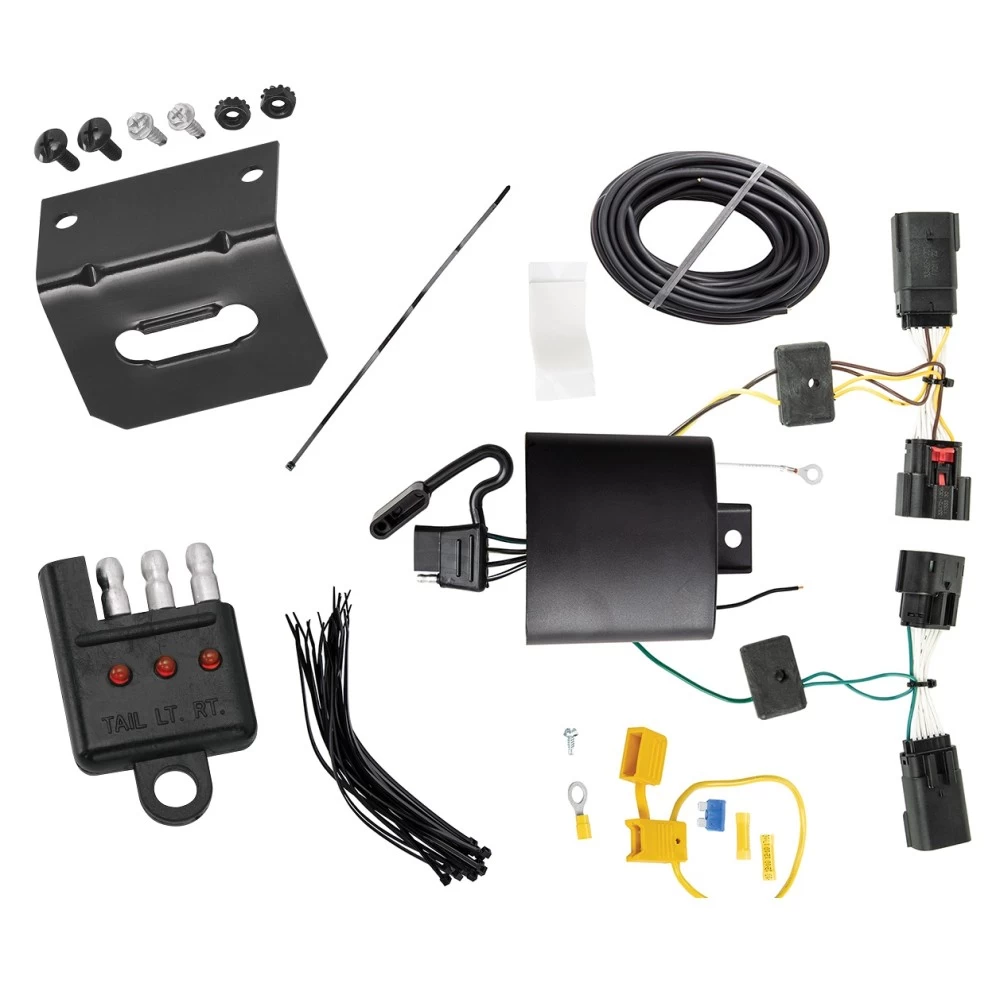

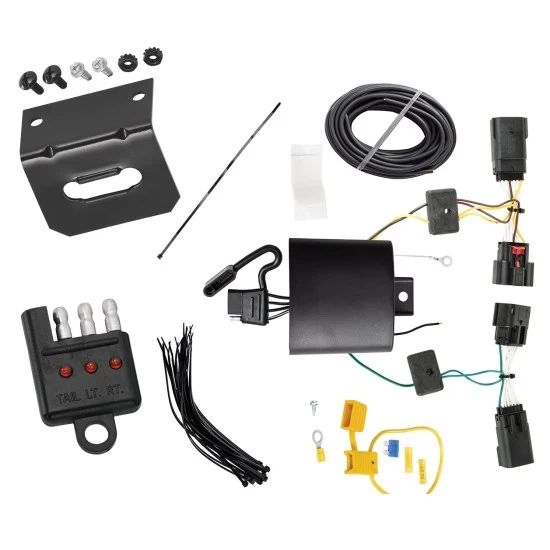

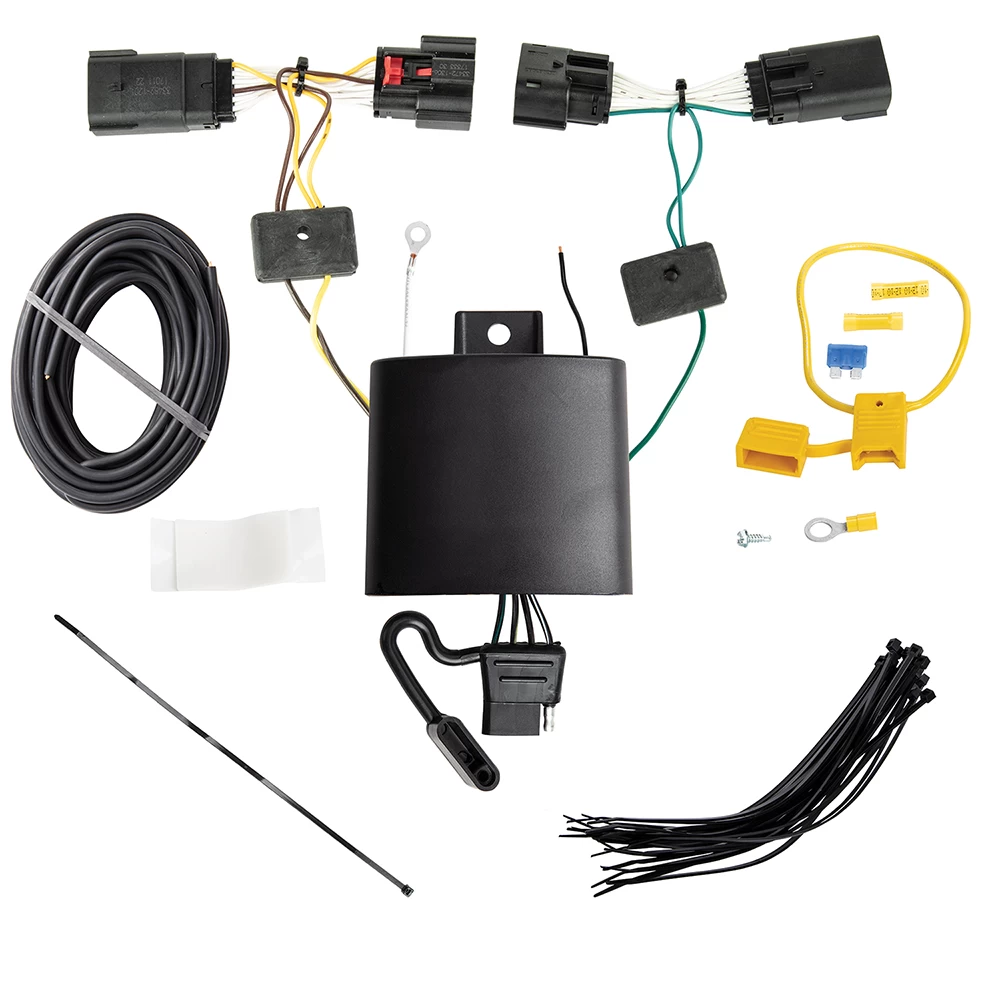

- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
Description
Get Expert Help
Trailer Wiring and Bracket and Light Tester For 20-24 Jeep Gladiator 18-24 Wrangler JL (New Body Style) Install Notes
Installation Instructions for T-One® T-Connector for Jeep Wrangler and Jeep Gladiator
Part Numbers:
- 118786
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
- 8mm Socket & Ratchet or Wrench
Step-by-Step Instructions:
For Jeep Wrangler:
-
Access Taillight Bolts:
- Open the rear door to access the rear bolt holding the taillight.
- Remove the small square access cover located on the trim panel below the side windows using a trim panel remover to expose the white bolt.
-
Remove Taillight Assemblies:
- Using a 10mm socket, remove the white bolt holding the taillight in place.
- Carefully pull the taillight away from the vehicle to expose the vehicle’s taillight wiring harness.
- Repeat the process for the passenger side.
For Jeep Gladiator:
- Access Taillight Bolts:
- Open the rear tailgate to access the bolts securing the taillights.
- Remove the two bolts and carefully pull the taillight housings rearward, being cautious not to break the alignment tabs.
For All Vehicles:
-
Locate the Taillight Wiring Harness:
- On both sides of the vehicle, locate the taillight wiring harness. The harness will have a connection point matching the ends of the T-One® Connector.
- Separate the connectors carefully, ensuring not to damage the locking tabs. Ensure all connectors are clean.
-
Connect Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Ensure connectors are fully inserted.
-
Route the Harness:
- Route the harness containing the green wire and 4-flat connector down the opening behind the driver-side taillight.
- Route the green wire underneath the vehicle and up through the opening behind the passenger-side taillight.
Warning: Avoid routing the wire near hot pipes, heat shields, or the fuel tank.
-
Connect Passenger-Side T-Connector:
- Insert the T-One® Connector end with the green wire between the vehicle wiring connectors on the passenger side.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector on the driver’s side.
- Clean the surface of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling.
-
Connect the Power Wire:
- On the driver’s side, locate the black 12-gauge power wire from the T-One® Connector box.
- Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment, avoiding hot pipes and sharp edges.
-
Connect to the Battery:
- Disconnect the Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
Warning: Follow all warnings on the tow vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation with a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the Black Box Module:
- Locate a flat surface and mount the black box module to prevent damage or rattling.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reinstall Taillight Assemblies:
- Reinstall the taillight assemblies and other items removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat harness to the center of the vehicle and mount it in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Various Vehicles
Part Numbers:
- 118786
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
- 8mm Socket & Ratchet or Wrench
Step-by-Step Instructions:
For All Vehicles:
-
Access Taillight Bolts:
- Open the rear door (or tailgate) to access the bolts holding the taillights in place.
- Remove the access covers on the trim panels (if applicable) using a trim panel remover to expose the bolts.
-
Remove Taillight Assemblies:
- Using the appropriate socket, remove the bolts holding the taillight in place.
- Carefully pull the taillight away from the vehicle to expose the vehicle’s taillight wiring harness.
- Repeat the process for both sides of the vehicle.
-
Locate the Taillight Wiring Harness:
- On both sides of the vehicle, locate the taillight wiring harness. The harness will have a connection point matching the ends of the T-One® Connector.
- Separate the connectors carefully, ensuring not to damage the locking tabs. Ensure all connectors are clean.
-
Connect Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock it into place. Ensure connectors are fully inserted.
-
Route the Harness:
- Route the harness containing the green wire and 4-flat connector down the opening behind the driver-side taillight.
- Route the green wire underneath the vehicle and up through the opening behind the passenger-side taillight.
Warning: Avoid routing the wire near hot pipes, heat shields, or the fuel tank.
-
Connect Passenger-Side T-Connector:
- Insert the T-One® Connector end with the green wire between the vehicle wiring connectors on the passenger side.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector on the driver’s side.
- Clean the surface of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling.
-
Connect the Power Wire:
- On the driver’s side, locate the black 12-gauge power wire from the T-One® Connector box.
- Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment, avoiding hot pipes and sharp edges.
-
Connect to the Battery:
- Disconnect the Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
Warning: Follow all warnings on the tow vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation with a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the Black Box Module:
- Locate a flat surface and mount the black box module to prevent damage or rattling.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reinstall Taillight Assemblies:
- Reinstall the taillight assemblies and other items removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat harness to the center of the vehicle and mount it in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
