Product Details
- Brand: Tekonsha
- Model: 118264 118144*

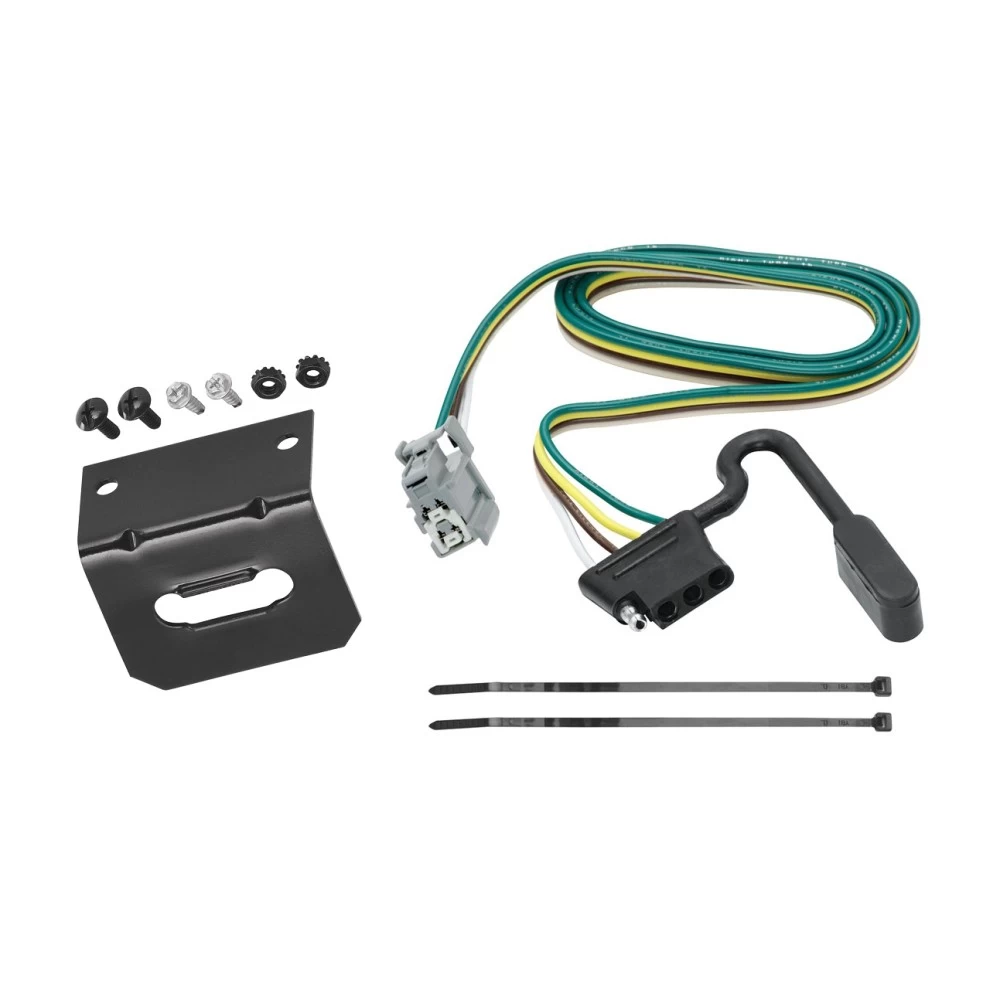

- Includes: Tow Custom Harness, Mounting Bracket
Compatibility Chart
Get Expert Help
Trailer Wiring and Bracket For 10-17 Chevy Equinox GMC Terrain Plug & Play 4-Flat Harness Install Notes

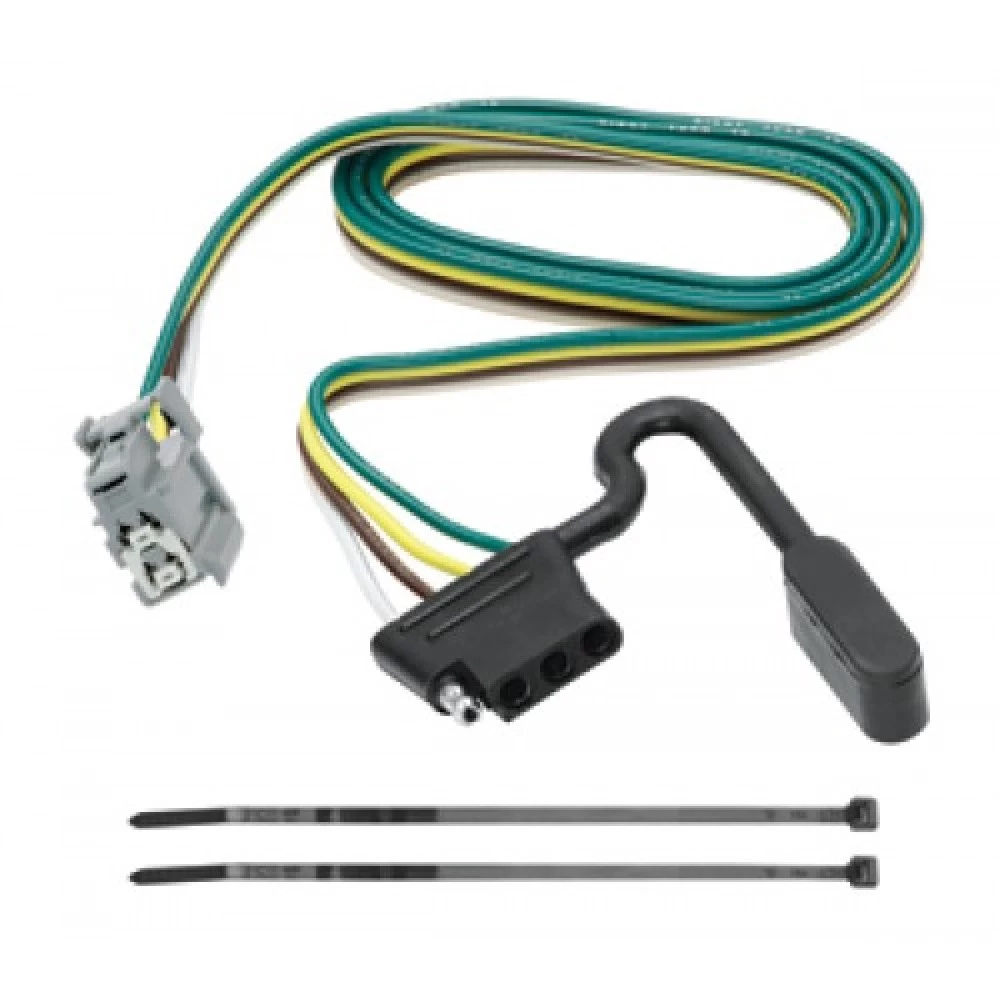

Installation Instructions for T-Connector Adapter for Chevrolet Equinox and GMC Terrain
Part Numbers:
- 118264
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear tailgate.
- Remove access panels, threshold, trunk floor panels, and trays on the driver’s side.
- Carefully remove all items to avoid damage.
-
Remove Interior Trim Panels:
- On the driver’s side, partially remove the lower interior trim panels.
- Carefully set aside all removed items, avoiding damage to clips or panels.
-
Locate the Tow Plug Harness:
- Locate the grey 4-pin housing taped to the taillight harness on the driver’s side.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector Harness:
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secure.
-
Secure the T-Connector Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.
Note:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment.
- Store the 4-flat connector there when not in use.
-
Reposition and Reinstall:
- Reposition the access panels, trays, trunk floor panels, and reattach the threshold.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Warning:
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
- Follow all installation instructions carefully and use safety glasses during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118264
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear tailgate.
- Remove access panels, threshold, trunk floor panels, and trays on the driver’s side.
- Carefully remove all items to avoid damage.
-
Remove Interior Trim Panels:
- On the driver’s side, partially remove the lower interior trim panels.
- Carefully set aside all removed items, avoiding damage to clips or panels.
-
Locate the Tow Plug Harness:
- Locate the grey 4-pin housing taped to the taillight harness on the driver’s side.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector Harness:
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secure.
-
Secure the T-Connector Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.
Note:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment.
- Store the 4-flat connector there when not in use.
-
Reposition and Reinstall:
- Reposition the access panels, trays, trunk floor panels, and reattach the threshold.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Warning:
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
- Follow all installation instructions carefully and use safety glasses during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
