Trailer Wiring and Bracket For 14‑20 Honda Fit Plug & Play 4‑Flat Harness
Model: 118767 118144Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles
2014-2020 Honda, Fit, All Styles
Wiring Kit Specs:
| Part Number | 118767 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Partial list of fitment years:
14 15 16 17 18 19 20 2014 2015 2016 2017 2018 2019 2020
$98 43 $141.34 30% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$141.34 $98 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $24.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118767 118144

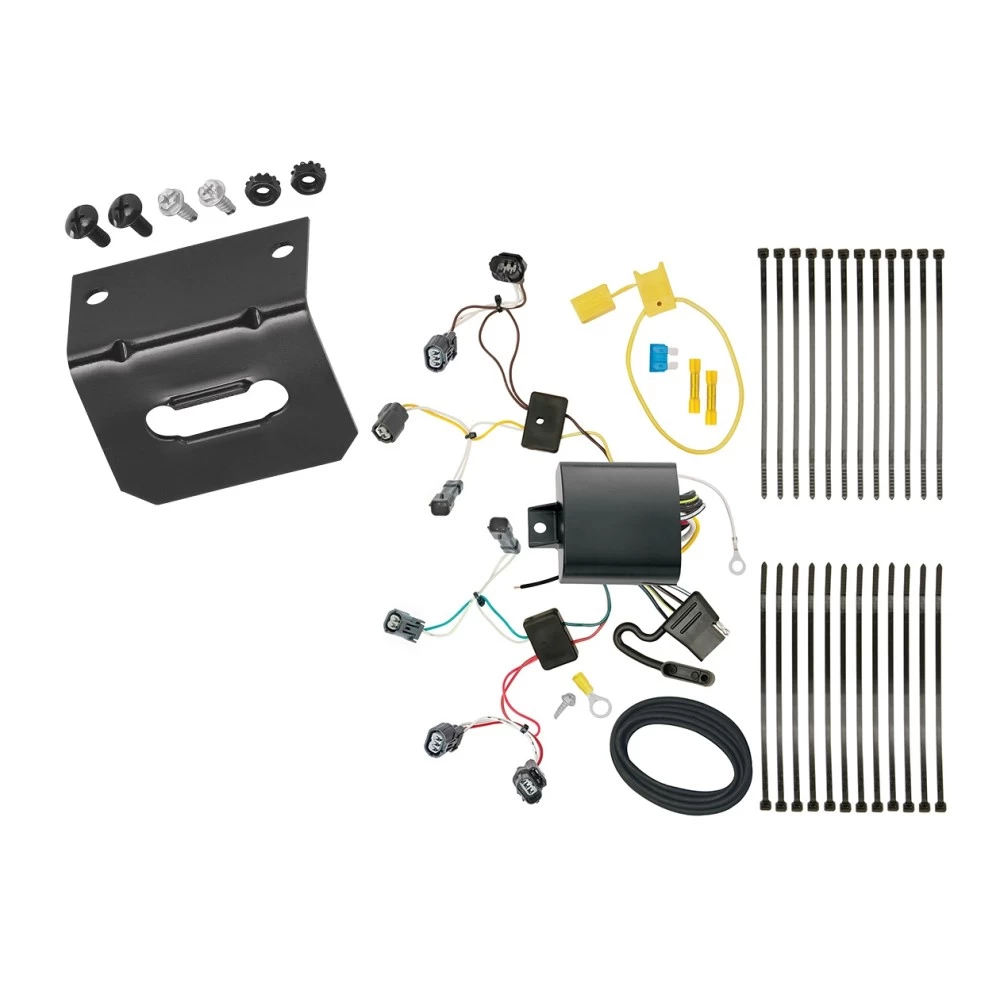

- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
Description

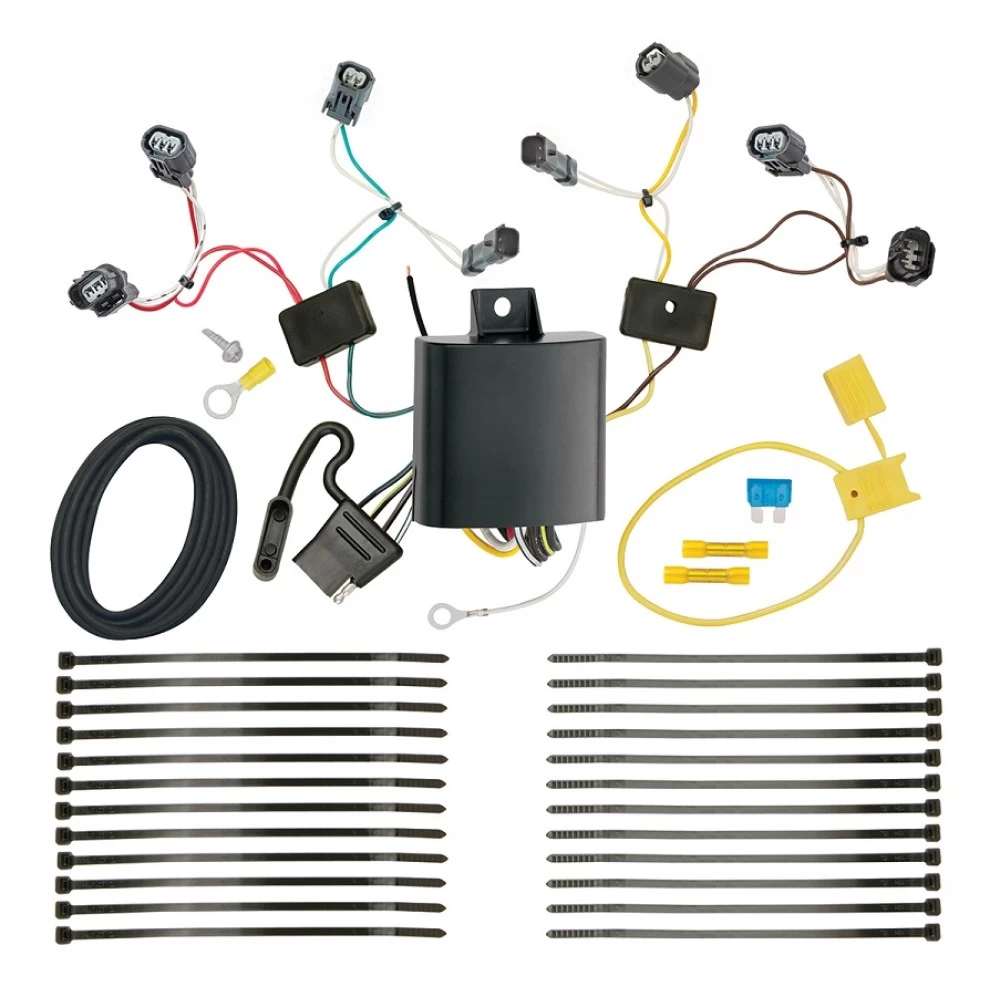

Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles
2014-2020 Honda, Fit, All Styles
Wiring Kit Specs:
| Part Number | 118767 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Partial list of fitment years:
14 15 16 17 18 19 20 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Wiring and Bracket For 14-20 Honda Fit Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-One® T-Connector for Honda Fit
Part Numbers:
- 118767
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open Rear Hatch:
- Open the hatch and remove the taillights on both driver and passenger sides.
- Carefully pull the taillights away from the vehicle, ensuring not to damage the alignment pins.
-
Locate the Vehicle Wiring Harness:
- On both sides, locate the taillight wiring harness. The harness will have a connection point matching the ends of the T-One® Connector.
-
Route the Driver-Side T-Connector:
- Route the harness containing the yellow wire underneath the vehicle and up through the opening between the bumper and body to the driver-side taillight pocket.
-
Connect the Driver-Side T-Connector:
- Disconnect the grey 2-pin connector on the driver-side taillight housing.
- Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock securely.
- Repeat the process for the black 3-pin connector using the T-One® Connector with the brown wire.
-
Mount the Black Box:
- Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
- Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could pinch or cut the wires.
Warning:
- Ensure the module’s epoxy side is facing downward to prevent water accumulation.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire with the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the T-One® Connector end with the green wire up through the opening on the passenger side, avoiding hot pipes, heat shields, fuel tanks, or other areas that may pinch the wire.
-
Connect the Passenger-Side T-Connector:
- Disconnect the grey 2-pin connector on the passenger-side taillight housing.
- Insert the T-One® Connector end with the green wire between the vehicle wiring connectors and lock securely.
- Repeat the process for the black 3-pin connector using the T-One® Connector with the red wire.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-One® Connector black box and attach the provided black wire using the supplied yellow butt connector.
- Route the black wire along the exterior frame or follow the existing wiring to the engine compartment.
Warning:
- Avoid areas that may pinch, cut, or melt the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and connect the other end of the fuse holder to the black power wire using the yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable and test the installation with a test light or trailer.
-
Secure the Wiring:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, storage covers, and floor covering, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector underneath the vehicle to the center and mount it in an accessible location with a bracket (not included).
Specifications:
- Max. stop/turn light: 4.2 amps per side
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Honda Fit
Part Numbers:
- 118767
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open Rear Hatch:
- Open the hatch and remove the taillights on both driver and passenger sides.
- Carefully pull the taillights away from the vehicle, ensuring not to damage the alignment pins.
-
Locate the Vehicle Wiring Harness:
- On both sides, locate the taillight wiring harness. The harness will have a connection point matching the ends of the T-One® Connector.
-
Route the Driver-Side T-Connector:
- Route the harness containing the yellow wire underneath the vehicle and up through the opening between the bumper and body to the driver-side taillight pocket.
-
Connect the Driver-Side T-Connector:
- Disconnect the grey 2-pin connector on the driver-side taillight housing.
- Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock securely.
- Repeat the process for the black 3-pin connector using the T-One® Connector with the brown wire.
-
Mount the Black Box:
- Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
- Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could pinch or cut the wires.
Warning:
- Ensure the module’s epoxy side is facing downward to prevent water accumulation.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire with the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the T-One® Connector end with the green wire up through the opening on the passenger side, avoiding hot pipes, heat shields, fuel tanks, or other areas that may pinch the wire.
-
Connect the Passenger-Side T-Connector:
- Disconnect the grey 2-pin connector on the passenger-side taillight housing.
- Insert the T-One® Connector end with the green wire between the vehicle wiring connectors and lock securely.
- Repeat the process for the black 3-pin connector using the T-One® Connector with the red wire.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-One® Connector black box and attach the provided black wire using the supplied yellow butt connector.
- Route the black wire along the exterior frame or follow the existing wiring to the engine compartment.
Warning:
- Avoid areas that may pinch, cut, or melt the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and connect the other end of the fuse holder to the black power wire using the yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable and test the installation with a test light or trailer.
-
Secure the Wiring:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, storage covers, and floor covering, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector underneath the vehicle to the center and mount it in an accessible location with a bracket (not included).
Specifications:
- Max. stop/turn light: 4.2 amps per side
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
