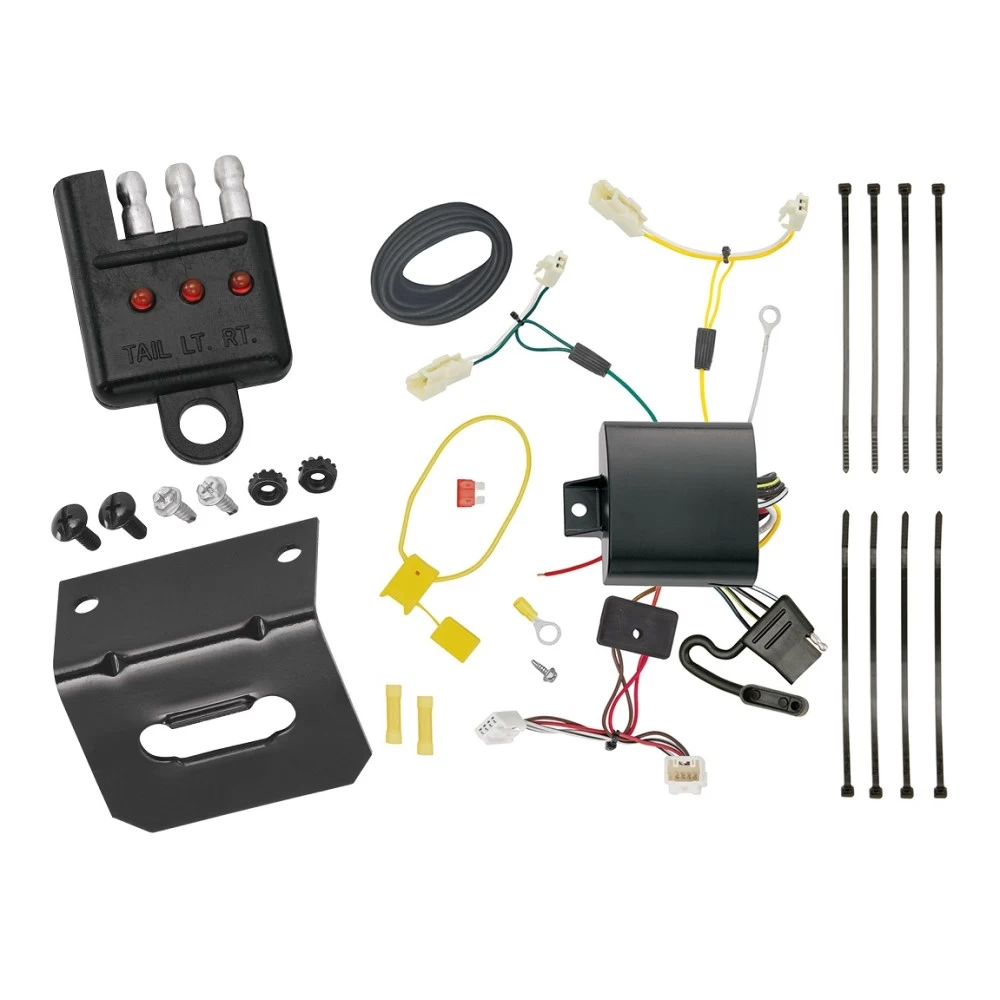

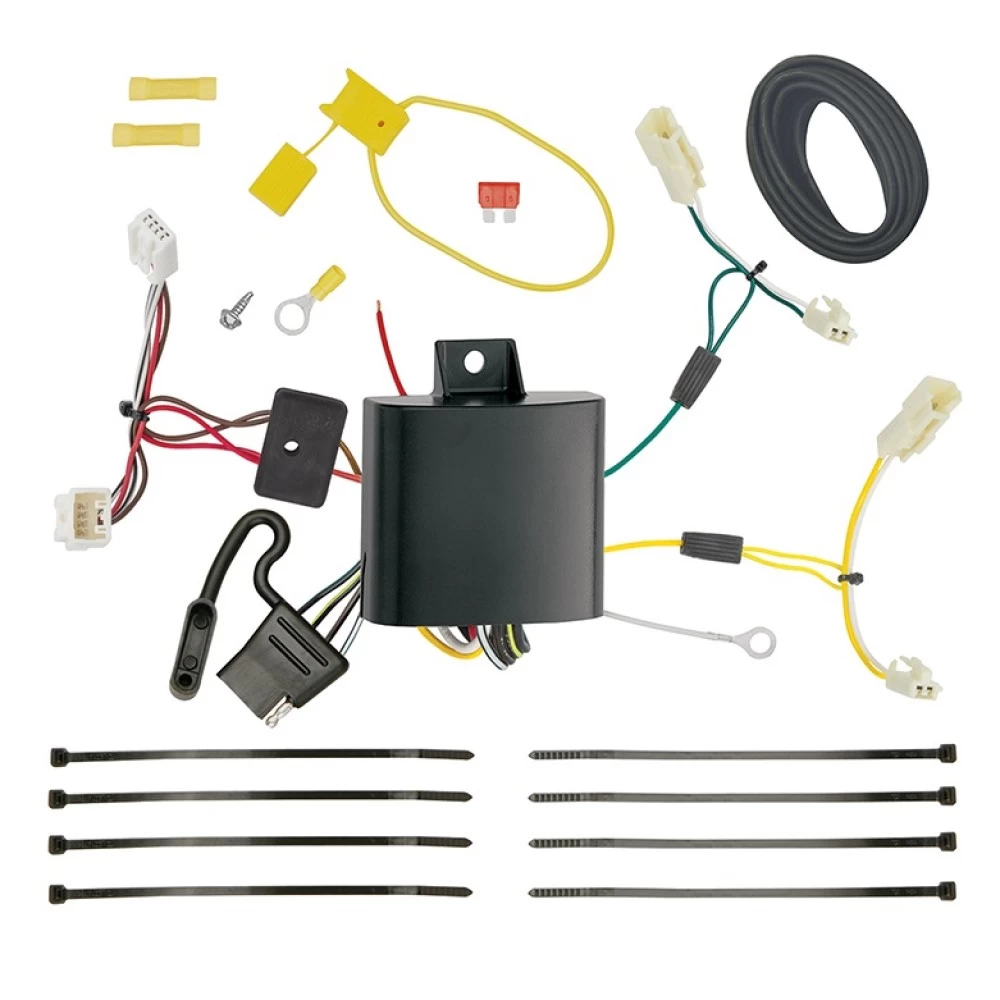

- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
Description
Get Expert Help
Trailer Wiring and Bracket w/ Light Tester For 11-14 Toyota Sienna 15-20 Sienna SE Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter for Toyota Sienna
Part Numbers:
- 118498
Tools Required:
- 10mm Socket & Ratchet or 10mm Wrench
- 12mm Socket & Ratchet or 12mm Wrench
- Phillips Head Screwdriver
- Test Probe
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Trim Panel Remover
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear tailgate and remove two bolts securing each taillight.
- Carefully pry the taillight housings rearward, avoiding damage to the alignment tabs.
- Repeat for the passenger side.
-
Disconnect the Wiring Harness:
- Locate the taillight wiring harness on both sides of the vehicle.
- Separate the connectors, ensuring not to break the locking tabs.
- Clean the connector surfaces to remove dirt.
-
Remove Interior Panels:
- Temporarily remove the rear threshold plate by removing the cargo clips.
- Remove the jack storage compartment door on the passenger side.
- Carefully pull back the interior trim panels on both sides using a trim panel remover.
-
Mount the Black Box:
- Locate a suitable mounting location inside the rear quarter panel on the passenger side.
- Clean the area with a 50/50 water/alcohol solution.
- Mount the black box using the provided double-sided tape.
-
Connect the Passenger-Side T-Connector:
- Route the T-Connector ends with green and brown/red wires through the opening on the passenger side.
- Insert the T-Connector ends between the vehicle wiring connectors and lock them into place.
-
Connect the Driver-Side T-Connector:
- Route the T-Connector end with the yellow wire to the driver’s side behind the panels and along the threshold.
- Repeat Step 5 for the driver-side T-Connector with the yellow wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connectors.
- Secure the white wire with the provided ring terminal under an existing screw or by drilling a 3/32” hole.
Warning:
- Ensure all other ground connections are secure when removing and reattaching the ground stud.
-
Connect the Power Wire:
- Disconnect the negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Route the Black Wire:
- Route the black wire through a grommet and along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery.
-
Connect the Power Wire to the Black Box:
- Connect the other end of the black 12-gauge wire to the red power wire on the T-Connector’s black box using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Secure and Reassemble:
- Secure all loose wires with the provided cable ties.
- Reinstall the taillight assemblies, panels, and other items removed during installation.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the jack storage compartment when not in use.
- Route the 4-flat harness through the rear tailgate/door seal when in use.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
- Always follow all safety precautions and use safety glasses during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for T-Connector Adapter for Vehicle
Part Numbers:
- 118498
Tools Required:
- 10mm Socket & Ratchet or 10mm Wrench
- 12mm Socket & Ratchet or 12mm Wrench
- Phillips Head Screwdriver
- Test Probe
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Trim Panel Remover
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear tailgate and remove two bolts securing each taillight.
- Carefully pry the taillight housings rearward, avoiding damage to the alignment tabs.
- Repeat for the passenger side.
-
Disconnect the Wiring Harness:
- Locate the taillight wiring harness on both sides of the vehicle.
- Separate the connectors, ensuring not to break the locking tabs.
- Clean the connector surfaces to remove dirt.
-
Remove Interior Panels:
- Temporarily remove the rear threshold plate by removing the cargo clips.
- Remove the jack storage compartment door on the passenger side.
- Carefully pull back the interior trim panels on both sides using a trim panel remover.
-
Mount the Black Box:
- Locate a suitable mounting location inside the rear quarter panel on the passenger side.
- Clean the area with a 50/50 water/alcohol solution.
- Mount the black box using the provided double-sided tape.
-
Connect the Passenger-Side T-Connector:
- Route the T-Connector ends with green and brown/red wires through the opening on the passenger side.
- Insert the T-Connector ends between the vehicle wiring connectors and lock them into place.
-
Connect the Driver-Side T-Connector:
- Route the T-Connector end with the yellow wire to the driver’s side behind the panels and along the threshold.
- Repeat Step 5 for the driver-side T-Connector with the yellow wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connectors.
- Secure the white wire with the provided ring terminal under an existing screw or by drilling a 3/32” hole.
Warning:
- Ensure all other ground connections are secure when removing and reattaching the ground stud.
-
Connect the Power Wire:
- Disconnect the negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Route the Black Wire:
- Route the black wire through a grommet and along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery.
-
Connect the Power Wire to the Black Box:
- Connect the other end of the black 12-gauge wire to the red power wire on the T-Connector’s black box using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Secure and Reassemble:
- Secure all loose wires with the provided cable ties.
- Reinstall the taillight assemblies, panels, and other items removed during installation.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the jack storage compartment when not in use.
- Route the 4-flat harness through the rear tailgate/door seal when in use.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
- Always follow all safety precautions and use safety glasses during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
