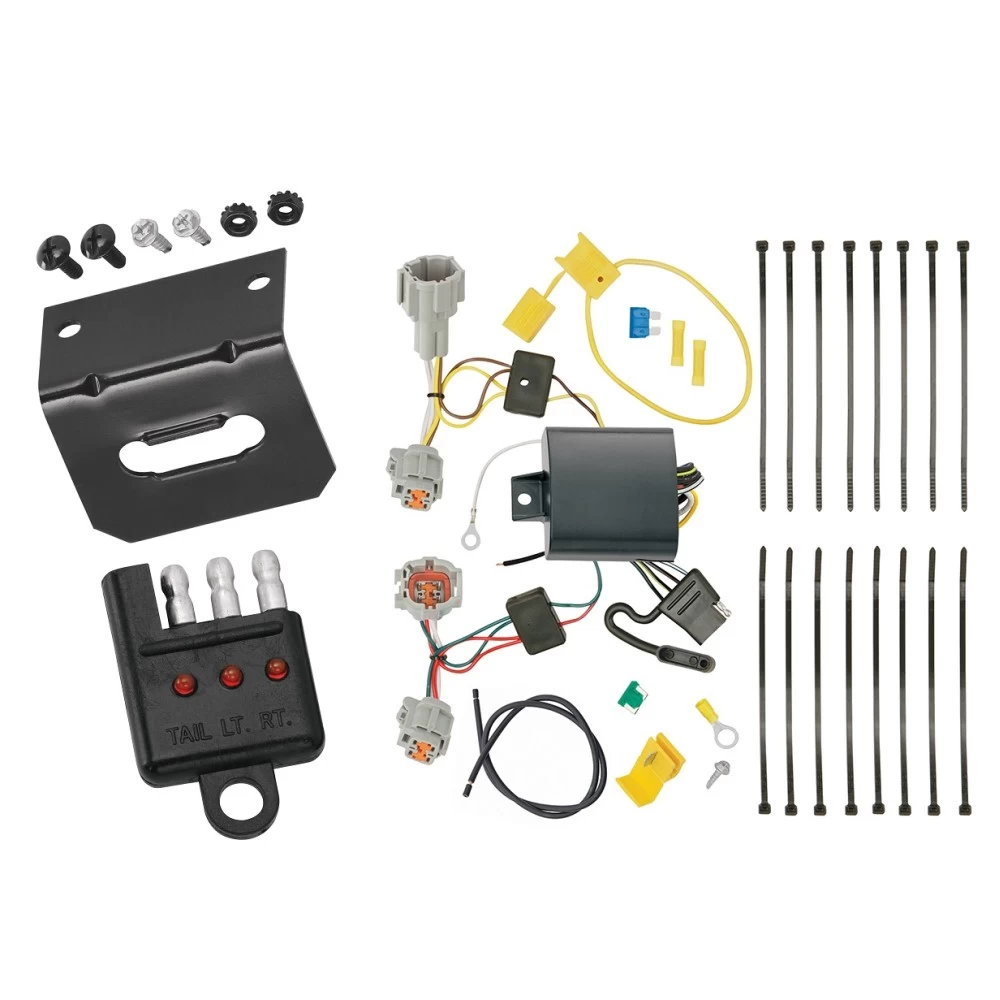

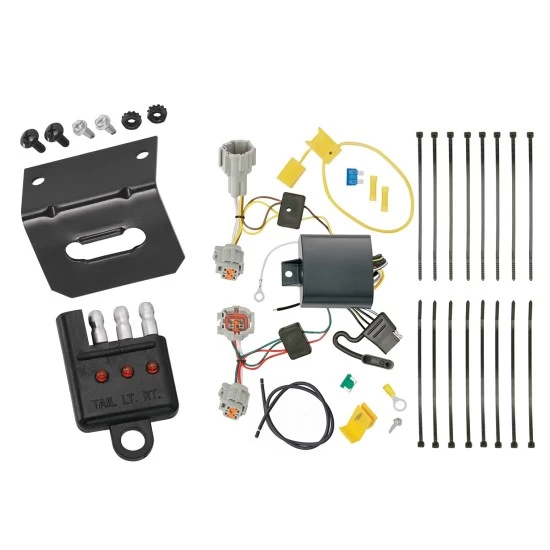

Trailer Wiring and Bracket w/ Light Tester For 17‑19 Nissan Rogue Sport Plug & Play 4‑Flat Harness
Model: 118757 118144 20114Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles
2017 - 2019 Nissan, Rogue Sport, All Styles
Wiring Kit Specs:
| Part Number | 118757 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Partial list of fitment years:
17 18 19 2017 2018 2019
$89 54 $129.80 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$129.80 $89 54
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $22.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118757 118144 20114
- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles
2017 - 2019 Nissan, Rogue Sport, All Styles
Wiring Kit Specs:
| Part Number | 118757 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Partial list of fitment years:
17 18 19 2017 2018 2019
Get Expert Help
Trailer Wiring and Bracket w/ Light Tester For 17-19 Nissan Rogue Sport Plug & Play 4-Flat Harness Install Notes

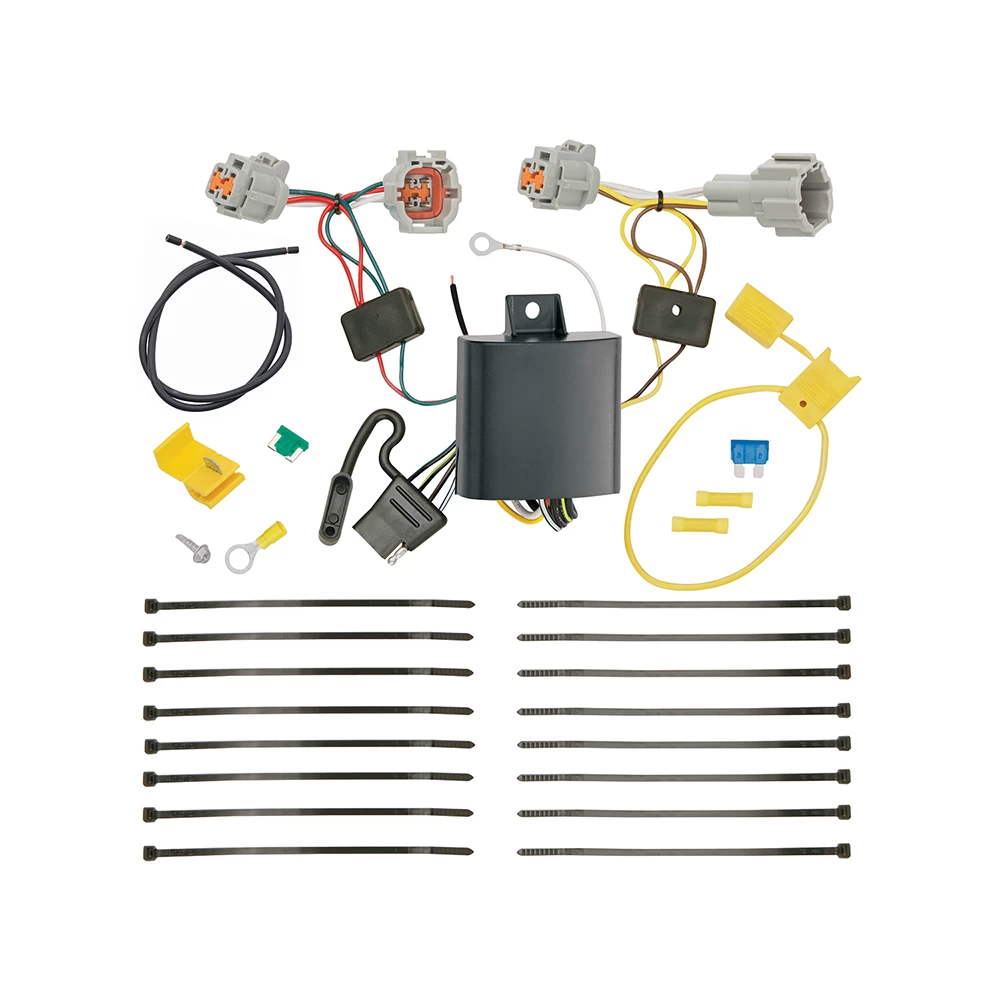

Installation Instructions for T-One® T-Connector for Nissan Rogue Sport
Part Numbers:
- 118757
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate the Vehicle Wiring:
- Open the hatch and locate the vehicle wiring inside the rear cargo area by partially removing the plastic threshold cover, side panels, and cargo trays.
-
Remove the Taillights:
- Using a 10mm socket or wrench, remove both the driver and passenger taillights.
- Disconnect the taillight wiring harness at the connection point on both sides, ensuring not to break locking tabs. Clean all surfaces to be dirt-free.
-
Prepare the Grommets:
- On both the driver and passenger sides, slit the grommet to allow the T-Connector’s wiring to pass through.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place. Ensure connectors are fully inserted with locking tabs secure.
-
Mount the T-Connector Black Box:
- Mount the black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw, ensuring the area is clean and free of rustproofing.
Caution: Verify what is behind the surface before drilling to prevent damage or injury. Do not drill into exposed surfaces.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire across the threshold to the passenger side of the vehicle.
- Repeat Step 4 for the passenger side using the green wire end.
-
Disconnect the Negative Battery Cable:
- Disconnect the vehicle’s Negative (-) battery cable before proceeding with electrical connections.
-
Connect the Power Wire:
- Locate the white 2-pin connector on the driver’s side behind the side panel.
- Route the black 12-gauge wire and connect it to the mating connector. Ensure locking tabs are secure.
-
Install the 30-Amp Fuse:
- Under the vehicle hood, remove the covering on the top of the battery to access the fuse box.
- Insert the 30-amp fuse into the slot labeled "Trailer, 30A."
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the remaining T-Connector harness, avoiding areas that could pinch, cut, or melt the wire.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and other removed items. Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Nissan Rogue Sport
Part Numbers:
- 118757
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate the Vehicle Wiring:
- Open the hatch and locate the vehicle wiring inside the rear cargo area by partially removing the plastic threshold cover, side panels, and cargo trays.
-
Remove the Taillights:
- Using a 10mm socket or wrench, remove both the driver and passenger taillights.
- Disconnect the taillight wiring harness at the connection point on both sides, ensuring not to break locking tabs. Clean all surfaces to be dirt-free.
-
Prepare the Grommets:
- On both the driver and passenger sides, slit the grommet to allow the T-Connector’s wiring to pass through.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place. Ensure connectors are fully inserted with locking tabs secure.
-
Mount the T-Connector Black Box:
- Mount the black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw, ensuring the area is clean and free of rustproofing.
Caution: Verify what is behind the surface before drilling to prevent damage or injury. Do not drill into exposed surfaces.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire across the threshold to the passenger side of the vehicle.
- Repeat Step 4 for the passenger side using the green wire end.
-
Disconnect the Negative Battery Cable:
- Disconnect the vehicle’s Negative (-) battery cable before proceeding with electrical connections.
-
Connect the Power Wire:
- Locate the white 2-pin connector on the driver’s side behind the side panel.
- Route the black 12-gauge wire and connect it to the mating connector. Ensure locking tabs are secure.
-
Install the 30-Amp Fuse:
- Under the vehicle hood, remove the covering on the top of the battery to access the fuse box.
- Insert the 30-amp fuse into the slot labeled "Trailer, 30A."
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the remaining T-Connector harness, avoiding areas that could pinch, cut, or melt the wire.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and other removed items. Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Refer to the vehicle owner’s manual for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
