Installation Instructions for T-One® T-Connector for Volvo XC60

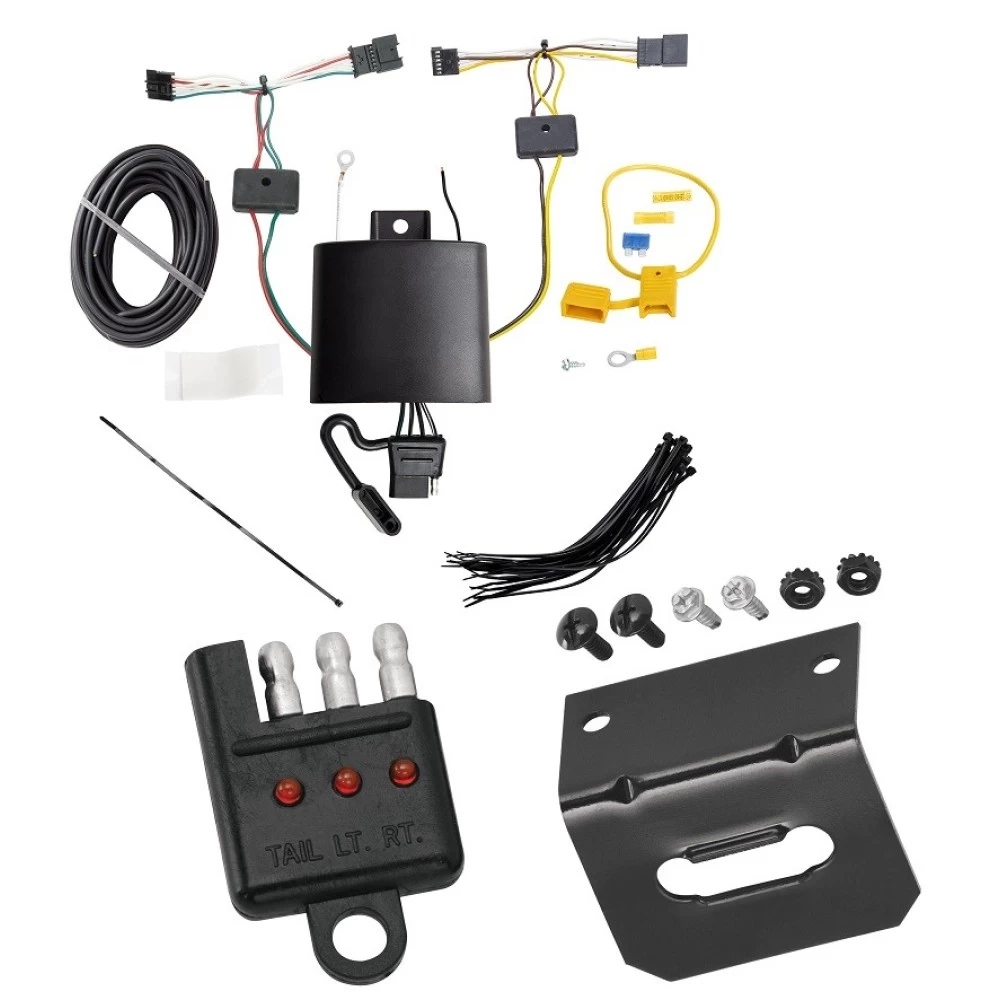

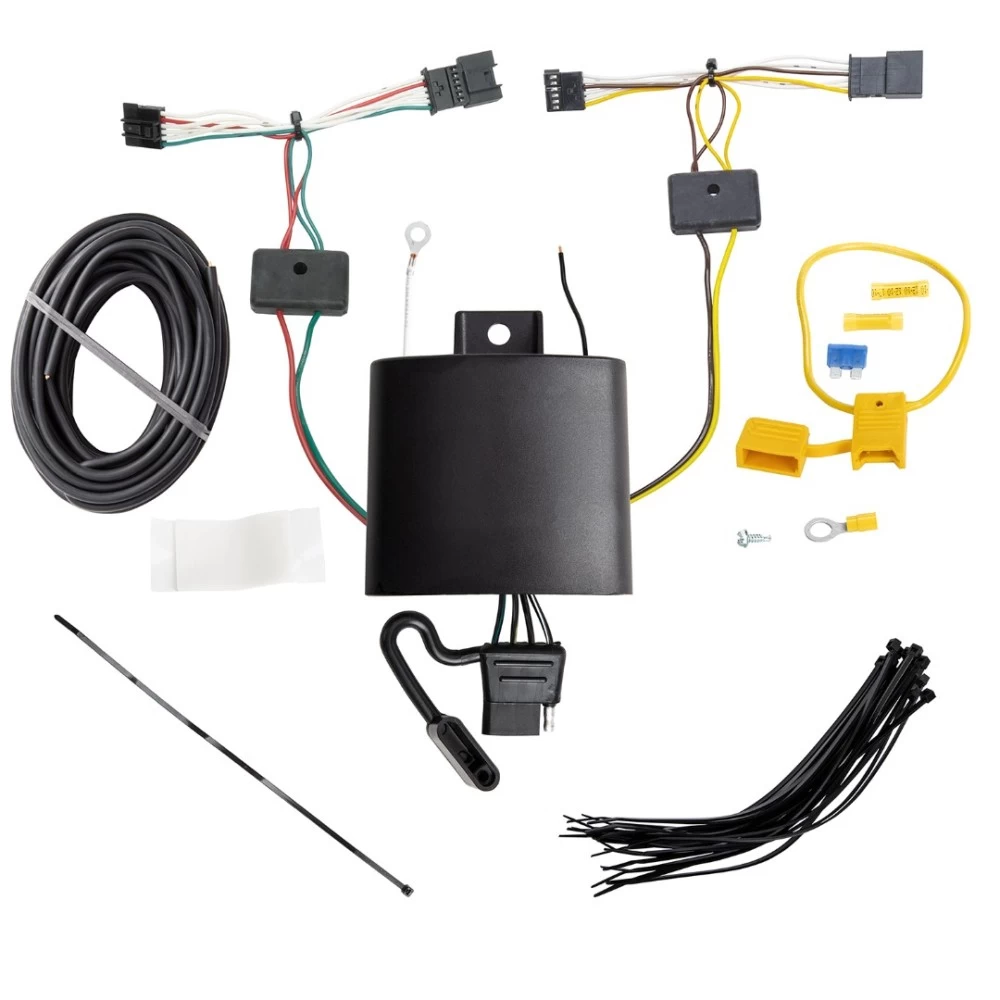

Part Numbers:

• 118773

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove Interior Panels:

• Open the tailgate and remove the cargo door on the floor.
• Carefully remove the floor trim panels and access panels on each side of the vehicle.
• Set aside all items removed, being careful not to damage parts.

2. Locate the Taillight Wiring Harness:

• On both the driver and passenger sides, locate the vehicle’s taillight wiring harness inside the access panel area.
• The taillight wiring harness has a connection point matching the ends of the T-One® T-Connector.
• Disconnect the harness carefully, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.

3. Connect the Driver-Side T-Connector:

• Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
• Lock the connectors into place, ensuring they are fully inserted and secure.

4. Route the Passenger-Side T-Connector:

• Route the connector containing the green wire down the threshold to the passenger side of the vehicle.
• Insert the T-One® Connector end with the green wire between the passenger-side taillight wiring connectors.

5. Ground the White Wire:

• Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
• Clean the area of dirt and rustproofing.
• Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Route the Power Wire:

• Locate the black 12-gauge power wire from the T-One® Connector box.
• Attach the provided black wire and route it along the vehicle’s exterior frame or follow existing wiring into the engine compartment up to the battery.

Warning: Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.

7. Connect to the Vehicle Battery:

• Disconnect the Negative (-) battery cable.
• Remove the fuse from the yellow fuse holder.
• Attach the ring terminal to the Positive (+) battery cable and secure it.
• Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

8. Reconnect the Battery and Test:

• Reconnect the Negative (-) battery cable.
• Insert the 15-amp fuse into the fuse holder.
• Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

9. Mount the Black Box Module:

• Locate a flat surface in an out-of-the-way place and mount the T-One® Connector’s black box module to prevent damage or rattling.

10. Secure the Wiring Harness:

- Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

- Replace both access panels, spare tire cover, cargo floor hatch, and cargo nets removed during installation.

12. Store the 4-Flat Connector:

- Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Warranty Information:

• Warranty Duration: This product is covered by a limited lifetime warranty.
• Coverage: The warranty covers defects in materials and workmanship under normal use.
• Warranty Instructions: For complete warranty instructions, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.
