Trailer Wiring Harness Kit For 14‑20 Acura MDX All Styles
Model: 118628*2014 - 2020 Acura, MDX, All Styles
Direct Plug & Play Wiring Kit
| Part Number | 118628 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 2014 2015 2016 2017 2018 2019 2020
$45 42 $68.39 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$68.39 $45 42
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118628*

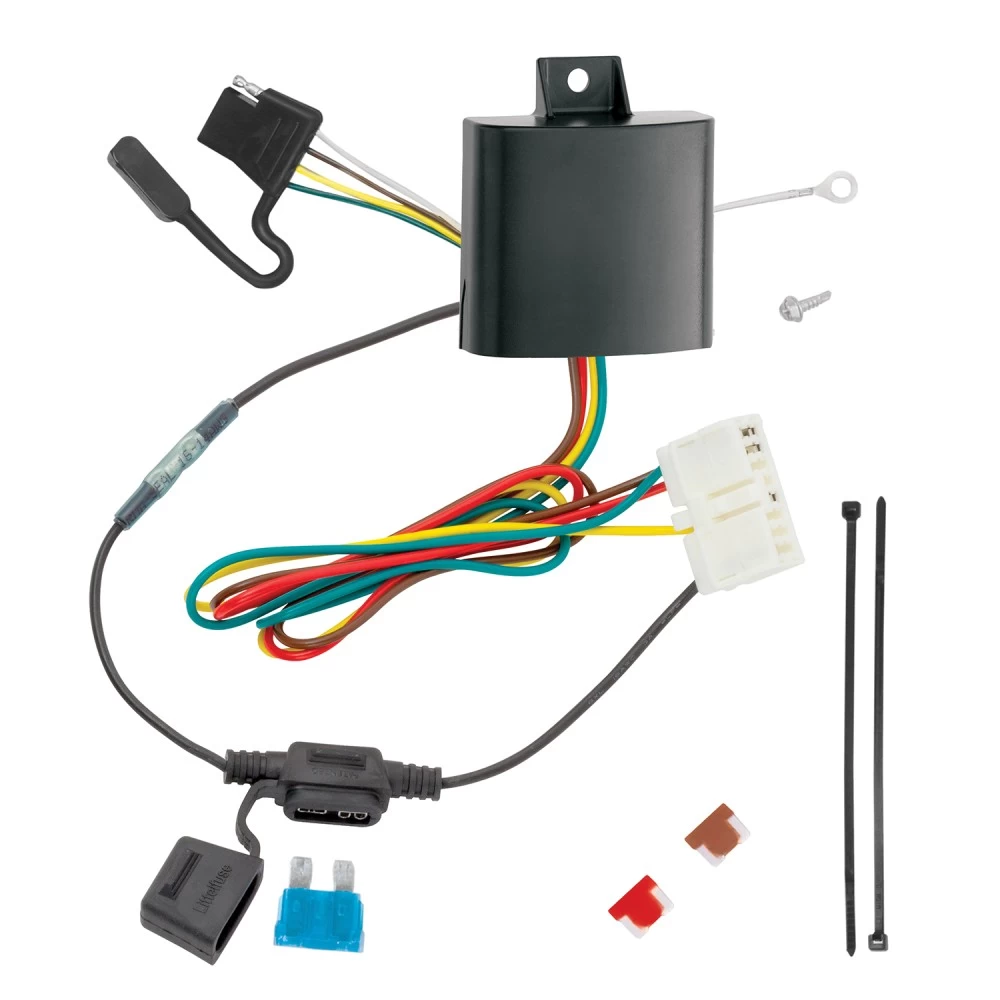

- Includes: T-One T-Connector Custom Harness
Compatibility Chart
2014 - 2020 Acura, MDX, All Styles
Direct Plug & Play Wiring Kit
| Part Number | 118628 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Wiring Harness Kit For 14-20 Acura MDX All Styles Install Notes
Installation Instructions for T-One® T-Connector for Acura MDX
Part Numbers:
- 118628
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove cargo nets and the cargo floor hatch to access the spare tire area.
- It may be helpful to fold the rear seats forward.
-
Access the Relay and Fuse Box:
- Open the cover to access the relays and fuses in the junction box.
-
Connect the T-Connector:
- Remove the fuse from the supplied fuse holder.
- Route the white T-One® T-Connector end up and behind the trim panel to the junction box area.
- Plug the T-One® T-Connector into the corresponding connection in the electric junction box.
Caution:
- Ensure all connector surfaces are clean and free of dirt.
- Be careful not to damage the locking tabs, and ensure all connectors are fully inserted with locking tabs in place.
-
Mount the Black Box Module:
- Mount the T-One® T-Connector's black box module below the rear threshold in the spare tire compartment.
- Choose a surface that is free of moisture and mounted high enough to avoid direct contact with water or liquid substances.
-
Install Fuses:
- Locate the fuse panel schematic inside the box cover.
- Insert the fuses into positions 2 and 11 as shown in the diagram.
- Install the 15-amp fuse into the fuse holder from Step 3.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector over to the jack storage area.
- Replace the black cargo liner and store the 4-flat wire in the jack compartment when not in use.
-
Reinstall Removed Components:
- Reinstall the threshold, storage covers, floor covering, and any other items removed during installation.
- Be careful not to pinch or cut the wires.
Safety Notes:
- All connections must be complete for the T-One® T-Connector to function properly.
- Test and verify the installation with a test light or trailer once installed.
- Overloading circuits can cause fires. Do not exceed the product's stated ratings.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Acura MDX
Part Numbers:
- 118628
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove cargo nets and the cargo floor hatch to access the spare tire area.
- It may be helpful to fold the rear seats forward.
-
Access the Relay and Fuse Box:
- Open the cover to access the relays and fuses in the junction box.
-
Connect the T-Connector:
- Remove the fuse from the supplied fuse holder.
- Route the white T-One® T-Connector end up and behind the trim panel to the junction box area.
- Plug the T-One® T-Connector into the corresponding connection in the electric junction box.
Caution:
- Ensure all connector surfaces are clean and free of dirt.
- Be careful not to damage the locking tabs, and ensure all connectors are fully inserted with locking tabs in place.
-
Mount the Black Box Module:
- Mount the T-One® T-Connector's black box module below the rear threshold in the spare tire compartment.
- Choose a surface that is free of moisture and mounted high enough to avoid direct contact with water or liquid substances.
-
Install Fuses:
- Locate the fuse panel schematic inside the box cover.
- Insert the fuses into positions 2 and 11 as shown in the diagram.
- Install the 15-amp fuse into the fuse holder from Step 3.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector over to the jack storage area.
- Replace the black cargo liner and store the 4-flat wire in the jack compartment when not in use.
-
Reinstall Removed Components:
- Reinstall the threshold, storage covers, floor covering, and any other items removed during installation.
- Be careful not to pinch or cut the wires.
Safety Notes:
- All connections must be complete for the T-One® T-Connector to function properly.
- Test and verify the installation with a test light or trailer once installed.
- Overloading circuits can cause fires. Do not exceed the product's stated ratings.
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Store these instructions for future reference.
