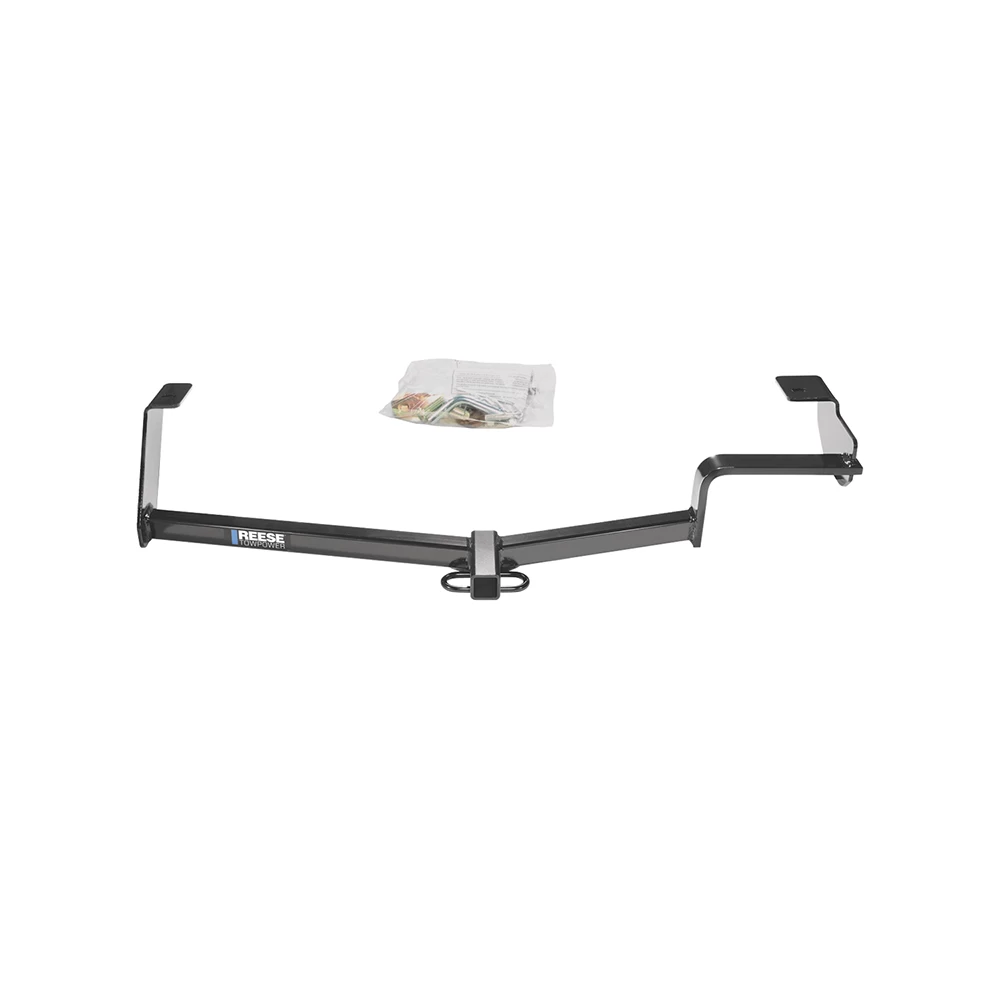

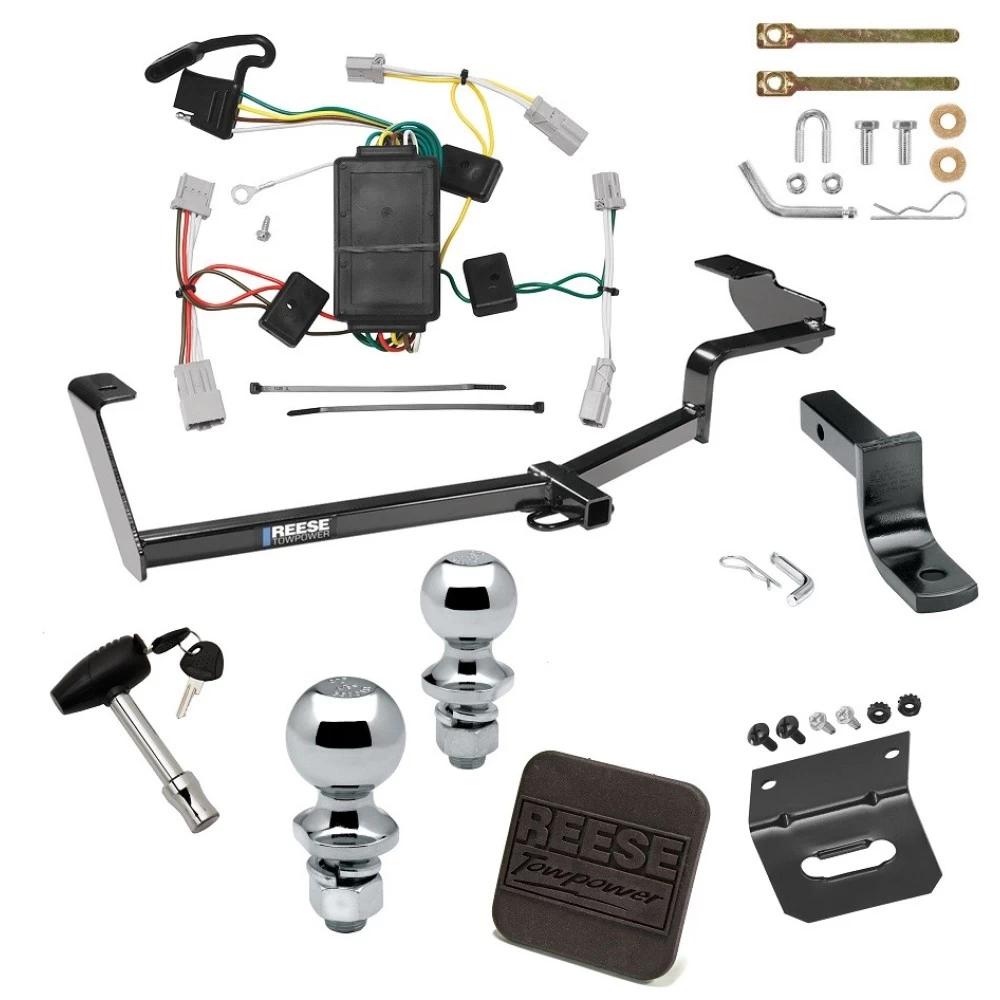

Installation Instructions for Honda Civic (Including SI & Hybrid Models)

Part Numbers:

• 77139
• 24763
• 60822

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 9/16", 10mm
• Drill Bits: 1/2” (Required for some models)

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.

2. Remove Heat Shield (Passenger Side):

   • Detach the four (4) bolts securing the exhaust heat shield to the vehicle. Retain the bolts for reinstallation.

3. Remove Plastic Shroud (Driver Side):

   • Remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain for reinstallation.

4. Position Hitch:

   • Raise the hitch into position with the frame bracket flanges positioned:
     • Between the frame rail and plastic shroud on the driver’s side.
     • Between the frame rail and exhaust heat shield on the passenger’s side.
   • Ensure tailpipe tangs are above the hitch bar. For some vehicles, remove the chrome decorative ring from the tailpipe to slide the muffler toward the vehicle center for better wrench access.

5. Install Handle Nuts and Fasteners:

   • Insert 1/2”-13 handle nuts through the large holes in the frame rails.
   • Install the provided fasteners as shown in the instructions.

6. Install U-Bolt:

   • Insert the 3/8”-16 U-bolt through the tow hook and mount it to the hitch using the provided fasteners.

7. Tighten Fasteners:

   • Torque all 1/2”-13 fasteners to 50 Lb.-Ft. (68 N*M).
   • Torque all 3/8”-16 fasteners to 20 Lb.-Ft. (27 N*M).

8. Reinstall Components:

   • Reinstall the exhaust heat shield over the hitch.
   • Reattach the exhaust to its hanger.
   • Replace the plastic rivet and nut securing the plastic shroud on the driver’s side.
   • Trim the heat shield if required to fit around the hitch.
   • Reinstall the chrome decorative ring to the tailpipe, if removed.

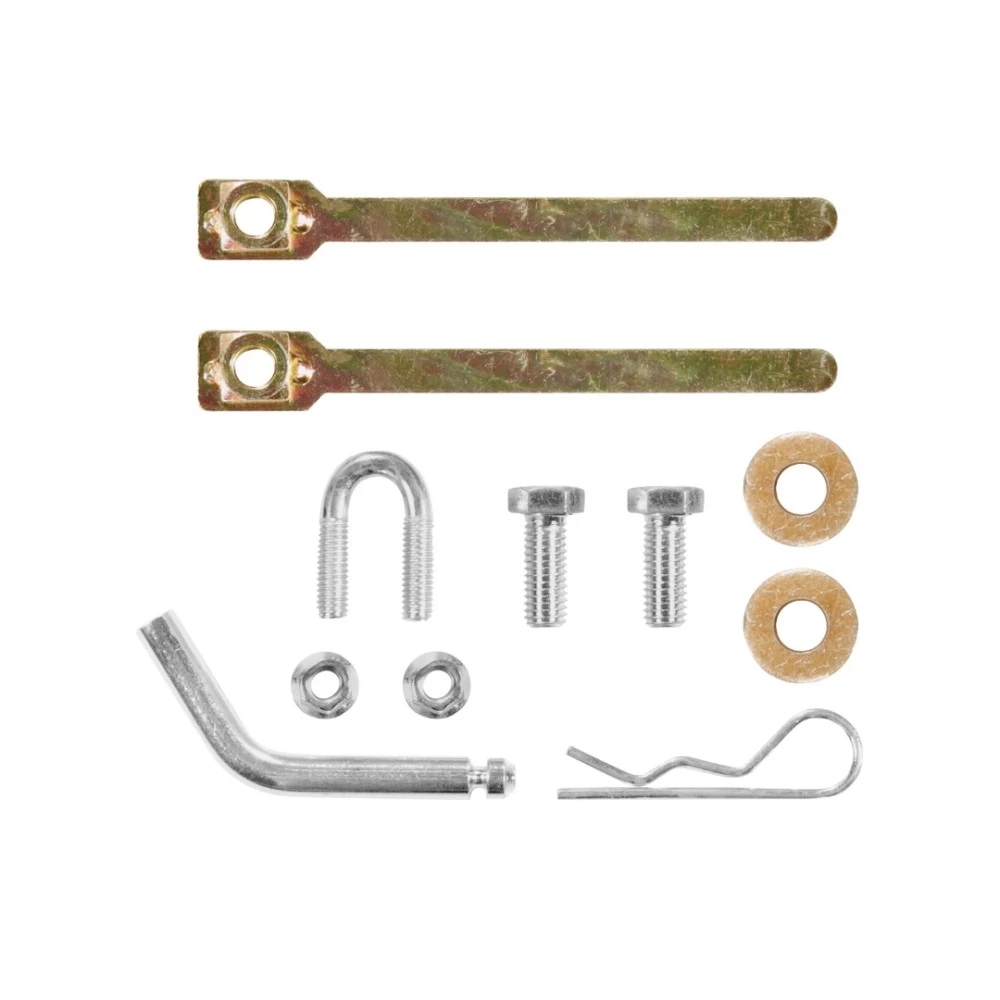

Hardware List:

• (2) 1/2”-13 GR5 Hex Bolts
• (1) 3/8”-16 GR2 U-Bolt
• (2) 1/2” Conical Toothed Washers
• (2) 3/8”-16 Flanged Lock Nuts
• (2) 1/2”-13 Handle Nuts

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593

Installation Instructions for Honda Civic (Including SI & Hybrid Models)

Part Numbers:

• 77139
• 24763
• 60822

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 9/16", 10mm
• Drill Bits: 1/2” (Required for some models)

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.

2. Remove Heat Shield (Passenger Side):

   • Detach the four (4) bolts securing the exhaust heat shield to the vehicle. Retain the bolts for reinstallation.

3. Remove Plastic Shroud (Driver Side):

   • Remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain for reinstallation.

4. Position Hitch:

   • Raise the hitch into position with the frame bracket flanges positioned:
     • Between the frame rail and plastic shroud on the driver’s side.
     • Between the frame rail and exhaust heat shield on the passenger’s side.
   • Ensure tailpipe tangs are above the hitch bar. For some vehicles, remove the chrome decorative ring from the tailpipe to slide the muffler toward the vehicle center for better wrench access.

5. Install Handle Nuts and Fasteners:

   • Insert 1/2”-13 handle nuts through the large holes in the frame rails.
   • Install the provided fasteners as shown in the instructions.

6. Install U-Bolt:

   • Insert the 3/8”-16 U-bolt through the tow hook and mount it to the hitch using the provided fasteners.

7. Tighten Fasteners:

   • Torque all 1/2”-13 fasteners to 50 Lb.-Ft. (68 N*M).
   • Torque all 3/8”-16 fasteners to 20 Lb.-Ft. (27 N*M).

8. Reinstall Components:

   • Reinstall the exhaust heat shield over the hitch.
   • Reattach the exhaust to its hanger.
   • Replace the plastic rivet and nut securing the plastic shroud on the driver’s side.
   • Trim the heat shield if required to fit around the hitch.
   • Reinstall the chrome decorative ring to the tailpipe, if removed.

Hardware List:

• (2) 1/2”-13 GR5 Hex Bolts
• (1) 3/8”-16 GR2 U-Bolt
• (2) 1/2” Conical Toothed Washers
• (2) 3/8”-16 Flanged Lock Nuts
• (2) 1/2”-13 Handle Nuts

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety specifications of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Do not exceed the towing vehicle’s recommended capacities.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24763 Rev. A 6/25/2014

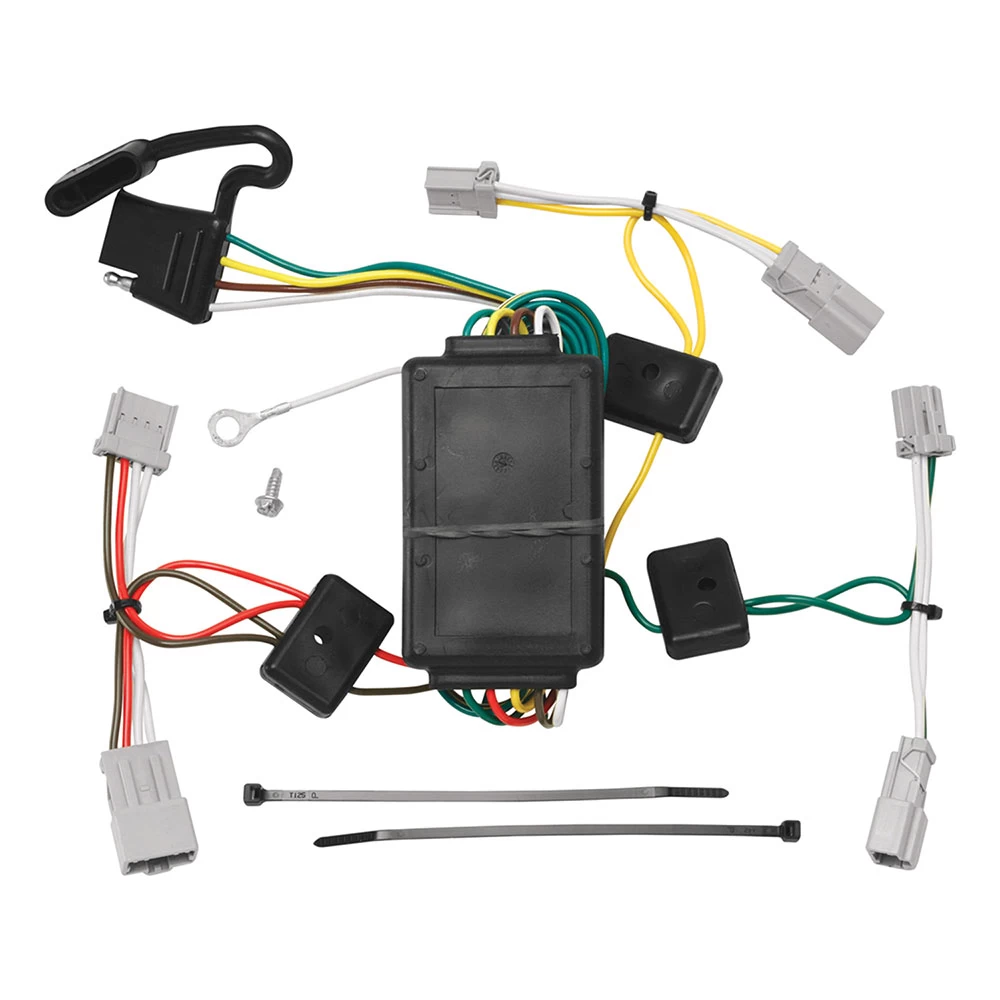

Installation Instructions for T-Connector Adapter for Honda Fit, Honda Civic 4 Door, Honda Accord Sedan and Mazda 3

Part Numbers:

• 118420

Tools Required:

• Phillips head screwdriver
• Trim panel remover
• Drill with 3/32” drill bit
• 1/4” socket

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Open the trunk or hatch and locate the vehicle’s wiring inside the rear cargo area.
   • Remove the plastic threshold cover, side access panels, carpet panels, and cargo trays as needed.
   • Locate the connection points matching the ends of the T-Connector adapter on the back of each taillight housing.
   • Separate the connectors carefully, ensuring no damage to the locking tabs. Clean all surfaces to remove dirt.

   Note for 2007-2008 Honda Fit:

   • Use the vehicle’s blue 3-pin housing, NOT the green 3-pin housing.

2. Connect the Driver’s Side T-Connector:

   • Attach the T-Connector ends containing the yellow, brown, and red wires to the driver’s side taillight wiring.
   • Ensure connectors are fully inserted and the locking tabs are secure.

3. Route to the Passenger Side:

   • Route the T-Connector end containing the green wire below the threshold cover to the passenger’s side taillight housing.
   • Repeat step 2 for the passenger’s side using the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • If needed, drill a 3/32” hole and secure the white wire using the provided eyelet and screw. Avoid drilling into the vehicle floor or bed. Clean the grounding surface to remove dirt and rustproofing.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or personal injury.
   • Do not drill into exposed surfaces.

5. Reinstall Trim and Panels:

   • Replace all removed plastic trim panels, the threshold, storage covers, floor covering, and other items.
   • Be careful not to pinch or cut the wires during reassembly.

6. Test the Installation:

   • Verify all connections are complete for proper functionality.
   • Use a test light or trailer to confirm the T-Connector is working properly.

7. Store the 4-Flat Connector:

   • When not in use, store the 4-flat connector in the trunk or hatch area.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5 amps)

Safety Notes:

• Overloading the circuit can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual for additional guidance.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Applicable Models:

• Honda Fit (2007-2008)
• Honda Civic (4-Door Sedan)
• Honda Accord (Sedan)
• Mazda 3

Part Numbers:

• 118420

Tools Required:

• Phillips Head Screwdriver
• Trim Panel Remover
• Drill with 3/32” Drill Bit
• 1/4” Socket

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Open the trunk or hatch and remove any plastic threshold covers, side access panels, carpet panels, or cargo trays as needed.
   • Locate the vehicle’s taillight wiring connectors behind the trim panels on both the driver’s and passenger’s sides.
   • Carefully disconnect the vehicle’s wiring connectors, ensuring not to damage the locking tabs.
   • Clean the connectors to remove dirt or debris.

   Note for 2007-2008 Honda Fit:

   • Use the blue 3-pin housing for the connection, NOT the green 3-pin housing.

2. Install the Driver’s Side T-Connector:

   • Connect the T-Connector with the yellow, brown, and red wires to the driver’s side taillight wiring harness.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

3. Route the T-Connector to the Passenger Side:

   • Route the T-Connector end with the green wire underneath the threshold cover to the passenger’s side.
   • Repeat Step 2 on the passenger’s side using the T-Connector with the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connection, such as an existing ground stud.
   • If a ground stud is unavailable, drill a 3/32” hole in a suitable metal surface.
   • Secure the white wire using the provided eyelet and screw.

   Caution:

   • Avoid drilling into the vehicle’s floor, bed, or any surface with components behind it.
   • Verify the area before drilling to prevent damage or injury.

5. Reinstall the Trim Panels:

   • Replace the plastic trim panels, threshold, cargo trays, storage covers, and other components removed earlier.
   • Ensure the wiring is not pinched or cut during reassembly.

6. Test the Installation:

   • Use a test light or trailer to confirm that the T-Connector is working properly.
   • Verify the functionality of the following:
     • Left Turn Signal
     • Right Turn Signal
     • Brake Lights
     • Running Lights

7. Store the 4-Flat Connector:

   • When not in use, store the 4-flat connector in the vehicle’s trunk or cargo area.

Specifications:

• Max. Stop/Turn Light: 1 per side (2.1 amps)
• Max. Tail Lights: 5 amps

Safety Notes:

• Avoid exceeding the towing manufacturer’s rating or the unit’s specifications to prevent electrical failure or fire.
• Inspect the wiring periodically for wear or damage.

Warnings:

• Follow all warnings and installation instructions included with the product.
• Ensure all wiring is secured to avoid damage from sharp edges, heat, or moving parts.

Attention: This is a summary of the installation procedure. For complete instructions, including diagrams and detailed steps, download the full installation PDF.

Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
