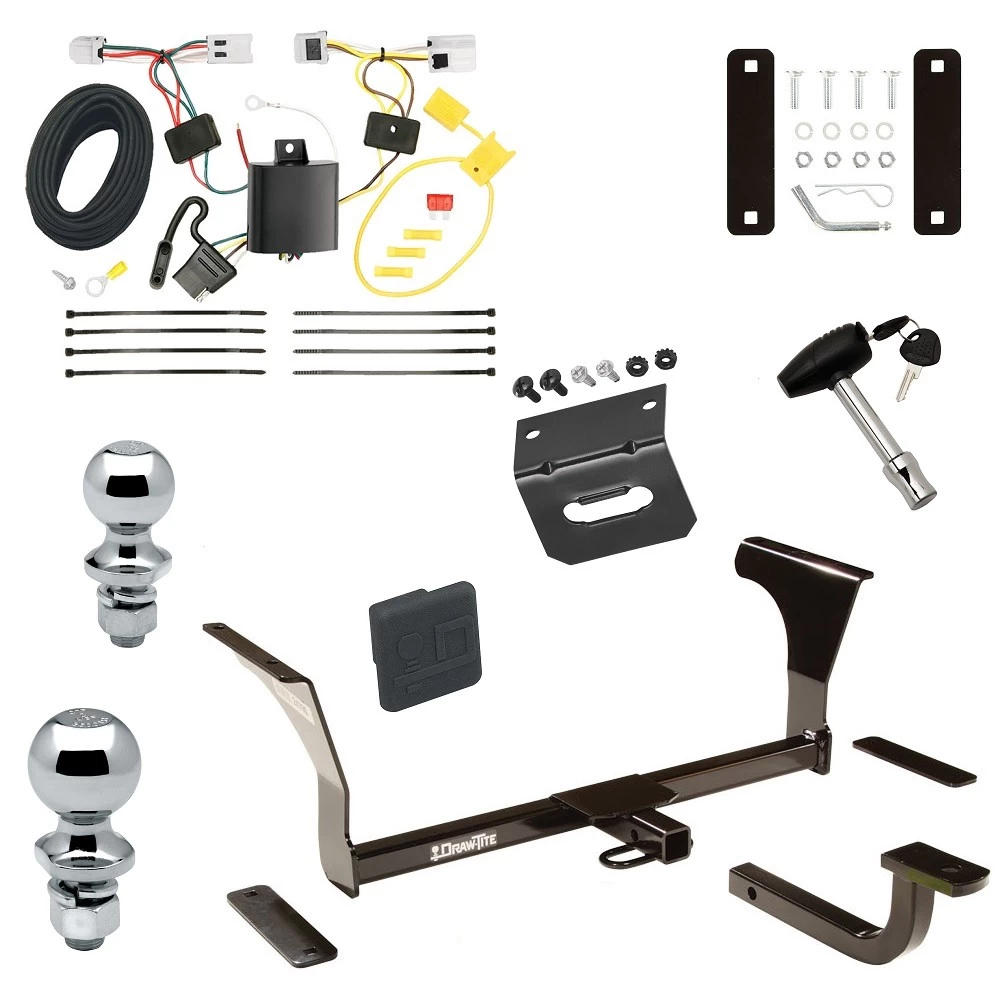

Installation Instructions for Nissan Altima and Nissan Maxima

Part Numbers:

• 60873
• 24796
• 77168

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 11/16”, 5/8”, 16mm
• Drill Bits: 7/16”
• Sealant

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Prepare Trunk Area:

   • Remove carpeting, fiberboard, and storage bin tray (if present) from the trunk.

2. Remove Ground Wire:

   • Detach the ground wire from the driver’s side muffler.

3. Disconnect Exhaust:

   • For 2007-2011 Models:
     • Disconnect the exhaust at the flange on both sides and retain the fasteners.
   • For 2012 and Later Models:
     • Disconnect the exhaust at the lap joint on both sides and retain the fasteners.

4. Expose Frame Area:

   • Push the exhaust toward the rear of the vehicle and off the rubber isolator.
   • Gently move the heat shield toward the frame rail to expose the area between the frame rail and wheel well.

5. Position Hitch:

   • Raise the hitch into position between the frame rails and spare tire wheel well.
   • Align the rear edge of the hitch side brackets flush with the bulkhead.
   • Verify the hitch is properly positioned.

6. Mark and Drill Holes:

   • Using the hitch as a template, mark and center punch two (2) holes on both sides.
   • Lower the hitch and drill 7/16” holes through the trunk pan at the marked locations. Adjust alignment if needed, and remove burrs.

7. Install Plates and Bolts:

   • Position the provided plate over the drilled holes inside the trunk.
   • Insert carriage bolts through the plate and trunk pan. Ensure the installation is above the carpet.

8. Attach Hitch:

   • Raise the hitch into position, align it over the carriage bolts, and secure with lock washers and hex nuts.

9. Reattach Components:

   • Gently bend the heat shield back into place.
   • Reattach the exhaust to the rubber isolator and the flange/lap joint.
   • Reinstall the ground wire to the muffler.

10. Seal Bolts:

    • Apply sealant to the bolt attachments inside the spare tire well to prevent water and exhaust fumes from entering the vehicle.

11. Reinstall Trunk Components:

    • Replace the carpeting, fiberboard, and storage bin tray (if present).

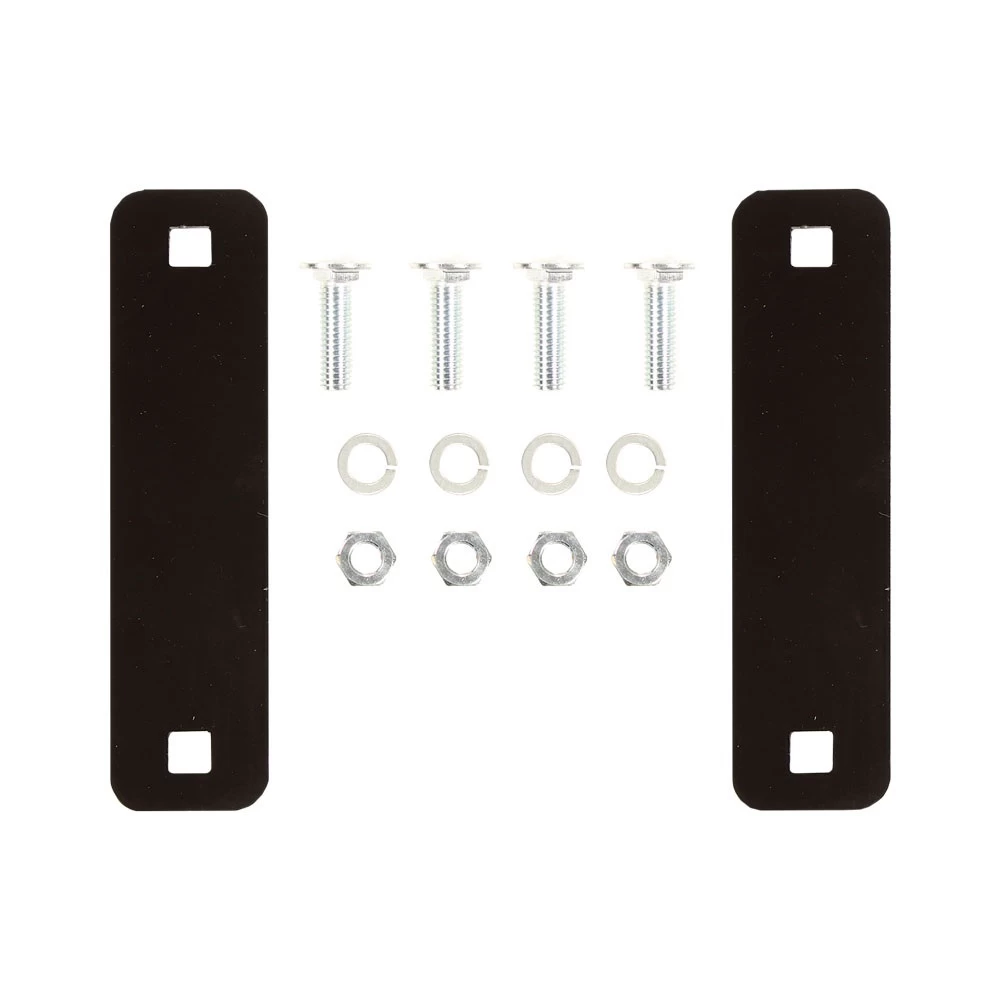

Hardware List:

• (4) Carriage Bolts: 7/16”-14 x 1.50” GR5
• (4) Nuts: 7/16”-14
• (4) Lock Washers

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions

Part Numbers:

• 60873
• 24796
• 77168

Wiring Access Location:

• Hyundai Elantra and Kia Rio 5: PC3, PC4
• Hyundai Accent: PC1, PC2

Tools Required:

• Wrenches: 11/16”, 5/8”, 16mm
• Drill Bits: 7/16”
• Sealant

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Prepare Trunk Area:

   • Remove carpeting, fiberboard, and storage bin tray (if present) from the trunk.

2. Remove Ground Wire:

   • Detach the ground wire from the driver’s side muffler.

3. Disconnect Exhaust:

   • For 2007-2011 Models:
     • Disconnect the exhaust at the flange on both sides and retain the fasteners.
   • For 2012 and Later Models:
     • Disconnect the exhaust at the lap joint on both sides and retain the fasteners.

4. Expose Frame Area:

   • Push the exhaust toward the rear of the vehicle and off the rubber isolator.
   • Gently move the heat shield toward the frame rail to expose the area between the frame rail and wheel well.

5. Position Hitch:

   • Raise the hitch into position between the frame rails and spare tire wheel well.
   • Align the rear edge of the hitch side brackets flush with the bulkhead.
   • Verify the hitch is properly positioned.

6. Mark and Drill Holes:

   • Using the hitch as a template, mark and center punch two (2) holes on both sides.
   • Lower the hitch and drill 7/16” holes through the trunk pan at the marked locations. Adjust alignment if needed, and remove burrs.

7. Install Plates and Bolts:

   • Position the provided plate over the drilled holes inside the trunk.
   • Insert carriage bolts through the plate and trunk pan. Ensure the installation is above the carpet.

8. Attach Hitch:

   • Raise the hitch into position, align it over the carriage bolts, and secure with lock washers and hex nuts.

9. Reattach Components:

   • Gently bend the heat shield back into place.
   • Reattach the exhaust to the rubber isolator and the flange/lap joint.
   • Reinstall the ground wire to the muffler.

10. Seal Bolts:

    • Apply sealant to the bolt attachments inside the spare tire well to prevent water and exhaust fumes from entering the vehicle.

11. Reinstall Trunk Components:

    • Replace the carpeting, fiberboard, and storage bin tray (if present).

Hardware List:

• (4) Carriage Bolts: 7/16”-14 x 1.50” GR5
• (4) Nuts: 7/16”-14
• (4) Lock Washers

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
• Check the hitch frequently to ensure all fasteners remain tight.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

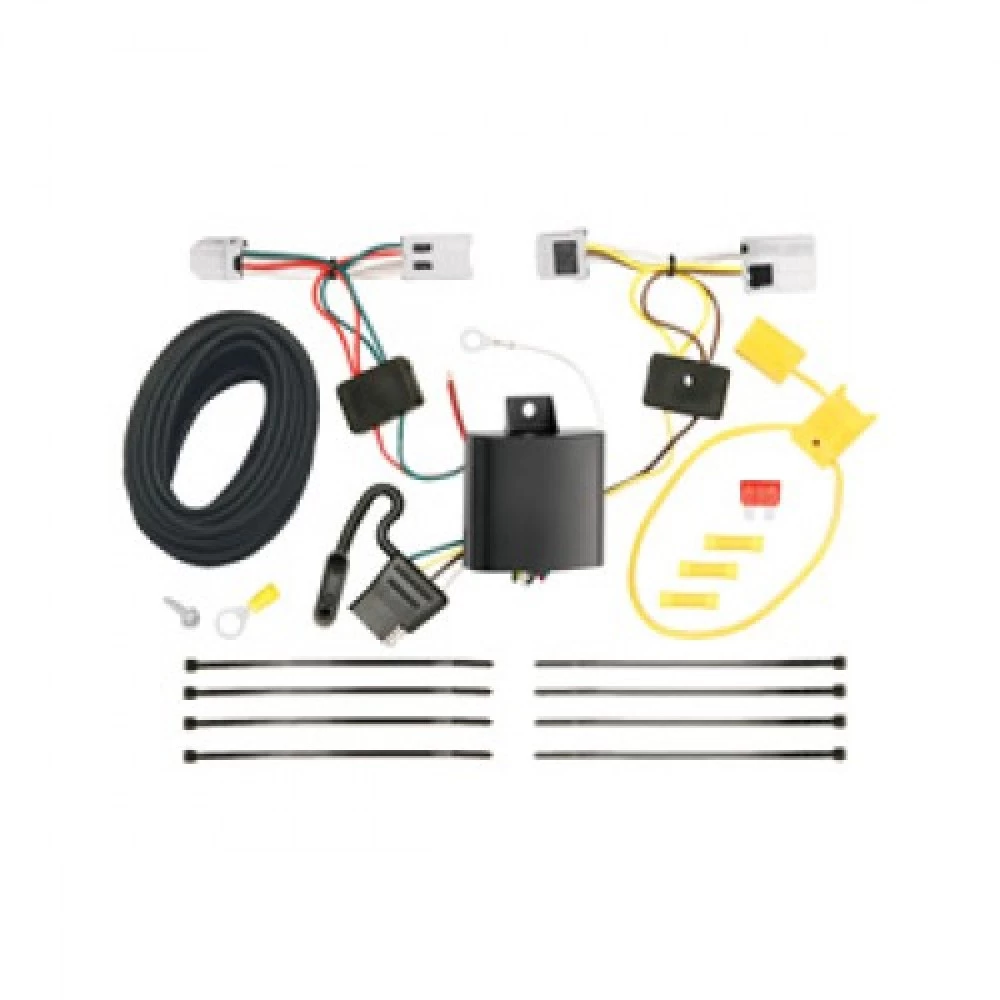

Installation Instructions for T-Connector Adapterfor Nissan Altima and Nissan Sentra

Part Numbers:

• 118470

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the rear threshold plate temporarily.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver and passenger sides of the vehicle, locate the taillight wiring harness.
   • Disconnect the connector carefully, ensuring not to break the locking tabs.
   • Clean all connector surfaces to remove dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors on the driver’s side.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold.
   • Repeat step 3 on the passenger side using the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
   • Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Mount the Black Box:

   • In the driver’s side storage area, clean a flat surface using a mixture of rubbing alcohol and water.
   • Mount the T-Connector’s black box using the provided double-sided tape.

7. Route the 4-Flat Connector:

   • Route the 4-flat connector from below the threshold plate into the trunk.
   • Store the connector in the trunk when not in use.

8. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame to the vehicle battery, avoiding areas that may pinch, cut, or melt the wire.

   Warning:

   • If routing the wire along the exterior of the vehicle, avoid hot pipes, heat shields, and the fuel tank.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the ring terminal of the yellow fuse holder to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.

10. Reassemble the Vehicle:

    • Reinstall the felt trunk liner, threshold plate, and other items removed during installation, ensuring no wires are pinched or cut.

11. Test the Installation:

    • Test and verify the T-Connector functionality with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional information.

Installation Instructions for T-Connector Adapter for Nissan Altima and Nissan Sentra

Part Numbers:

• 118470

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the rear threshold plate temporarily.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver and passenger sides of the vehicle, locate the taillight wiring harness.
   • Disconnect the connector carefully, ensuring not to break the locking tabs.
   • Clean all connector surfaces to remove dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors on the driver’s side.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold.
   • Repeat step 3 on the passenger side using the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
   • Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Mount the Black Box:

   • In the driver’s side storage area, clean a flat surface using a mixture of rubbing alcohol and water.
   • Mount the T-Connector’s black box using the provided double-sided tape.

7. Route the 4-Flat Connector:

   • Route the 4-flat connector from below the threshold plate into the trunk.
   • Store the connector in the trunk when not in use.

8. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame to the vehicle battery, avoiding areas that may pinch, cut, or melt the wire.

   Warning:

   • If routing the wire along the exterior of the vehicle, avoid hot pipes, heat shields, and the fuel tank.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the ring terminal of the yellow fuse holder to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.

10. Reassemble the Vehicle:

    • Reinstall the felt trunk liner, threshold plate, and other items removed during installation, ensuring no wires are pinched or cut.

11. Test the Installation:

    • Test and verify the T-Connector functionality with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional information.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com
TrailerJacks.com - Trailer Jacks, Hitches, Auto Parts & Accessories
www.trailerjacks.com or calling 877-869-6690.

Warranty Information: For complete warranty instructions, please download the full installation PDF.
