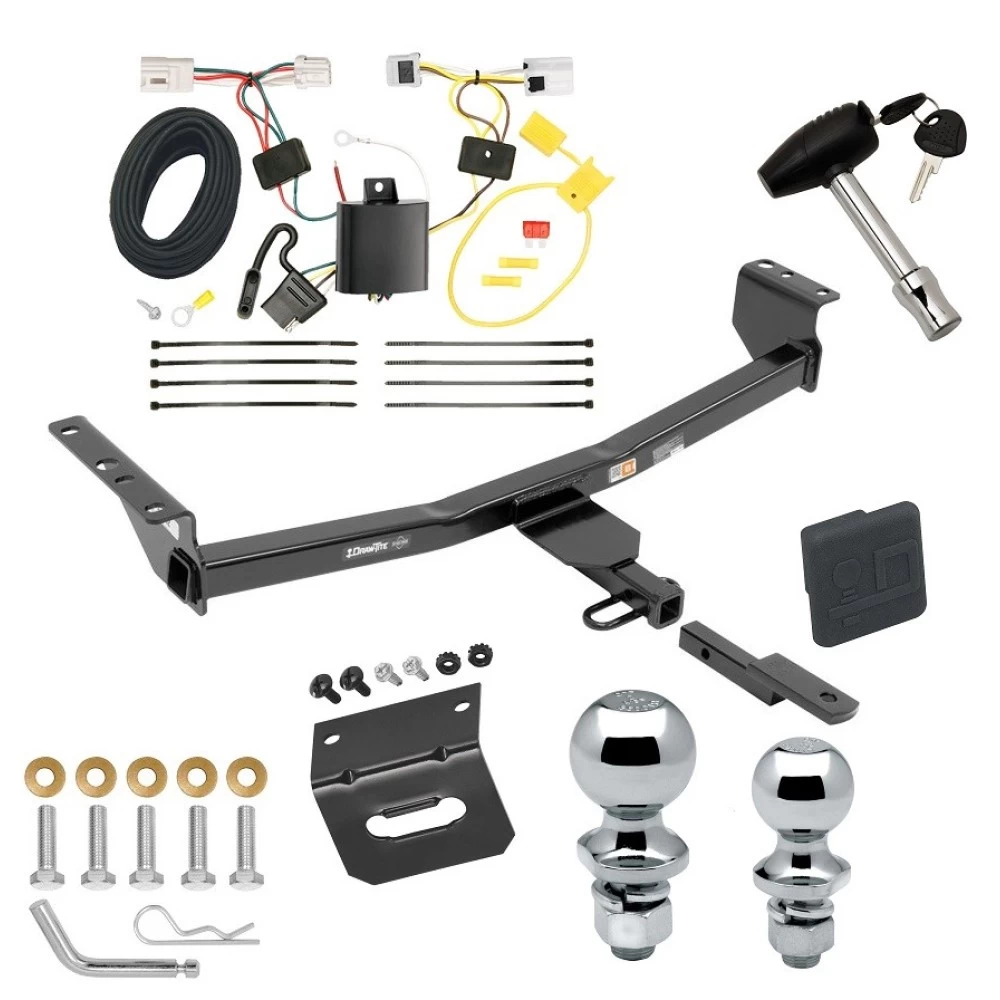

Installation Instructions for Nissan Rogue and Nissan Rogue Select (Excluding Krōm Models)

Part Numbers:

• 36542
• 90236
• 06162

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 18mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Factory Tow Hook:

   • Remove the factory tow hook and fasteners from the vehicle frame.
   • Return them to the vehicle owner.

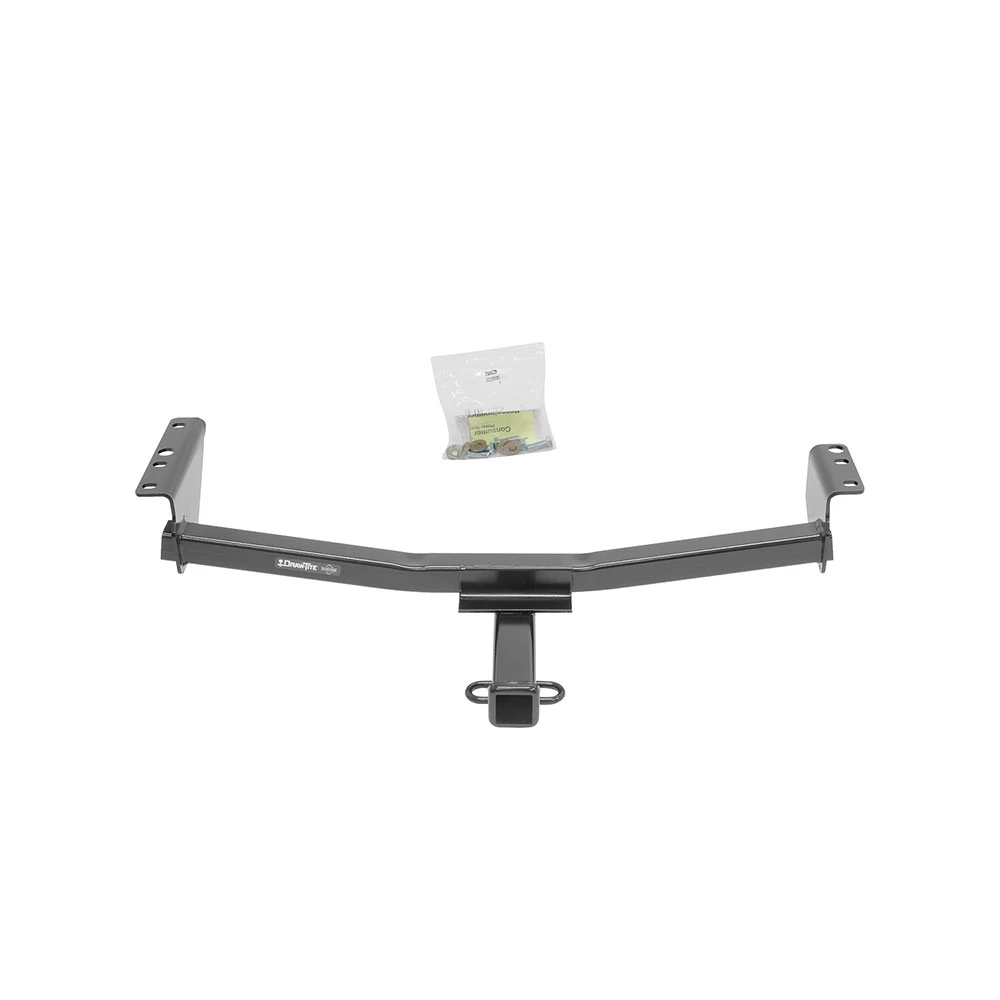

2. Position the Hitch:

   • Raise the hitch into position on the driver side and loosely install the center fastener:
     • Insert the M12 hex bolt with a conical washer through the elongated hole in the hitch and into the frame.
   • Repeat this process on the passenger side.

3. Install Remaining Fasteners:

   • Center the hitch on the vehicle and install the remaining fasteners as shown in the diagram.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 x 1.25 CL8.8 fasteners to 75 lb-ft (102 N*m).

Torque Specifications:

• M12 x 1.25 CL8.8 bolts: 75 lb-ft (102 N*m)

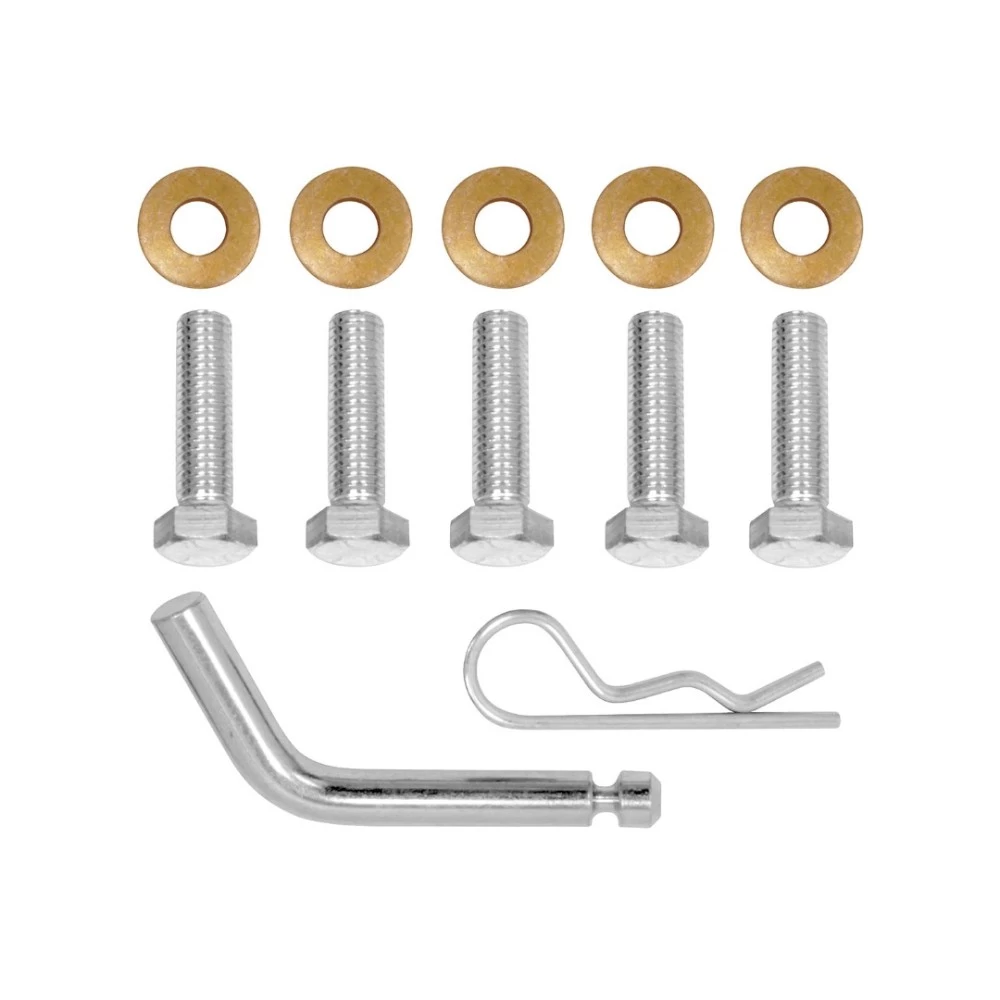

Hardware List:

• (5) Hex Bolt, M12 x 1.25 x 35mm CL8.8
• (5) Conical Washer, 1/2"

Additional Notes for Appearance Panels:

• For vehicles with plastic appearance panels covering the driver and passenger side frame rails:
  • Remove the panels and their fasteners.
  • Return the panels to the vehicle owner.

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,590 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Drawbar Kit: 36053 (sold separately)
• Fastener Kit: 36542F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Nissan Rogue and Nissan Rogue Select (Excluding Krōm Models)

Part Numbers:

• 36542
• 90236
• 06162

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 18mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Factory Tow Hook:

   • Remove the factory tow hook and fasteners from the vehicle frame.
   • Return them to the vehicle owner.

2. Position the Hitch:

   • Raise the hitch into position on the driver side and loosely install the center fastener:
     • Insert the M12 hex bolt with a conical washer through the elongated hole in the hitch and into the frame.
   • Repeat this process on the passenger side.

3. Install Remaining Fasteners:

   • Center the hitch on the vehicle and install the remaining fasteners as shown in the diagram.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 x 1.25 CL8.8 fasteners to 75 lb-ft (102 N*m).

Torque Specifications:

• M12 x 1.25 CL8.8 bolts: 75 lb-ft (102 N*m)

Hardware List:

• (5) Hex Bolt, M12 x 1.25 x 35mm CL8.8
• (5) Conical Washer, 1/2"

Additional Notes for Appearance Panels:

• For vehicles with plastic appearance panels covering the driver and passenger side frame rails:
  • Remove the panels and their fasteners.
  • Return the panels to the vehicle owner.

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,590 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Drawbar Kit: 36053 (sold separately)
• Fastener Kit: 36542F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

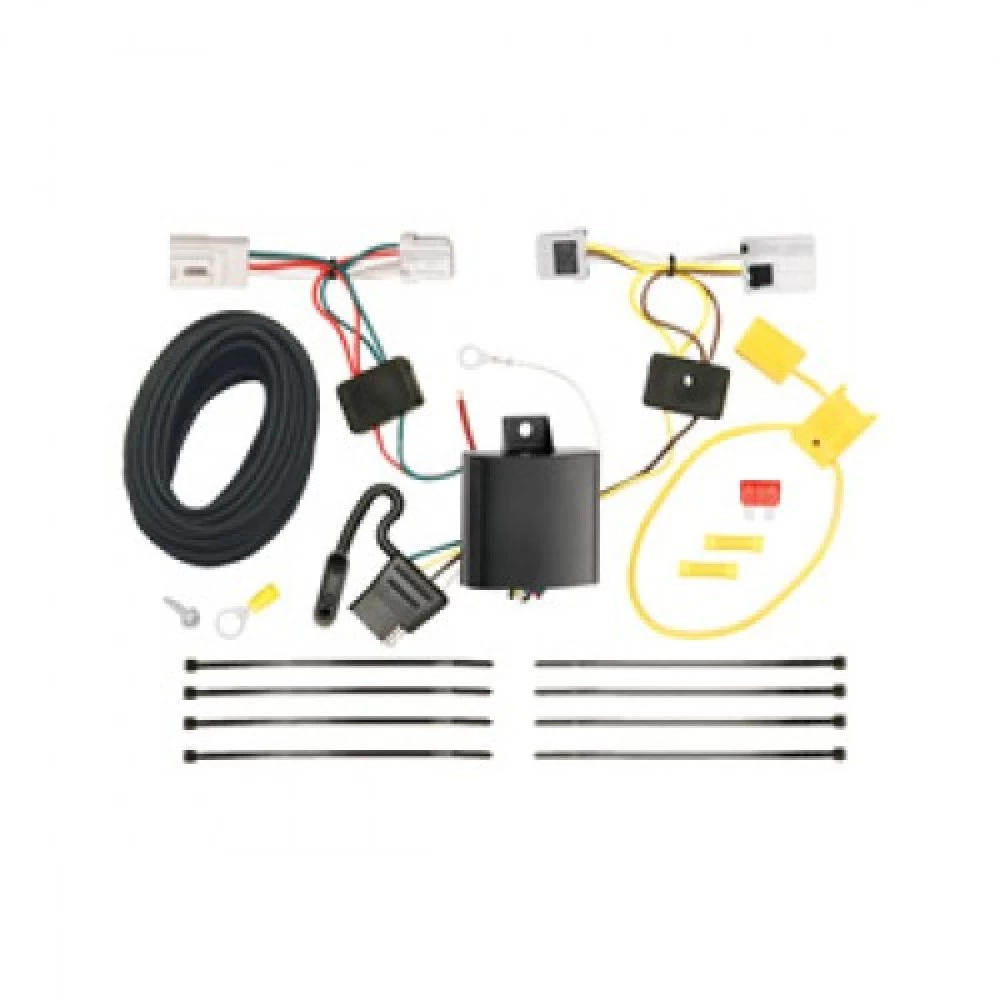

Installation Instructions for T-Connector Adapter for Nissan Rogue and Infiniti G35

Part Numbers:

• 118480

Tools Required:

• Drill (3/32” Drill Bit)
• Philips Head Screwdriver
• Test Probe
• Trim Panel Puller
• Wire Crimpers
• Wire Cutters

Step-by-Step Instructions:

Nissan Rogue:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove the rear threshold plate, storage covers, and floor covering.
   • Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle. Carefully set aside all items removed.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
   • Disconnect the connectors, ensuring no damage to the locking tabs. Clean all connector surfaces of dirt.

3. Install the Driver-Side T-Connector:

   • Plug the T-Connector end with the yellow wire between the driver’s side taillight wiring connectors.
   • Lock the connectors into place, ensuring the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat Step 3 using the green wire for the passenger-side taillight connectors.

Infiniti G35:

1. Access the Trunk Area:

   • Open the trunk.
   • Temporarily remove the rear threshold plate and partially remove the felt trunk liner behind the taillights.

2. Install the T-Connector:

   • Follow Steps 2-4 from the Nissan Rogue instructions for both the driver and passenger sides.

All Vehicles:

1. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember. Avoid drilling into the vehicle floor or bed.
   • Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.

2. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame to the vehicle battery.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.

3. Connect to the Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.

4. Mount the Black Box:

   • Find a flat surface near the driver’s side taillight to mount the T-Connector black box.
   • Secure it with the provided double-sided tape and cable ties.

5. Reassemble the Vehicle:

   • Replace all trim panels, the threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched or damaged.

6. Test the Installation:

   • Test and verify the T-Connector functionality with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or unit specifications.
• Store the 4-flat connector in the rear cargo area when not in use.

Manufacturer Notes:

• Follow all warnings and instructions carefully.
• Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for T-Connector Adapter for Vehicle

Part Numbers:

• 118480

Tools Required:

• Drill (3/32” Drill Bit)
• Philips Head Screwdriver
• Test Probe
• Trim Panel Puller
• Wire Crimpers
• Wire Cutters

Step-by-Step Instructions:

Vehicle 1: Nissan Rogue

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove the rear threshold plate, storage covers, and floor covering.
   • Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle. Carefully set aside all items removed.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
   • Disconnect the connectors, ensuring no damage to the locking tabs. Clean all connector surfaces of dirt.

3. Install the Driver-Side T-Connector:

   • Plug the T-Connector end with the yellow wire between the driver’s side taillight wiring connectors.
   • Lock the connectors into place, ensuring the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat Step 3 using the green wire for the passenger-side taillight connectors.

Vehicle 2: Infiniti G35

1. Access the Trunk Area:

   • Open the trunk.
   • Temporarily remove the rear threshold plate and partially remove the felt trunk liner behind the taillights.

2. Install the T-Connector:

   • Follow Steps 2-4 from the Nissan Rogue instructions for both the driver and passenger sides.

All Vehicles:

1. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember. Avoid drilling into the vehicle floor or bed.
   • Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.

2. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame to the vehicle battery.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.

3. Connect to the Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.

4. Mount the Black Box:

   • Find a flat surface near the driver’s side taillight to mount the T-Connector black box.
   • Secure it with the provided double-sided tape and cable ties.

5. Reassemble the Vehicle:

   • Replace all trim panels, the threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched or damaged.

6. Test the Installation:

   • Test and verify the T-Connector functionality with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or unit specifications.
• Store the 4-flat connector in the rear cargo area when not in use.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Follow all warnings and instructions carefully.
• Refer to the vehicle owner’s manual for additional guidance.
