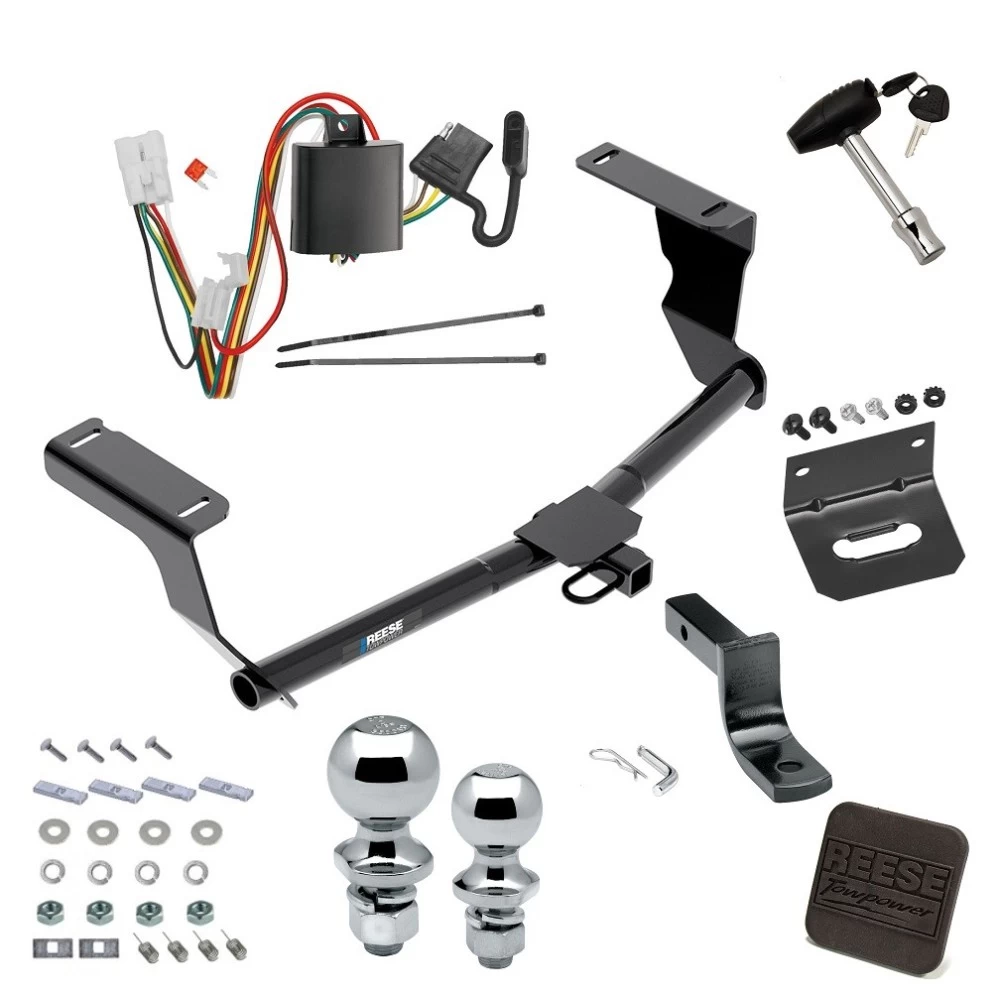

Ultimate Tow Package For 13‑15 Subaru XV Crosstrek Trailer Hitch w/ Wiring Draw‑Bar Dual 2" and 1‑7/8" Ball Lock Bracket Cover 1‑1/4" Receiver Reese
Model: 77959 118467 3593 580407 63820 63810 7051500 118144Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Draw-Bar w/ Pin/Clip
Security Lock Pin
1-7/8" and 2" Chrome Ball
Rubber Hitch Plug Cover
4-Flat Mounting Bracket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2015 Subaru, XV Crosstrek, Except Hybrid

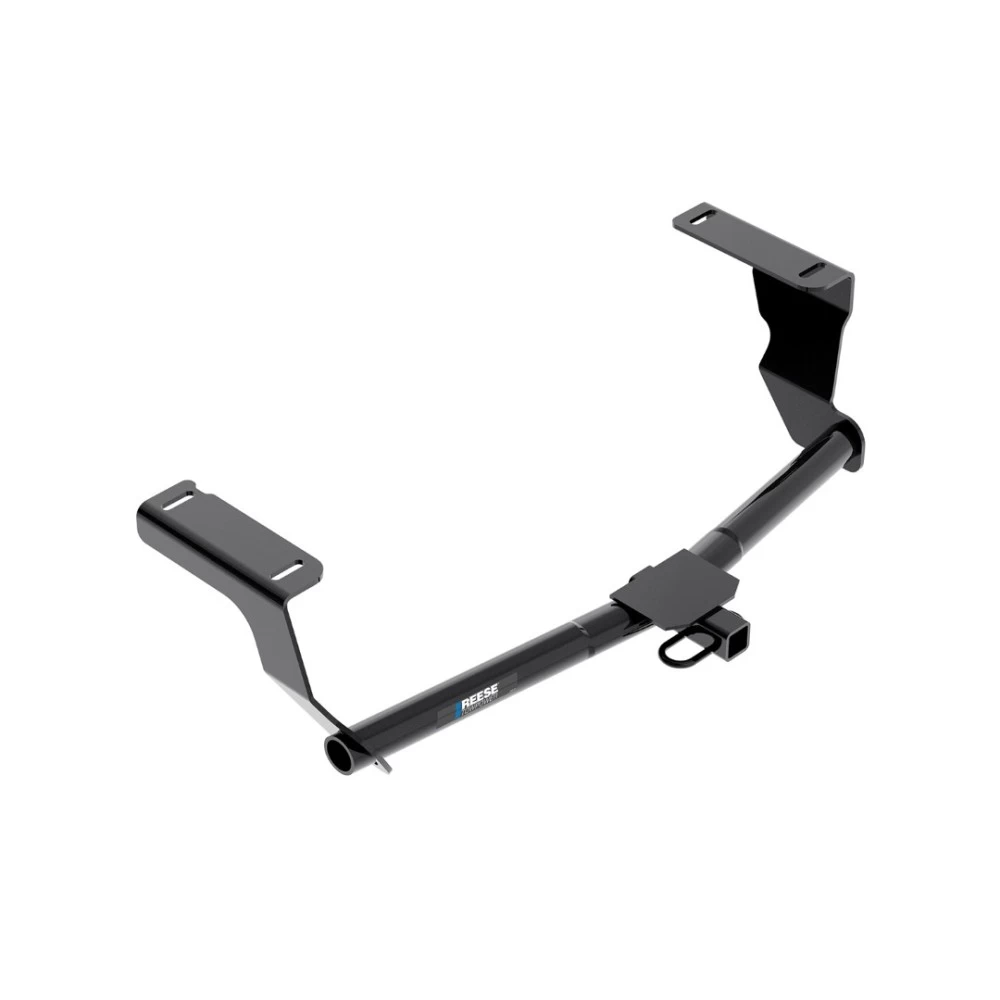

Trailer Hitch Specs:
| Part Number | 77959 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Max gross trailer weight | 2,000 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

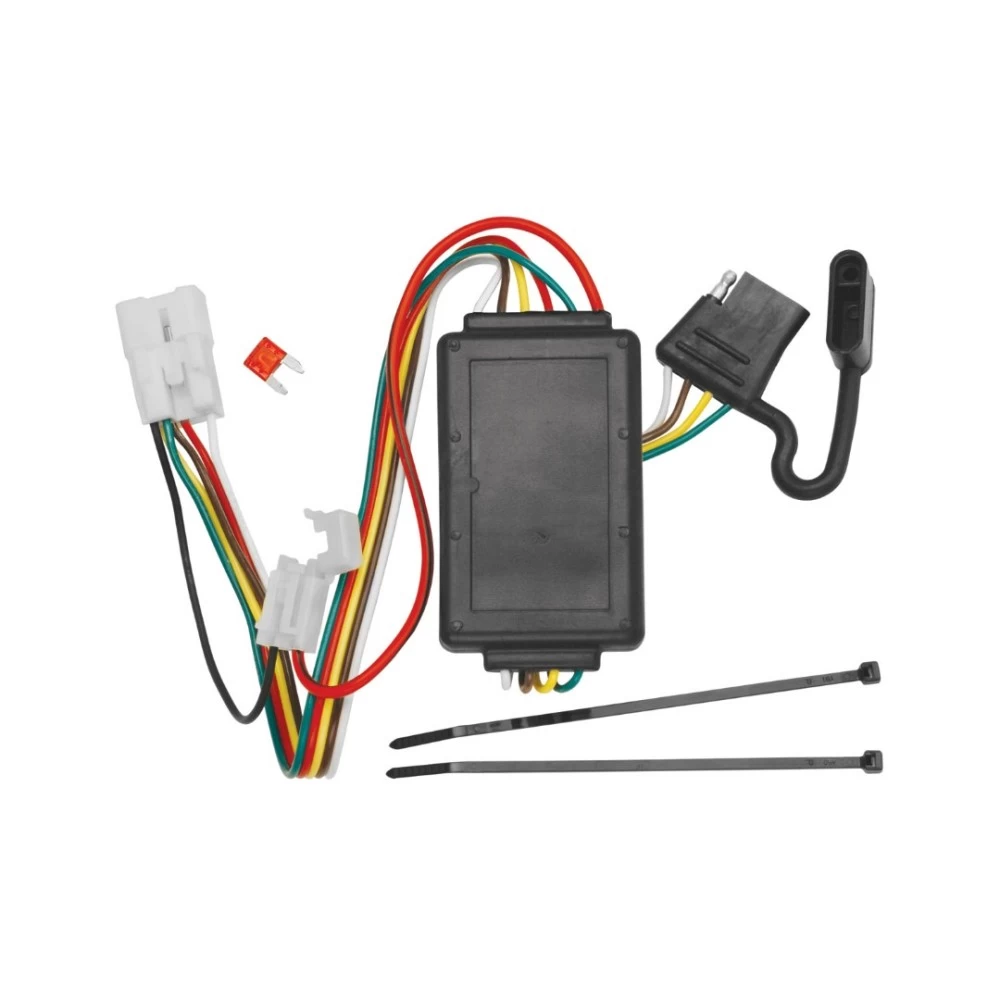

Wiring Kit Specs:
| Part Number | 118467 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7051500 |
| Fits | 1-1/4" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
4-Flat Mounting Bracket
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 13 14 15 2013 2014 2015
$316 52 $469.01 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$469.01 $316 52
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $79.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77959 118467 3593 580407 63820 63810 7051500 118144
- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Lock, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Tube Cover, Mounting Bracket
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Draw-Bar w/ Pin/Clip
Security Lock Pin
1-7/8" and 2" Chrome Ball
Rubber Hitch Plug Cover
4-Flat Mounting Bracket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2015 Subaru, XV Crosstrek, Except Hybrid
Trailer Hitch Specs:
| Part Number | 77959 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Max gross trailer weight | 2,000 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118467 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7051500 |
| Fits | 1-1/4" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
4-Flat Mounting Bracket
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 13 14 15 2013 2014 2015
Get Expert Help
Ultimate Tow Package For 13-15 Subaru XV Crosstrek Trailer Hitch w/ Wiring Draw-Bar Dual 2" and 1-7/8" Ball Lock Bracket Cover 1-1/4" Receiver Reese Install Notes
Installation Instructions for Subaru Impreza (2008-Current) and Subaru Crosstrek XV (2013-Current)
Part Numbers:
- 24959
- 77959
- CQT24959
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16"
- Exhaust Removal Pliers
- 6" Socket Extension
- Drill with 1/2" and 1/4" Drill Bits
- File
- Lubricant or Soapy Water
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 30 minutes (Professional Installer)
Step-by-Step Instructions:
-
Lower Muffler:
- Use exhaust removal pliers to remove the rubber hangers (4 or 5 depending on the vehicle year) holding the muffler.
- Apply lubricant or soapy water to ease the removal process.
- Support the muffler to prevent damage.
-
Remove Rubber Plugs:
- Remove the rubber plugs from the existing holes in the vehicle frame (2 or 3 depending on the vehicle year) on each side.
-
Enlarge Holes (If Necessary):
- Drill the rear-most hole with a 1/2" bit and the forward-most hole with a 1/4" bit. Use a file to smooth the edges.
-
Install Fasteners:
- Use the pull wire to guide the carriage bolts and spacer blocks through the rear-most hole and out the forward-most hole in the frame.
- For the rear-most holes, use a reverse fish wire method to pull the fasteners into position.
-
Position Hitch:
- Carefully raise the hitch into position, ensuring that the fasteners remain in place.
- Install the flat washers, lock washers, and nuts onto the fasteners, ensuring that spacer blocks are positioned between the vehicle frame and the hitch at the forward-most holes.
-
Torque Fasteners:
- Tighten all 7/16"-14 fasteners to 50 Lb.-Ft. (68 N*M).
-
Raise Muffler:
- Reattach the muffler to its original position using the rubber hangers.
Hardware List:
- (4) Carriage Bolts: 7/16"-14 x 1.5" GR5
- (4) Spacer Blocks: 1/4" x 7/8" x 3"
- (4) Flat Washers: 7/16"
- (4) Lock Washers: 7/16"
- (4) Hex Nuts: 7/16"-14 GR2
- (2) Spacer Blocks: 1/4" x 1" x 2"
- (4) Pull Wires: 7/16"-14
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Frequently check the hitch to ensure all fasteners remain tight.
Installation Instructions for Subaru Impreza (2008-Current) and Subaru Crosstrek XV (2013-Current)
Part Numbers:
- 24959
- 77959
- CQT24959
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16"
- Exhaust Removal Pliers
- 6" Socket Extension
- Drill with 1/2" and 1/4" Drill Bits
- File
- Lubricant or Soapy Water
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 30 minutes (Professional Installer)
Step-by-Step Instructions:
-
Lower Muffler:
- Use exhaust removal pliers to remove the rubber hangers (4 or 5 depending on the vehicle year) holding the muffler.
- Apply lubricant or soapy water to ease the removal process.
- Support the muffler to prevent damage.
-
Remove Rubber Plugs:
- Remove the rubber plugs from the existing holes in the vehicle frame (2 or 3 depending on the vehicle year) on each side.
-
Enlarge Holes (If Necessary):
- Drill the rear-most hole with a 1/2" bit and the forward-most hole with a 1/4" bit. Use a file to smooth the edges.
-
Install Fasteners:
- Use the pull wire to guide the carriage bolts and spacer blocks through the rear-most hole and out the forward-most hole in the frame.
- For the rear-most holes, use a reverse fish wire method to pull the fasteners into position.
-
Position Hitch:
- Carefully raise the hitch into position, ensuring that the fasteners remain in place.
- Install the flat washers, lock washers, and nuts onto the fasteners, ensuring that spacer blocks are positioned between the vehicle frame and the hitch at the forward-most holes.
-
Torque Fasteners:
- Tighten all 7/16"-14 fasteners to 50 Lb.-Ft. (68 N*M).
-
Raise Muffler:
- Reattach the muffler to its original position using the rubber hangers.
Hardware List:
- (4) Carriage Bolts: 7/16"-14 x 1.5" GR5
- (4) Spacer Blocks: 1/4" x 7/8" x 3"
- (4) Flat Washers: 7/16"
- (4) Lock Washers: 7/16"
- (4) Hex Nuts: 7/16"-14 GR2
- (2) Spacer Blocks: 1/4" x 1" x 2"
- (4) Pull Wires: 7/16"-14
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Frequently check the hitch to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Subaru (Forester, Outback, XV Crosstrek)
Part Numbers:
- 118467
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the cargo nets and cargo floor hatch to access the spare tire area.
-
Locate the Tow Plug Housing:
- 2009-2013 Subaru Forester: Remove the driver’s side and center foam cargo trays to locate the tow plug housing under the driver’s side foam tray.
- 2010-2019 Subaru Outback: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with blue tape.
- 2014-Current Subaru Forester / XV Crosstrek: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with tape.
- 2020-Current Subaru Outback: Temporarily remove the rear threshold plate. Locate the tow plug on the passenger side under the rear threshold plate. It is taped to the harness with tape.
-
Connect the T-Connector Harness:
- Insert the T-Connector harness into the vehicle’s tow plug housing and lock it into place.
- Ensure the connectors are fully inserted with the locking tabs engaged.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.
Note:
- Store the 4-flat connector in the spare tire compartment when not in use.
Warning:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the following specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Always follow all warnings and instructions included with the product before beginning installation.
- Wear safety glasses and use all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for T-Connector Adapter for Subaru (Forester, Outback, XV Crosstrek)
Part Numbers:
- 118467
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the cargo nets and cargo floor hatch to access the spare tire area.
-
Locate the Tow Plug Housing:
- 2009-2013 Subaru Forester: Remove the driver’s side and center foam cargo trays to locate the tow plug housing under the driver’s side foam tray.
- 2010-2019 Subaru Outback: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with blue tape.
- 2014-Current Subaru Forester / XV Crosstrek: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with tape.
- 2020-Current Subaru Outback: Temporarily remove the rear threshold plate. Locate the tow plug on the passenger side under the rear threshold plate. It is taped to the harness with tape.
-
Connect the T-Connector Harness:
- Insert the T-Connector harness into the vehicle’s tow plug housing and lock it into place.
- Ensure the connectors are fully inserted with the locking tabs engaged.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.
Note:
- Store the 4-flat connector in the spare tire compartment when not in use.
Warning:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the following specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Always follow all warnings and instructions included with the product before beginning installation.
- Wear safety glasses and use all safety precautions during installation.
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Warranty Information:
- This product is covered by a warranty for X years from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
For Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
TrailerJacks.com - Trailer Jacks, Hitches, Auto Parts & Accessories www.trailerjacks.com
