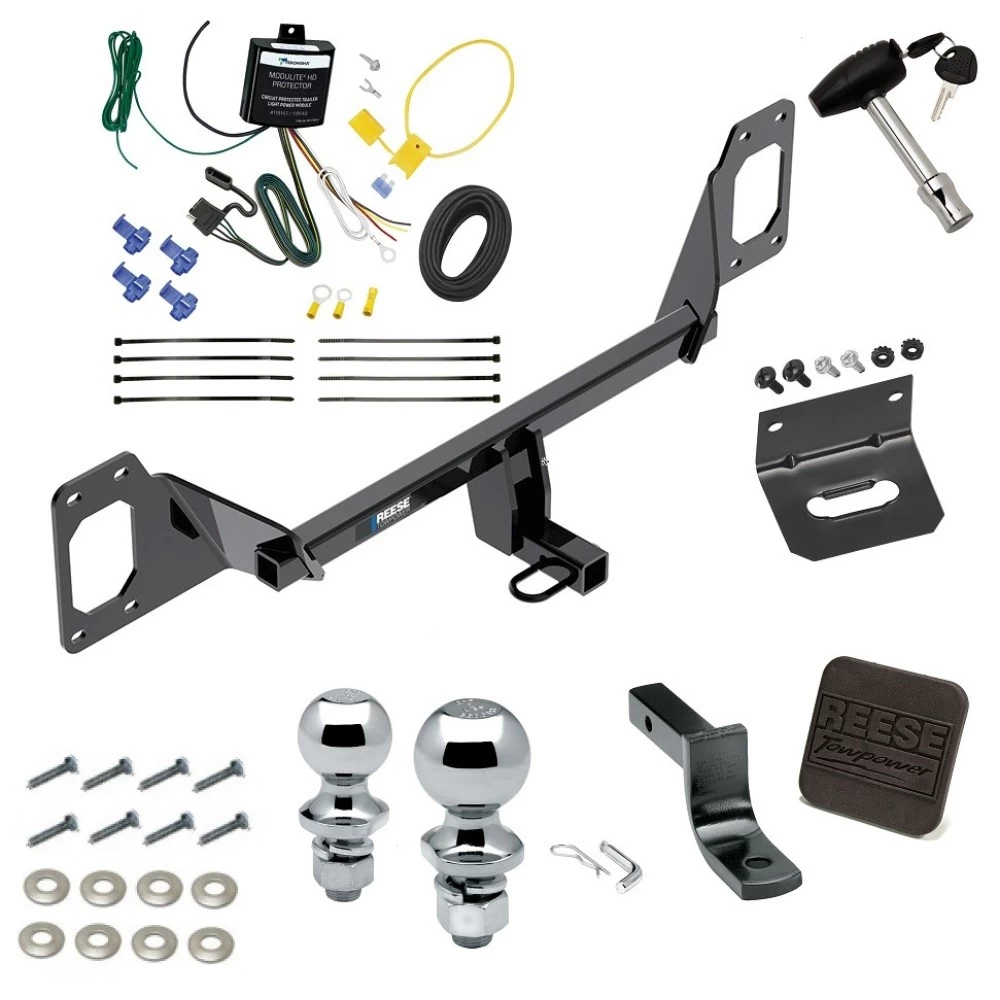

Installation Instructions for Honda Civic Sedan, Coupe, and Hatchback (2016-Current)

Part Numbers:

• 24954
• 77336
• CQT24954

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 12mm, 13mm
• 5mm Allen Wrench
• Flat-Head Screwdriver
• Small Phillips Screwdriver
• Utility Knife
• Die Grinder
• Drill with Small Drill Bit
• Tape Measure
• Marker
• 6" Socket Extension

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 65 minutes (Professional Installer)

Step-by-Step Instructions:

1. Mark Fascia Centerline:

   • Use a marker or tape to mark the centerline of the fascia for reference.

2. Remove Plastic Rivets and Screws:

   • Remove plastic rivets from the supports on the bottom of the bumper fascia by pulling the center post of the rivet approximately 1/4". Push out the rivet by hand. Remove 3–4 Phillips screws from each wheel well.

3. Remove Trunk Fasteners:

   • Open the trunk and remove two hex screws from under the rear hatch securing the bumper fascia. Repeat for both sides.

4. Remove Bumper Fascia:

   • Loosen tail light bolts to allow additional clearance for fascia removal.
   • Gently pull upward from the rear wheel well trim panel on both sides, unclipping the tabs inside. Work up toward the tail lights, releasing cleats with a small screwdriver as needed. Continue to remove along the bottom to the trunk, detaching any wiring harness if present. Set the fascia aside.

5. Remove Bumper:

   • Remove eight (8) bolts holding the bumper in place. Return the fasteners to the vehicle owner.

6. Trim Bumper (If Necessary):

   • Use a die grinder to remove any material as shown in Figure 2.

7. Install Hitch and Bumper:

   • Raise the hitch and bumper into position as shown in Figure 1. Secure with the provided fasteners.

8. Tighten Fasteners:

   • Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).

9. Trim Fascia:

   • Using the centerline marked in Step 1, trim a 2.50” x 4.00” section from the fascia as shown in Figure 3. Use a drill to create rounded corners.

10. Reinstall Fascia:

    • Align and reinstall the fascia, ensuring all fasteners and wiring harnesses are reattached in reverse order of removal.

Hardware List:

• (8) Hex Bolts: M8 x 1.25 x 30mm CL8.8
• (8) Conical Washers: 3/8"

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Frequently check the hitch to ensure all fasteners remain tight.

Installation Instructions for Honda Civic Sedan, Coupe, and Hatchback (2016-Current)

Part Numbers:

• 24954
• 77336
• CQT24954

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 12mm, 13mm
• 5mm Allen Wrench
• Flat-Head Screwdriver
• Small Phillips Screwdriver
• Utility Knife
• Die Grinder
• Drill with Small Drill Bit
• Tape Measure
• Marker
• 6" Socket Extension

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 65 minutes (Professional Installer)

Step-by-Step Instructions:

1. Mark Fascia Centerline:

   • Use a marker or tape to mark the centerline of the fascia for reference.

2. Remove Plastic Rivets and Screws:

   • Remove plastic rivets from the supports on the bottom of the bumper fascia by pulling the center post of the rivet approximately 1/4". Push out the rivet by hand. Remove 3–4 Phillips screws from each wheel well.

3. Remove Trunk Fasteners:

   • Open the trunk and remove two hex screws from under the rear hatch securing the bumper fascia. Repeat for both sides.

4. Remove Bumper Fascia:

   • Loosen tail light bolts to allow additional clearance for fascia removal.
   • Gently pull upward from the rear wheel well trim panel on both sides, unclipping the tabs inside. Work up toward the tail lights, releasing cleats with a small screwdriver as needed. Continue to remove along the bottom to the trunk, detaching any wiring harness if present. Set the fascia aside.

5. Remove Bumper:

   • Remove eight (8) bolts holding the bumper in place. Return the fasteners to the vehicle owner.

6. Trim Bumper (If Necessary):

   • Use a die grinder to remove any material as shown in Figure 2.

7. Install Hitch and Bumper:

   • Raise the hitch and bumper into position as shown in Figure 1. Secure with the provided fasteners.

8. Tighten Fasteners:

   • Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).

9. Trim Fascia:

   • Using the centerline marked in Step 1, trim a 2.50” x 4.00” section from the fascia as shown in Figure 3. Use a drill to create rounded corners.

10. Reinstall Fascia:

    • Align and reinstall the fascia, ensuring all fasteners and wiring harnesses are reattached in reverse order of removal.

Hardware List:

• (8) Hex Bolts: M8 x 1.25 x 30mm CL8.8
• (8) Conical Washers: 3/8"

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Frequently check the hitch to ensure all fasteners remain tight.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Installation Instructions for Modulite® HD Protector Vehicle Wiring

Part Number:

• 119148

Tools Required:

• Phillips Head #2 Screwdriver
• Wire Cutters
• Wire Strippers/Wire Crimpers
• Tester or Volt Meter
• Socket & Ratchet Set
• Drill with 3/32” Drill Bit
• Double-Sided Tape

Step-by-Step Instructions:

Tow Vehicle Inputs - Determination:

1. Disconnect and isolate the vehicle's negative battery terminal.
   • Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
2. Splice the tow harness input wires to the vehicle as determined.
   • Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.

Harness Installation:

1. Determine the mounting location of the module and secure it using the double-sided tape provided.
   • Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
2. Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
3. Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15 amp fuse yet.
   • Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.

Completion:

1. Secure the harness with cable ties provided to prevent damage or rattling.
2. Reconnect the vehicle's negative battery cable.
3. Insert the 15 amp fuse into the fuse holder and close the cap.
4. Test the installation using a test light or trailer. Check each function independently and in combination.

Hardware List:

• 8 × Cable Ties, 8.5”
• 1 × 15 AMP Fuse
• 2 × Ring Terminals
• 1 × Fuse Holder
• 2 × Yellow Butt Connectors
• 1 × Self-Tapping Screw
• 4 × Blue Taps
• 1 × Spade Terminal

Wiring Outputs:

• White Wire: Ground
• Brown Wire: Tail
• Yellow Wire: Left Turn/Brake
• Green Wire: Right Turn/Brake
• Red Wire: Stop (for 3-wire systems only)

Safety Notes:

• Always read and follow all warnings and instructions included with the product and the vehicle's manual.
• Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
• Wear safety glasses and use all necessary safety precautions during installation.

Troubleshooting Guide:

• 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
• No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.

Specifications:

• Installation Time: Approximately 45 minutes
• Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

For warranty information, please download the full installation PDF.
