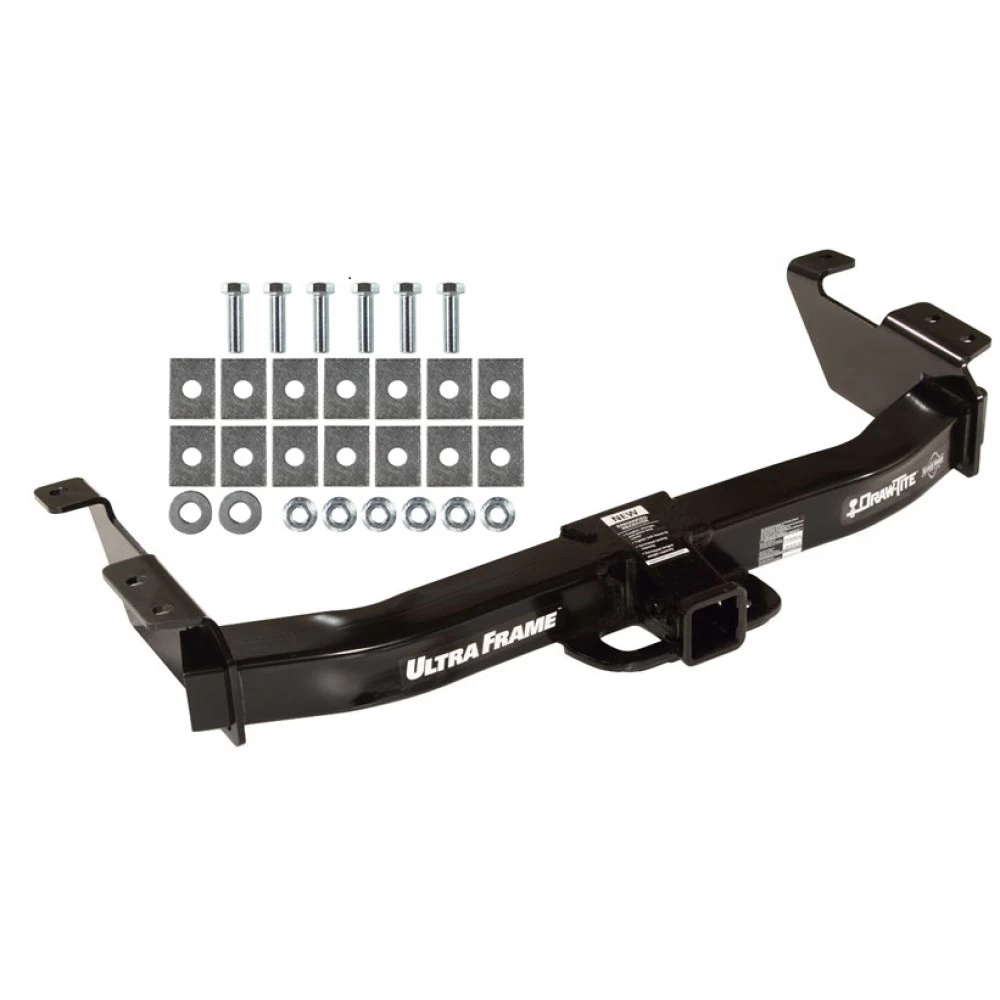

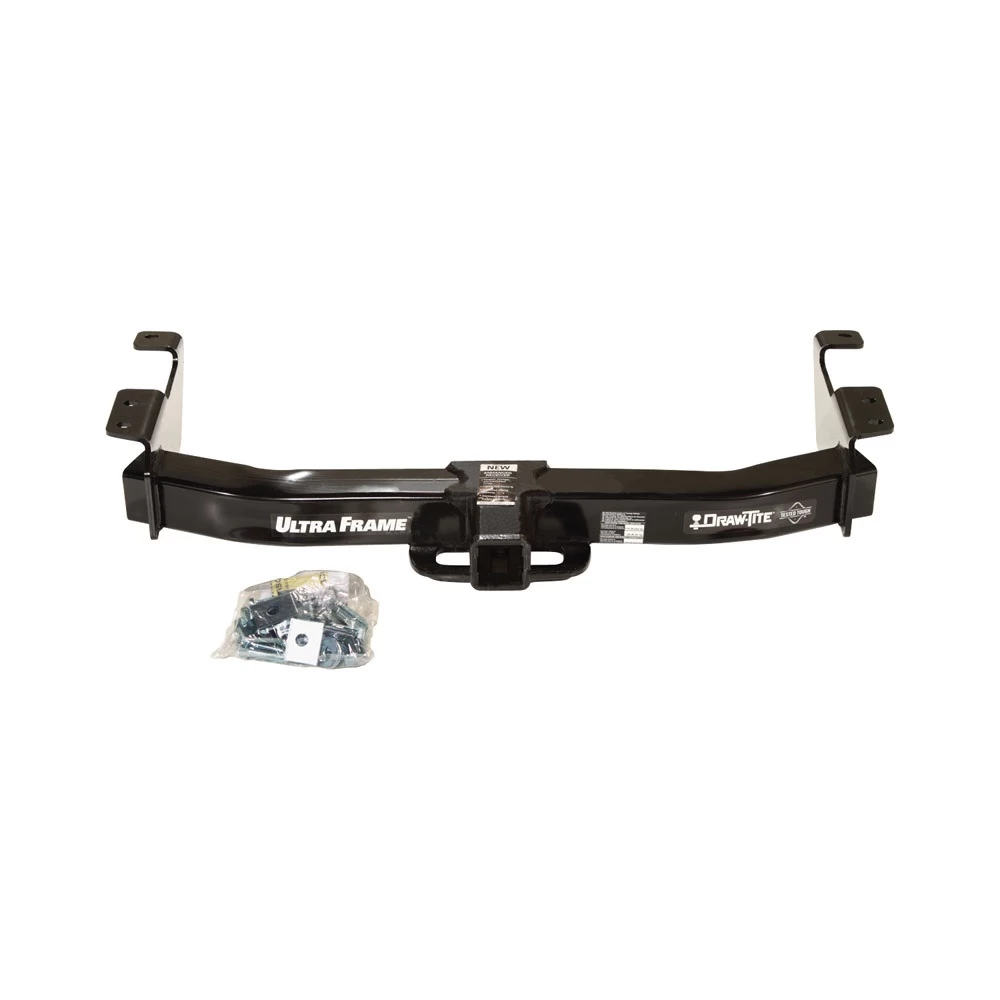

Installation Instructions for Ford Econoline Van (All Models)

Part Numbers:

• 41945

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 13/16", 7/8"
• Drill Bits: None

Step-by-Step Instructions:

1. Lower Carbon Canister:

   • If present, lower the carbon canister from the driver’s side frame rail.

2. Disconnect Factory Wiring:

   • Disconnect the factory-installed optional driver’s side trailer wiring connector from the bumper.

3. Position Hitch:

   • Raise the hitch into position and attach it using the fasteners provided.
   • Ensure a block is sandwiched between the hitch and the frame at the middle attachment point.

4. Reconnect Wiring Connector:

   • Reinstall the factory trailer wiring connector, ensuring it clears the hitch.

5. Reattach Carbon Canister:

   • If a carbon canister is present, ensure it does not contact the bolt head.
   • If necessary, loosen the canister fasteners and reposition it to ensure clearance with the bolt head.

Torque Specifications:

• Tighten all 9/16"-18 GR5 fasteners to 120 lb-ft (163 N*m).

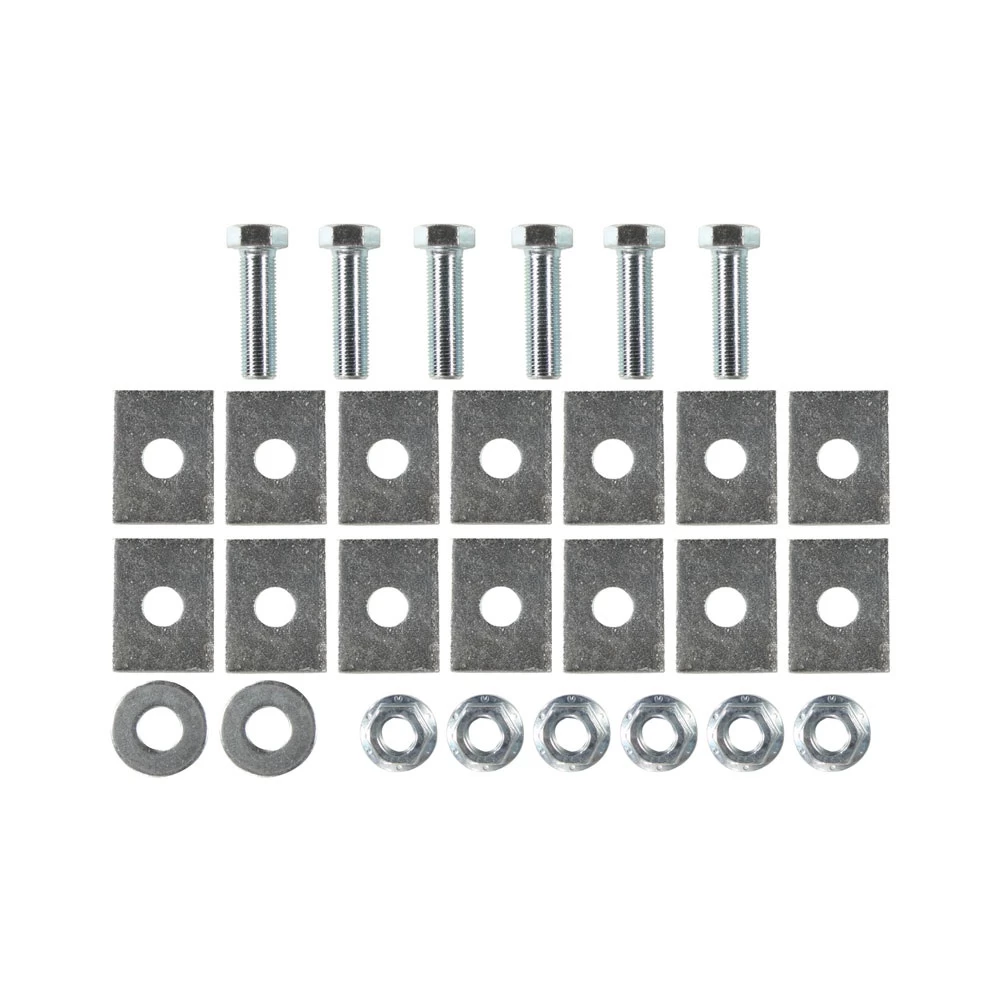

Hardware List:

• (6) Hex Bolts, 9/16"-18 x 2.00" GR5
• (6) Flanged Locknuts, 9/16"-18
• (14) Blocks, 1.50" x 2.00" x 0.250"
• (2) Washers, 9/16"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 10,000 lb (4,540 kg)
  • Max Tongue Weight: 1,500 lb (681 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 12,000 lb (5,448 kg)
  • Max Tongue Weight: 1,200 lb (545 kg)

Additional Notes:

• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
• Ensure all attachments and clearances are verified during installation to maintain safety and functionality.

Installation Instructions for Full-Size Van (All Models)

Part Numbers:

• 41945

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 13/16", 7/8"
• Drill Bits: None

Step-by-Step Instructions:

1. Lower Carbon Canister:

   • If present, lower the carbon canister from the driver’s side frame rail.

2. Disconnect Factory Wiring:

   • Disconnect the factory-installed optional driver’s side trailer wiring connector from the bumper.

3. Position Hitch:

   • Raise the hitch into position and attach it using the fasteners provided.
   • Ensure a block is sandwiched between the hitch and the frame at the middle attachment point.

4. Reconnect Wiring Connector:

   • Reinstall the factory trailer wiring connector, ensuring it clears the hitch.

5. Reattach Carbon Canister:

   • If a carbon canister is present, ensure it does not contact the bolt head.
   • If necessary, loosen the canister fasteners and reposition it to ensure clearance with the bolt head.

Torque Specifications:

• Tighten all 9/16"-18 GR5 fasteners to 120 lb-ft (163 N*m).

Hardware List:

• (6) Hex Bolts, 9/16"-18 x 2.00" GR5
• (6) Flanged Locknuts, 9/16"-18
• (14) Blocks, 1.50" x 2.00" x 0.250"
• (2) Washers, 9/16"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 10,000 lb (4,540 kg)
  • Max Tongue Weight: 1,500 lb (681 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 12,000 lb (5,448 kg)
  • Max Tongue Weight: 1,200 lb (545 kg)

Additional Notes:

• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
• Ensure all attachments and clearances are verified during installation to maintain safety and functionality.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
